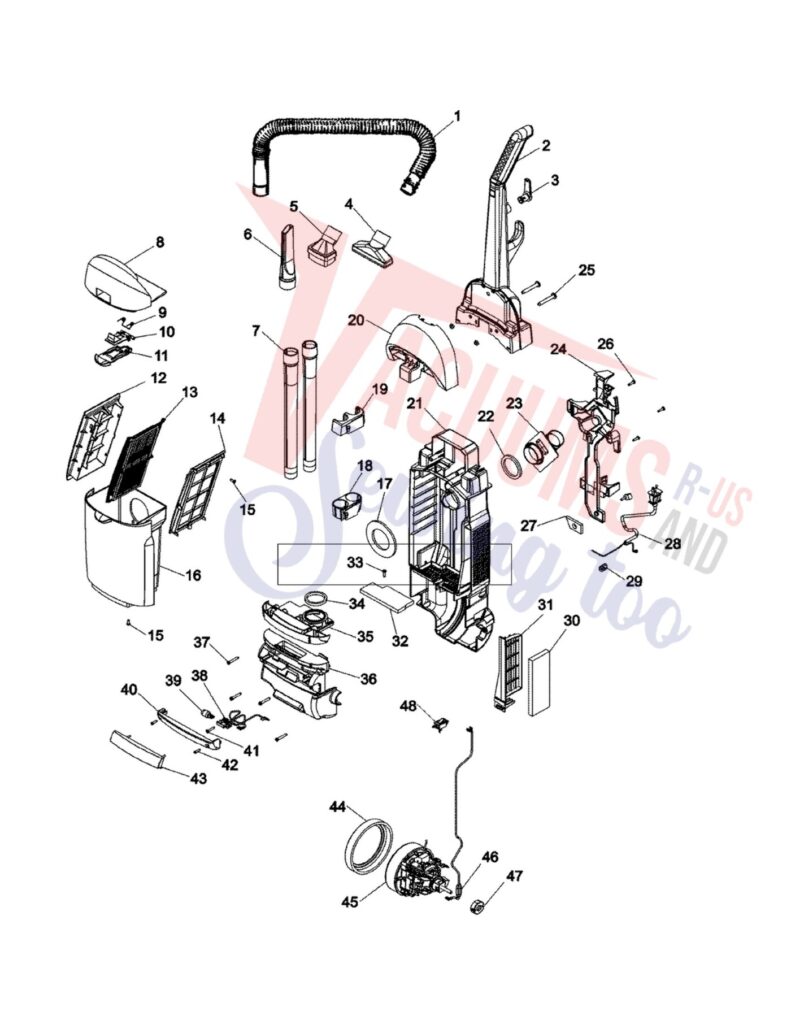

Schematic and parts book for hoover U5155900, U5155-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOSE ASSEM COMP | 43434248 | Not Available |
| 2 | Not Available | UPPER HANDLE | 39466065 | Not Available |
| 3 | Not Available | CORD WRAP | 3944201P | Not Available |
| 4 | Not Available | FURNITURE NOZZLE | 3861401E | Not Available |
| 5 | Not Available | MOTOR BRUSH | 41311017 | Not Available |
| 6 | Not Available | CREVICE TOOL-ABR | 38617027 | Not Available |
| 7 | Not Available | EXTENSION TUBE-AG | 38634078 | Not Available |
| 8 | Not Available | DIRT CUP LID-AGD | 91001055 | Not Available |
| 9 | No Image | SPRING, DIRT CUP LATCH Part Number: 38355015 for Hoover | 38355015 | $1.96Read more |
| 10 | Not Available | LATCH-DIRT CUP | 36151032 | Not Available |
| 11 | Not Available | LATCH ACTUATOR | 38421104 | Not Available |
| 12 | Not Available | PRE-FILTER SCREEN | 36426053 | Not Available |
| 13 | Not Available | Primary Filter-U5344 40110008 | 43613026 | Not Available |
| 14 | Not Available | FILTER SUPPORT W/OVERMOLD | 36426056 | Not Available |
| 15 | Not Available | SCREW | 21447041 | Not Available |
| 16 | Not Available | DIRT CUP-ACW | 91001056 | Not Available |
| 17 | Not Available | INTAKE SE AL | 38784089 | Not Available |
| 18 | Not Available | LOWER W ND HOLDER | 36433116 | Not Available |
| 19 | Not Available | UPPER WAND HOLDER | 36433117 | Not Available |
| 20 | Not Available | CARRY HANDLE-AGD | 91001057 | Not Available |
| 21 | Not Available | BAG HOUSING | 90001008 | Not Available |
| 22 | Not Available | HOSE CONNECTOR GASKET | 31178017 | Not Available |
| 23 | Not Available | DIRT DUCT | 38641005 | Not Available |
| 24 | Not Available | DIRT DUCT | 38641005 | Not Available |
| 25 | Not Available | HANDLE HARDWARE ASSEM | 40201149 | Not Available |
| 26 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 27 | Not Available | WIRE OPENING SEAL | 34311004 | Not Available |
| 28 | Not Available | CORD-35'-WT | 46383334 | Not Available |
| 29 | Not Available | STRAIN RELIEF | 27482230 | Not Available |
| 30 | Not Available | FINAL FILTER | 38766008 | Not Available |
| 31 | Not Available | FILTER HOLDER-STD | 36426060 | Not Available |
| 32 |  | Secondary Filter for Hoover Windtunnel | 38765019 | $5.42Read more |
| 33 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 34 | Not Available | EXHAUST SEAL-DIRT CUP | 38784084 | Not Available |
| 35 | Not Available | SEC FILTER RETAINER | 36426066 | Not Available |
| 36 | Not Available | MOTOR COVER-ABE | 37196158 | Not Available |
| 37 | Not Available | SCREW-SELF TAPPING-F | 21447230 | Not Available |
| 38 | Not Available | WIRING HARNESS-ASSEM 47173023 | 47173016 | Not Available |
| 39 | Not Available | LAMP | 27313101 | Not Available |
| 40 |  | Lens-Cp For: hoover | 39383107 | $4.36Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 42 | Not Available | SCREW-SELF-TAPPING | 21447228 | Not Available |
| 43 |  | Cover-Abe For: hoover | 37944010 | $1.95Add to cart Special order: ships in 2 to 4 weeks |
| 44 | Not Available | MOTOR MOUNT-LRG 36322037 | 36322035 | Not Available |
| 45 | Not Available | MOTOR ASSEM COMP. | 43576188 | Not Available |
| 46 | Not Available | THERMOL PROTECTOR | 28382086 | Not Available |
| 47 | Not Available | MOTOR MOUNT-SMALL | 36322030 | Not Available |
| 48 | Not Available | SWITCH-WT-.025 TERM | 28161067 | Not Available |

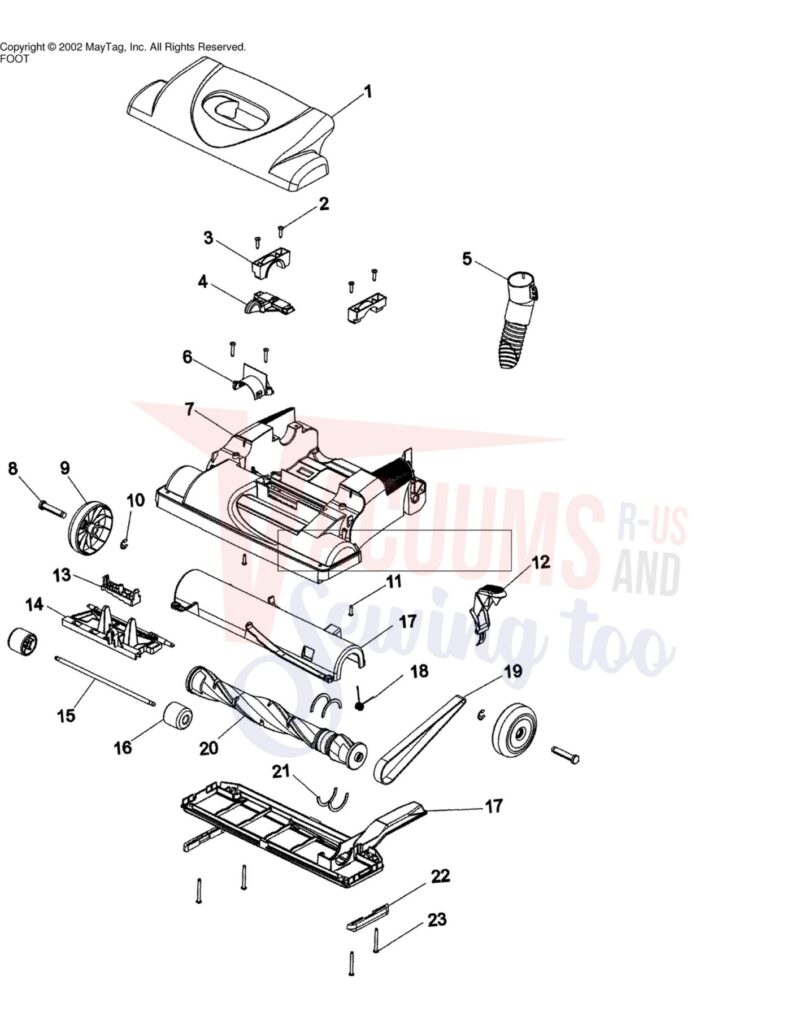

| # | Part image | Description | SKU | Price |
| 1 | Not Available | STD HOOD-15 PRINTED-AGD | 92001062 | Not Available |
| 2 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 3 | Not Available | TRUNNION COVER-ABE | 36131094 | Not Available |
| 4 | Not Available | NOZZLE ADJ. LEVER-AG 40309004 | 38421087 | Not Available |
| 5 | Not Available | ANGLED HOSE CONN. AS 43431005 | 43431215 | Not Available |
| 6 |  | Hose Clamp Hoover U5421-9Rm Upright For: hoover | 36171044 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | MAIN BODY W/GUARD-15 IN-ABE | 92001038 | Not Available |
| 8 | Not Available | REAR AXLE | 32434007 | Not Available |
| 9 | Not Available | REAR WHEEL | 38522077 | Not Available |
| 11 | Not Available | SCREW-SELF-TAPPING | 21447228 | Not Available |
| 12 | Not Available | HANDLE RELEASE LEVER | 38458043 | Not Available |
| 13 | Not Available | NOZZLE ADJ. CAM-ABE- 40309004 | 38563007 | Not Available |
| 14 | Not Available | FRONT WHEEL SUPPORT-CP | 36432027 | Not Available |
| 14 | Not Available | FRONT WHEEL ASSEM COMPLETE | 92001026 | Not Available |
| 15 |  | Wheel Shaft Hoover Upright For: hoover | 32541007 | $7.10Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | FRONT WH EEL-AG | 38521009 | Not Available |
| 17 | Not Available | BOTTOM P .ATE/DUCT CO | 40309026 | Not Available |
| 18 | Not Available | TORSION SPRING | 38355010 | Not Available |
| 19 | Not Available | BELT | 38528033 | Not Available |
| 20 | Not Available | AGITATOR-13-SERVICE | 48414110 | Not Available |
| 21 |  | Seal-Agitator Pulley-Hoover U5445 For: hoover | 38781053 | $1.44Add to cart |
| 22 | Not Available | FURNITURE GUARD FILLER | 36235088 | Not Available |
| 23 | Not Available | SCREW | 21447121 | Not Available |
