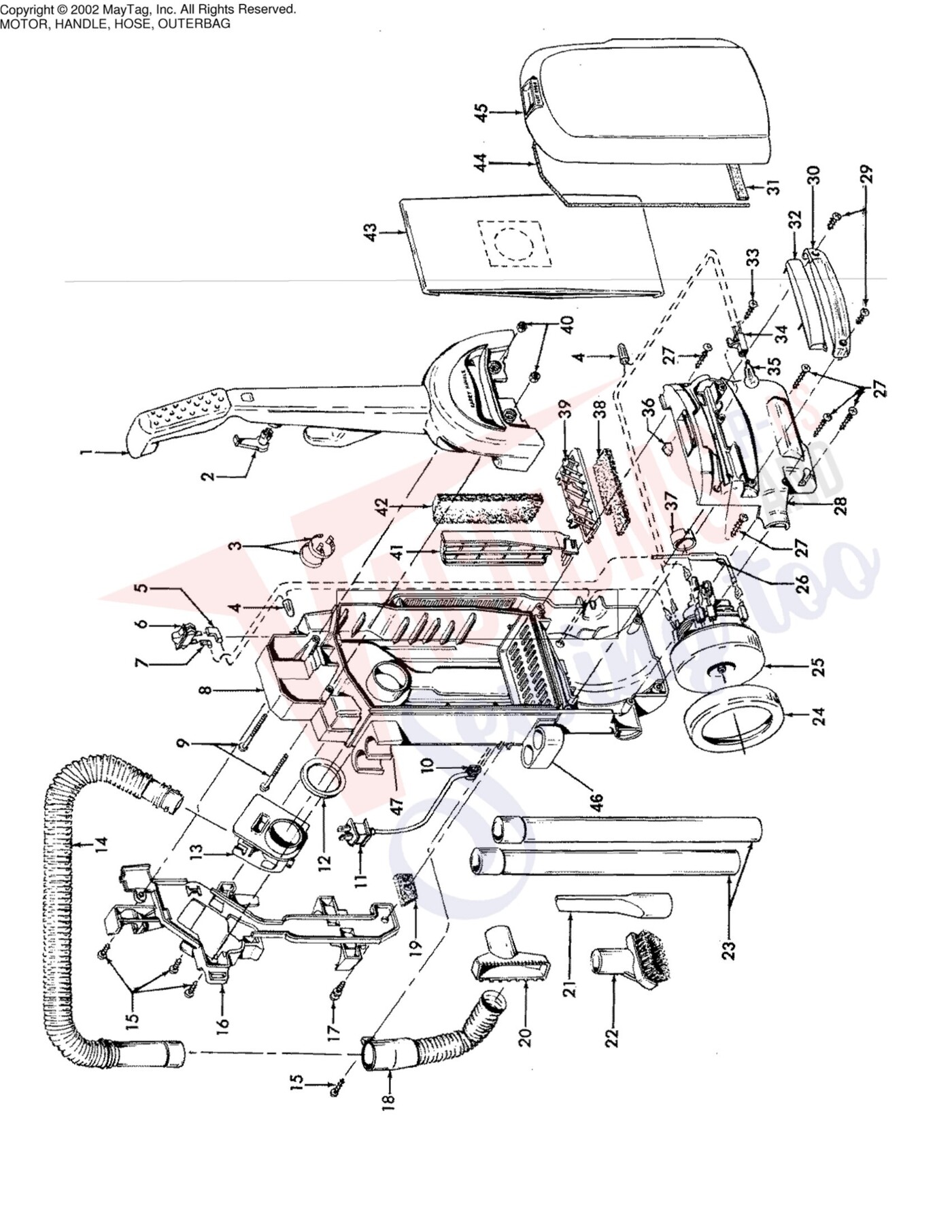

Schematic and parts book for Hoover U5146900, U5146-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE ASSM.-SERVICE | 48663206 | Not Available |
| 1 | Not Available | FALCON JR HOOD-13 IN-AFS | 37253407 | Not Available |
| 2 | Not Available | CORD WRAP | 3944201P | Not Available |
| 2 | Not Available | HOSE DOOR ASSEM-SERVICE | 43431005 | Not Available |
| 3 | Not Available | CABLE TIE | 27479307 | Not Available |
| 3 | Not Available | HANDLE RELEASE LEVER | 38458043 | Not Available |
| 4 | Not Available | WIRE CONNECTOR | 27618508 | Not Available |
| 4 | Not Available | NOZZLE ADJ LEVER & CAM KIT | 40309004 | Not Available |
| 5 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 6 | Not Available | SWITCH-WT-.025 TERM | 28161067 | Not Available |
| 6 | Not Available | SWITCH KIT-SERVICE | 40309033 | Not Available |
| 6 | Not Available | TRUNNION COVER-ABE | 36131094 | Not Available |
| 7 |  | Hose Clamp Hoover U5421-9Rm Upright For: hoover | 36171044 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | BAG HOUSING-C1703/05 | 37255013 | Not Available |
| 8 | Not Available | LOCK RING | 160017 | Not Available |
| 9 | Not Available | HANDLE HARDWARE ASSEM | 40201149 | Not Available |
| 9 | Not Available | REAR WHEEL | 38522077 | Not Available |
| 10 | Not Available | STRAIN RELIEF | 27482230 | Not Available |
| 10 | Not Available | REAR AXLE-AAX-U5433- | 32434008 | Not Available |
| 11 | Not Available | CORD-35'-WT | 46383334 | Not Available |
| 11 | Not Available | MAIN BODY W/GUARD-13 IN-ABE | 37242140 | Not Available |
| 12 | Not Available | HOSE CONNECTOR GASKET | 31178017 | Not Available |
| 12 | Not Available | SCREW-SELF-TAPPING | 21447228 | Not Available |
| 13 | Not Available | DIRT DUCT | 38641005 | Not Available |
| 13 | Not Available | NOZZLE ADJ LEVER & CAM KIT | 40309004 | Not Available |
| 14 | Not Available | HOSE ASSEM COMP | 43434248 | Not Available |
| 14 | Not Available | TORSION SPRING | 38355010 | Not Available |
| 15 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 15 | Not Available | FRONT WHEEL SUPPORT-CP | 36432027 | Not Available |
| 15 | Not Available | FRONT WHEEL ASSEMBLY | 43248057 | Not Available |
| 16 | Not Available | TOOL/HOS E HOLDER 92001 070 | 36433112 | Not Available |
| 16 | Not Available | WHEEL SH AFT | 32541003 | Not Available |
| 17 |  | Screw-Hoover Windtunnel Cord Retainer For: hoover | 23149002 | $0.96Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | FRONT WH EEL 43248 064 | 38521004 | Not Available |
| 18 | Not Available | HOSE DOOR ASSEM-SERVICE | 43431005 | Not Available |
| 18 | Not Available | WHEEL RETAINER - BZ | 36131056 | Not Available |
| 19 | Not Available | WIRE OPENING SEAL | 34311004 | Not Available |
| 19 | Not Available | BOTTOM PLATE/DUCT 13 SERVICE | 40309025 | Not Available |
| 20 | Not Available | FURNITURE NOZZLE | 3861401E | Not Available |
| 20 |  | Seal-Agitator Pulley-Hoover U5445 For: hoover | 38781053 | $1.44Add to cart |
| 21 | Not Available | CREVICE TOOL-ABR | 38617027 | Not Available |
| 21 | Not Available | AGITATOR-13-SERVICE | 48414110 | Not Available |
| 22 | Not Available | DUSTING BRUSH-ABR-U5 | 43414162 | Not Available |
| 22 | Not Available | BOTTOM PLATE/DUCT 13 SERVICE | 40309025 | Not Available |
| 23 | Not Available | EXTENSION TUBE-AG | 38634078 | Not Available |
| 23 | Not Available | LITTER PICKER | 39511004 | Not Available |
| 24 | Not Available | MOTOR MOUNT-LRG | 36322035 | Not Available |
| 24 | Not Available | SCREW | 21447121 | Not Available |
| 25 | Not Available | MOTOR ASSEM COMP. | 43576188 | Not Available |
| 25 | Not Available | FAN | 43566016 | Not Available |
| 25 | Not Available | MOTOR BRUSH | 41311017 | Not Available |
| 25 | Not Available | RIB SHOE | 13261AY | Not Available |
| 26 | Not Available | TOC LABEL-WINDTUNNEL | 51873001 | Not Available |
| 26 | Not Available | THERMOL PROTECTOR | 28382086 | Not Available |
| 26 | Not Available | BELT | 38528033 | Not Available |
| 27 | Not Available | SCREW-SELF TAPPING-F | 21447230 | Not Available |
| 28 | Not Available | MOTOR COVER-ABE | 37196158 | Not Available |
| 29 | Not Available | SCREW-SELF-TAPPING | 21447228 | Not Available |
| 30 |  | Lens-Cp For: hoover | 39383107 | $4.36Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | BAG DOOR GASKET-BOTTOM | 34123050 | Not Available |
| 32 |  | Cover-Abe For: hoover | 37944010 | $1.95Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 34 | Not Available | WIRING HARNESS | 47173023 | Not Available |
| 35 | Not Available | LAMP | 27313101 | Not Available |
| 36 |  | Wire Opening Plug For: hoover | 34131019 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | MOTOR MOUNT-SMALL | 36322030 | Not Available |
| 38 |  | Secondary Filter for Hoover Windtunnel | 38765019 | $5.42Read more |
| 39 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | HANDLE HARDWARE ASSEM | 40201149 | Not Available |
| 40 | Not Available | HEX NUT -AAX | 21641558 | Not Available |
| 41 | Not Available | FILTER HOLDER-STD | 36426060 | Not Available |
| 42 | Not Available | FINAL FILTER | 38766008 | Not Available |
| 42 |  | NO LONGER AVAILABLE Hoover Filter without Power Drive for Windtunnels | 40110004 | $10.20Read more |
| 42 |  | Compatible alternateFilter, Aftermarket Hoover WindTunnel Final 2Pk Part Number: 471119 for Hoover Replacement More Product Details | 471119 | $8.19Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Paper Bags-Hoover - Y - 3Pk - Allergen - Windtunnel - Upt For: hoover | 4010100Y | $16.94Add to cart Special order: ships in 2 to 4 weeks |
| 44 | Not Available | BAG DOOR GASKET | 38781057 | Not Available |
| 45 | Not Available | BAG HOUSING DOOR-AGE | 92001036 | Not Available |
| 46 | Not Available | LOWER WAND HOLDER | 36433116 | Not Available |
| 47 | Not Available | UPPER WAND HOLDER | 36433117 | Not Available |
| 48 | Not Available | BAG INDICATOR | 51151010 | Not Available |
| 48 | Not Available | CORD CLA MP | 012910 | Not Available |
| 48 | Not Available | OWNER M VNUAL | 56511C04 | Not Available |
