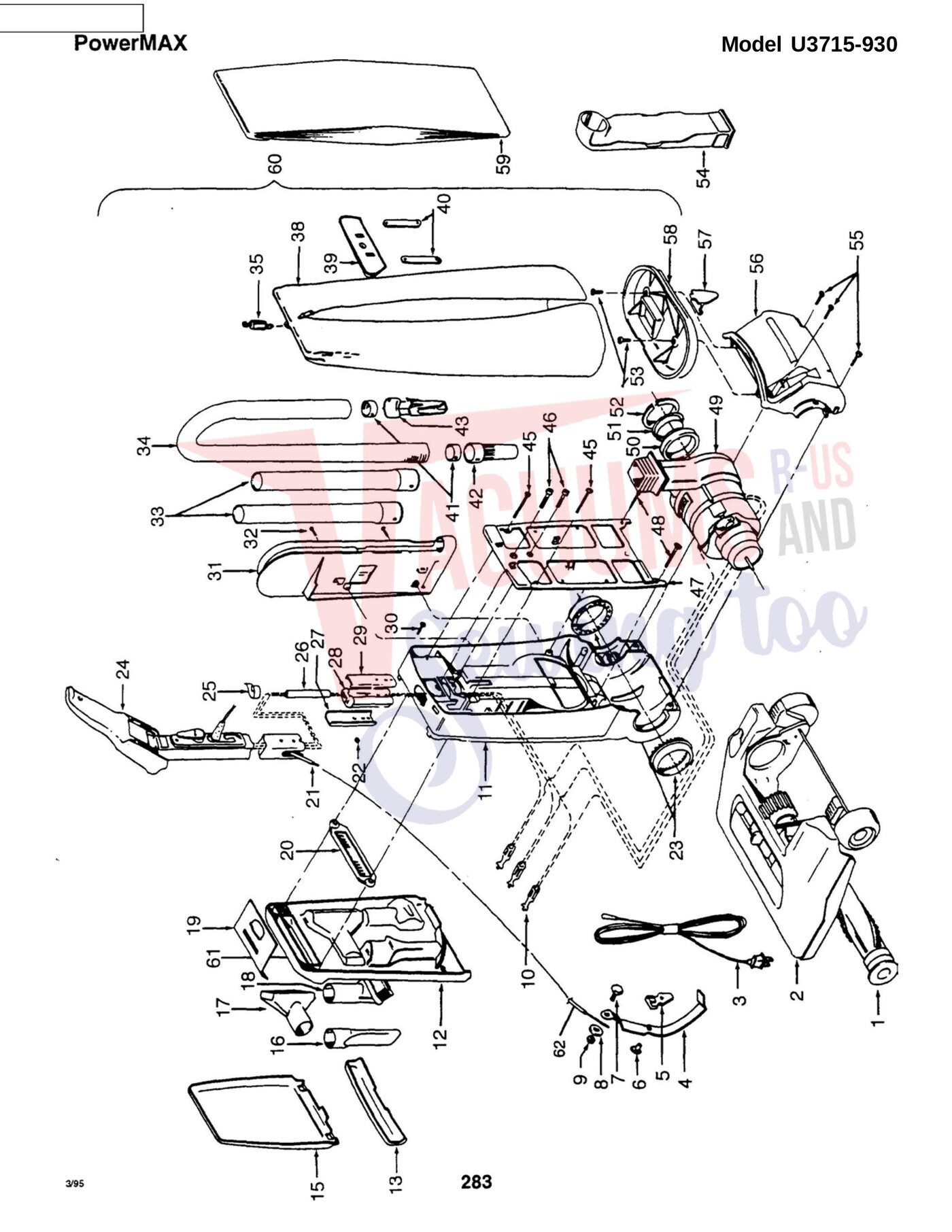

Schematic and parts book for hoover U3715-930 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Agitator Assem. (Molded) - See Detail | 48414013 | Not Available |
| 3 | Not Available | Cord | 46383315 | Not Available |
| 4 | Not Available | Actuator Bar Assem. | 43143096 | Not Available |
| 5 | Not Available | Pivot Bearing | 38511027 | Not Available |
| 6 | Not Available | Nut - Special | 160079AW | Not Available |
| 7 | Not Available | Bolt - Special | 160058 | Not Available |
| 8 | Not Available | Washer | 160059 | Not Available |
| 9 | Not Available | Nut | 21641623 | Not Available |
| 10 | Not Available | Insulated Terminal (3) | 12227 | Not Available |
| 11 | Not Available | Front Housing Assem. - ABC - (Incl. It. | 42253049 | Not Available |
| 12 | Not Available | Front Cover w/o Nameplate | 37254084 | Not Available |
| 13 | Not Available | Panel - ABC | 37246127 | Not Available |
| 15 | Not Available | Tool Door | 37257003 | Not Available |
| 16 | Not Available | Crevice Tool | 38617024 | Not Available |
| 17 | Not Available | Furniture Nozzle | 38614029 | Not Available |
| 18 | Not Available | Dusting Brush - Friction | 43414145 | Not Available |
| 19 | Not Available | Housing Cover | 37951006 | Not Available |
| 20 | Not Available | Front Cover Insert | 35123001 | Not Available |
| 21 | Not Available | Control Cable | 43211010 | Not Available |
| 22 | Not Available | Washer | 168278AY | Not Available |
| 23 | No Image | Pivot Brng-Front Housing Concept I For: hoover | 38511002 | $2.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Insulating Tube | 31735007 | Not Available |
| 27 | Not Available | Handle Mounting Bracket - Front Half | 35152008 | Not Available |
| 28 | Not Available | Handle Insulator Support | 36913016 | Not Available |
| 29 | Not Available | Handle Mounting Bracket - Rear Half | 35152011 | Not Available |
| 30 | Not Available | Rivet | 21254008 | Not Available |
| 31 | Not Available | Hose Rack | 36433090 | Not Available |
| 32 | Not Available | Screws - Self-Tapping (2) | 21447217 | Not Available |
| 33 | Not Available | Extension Tube (2) | 38634078 | Not Available |
| 34 | Not Available | Hose Assem. Comp. | 43434017 | Not Available |
| 35 | Not Available | Spring | 38334002 | Not Available |
| 38 | Not Available | Outer Bag | 43677369 | Not Available |
| 39 | Not Available | Jacket Support | 36425037 | Not Available |
| 40 |  | Bag Support Strap-Hoover Concept Ii For: hoover | 36131050 | $2.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Hose Connector Collar | 36116014 | Not Available |
| 42 | Not Available | Hose Adapter - AG | 32288011 | Not Available |
| 43 | Not Available | Hose Connector | 38638057 | Not Available |
| 45 | Not Available | Screw - Self-Tapping (2) | 21447025 | Not Available |
| 46 | Not Available | Machine Screw (2) | 21563001 | Not Available |
| 47 | Not Available | Rear Cover | 37257092 | Not Available |
| 48 |  | Screws, :( Handle F7425 Part Number: 21447019 for Hoover | 21447019 | $1.30Read more |

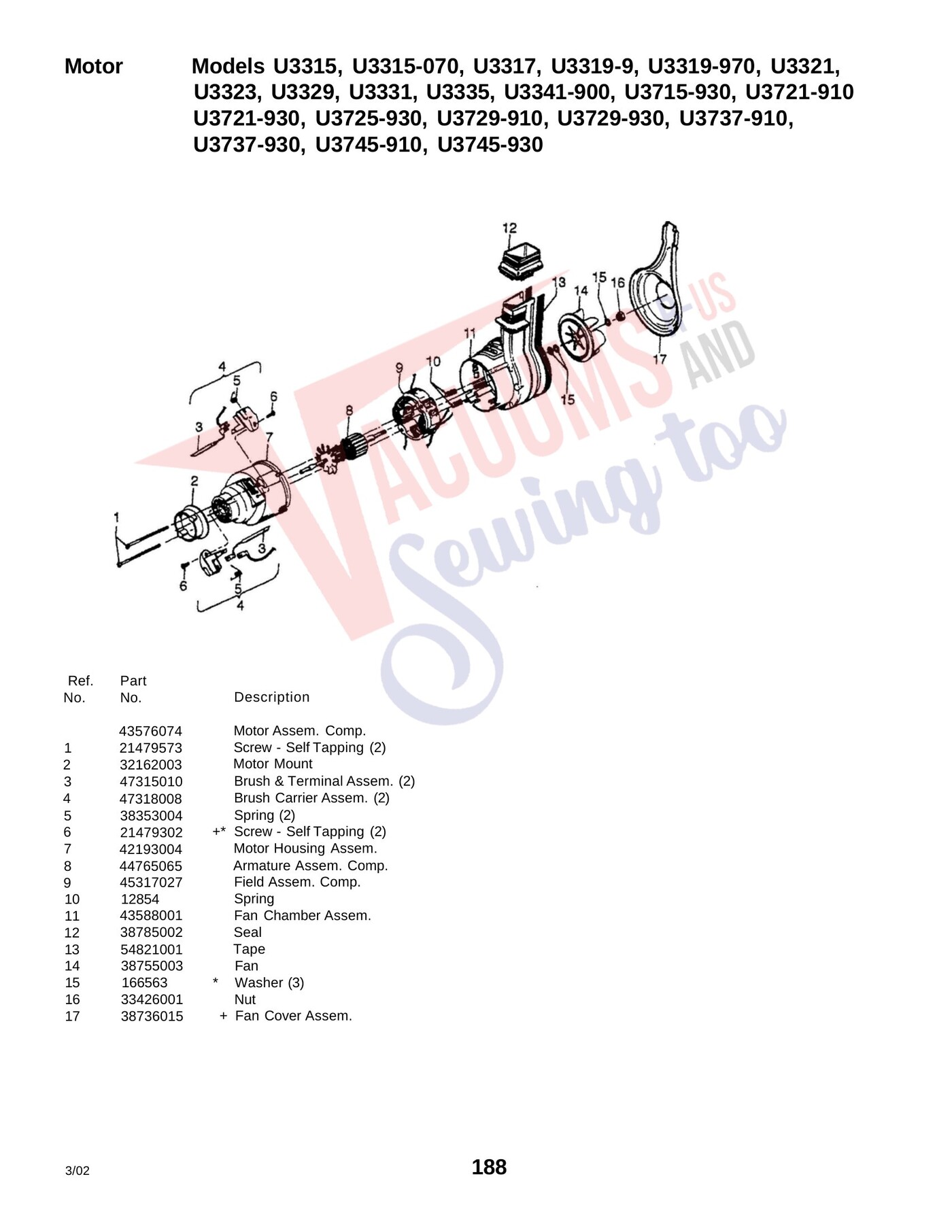

| 49 | Not Available | Motor Assem. - See Detail - (P -188) | 43576074 | Not Available |
| 50 | Not Available | Motor Mount | 32175011 | Not Available |
| 51 | Not Available | Seal Ring | 32156007 | Not Available |
| 52 | Not Available | Mount Ring | 32155006 | Not Available |
| 53 | Not Available | Screw - Self-Tapping | 21447012 | Not Available |
| 54 | Not Available | Top Fill Tube | 38657010 | Not Available |
| 55 | Not Available | Screw - Self-Tapping (3) | 21447013 | Not Available |
| 56 | Not Available | Motor Cover - ABC | 37195096 | Not Available |
| 57 | Not Available | Cord Wrap - Lower | 39442040 | Not Available |
| 58 | Not Available | Jacket Bottom | 36425008 | Not Available |
| 59 |  | Paper Bags-Hoover - A - 3Pk - Top Fill - Upright For: hoover | 4010001A | $7.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Jacket Assem. - Comp. - ABC | 43677365 | Not Available |
| 61 | Not Available | Housing Nameplate | 52115192 | Not Available |
| 62 | Not Available | Control Cable Tube | 66661201 | Not Available |
| 62 | No Image | Rubber Pump Mount Bracket | 19555 | $0.00Read more |
| 62 | Not Available | Cable Tie | 27479307 | Not Available |
| 62 | Not Available | Screw Self - Tapping (Retainer) | 21447003 | Not Available |
| 62 | Not Available | Retainer | 34124011 | Not Available |
| 62 | Not Available | Hose Rack Clip | 36172002 | Not Available |
| 62 | Not Available | Wrench - Special (This is a 1/2" 12 | 170975 | Not Available |
| # | Part image | Description | SKU | Price |

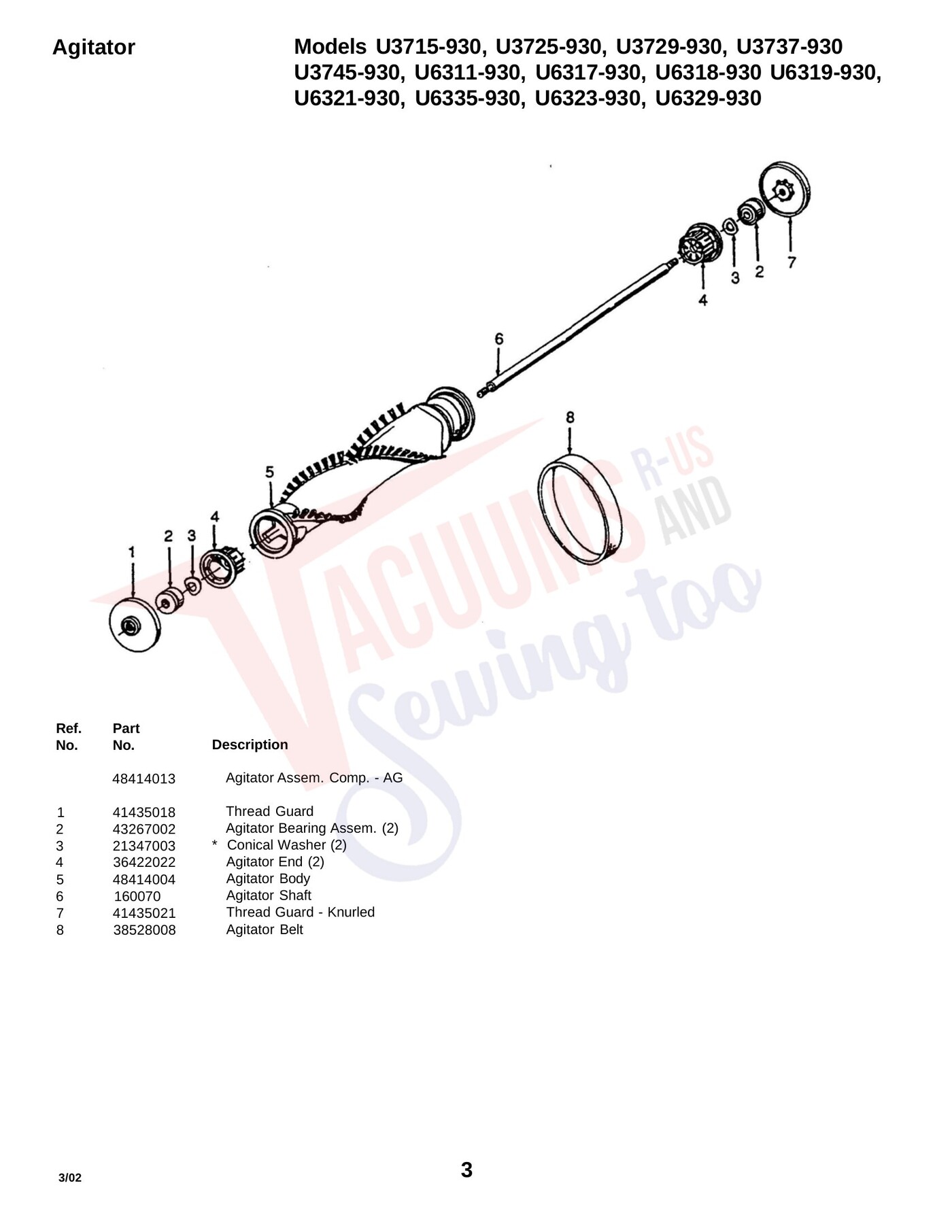

| 1 | Not Available | Thread Guard | 41435018 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 3 | Not Available | Conical Washer (2) | 21347003 | Not Available |
| 4 | Not Available | Agitator End (2) | 36422022 | Not Available |
| 5 | Not Available | Agitator Body | 48414004 | Not Available |
| 6 | Not Available | Agitator Shaft | 160070 | Not Available |
| 7 | Not Available | Thread Guard - Knurled | 41435021 | Not Available |
| 8 |  | No available as a single belt order two pack 40201030 Hoover 38528008 Concept Vacuum Cleaner Belt | 38528008 | $6.59Read more |
| 8 |  | Compatible alternateBelt, Hoover Brushroll Concept 2 Pk More Product Details | 40201030 | $11.99Add to cart Special order — allow 2-4 weeks. |
| # | Part image | Description | SKU | Price |

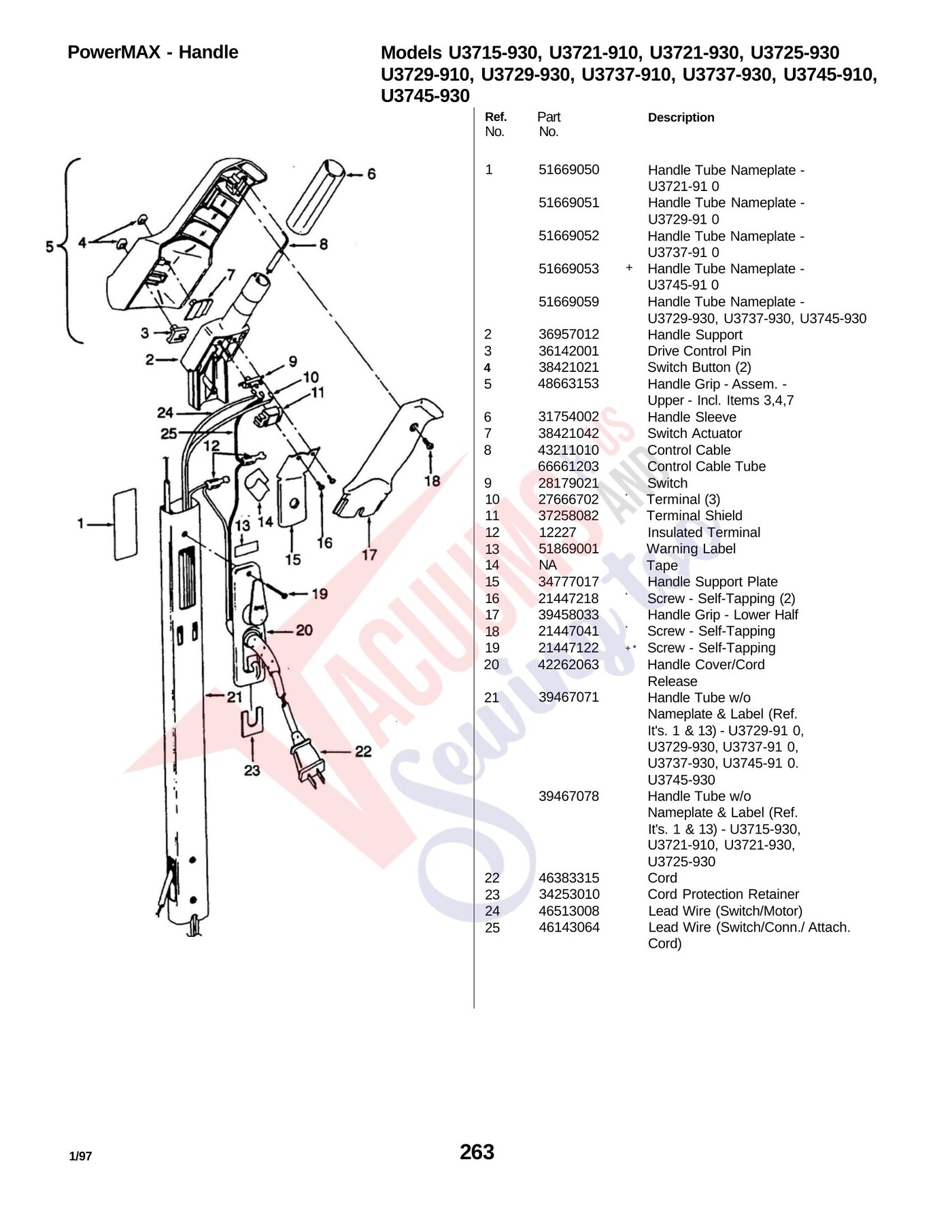

| 1 | Not Available | Handle Tube Nameplate - | 51669050 | Not Available |
| 1 | Not Available | Not Available | U3721-91 | Not Available |
| 1 | Not Available | Handle Tube Nameplate - | 51669051 | Not Available |
| 1 | Not Available | Not Available | U3729-91 | Not Available |
| 1 | Not Available | Handle Tube Nameplate - | 51669052 | Not Available |
| 1 | Not Available | Not Available | U3737-91 | Not Available |
| 1 | Not Available | Handle Tube Nameplate - | 51669053 | Not Available |
| 1 | Not Available | Not Available | U3745-91 | Not Available |
| 2 | Not Available | Handle Support | 36957012 | Not Available |
| 3 | Not Available | Drive Control Pin | 36142001 | Not Available |
| 4 | Not Available | Switch Button (2) | 38421021 | Not Available |
| 5 | Not Available | Handle Grip - Assem. - | 48663153 | Not Available |
| 6 | Not Available | Handle Sleeve | 31754002 | Not Available |
| 7 | Not Available | Switch Actuator | 38421042 | Not Available |
| 8 | Not Available | Control Cable | 43211010 | Not Available |
| 8 | Not Available | Control Cable Tube | 66661203 | Not Available |
| 9 | Not Available | Switch | 28179021 | Not Available |
| 10 | Not Available | Terminal (3) | 27666702 | Not Available |
| 11 | Not Available | Terminal Shield | 37258082 | Not Available |
| 12 | Not Available | Insulated Terminal | 12227 | Not Available |
| 13 | Not Available | Warning Label | 51869001 | Not Available |
| 14 | Not Available | NA Tape | 34777017 | Not Available |
| 16 | No Image | SCREW, HOOD SELF TAPPING C1710-900 Part Number: 21447218 for Hoover | 21447218 | $1.96Read more |
| 17 | Not Available | Handle Grip - Lower Half | 39458033 | Not Available |
| 18 | Not Available | Screw - Self-Tapping | 21447041 | Not Available |
| 19 | Not Available | Screw - Self-Tapping | 21447122 | Not Available |
| 20 | Not Available | Handle Cover/Cord | 42262063 | Not Available |
| 21 | Not Available | Handle Tube w/o | 39467071 | Not Available |
| 21 | Not Available | Handle Tube w/o | 39467078 | Not Available |
| 22 | Not Available | Cord | 46383315 | Not Available |
| 23 | Not Available | Cord Protection Retainer | 34253010 | Not Available |
| 24 | Not Available | Lead Wire (Switch/Motor) | 46513008 | Not Available |
| 25 | Not Available | Lead Wire (Switch/Conn./ Attach. | 46143064 | Not Available |
| # | Part image | Description | SKU | Price |

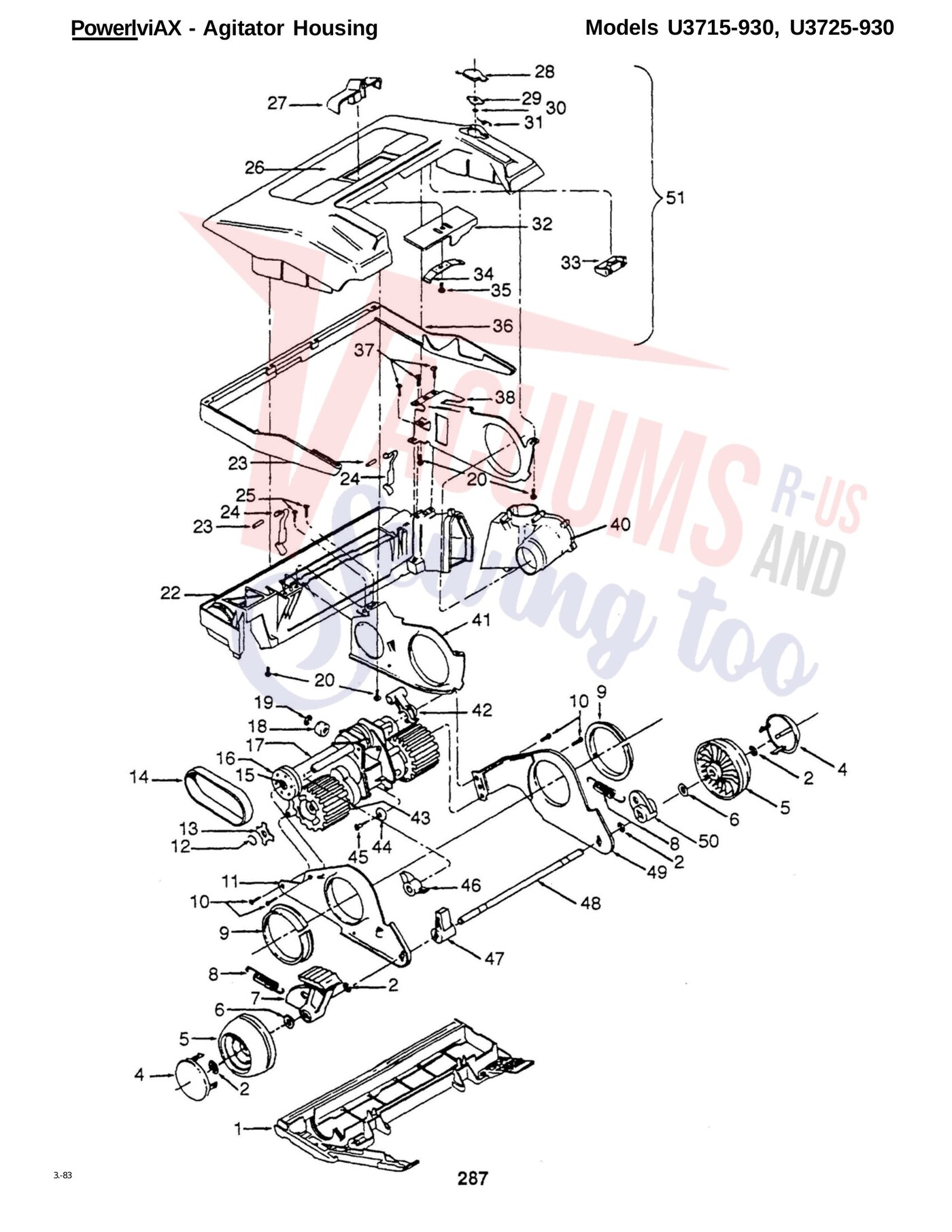

| 1 | Not Available | Bottom Plate (Use with Molded | 37245087 | Not Available |
| 2 | Not Available | Lock Ring (4) | 13730 | Not Available |
| 4 | Not Available | Wheel Cover (2) | 37912013 | Not Available |
| 5 | Not Available | Rear Wheel (2) | 38522029 | Not Available |
| 6 |  | Rear Wheel Washer All Convertibles For: hoover | 21312772 | $0.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Handle Release Lever - LH | 38452087 | Not Available |
| 8 | Not Available | Spring (2) | 38335014 | Not Available |
| 9 | Not Available | Bearing (2) | 32155004 | Not Available |
| 10 | Not Available | Screw - Self-Tapping | 17001FW | Not Available |
| 11 | Not Available | Frame - LH | 35476012 | Not Available |
| 11 | Not Available | Retaining Ring | 160014 | Not Available |
| 13 | Not Available | Keylock | 160040AY | Not Available |
| 14 | Not Available | Belt | 160147AG | Not Available |
| 15 | Not Available | Nut (P.D. Unit/Pulley) | 160031 | Not Available |
| 16 |  | Transmission Pulley-Oem Hoover Concept For: hoover | 38537001 | $8.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Power Drive Unit (Inc. items 1012(2) | 43124013 | Not Available |
| 18 | Not Available | Roller | 31142014 | Not Available |
| 19 | Not Available | Retaining Ring | 163699 | Not Available |
| 20 | Not Available | Screw - Self-Tapping (4) | 21447014 | Not Available |
| 22 | Not Available | Agitator Housing Assm. | 42246064 | Not Available |
| 23 | Not Available | Agitator Clip Pin (2) | 31522016 | Not Available |
| 24 | Not Available | Agitator Clip (2) | 34788001 | Not Available |
| 25 | Not Available | Screw - Self-Tapping | 21447203 | Not Available |
| 26 | Not Available | Hood Nameplate | 52115195 | Not Available |
| 27 | Not Available | Nozzle Adj. Lever - ABC - U3715-930 | 38421084 | Not Available |
| 27 | Not Available | Nozzle Adj. Lever - AAY - U3725-930 | 38421080 | Not Available |
| 28 | Not Available | Air Intake Assm. - ABC - U3715-930 | 37257174 | Not Available |
| 28 | Not Available | Air Intake Assm. - AAY - U3725-930 | 37257165 | Not Available |
| 29 | Not Available | Seal | 38784057 | Not Available |
| 30 | Not Available | Speed Nut | 21362006 | Not Available |
| 31 | No Image | SPRING, P/N INTAKE DOOR U6311/17/23/29 Part Number: 38351016 for Hoover | 38351016 | $1.96Read more |
| 32 | Not Available | Cam | 38563015 | Not Available |
| 33 | Not Available | Hood Support | 35131001 | Not Available |
| 34 | Not Available | Detent Spring | 34751002 | Not Available |
| 35 | Not Available | Screw - Self-Tapping | 21447203 | Not Available |
| 36 | Not Available | Furniture Guard | 36235082 | Not Available |
| 37 | Not Available | Screw - Self-Tapping (3) | 21447203 | Not Available |
| 38 | Not Available | Agitator Housing Bracket - RH | 35476027 | Not Available |
| 40 | Not Available | Duct Assm. | 43486005 | Not Available |
| 41 | Not Available | Agitator Housing Bracket - LH | 35476016 | Not Available |
| 42 | Not Available | Lifter-RH | 38562013 | Not Available |
| 43 | Not Available | Drive Wheel | 163340AG | Not Available |
| 44 | Not Available | Wheel | 32761003 | Not Available |
| 45 | Not Available | Screw | 21479782 | Not Available |
| 46 | Not Available | Lifter-LH | 38562010 | Not Available |
| 47 | Not Available | Handle Release | 38452048 | Not Available |
| 48 | Not Available | Rear Axle | 32547002 | Not Available |
| 49 | Not Available | Frame Assm. - RH | 41967004 | Not Available |
| 50 | Not Available | Spring Retainer | 36131018 | Not Available |
| 51 | Not Available | Hood Assm. w/o Nameplate - U3715- | 42252331 | Not Available |
| 51 | Not Available | Hood Assm. w/o Nameplate - | 42252343 | Not Available |
| 51 | Not Available | (Ref. It. 26) - Incl. It. | U3725-930 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, LONG PORTAPOWER HOUSING Part Number: 21479573 for Hoover | 21479573 | $1.12Read more |
| 2 | Not Available | Motor Mount | 32162003 | Not Available |
| 3 | Not Available | Brush & Terminal Assem. (2) | 47315010 | Not Available |
| 4 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 5 | Not Available | Spring (2) | 38353004 | Not Available |
| 6 | Not Available | Screw - Self Tapping (2) | 21479302 | Not Available |
| 7 | Not Available | Motor Housing Assem. | 42193004 | Not Available |
| 8 | Not Available | Armature Assem. Comp. | 44765065 | Not Available |
| 9 | Not Available | Field Assem. Comp. | 45317027 | Not Available |
| 10 | Not Available | Spring | 12854 | Not Available |
| 11 |  | Fan chamber and bearing for hoover concept | 43588001 | $69.99Add to cart |
| 12 | Not Available | Seal | 38785002 | Not Available |
| 13 | Not Available | Tape | 54821001 | Not Available |
| 14 | Not Available | Fan | 38755003 | Not Available |
| 15 |  | Washer-For Fan-Concept&8Mm Convertible Hoover For: hoover | 166563 | $0.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Nut | 33426001 | Not Available |
| 17 | Not Available | Fan Cover Assem. | 38736015 | Not Available |
Report errors on this page HERE
