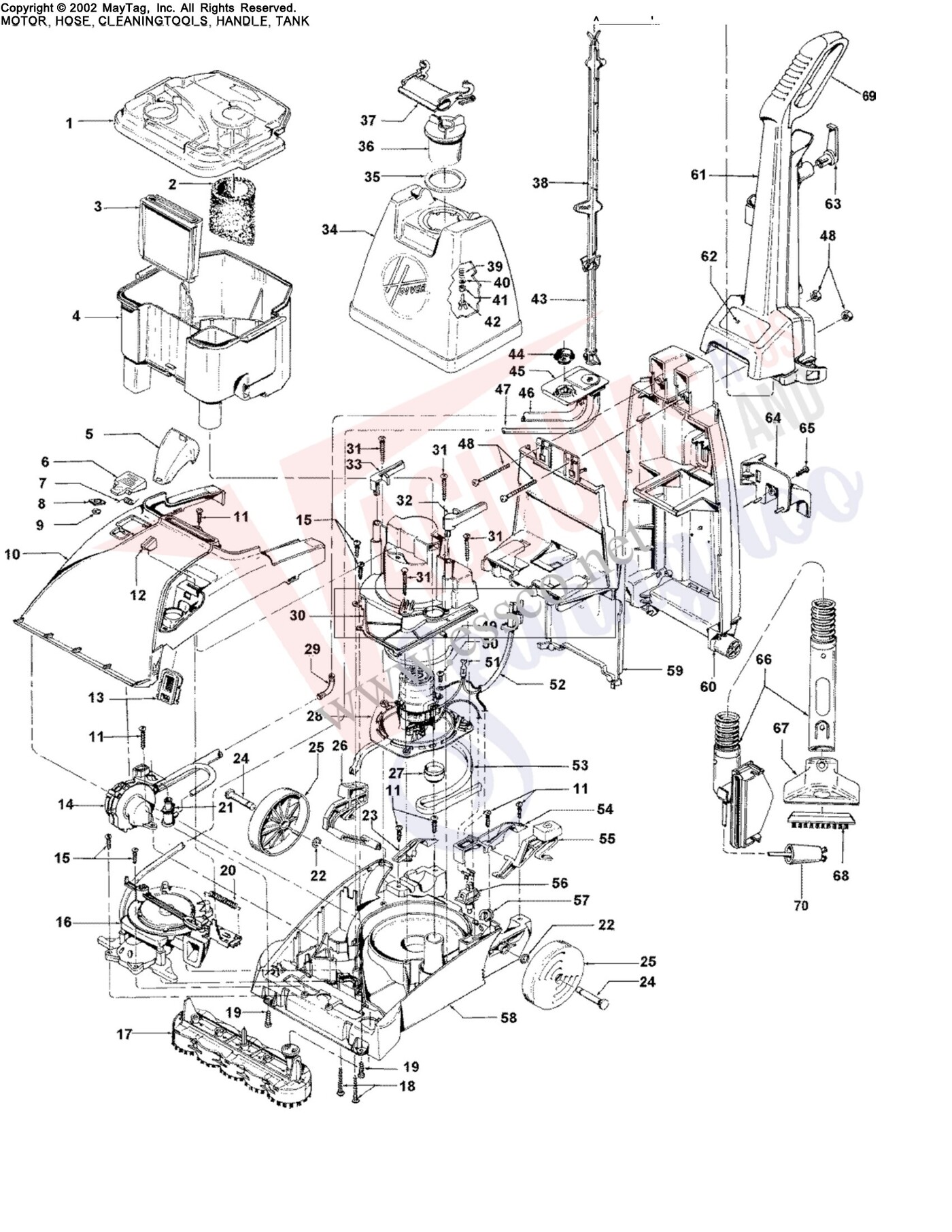

Schematic and parts book for Hoover F5906900, F5906-900_E, F5906-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | RECOVERY TANK LID 1 | 42272111 | Not Available |
| 2 | Not Available | TANK FILTER 1 | 38762010 | Not Available |
| 3 | Not Available | DUCT 1 | 38661003 | Not Available |
| 4 | Not Available | Recovery Tank-Serv. 1 | 38777081 | Not Available |
| 5 |  | Lens Hoover F5853 Steam Vac For: hoover | 39383106 | $2.85Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | DOOR-F5859 1 | 37257205 | Not Available |
| 6 | Not Available | DOOR-F5863-900 1 | 37257208 | Not Available |
| 7 |  | Spring Access Door Hoover F5815/25 For: hoover | 38351017 | $0.91Read more |
| 8 | Not Available | SEAL-F5851/55/59 1 | 38783021 | Not Available |
| 9 | Not Available | SPEED NUT - U4581-91 1 | 21362006 | Not Available |
| 9 | Not Available | Image Key Part Number Description Substitution Page 4 of 4 | 56518119 | Not Available |
| 10 | Not Available | HOOD-F5863- | 37271041 | Not Available |
| 10 | Not Available | Hood - F5858- | 37271065 | Not Available |
| 10 | Not Available | HOOD-ABM 1 | 37271088 | Not Available |
| 10 | Not Available | HOOD-AFC-F5858-910 1 | 37271072 | Not Available |
| 11 | Not Available | SCREW | 21447020 | Not Available |
| 12 | Not Available | INDICATOR KNOB-F5851 1 | 38421093 | Not Available |
| 13 | Not Available | SCREEN-F5851/55/59 1 | 43613009 | Not Available |
| 14 | Not Available | PUMP-F5851/55/59 1 | 43582003 | Not Available |
| 15 | Not Available | SCREW-SELF TAPPING | 21447217 | Not Available |
| 16 | Not Available | DOOR-F5851 1 | 37257106 | Not Available |
| 16 | Not Available | DOOR-F5855 1 | 37257105 | Not Available |
| 16 | Not Available | DOOR-F5858- | 37257209 | Not Available |
| 16 | Not Available | TURBINE & GEAR-F5851 91001020 1 | 43191001 | Not Available |
| 17 |  | NO LONGER AVAILABLE 5-brush brush for hoover steamvac models F5851 F5855 F5859 F5837-900 F5837-96... | 48437022 | $27.50Read more |
| 18 | Not Available | SCREW | 21479438 | Not Available |
| 19 | Not Available | Door-AGD-F5906-900 1 | 37257313 | Not Available |
| 19 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 19 | Not Available | Hood-AGD-F5906-910 1 | 37271121 | Not Available |
| 20 | Not Available | SPRING-F5851/55/59 1 | 38333009 | Not Available |
| 21 | Not Available | QUICK DISCONNECT ASS 1 | 43523004 | Not Available |
| 23 | Not Available | TRUNION COVER - RH 1 | 36131085 | Not Available |
| 24 | Not Available | REAR AXLE 32434012 2 | 32434007 | Not Available |
| 25 | Not Available | REAR WHEEL | 38522076 | Not Available |
| 26 | Not Available | HANDLE RELEASE LEVER 1 | 38458042 | Not Available |
| 27 | Not Available | STANDPIPE SEAL 1 | 38784063 | Not Available |
| 28 | Not Available | MOTOR ASSEM-F5853 1 | 43576131 | Not Available |
| 28 | Not Available | BRUSH HOLDER ASSEMBL 1 | 41311016 | Not Available |
| 28 | Not Available | MOTOR KIT-SV 1 | 40309008 | Not Available |
| 29 | Not Available | ELBOW CONNECTOR-F581 1 | 33241001 | Not Available |
| 30 | Not Available | SERVICE KIT-MTR COVE 1 | 40309006 | Not Available |
| 30 | Not Available | AMP 1 | FT-12 | Not Available |
| 31 | Not Available | SCREW-SELF TAPPING-F | 21447232 | Not Available |
| 32 | Not Available | TANK RELEASE LATCH-L 1 | 36151029 | Not Available |
| 33 | Not Available | TANK RELEASE LATCH-R 1 | 36151019 | Not Available |
| 34 |  | TANK, CLEAN SOLUTION F5815/6020/6023 Part Number: 42272134 for Hoover | 42272134 | $43.16Read more |
| 35 |  | NO LONGER AVAILABLE Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.73Read more |
| 36 | Not Available | SOLUTION TANK CAP AS 1 | NLA | Not Available |
| 37 | Not Available | SOLUTION TANK HANDLE 1 | 39457053 | Not Available |
| 38 | Not Available | CONTROL ROD - UPPER 1 | 38458031 | Not Available |
| 39 | Not Available | SPRING 1 | 38312014 | Not Available |
| 40 | Not Available | WASHER-BRASS 1 | 21312518 | Not Available |
| 41 | Not Available | VALVE SEAL 1 | 38784061 | Not Available |
| 42 | Not Available | VALVE STEM 1 | 38717009 | Not Available |
| 43 | Not Available | CONTROL ROD - LOWER 1 | 38458033 | Not Available |
| 44 | Not Available | SOLUTION TANK SEAL 1 | 38784060 | Not Available |
| 45 | Not Available | RESERVOIR ASSEM-F581 1 | 43516008 | Not Available |
| 46 |  | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... | 40309002 | $27.50Read more |
| 47 | | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... | 40309002 | $27.50Read more |
| 48 | Not Available | HANDLE HARDWARE ASSEM 1 | 40201149 | Not Available |
| 49 |  | Gasket-Hoover Steamer Motor Seal For: hoover | 34113004 | $1.96Read more |
| 50 | Not Available | SCREW-TAPPING 1 | 21447240 | Not Available |
| 51 | Not Available | TERMINALS-0513 1 | 012227 | Not Available |
| 52 | No Image | CORD, 31' STEAMER WHITE WIRE STRIPPED Part Number: 46583012 for Hoover | 46583012 | $31.80Read more |
| 52 | Not Available | CORD-STEAM VAC-33' 1 | 46583044 | Not Available |
| 53 | Not Available | MOTOR BASE SEAL 1 | 38781048 | Not Available |
| 54 | Not Available | TRUNION COVER - LH 1 | 36131086 | Not Available |
| 55 | Not Available | SWITCH ACTUATOR LEVE 1 | 38434025 | Not Available |
| 56 | Not Available | SWITCH-F5805/15/25 1 | 28218048 | Not Available |
| 57 | Not Available | CORD RETAINER 1 | 36172016 | Not Available |
| 58 | Not Available | MN BODY-SV-W/VT-5 BR 1 | 42274005 | Not Available |
| 59 | Not Available | HANDLE COVER 1 | 37276001 | Not Available |
| 60 | Not Available | LOWER HANDLE 1 | 90001254 | Not Available |
| 61 | Not Available | UPPER HANDLE-F5833-9 1 | 48663181 | Not Available |
| 63 | Not Available | CORD WRAP-F5853-900 1 | 39442039 | Not Available |
| 64 | Not Available | LOWER RACK ASSEM.-F5 1 | 41426030 | Not Available |
| 65 | Not Available | SCREW 1 | 21447003 | Not Available |
| 66 | Not Available | HOSE ASSEM. COMP.-F5 40309007 1 | 43491008 | Not Available |
| 66 | Not Available | HOSE ASSEM W/NOZ BOD 1 | 40309007 | Not Available |
| 67 | Not Available | NOZZLE BODY W/REL TA 1 | 38613040 | Not Available |
| 67 | Not Available | NOZZLE BODY-F5833-90 1 | 38613033 | Not Available |
| 68 | Not Available | BRUSH BACK ASSEMBLY- 1 | 48445003 | Not Available |
| 69 | Not Available | Handle Lever Guard 1 | 39458005 | Not Available |
| 70 | Not Available | CONNECTOR COUPLER SL 1 | 43513010 | Not Available |
| 71 | Not Available | Agitator Speed Label 1 | 51855032 | Not Available |
| 71 | Not Available | HDL REL LABEL-STEAM 1 | 51638055 | Not Available |
| 71 | Not Available | Handle Relaese Label 1 | 51638054 | Not Available |
| 71 | Not Available | ON/OFF LABEL - STEAM 1 | 51865024 | Not Available |
| 71 | Not Available | Door Label 1 | 51639117 | Not Available |
| 71 | Not Available | LABEL-DOOR-STEAM VAC 1 | 51639124 | Not Available |
| 71 | Not Available | SEAL-FL. RET.-STEAM 1 | 38784070 | Not Available |
| 71 |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.97Read more |
| 71 | Not Available | SPRAYER - F5825 1 | 43412003 | Not Available |
| 71 | Not Available | Br. Sp. Nameplate 1 | 51639192 | Not Available |
| 71 | Not Available | NOZZLE CLEAN OUT TOO 1 | 39514001 | Not Available |
| 71 | Not Available | Float Assembly 1 | 43538001 | Not Available |
| 71 | Not Available | BARE FLOOR CLEANING 1 | 48417003 | Not Available |
| 90 | Not Available | BARE FLOOR-32OZ (12) 1 | 40303032 | Not Available |
| 90 | Not Available | PRE-CLEANER-16OZ(12) 40322016 2 | 40302016 | Not Available |
| 90 | Not Available | CARPET CLNG SOLUTION 16OZ 57333019 1 | 57333016 | Not Available |
| 90 | Not Available | CARPET DETER-64OZ(6) 1 | 40301064 | Not Available |
