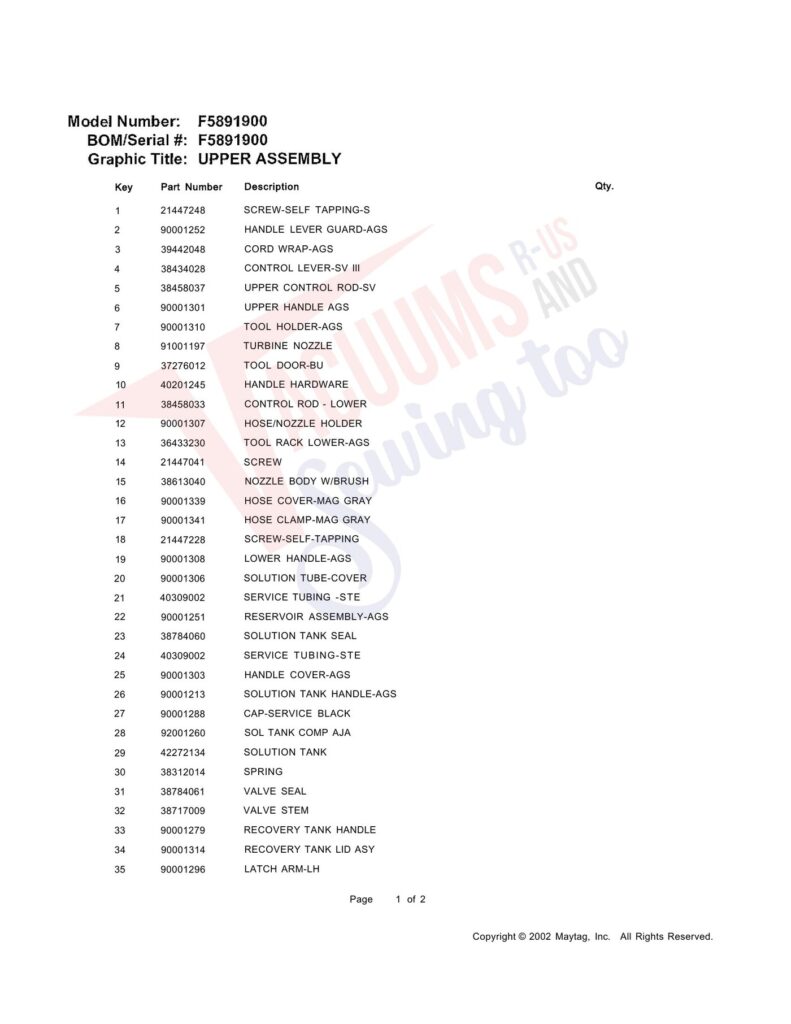

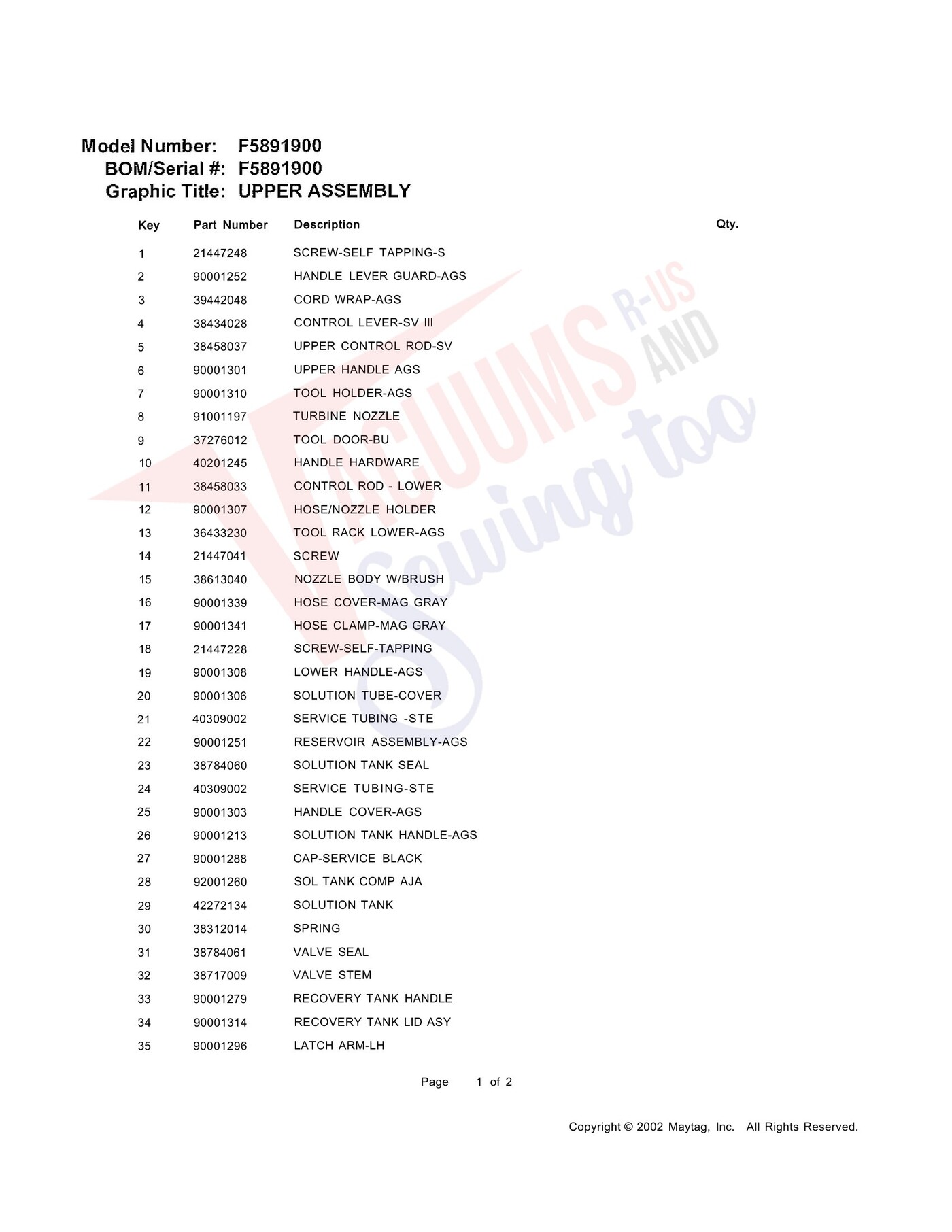

Schematic and parts book for Hoover F5891900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Screw-Hoover Windtunnel Cord Retainer For: hoover | 23149002 | $0.96Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | VALVE CRANK ARM | 90001320 | Not Available |
| 3 | Not Available | OVER CENTER SPRING-S | 36132003 | Not Available |
| 4 | Not Available | VALVE TANK SEAL | 90001323 | Not Available |
| 5 | Not Available | PUMP ASSEMBLY-COMPLETE | 90001327 | Not Available |
| 6 | Not Available | SERVICE ASSY. | 12002774 | Not Available |
| 7 | Not Available | O RING-ALL SV III | 25156518 | Not Available |
| 8 | Not Available | SCREW-SV 3.125" | 21447246 | Not Available |
| 9 | Not Available | O RING-ALL SV lit | 25156517 | Not Available |
| 10 | Not Available | SOLUTION HOSE COUPLER | 90001321 | Not Available |
| 11 | Not Available | SCREW | 21447003 | Not Available |
| 12 | Not Available | SCREW-SELF TAPPING | 21447217 | Not Available |
| 13 | Not Available | TURBINE ACTUATOR ARM | 38458024 | Not Available |
| 14 |  | Latch Lock R/H Hoover F5867 Steam Vac For: hoover | 36151020 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | SERVICE ASSY. | 12002774 | Not Available |
| 16 |  | Latch Lock L/H Hoover F5867 Steam Vac For: hoover | 36151021 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Gasket-Hoover Steamer Motor Seal For: hoover | 34113004 | $1.96Read more |
| 18 | Not Available | VALVE DUCT SEAL-SV I | 38783024 | Not Available |
| 19 | | Screw-Hoover Windtunnel Cord Retainer For: hoover | 23149002 | $0.96Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | DUCT-SV III | 43466071 | Not Available |
| 21 | Not Available | DUCT SEAL-SV-WIDEPAT | 38783025 | Not Available |
| 22 |  | Lens Hoover F5853 Steam Vac For: hoover | 39383106 | $2.85Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | NAMEPLATE-CLNNG MODE | 90001311 | Not Available |
| 24 | Not Available | HOOD-AFT | 37271141 | Not Available |
| 26 | Not Available | SCREEN ASY | 43613009 | Not Available |
| 27 |  | New Genuine Hoover Steam Vac 12 Amp Motor 43576197, 27212074, 27212077 YDC62-1AD | 43576197 | $79.99Read more |
| 28 | Not Available | ATTACH CORD-24' | 93002227 | Not Available |
| 29 | Not Available | CORD RETAINER | 90001281 | Not Available |
| 30 | Not Available | STANDPIPE SEAL | 38784063 | Not Available |
| 31 | Not Available | SCREW | 21447013 | Not Available |
| 32 | Not Available | HANDLE RELEASE LEVER | 38458042 | Not Available |
| 33 | Not Available | TRUNNION COVER R.H.-AGS | 90001223 | Not Available |
| 34 | Not Available | SWITCH | 90001106 | Not Available |
| 35 | Not Available | MOTOR BASE SEAL | 38781048 | Not Available |
| 36 | Not Available | FLOAT ASSEMBLY | 43538001 | Not Available |
| 36 | Not Available | SCREW | 21447013 | Not Available |
| 37 |  | Float Retainer / Hoover F5851 Steam Vac For: hoover | 38719043 | $4.90Read more |
| 37 | Not Available | TRUNNION CVOER-L.H.-AGS | 90001224 | Not Available |
| 38 | Not Available | PRC-SCREEN ASSEM | 43615086 | Not Available |
| 38 | Not Available | SWITCH ACTUATOR LEVER | 38434025 | Not Available |
| 39 | Not Available | RECOVERY TANK-AJA | 90001305 | Not Available |
| 39 | Not Available | LOCK RING | 160017 | Not Available |
| 40 | Not Available | LATCH ARM-LH | 90001296 | Not Available |
| 40 | Not Available | REAR WHEEL-AGS | 90001222 | Not Available |
| 41 | Not Available | SELF-TAP SHLDR SCREW | 21447245 | Not Available |
| 41 | Not Available | REAR AXLE | 32434007 | Not Available |
| 42 | Not Available | HOSE ASSEMBLY-ABU | 90001335 | Not Available |
| 42 | Not Available | MAIN BODY-AGS | 90001313 | Not Available |
| 43 | Not Available | WAND VALVE ASSEMBLY | 91001059 | Not Available |
| 43 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 44 | Not Available | NOZZLE/VALVE ASSEMBL | 43412007 | Not Available |
| 44 |  | NO LONGER AVAILABLE 5-brush brush for hoover steamvac models F5851 F5855 F5859 F5837-900 F5837-96... | 48437022 | $27.50Read more |
| 45 |  | Spring-Hoover Steam-Vac 5411/5837 For: hoover | 38312019 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 45 | Not Available | SCREW-SELF TAPPING | 21447217 | Not Available |
| 46 |  | Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover | 38433074 | $2.16Read more |
| 46 | Not Available | TURB & GEAR ASY-TOOL CONV MDL | 90001355 | Not Available |
| 47 | Not Available | WAND | 90001192 | Not Available |
| 47 | Not Available | TOOL ASSY. BARE FLOOR CLEAN | 90001331 | Not Available |
| 48 | Not Available | SCREW | 21447239 | Not Available |
