Schematic and parts book for hoover F5887-900, F5887-990 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

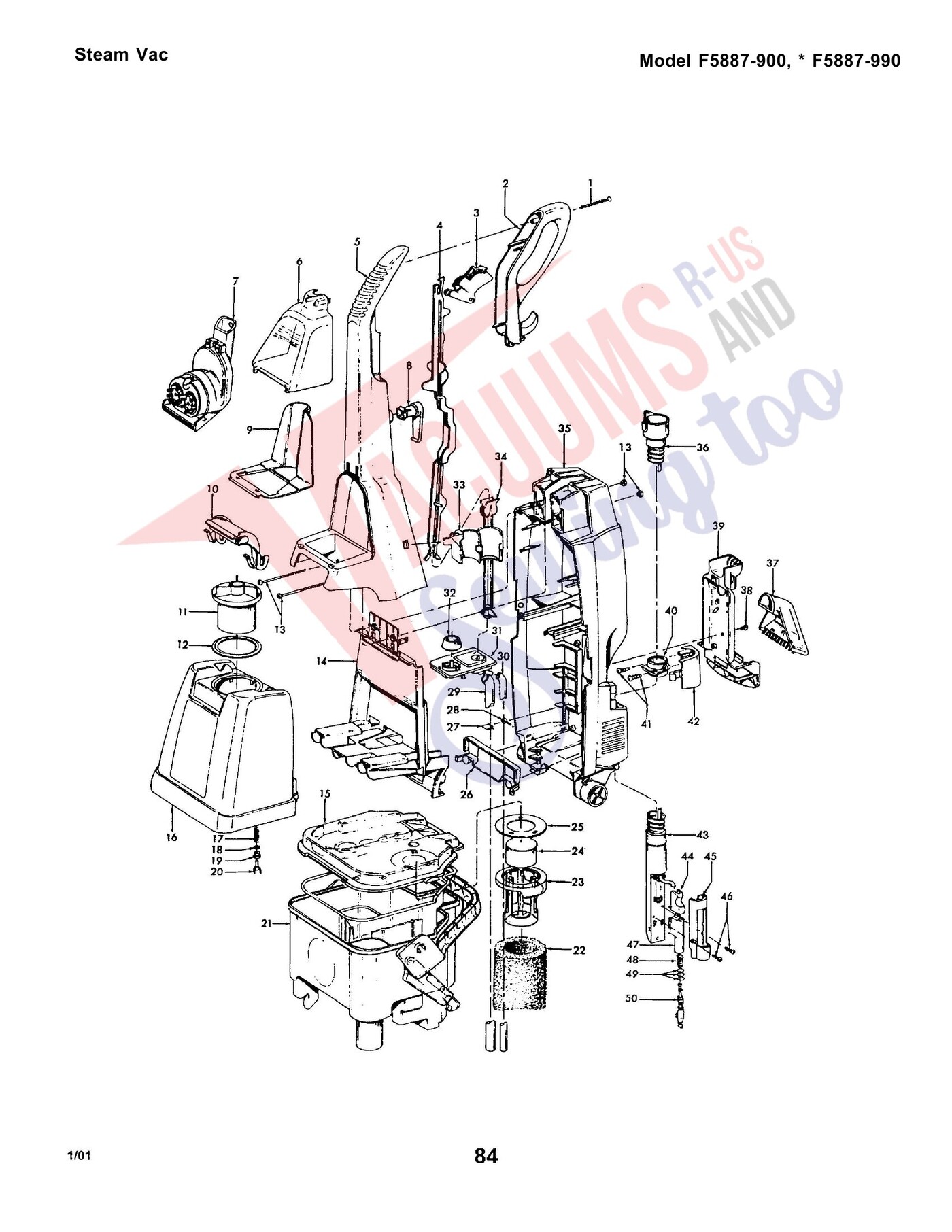

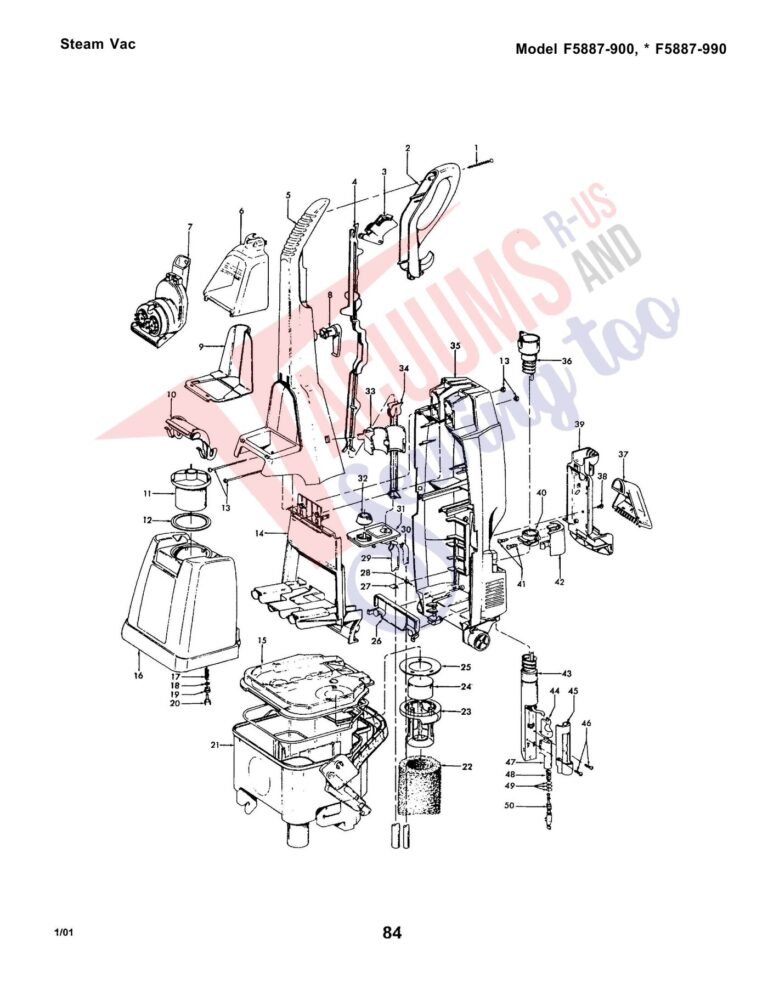

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw | 21447248 | Not Available |
| 2 | Not Available | Handle Lever Guard | 39458006 | Not Available |
| 3 | Not Available | Trigger | 38434028 | Not Available |
| 4 | Not Available | Upper Control Rod | 38458037 | Not Available |
| 5 | Not Available | Upper Handle- (Incl. it | 39466004 | Not Available |
| 6 | Not Available | Tool Cover | 37276014 | Not Available |
| 7 | Not Available | Turbine Nozzle Assembly | 48439002 | Not Available |
| 7 | Not Available | Nozzle Body (Turbine Nozzle) | 38613038 | Not Available |
| 7 | Not Available | Brush Assembly (Turbine | 48434003 | Not Available |
| 8 | Not Available | Cord Wrap | 39442041 | Not Available |
| 9 | Not Available | Tool Holder | 36433127 | Not Available |
| 10 | Not Available | Solution Tank Handle | 39457016 | Not Available |
| 11 | Not Available | Solution Tank Cap (inc. item | 42272002 | Not Available |
| 12 |  | NO LONGER AVAILABLE Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.73Read more |
| 13 | Not Available | Handle Hardware Assembly | 40201154 | Not Available |
| 14 | Not Available | Handle Cover | 37276002 | Not Available |
| 15 | Not Available | Lid Assem. (Incl. it. | 42272120 | Not Available |
| 16 |  | TANK, CLEAN SOLUTION F5815/6020/6023 Part Number: 42272134 for Hoover | 42272134 | $43.16Read more |
| 17 | Not Available | Spring | 38312014 | Not Available |
| 18 | Not Available | Washer - Brass | 21312518 | Not Available |
| 19 | Not Available | Valve Seal | 38784061 | Not Available |
| 20 | Not Available | Valve Stem | 38717009 | Not Available |
| 21 | Not Available | Recovery Tank | 38777065 | Not Available |
| 21 | Not Available | Recovery Tank - Models with no | 38777070 | Not Available |
| 22 | Not Available | Tank Filter | 43611041 | Not Available |
| 23 |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.97Read more |
| 24 | Not Available | Float | 25661016 | Not Available |
| 25 | Not Available | Seal | 38784070 | Not Available |
| 26 | Not Available | Solution Tube Cover | 37276010 | Not Available |
| 27 | Not Available | Retaining Clip | 21378162 | Not Available |
| 28 | No Image | SCREW, LOWER HAND SVIII Part Number: 21447244 for Hoover | 21447244 | $1.02Read more |
| 29 |  | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... | 40309002 | $27.50Read more |
| 30 | | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... | 40309002 | $27.50Read more |
| 31 | Not Available | Reservoir Assem. (Inci. It. 32) | 43516008 | Not Available |
| 32 | Not Available | Solution Tank Seal | 38784060 | Not Available |
| 33 | Not Available | Hose/Nozzle Holder | 36172005 | Not Available |
| 34 | Not Available | Control Rod Lower | 38458033 | Not Available |
| 35 | Not Available | Lower Handle | 39466037 | Not Available |
| 36 | Not Available | Hose Assem. (Incl. It. 37 & | 43436011 | Not Available |
| 37 | Not Available | Nozzle Body (w/ release tab) | 38613040 | Not Available |
| 38 | Not Available | Screw | 21447041 | Not Available |
| 39 | Not Available | Tool Rack - Lower | 36433131 | Not Available |
| 40 | Not Available | Hose Clamp | 36171032 | Not Available |
| 41 | Not Available | Screw (2) | 21447228 | Not Available |
| 42 | Not Available | Hose Cover | 36131097 | Not Available |
| 43 | Not Available | Hose Assem. (Incl. It. 37 & | 43436011 | Not Available |
| 44 |  | Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover | 38433074 | $2.16Read more |
| 45 | Not Available | Wand Cover | 37276006 | Not Available |
| 46 | Not Available | Screw | 21447239 | Not Available |
| 47 | Not Available | Wand/ Valve Assembly | 43513011 | Not Available |
| 48 |  | Spring-Hoover Steam-Vac 5411/5837 For: hoover | 38312019 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | Nozzle Valve Assembly | 43412007 | Not Available |
| 50 | Not Available | Bare Floor Tool | 48417003 | Not Available |
| 50 | Not Available | Crevice Tool | 38617028 | Not Available |
| 50 | Not Available | Nozzle Cleanout Tool | 39514001 | Not Available |
| 50 | Not Available | Sprayer (Used w/ pre cleaner) | 43412003 | Not Available |
| 50 | Not Available | Carpet Solution -16 oz | 57333016 | Not Available |
| 50 | Not Available | Bare Floor Solution - 32 oz. | 40303032 | Not Available |
| 50 | Not Available | Pre Cleaner Solution -16 oz. | 40302016 | Not Available |

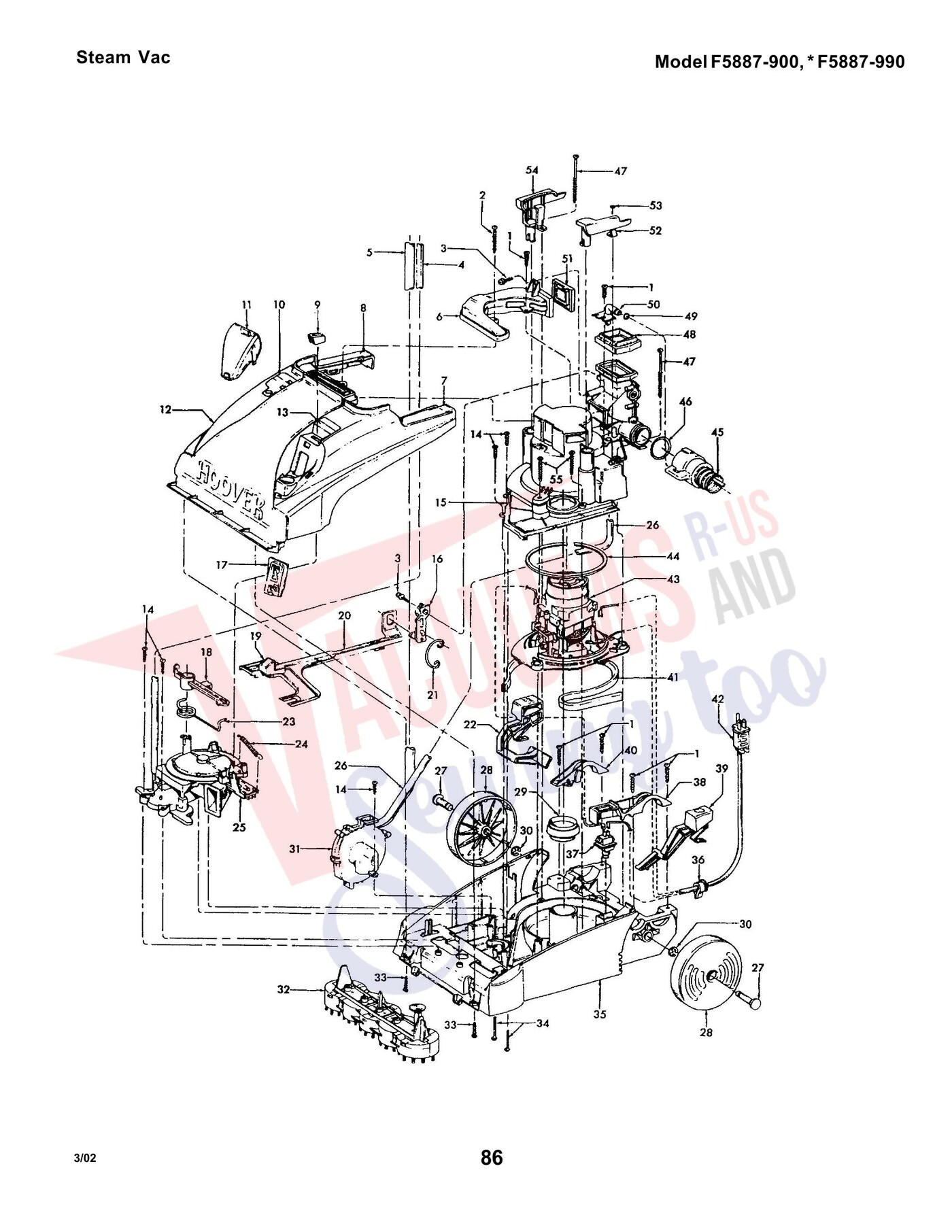

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw | 21447003 | Not Available |
| 2 | No Image | SCREW, SVIII Part Number: 21447247 for Hoover | 21447247 | $1.96Read more |
| 3 |  | Screw-Hoover Windtunnel Cord Retainer For: hoover | 23149002 | $0.96Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... | 40309002 | $27.50Read more |
| 5 | | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... | 40309002 | $27.50Read more |
| 6 | Not Available | Duct | 43466071 | Not Available |
| 7 | Not Available | On Off Label | 51865024 | Not Available |
| 8 | Not Available | Handle Release Label | 51638055 | Not Available |
| 9 | Not Available | Indicator Knob | 38421093 | Not Available |
| 10 | Not Available | Nameplate - Tool Mode | 51438006 | Not Available |
| 11 |  | Lens Hoover F5853 Steam Vac For: hoover | 39383106 | $2.85Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Hood Assembly -(Inc. It. 1117) | 37271066 | Not Available |
| 13 | Not Available | Agitator Speed Label | 51855032 | Not Available |
| 14 | Not Available | Screw | 21447217 | Not Available |
| 15 | Not Available | Motor Cover / Valve Assembly | 42191007 | Not Available |
| 16 | Not Available | Valve Crank Arm | 36439001 | Not Available |
| 17 | Not Available | Screen Assembly | 43613009 | Not Available |
| 19 | Not Available | Indicator Label - Green | 51611008 | Not Available |
| 20 | Not Available | Turbine Actuator Arm | 38458024 | Not Available |
| 21 | Not Available | Over Center Spring | 36132003 | Not Available |
| 22 | Not Available | Handle Release Lever | 38458042 | Not Available |
| 23 | Not Available | Spring | 38356013 | Not Available |
| 24 | Not Available | Spring | 38333009 | Not Available |
| 25 | Not Available | Turbine Assembly (Incl. It. 18 | 43191003 | Not Available |
| 26 | | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... | 40309002 | $27.50Read more |
| 27 | Not Available | Rear Axle (2) | 32434007 | Not Available |
| 28 | Not Available | Rear Wheel (2) | 38522076 | Not Available |
| 29 | Not Available | Standpipe Seal | 38784063 | Not Available |
| 30 | Not Available | Lock Ring | 160017 | Not Available |
| 31 | Not Available | Pump Assembly | 43582005 | Not Available |
| 32 |  | NO LONGER AVAILABLE 5-brush brush for hoover steamvac models F5851 F5855 F5859 F5837-900 F5837-96... | 48437022 | $27.50Read more |
| 33 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 34 | Not Available | Screw (2) | 21479438 | Not Available |
| 35 | Not Available | Main Body | 37272088 | Not Available |
| 36 | Not Available | Cord Retainer | 36172016 | Not Available |
| 37 | Not Available | Switch | 28218048 | Not Available |
| 38 | Not Available | Trunnion Cover - L.H. | 36131086 | Not Available |
| 39 | Not Available | Switch Actuator Lever | 38434025 | Not Available |
| 40 | Not Available | Trunnion Cover - R.H. | 36131085 | Not Available |
| 41 | Not Available | Motor Base Seal | 38781048 | Not Available |
| 42 | Not Available | Cord Assembly | 46583044 | Not Available |
| 43 | Not Available | Motor Assembly | 43576202 | Not Available |
| 43 | Not Available | Motor Brush | 41311016 | Not Available |
| 44 |  | Gasket-Hoover Steamer Motor Seal For: hoover | 34113004 | $1.96Read more |
| 45 | Not Available | Hose Assembly (P. 84) | 43436011 | Not Available |
| 46 | Not Available | "O" Ring | 25156518 | Not Available |
| 47 | Not Available | Screw | 21447246 | Not Available |
| 48 | Not Available | Valve Tank Seal | 38783023 | Not Available |
| 49 | Not Available | "O" Ring | 25156517 | Not Available |
| 50 | Not Available | Solution Hose Coupler | 38719039 | Not Available |
| 51 | Not Available | Valve Duct Seal | 38783024 | Not Available |
| 52 |  | Latch Lock L/H Hoover F5867 Steam Vac For: hoover | 36151021 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 54 |  | Latch Lock R/H Hoover F5867 Steam Vac For: hoover | 36151020 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 55 | Not Available | Screw (2) | 21447232 | Not Available |
| 55 | Not Available | Lead Wire Black - (Front of | 49811039 | Not Available |
