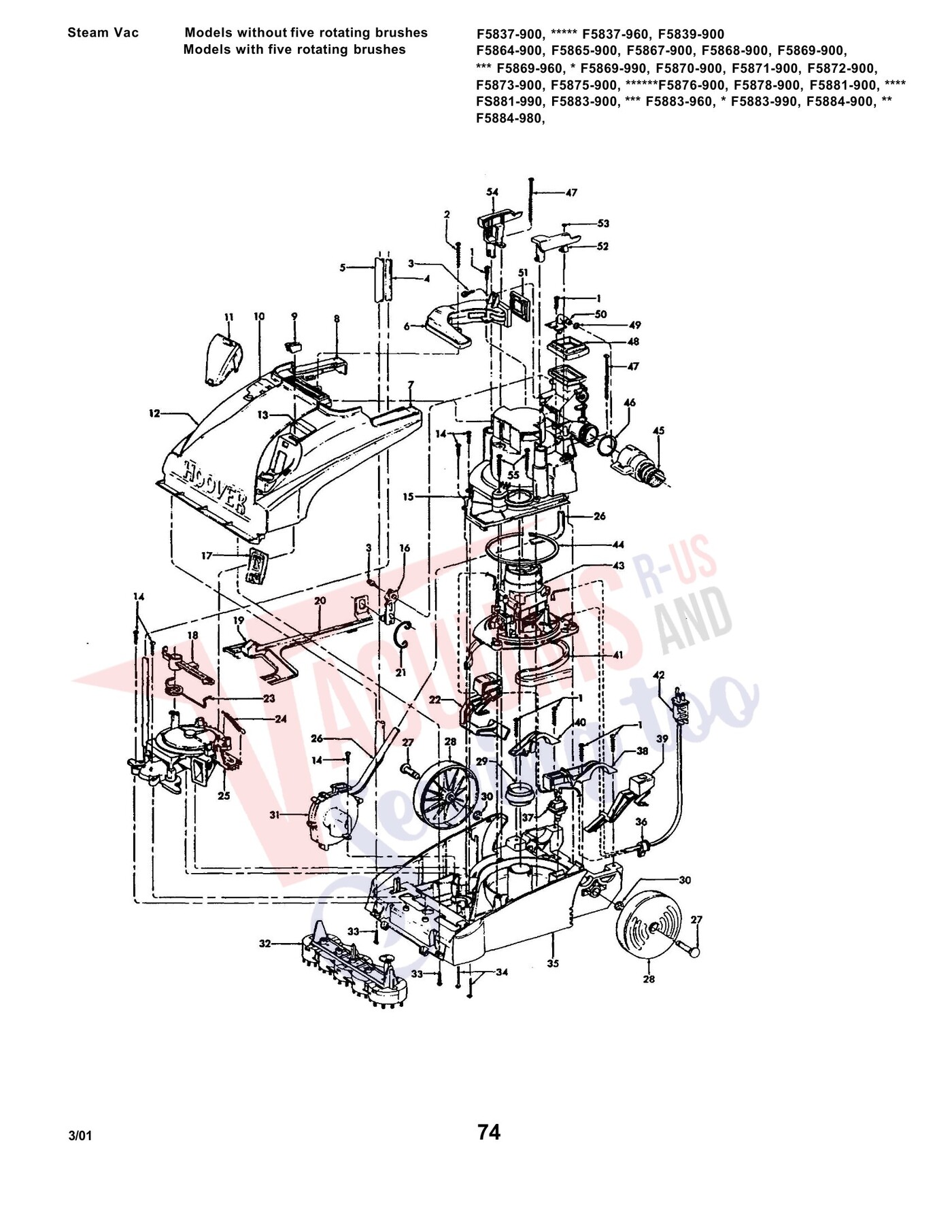

Hoover F5837 exploded schematic diagram (page 1)

Click to enlarge

#	Part image	Description	SKU	Price
1	Not Available	Screw	21447003	Not Available
2	No Image	SCREW, SVIII Part Number: 21447247 for Hoover More Product Details	21447247	$1.96Read more
3		Screw-Hoover Windtunnel Cord Retainer For: hoover More Product Details	23149002	$0.96Add to cart Special order: ships in 2 to 4 weeks
4		Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... More Product Details	40309002	$27.50Read more
5		Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... More Product Details	40309002	$27.50Read more
6	Not Available	Duct	43466071	Not Available
7	Not Available	On Off Label	51865024	Not Available
8	Not Available	Handle Release Label	51638055	Not Available
9	Not Available	Indicator Knob	38421093	Not Available
10	Not Available	Namepiate - Tool Mode	51438006	Not Available
11		Lens Hoover F5853 Steam Vac For: hoover More Product Details	39383106	$2.85Add to cart Special order: ships in 2 to 4 weeks
12	Not Available	Hood - F5837-900	37271045	Not Available
12	Not Available	Hood - F5839-900	37271046	Not Available
12	Not Available	Hood - F5865-900	37271055	Not Available
12	Not Available	Hood - F5867-900	37271047	Not Available
12	Not Available	Hood - F5868-900	37271051	Not Available
12	Not Available	Hood - F5869-900	37271052	Not Available
12	Not Available	Hood - F5871-900	37271054	Not Available
12	Not Available	Hood - F5873-900	37271055	Not Available
12	Not Available	Hood - F5870-900 F5875-900 F5876-900	37271064	Not Available
12	Not Available	Hood-AES-F5881-900	37271080	Not Available
12	Not Available	Hood - F5883-900	37271043	Not Available
12	Not Available	Hood - F5884-900 F5885-980	37271048	Not Available
12	Not Available	Hood - F5864-900	37271067	Not Available
12	Not Available	Hood - F5872-900	37271076	Not Available
12	Not Available	Hood - F5878-900	37271077	Not Available
13	Not Available	Agitator Speed Label	51855031	Not Available
14	Not Available	Screw	21447217	Not Available
15	Not Available	Motor Cover/ Valve Assembly	42191005	Not Available
15	Not Available	Motor Cover / Valve Assembly	42191007	Not Available
16	Not Available	Valve Crank Arm	36439001	Not Available
17	Not Available	Screen Assembly	43613009	Not Available
19	Not Available	Indicator Label - Green	51611008	Not Available
20	Not Available	Turbine Actuator Arm -F5837-900	38458050	Not Available
20	Not Available	Turbine Actuator Arm	38458024	Not Available
21	Not Available	Over Center Spring	36132003	Not Available
22	Not Available	Handle Release Lever	38458042	Not Available
23	Not Available	Spring	38356013	Not Available
24	Not Available	Spring	38333009	Not Available
25	Not Available	Turbine Assembly - models with five	43191003	Not Available
26		Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... More Product Details	40309002	$27.50Read more
27	Not Available	Rear Axle (2)	32434007	Not Available
28	Not Available	Rear Wheel (2)	38522076	Not Available
29	Not Available	Standpipe Seal	38784063	Not Available
30	Not Available	Lock Ring	160017	Not Available
31	Not Available	Pump Assembly	43582005	Not Available
32		NO LONGER AVAILABLE 5-brush brush for hoover steamvac models F5851 F5855 F5859 F5837-900 F5837-96... More Product Details	48437022	$27.50Read more
33		Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover More Product Details	21447072	$0.91Read more
34	Not Available	Screw (2)	21479438	Not Available
35	Not Available	Main Body- F5837-900 F5839-900	37272095	Not Available
35	Not Available	Main Body - All models except F5837-900	37272088	Not Available
35	Not Available	Main Body - F5872-900	37271090	Not Available
36	Not Available	Cord Retainer	36172016	Not Available
37	Not Available	Switch	28218048	Not Available
38	Not Available	Trunnion Cover - L.H.	36131086	Not Available
39	Not Available	Switch Actuator Lever	38434025	Not Available
40	Not Available	Trunnion Cover - R.H.	36131085	Not Available
41	Not Available	Motor Base Seal	38781048	Not Available
42	Not Available	Cord (use with Hoover Motor)	46583044	Not Available
42	No Image	CORD, 31' STEAMER WHITE WIRE STRIPPED Part Number: 46583012 for Hoover More Product Details	46583012	$31.80Read more
42	Not Available	Cord (use with 12 Amp Motor)	46583056	Not Available
43	Not Available	Motor Kit - F5837-900 F5839-900 -	40309009	Not Available
43	Not Available	Motor- F5837-900 F5839-900 - Units with	43576177	Not Available
43	Not Available	Motor-(GS)- F5865-900.F5867-900	43576163	Not Available
43	Not Available	(Use 43576202 Motor)	F5883-900	Not Available
43	Not Available	Motor- (Hoover) - F5B64-900 F5865-900	43576202	Not Available
43	Not Available	Motor -12 Amp Ametek - F5872-900	27212051	Not Available
43	Not Available	Motor Brush (Hoover Motor ONLY)	41311016	Not Available
44		Gasket-Hoover Steamer Motor Seal For: hoover More Product Details	34113004	$1.96Read more
45	Not Available	Hose Assembly (w/o release tab on	40309032	Not Available
45	Not Available	Hose Assembly (w/ release tab on	43436011	Not Available
46	Not Available	"O" Ring	25156518	Not Available
47	Not Available	Screw	21447246	Not Available
48	Not Available	Valve Tank Seal	38783023	Not Available
49	Not Available	"O" Ring	25156517	Not Available
50	Not Available	Solution Hose Coupler	38719039	Not Available
51	Not Available	Valve Duct Seal	38783024	Not Available
52		Latch Lock L/H Hoover F5867 Steam Vac For: hoover More Product Details	36151021	$2.13Add to cart Special order: ships in 2 to 4 weeks
53	Not Available	Speed Nut (Early models)	21364107	Not Available
54		Latch Lock R/H Hoover F5867 Steam Vac For: hoover More Product Details	36151020	$2.13Add to cart Special order: ships in 2 to 4 weeks
55	Not Available	Screw (2)	21447232	Not Available
55		NLA Hoover HOOVER 48447002 STATIONARY BRUSH for models F5837-900 F5837-960 F5839-900 F5865-900 F5... More Product Details	48447002	$11.00Read more
55	Not Available	Lead Wire Black - (Front of motor to switch)	49811039	Not Available
55		Lead Wire - White 12 Amp For: hoover More Product Details	49811079	$1.96Read more
55	Not Available	Lead Wire Lt. Blue -12 Amp Motor	49811087	Not Available
55	Not Available	Lead Wire Red -12 Amp Motor	49811081	Not Available
55	Not Available	respectively except for the addition of one 64 oz. bottle of	F5883-900	Not Available
55	Not Available	respectively except for the addition of a bonus detergent kit.	F5883-900	Not Available

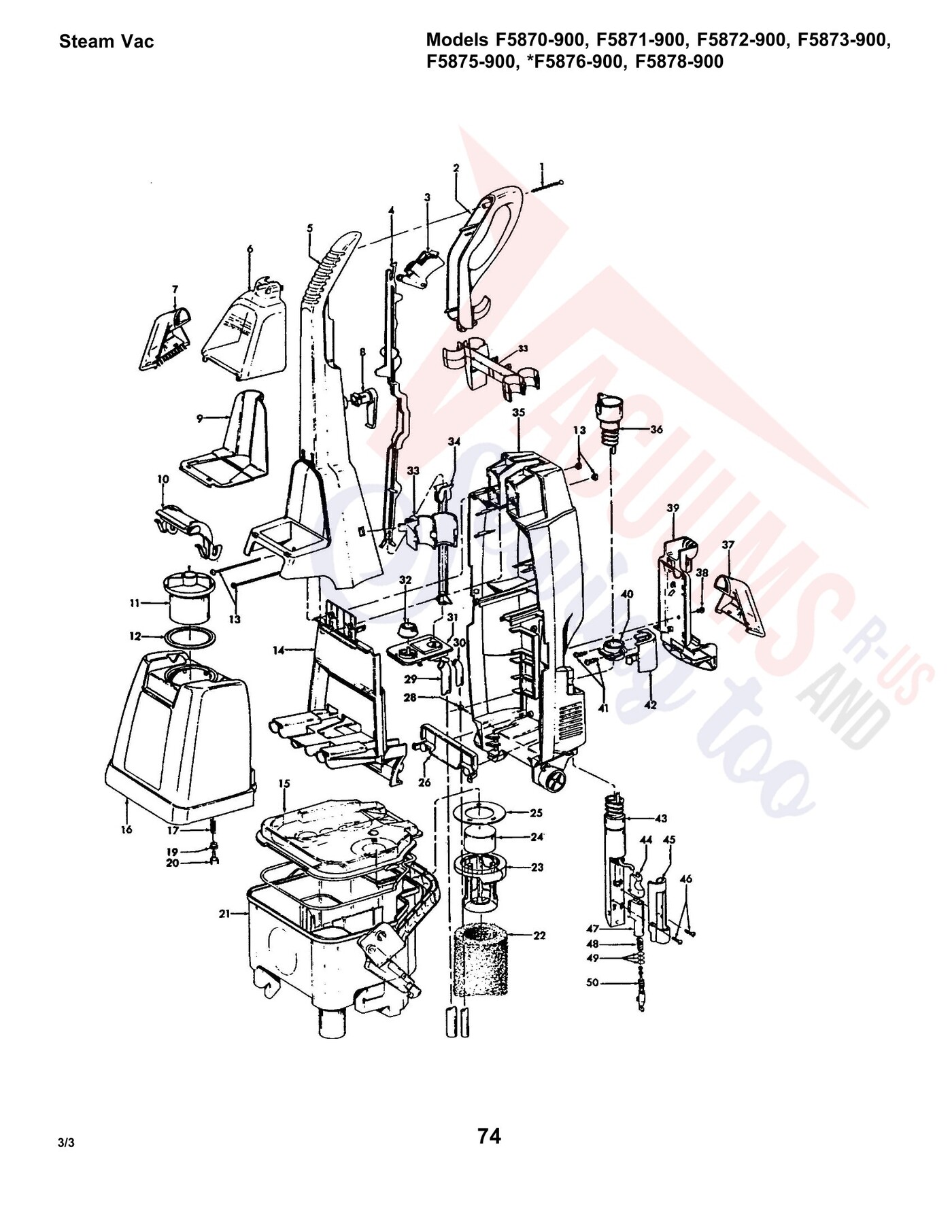

Hoover F5837 exploded schematic diagram (page 2)

Click to enlarge

#	Part image	Description	SKU	Price
1	Not Available	Screw	21447248	Not Available
2	Not Available	Handle Lever Guard	39458006	Not Available
3	Not Available	Trigger	38434028	Not Available
4	Not Available	Upper Control Rod	38458037	Not Available
5	Not Available	Upper Handle - (Inc. items 1 2 3	39466004	Not Available
5	Not Available	Upper Handle - (Inc. items 1 2 3	39466049	Not Available
6	Not Available	Tool Cover	37276011	Not Available
7	Not Available	Nozzle Body - CP	38613040	Not Available
8	Not Available	Cord Wrap	39442041	Not Available
9	Not Available	Tool Holder-F5871-900	36433127	Not Available
10	Not Available	Solution Tank Handle	39457016	Not Available
11	Not Available	Solution Tank Cap (Incl. It. 12)	42272002	Not Available
12		NO LONGER AVAILABLE Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover More Product Details	38784062	$1.73Read more
13	Not Available	Handle Hardware Assembly	40201154	Not Available
13	Not Available	Handle Hardware Assembly -	40201171	Not Available
14	Not Available	Handle Cover	37276002	Not Available
15	Not Available	Lid Assem.(lncl. It. 22232425)	42272120	Not Available
16		TANK, CLEAN SOLUTION F5815/6020/6023 Part Number: 42272134 for Hoover More Product Details	42272134	$43.16Read more
17	Not Available	Spring	38312014	Not Available
19	Not Available	Valve Seal	38784061	Not Available
20	Not Available	Valve Stem	38717009	Not Available
21	Not Available	Recovery Tank	38777065	Not Available
21	Not Available	Recovery Tank - Models with no	38777070	Not Available
22	Not Available	Tank Filter	43611041	Not Available
23		Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover More Product Details	38719027	$4.97Read more
24	Not Available	Float	25661016	Not Available
25	Not Available	Seal	38784070	Not Available
26	Not Available	Solution Tube Cover	37276010	Not Available
28	No Image	SCREW, LOWER HAND SVIII Part Number: 21447244 for Hoover More Product Details	21447244	$1.02Read more
29		Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... More Product Details	40309002	$27.50Read more
30		Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... More Product Details	40309002	$27.50Read more
31	Not Available	Reservior Assem. (inc. item 32)	43516008	Not Available
32	Not Available	Solution Tank Seal	38784060	Not Available
33	Not Available	Hose/ Nozzle Holder	36172005	Not Available
33	Not Available	Hose / Nozzle Holder w/ Holster -	36433129	Not Available
34	Not Available	Control Rod Lower	38458033	Not Available
35	Not Available	Lower Handle	39466037	Not Available
36	Not Available	Hose Assem.(incl. it 43 thru 50)	43436011	Not Available
36	Not Available	Hose Assem. (Incl. It. 37 & 43 thru	43436016	Not Available
37	Not Available	Nozzle Body	38613028	Not Available
38	Not Available	Screw	21447041	Not Available
39	Not Available	Tool Rack - Lower	36433131	Not Available
40	Not Available	Hose Clamp	36171032	Not Available
41	Not Available	Screw (2)	21447228	Not Available
42	Not Available	Hose Cover	36131097	Not Available
43	Not Available	Hose Assem. (Incl. It. 37 &	43436011	Not Available
43	Not Available	Hose Assem. (Incl. It. 37 & 43 thru	43436016	Not Available
44		Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover More Product Details	38433074	$2.16Read more
45	Not Available	Wand Cover	37276006	Not Available
46	Not Available	Screw	21447239	Not Available
47	Not Available	Wand/ Valve Assembly	43513011	Not Available
48		Spring-Hoover Steam-Vac 5411/5837 For: hoover More Product Details	38312019	$2.13Add to cart Special order: ships in 2 to 4 weeks
50	Not Available	NNoozzzzllee VVaallvvee AAsssseemmbbllyy	43412007	Not Available
50	Not Available	Sprayer - F5873-900	43412003	Not Available
50	Not Available	Bare Floor Tool	48417003	Not Available
50	Not Available	Carpet Solution -16 oz.	57333016	Not Available
50	Not Available	Bare Floor Solution - 32 oz. -	40303032	Not Available
50	Not Available	Pre-Cleaner-16 oz. F5873-900	40302016	Not Available
50	Not Available	Nozzle Cleanout Tool - F5875-900	39514001	Not Available
