Schematic and parts book for Eureka 4377ATV . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

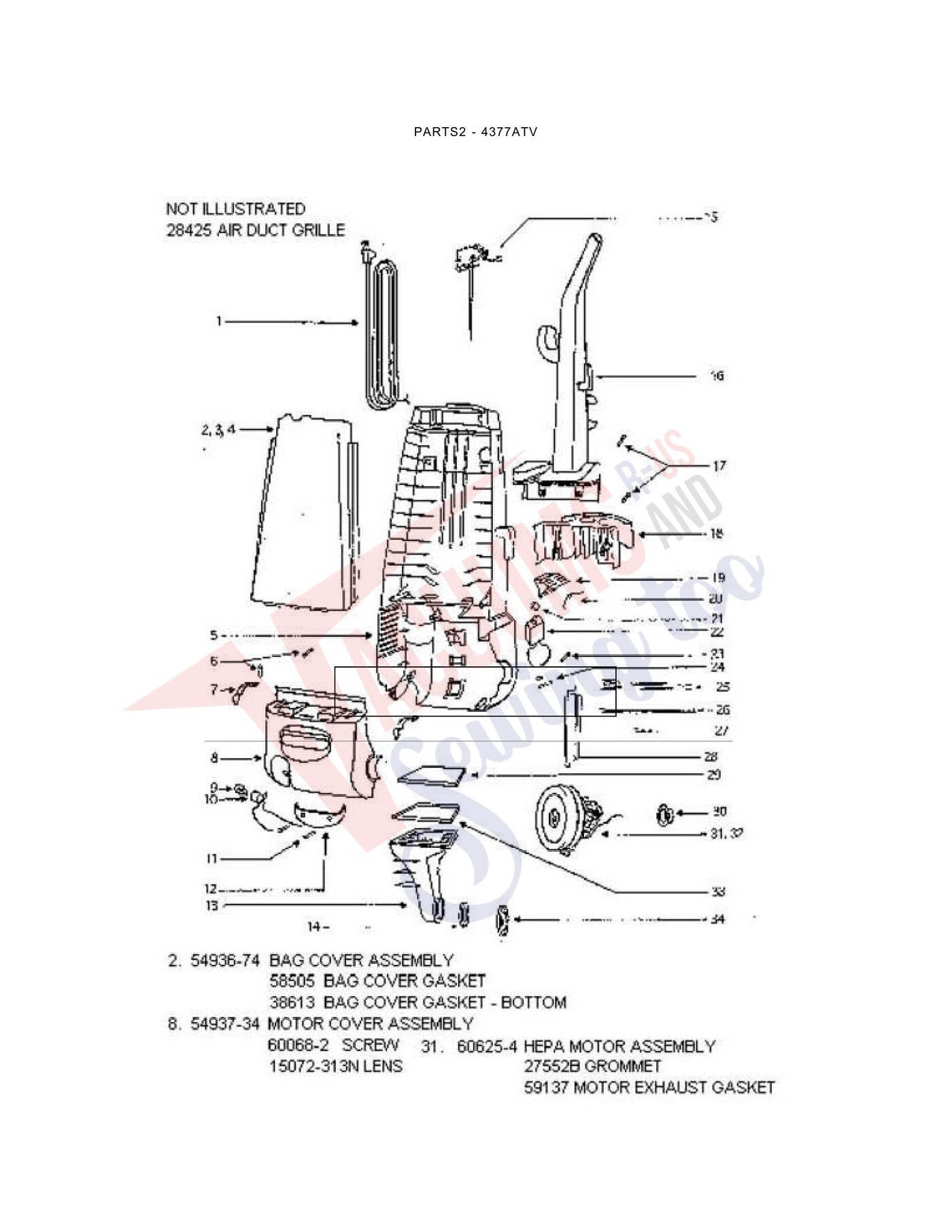

| # | Part image | Description | SKU | Price |
| 1 | Not Available | LENS - MOTOR COVER | 15072-313N | Not Available |
| 2 | Not Available | DUCT - AIR | 15408B-119N | Not Available |
| 3 | Not Available | TOOL CADDY | 15443A-119N | Not Available |
| 5 | Not Available | SWITCH - BUTTON | 27474C-288N | Not Available |
| 6 | Not Available | GROMMET | 27552B | Not Available |
| 7 | Not Available | SWITCH - PUSHBUTTON | 28304A | Not Available |
| 8 | Not Available | GRILLE - AIR DUCT | 28425 | Not Available |
| 9 | Not Available | CLAMP | 38420-2 | Not Available |
| 10 | Not Available | HEADLAMP SCKT & TERMINAL | 38611-1 | Not Available |
| 11 | Not Available | GASKET | 38613 | Not Available |
| 12 | Not Available | SUPPLY CORD & TERMINAL AS | 38680-17 | Not Available |
| 13 | Not Available | FLANGE - MOTOR INTAKE | 39023 | Not Available |
| 14 | Not Available | THERMOSTAT & TERMINAL ASS | 39252-2 | Not Available |
| 15 | No Image | BRUSH ASSY. CK14/2 PRO | 39334 | $58.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 17 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 18 | Not Available | BAG COVER ASSY - PACKAGED | 54936-74 | Not Available |
| 19 | Not Available | MOTOR COVER ASSY W/O LENS | 54937-34 | Not Available |
| 20 | Not Available | GASKET - BAG COVER | 58505 | Not Available |
| 21 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 22 | Not Available | GASKET - AIR DUCT | 59297SV | Not Available |
| 23 | Not Available | ADAPTER - TUBE | 59361A | Not Available |
| 24 | Not Available | TUBE | 59362B | Not Available |
| 25 | Not Available | SCREW PACKAGE | 60068-2 | Not Available |
| 26 | Not Available | TORS SPRING PKG | 60134 | Not Available |
| 27 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | HEPA FILTER PACKAGE | 60285B | Not Available |
| 29 | Not Available | HEPA MOTOR & SHROUD ASSY | 60625-4 | Not Available |
| 30 | Not Available | REAR HOUSING - PKGD | 60703-2 | Not Available |
| 31 | Not Available | RETAINING RING PKG | 70521 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | CARRIAGE - WHEEL | 14993B-119N | Not Available |
| 2 | Not Available | GUARD - FURNITURE (12") | 15237-288N | Not Available |
| 3 | Not Available | OPERATOR - HEIGHT ADJUSTM | 27462C-288N | Not Available |
| 4 | Not Available | RELEASE - HANDLE | 27467A-288N | Not Available |
| 5 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $5.87Read more |
| 6 | Not Available | HOSE - COMPRESSION (PURCH | 38479-4 | Not Available |
| 7 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $7.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | WHEEL - FRONT | 39173-119N | Not Available |
| 9 | Not Available | WHEEL/BUSHING PACKAGE | 39260A-288N | Not Available |
| 10 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 11 |  | Eureka Extended U belt aftermarket 2 pack pn: 61120F | 20310801 | $6.00Add to cart |
| 11 |  | Compatible alternateEureka Ext U Royal/Dirt Devil Style 20 Belt, Bravo Worldvac Powerline Eureka Type U Flat Royal di... More Product Details | 1JZ0900000 | $6.00Add to cart |
| 12 | Not Available | BELT CAP & GASKET -PACKA | 54376-2 | Not Available |
| 13 | Not Available | PACKAGE - RETAINING RING | 54432 | Not Available |
| 14 | Not Available | SCREW PACKAGE | 54669-4 | Not Available |
| 15 | No Image | HOOD ASS'Y, 4377 Part Number: 54933-46 for Eureka | 5493346 | $11.58Read more |
| 16 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | AXLE - WHEEL | 58206-1 | Not Available |
| 18 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 19 | Not Available | 12" DISTURBULATOR ASSY - | 60251-2 | Not Available |
| 20 | Not Available | PUSH ON NUT PKG | 60613 | Not Available |
| 21 | Not Available | BASE ASSEMBLY - CARTONED | 60843-6 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $6.58Read more |
| 2 | Not Available | B-119N ADAPTER - HOSE | 27461 | Not Available |
| 3 | Not Available | COUPLING - HOSE | 37057A-3 | Not Available |
| 4 | Not Available | SCREW PACKAGE | 58607 | Not Available |
| 5 | Not Available | PAPER BAG PKG FA (STYLE A | 58623A | Not Available |
| 6 | Not Available | NESTING WAND ASSEMBLY | 58728B | Not Available |
| 7 | Not Available | HOSE ASSEMBLY - CARTONED | 61028-1 | Not Available |
| 8 | Not Available | COMBINATION TOOL - PACKAG | 61037 | Not Available |
| 9 | Not Available | OWNER'S GUIDE | 70262A | Not Available |
| 10 | Not Available | DRY CLEANER (8 OZ.) | 70643 | Not Available |
