Parts list and schematic diagram for Miele Models: COMPLETE C3 SGFF4, SGFF4, c3 Allergy Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies
Helpful Repair Videos

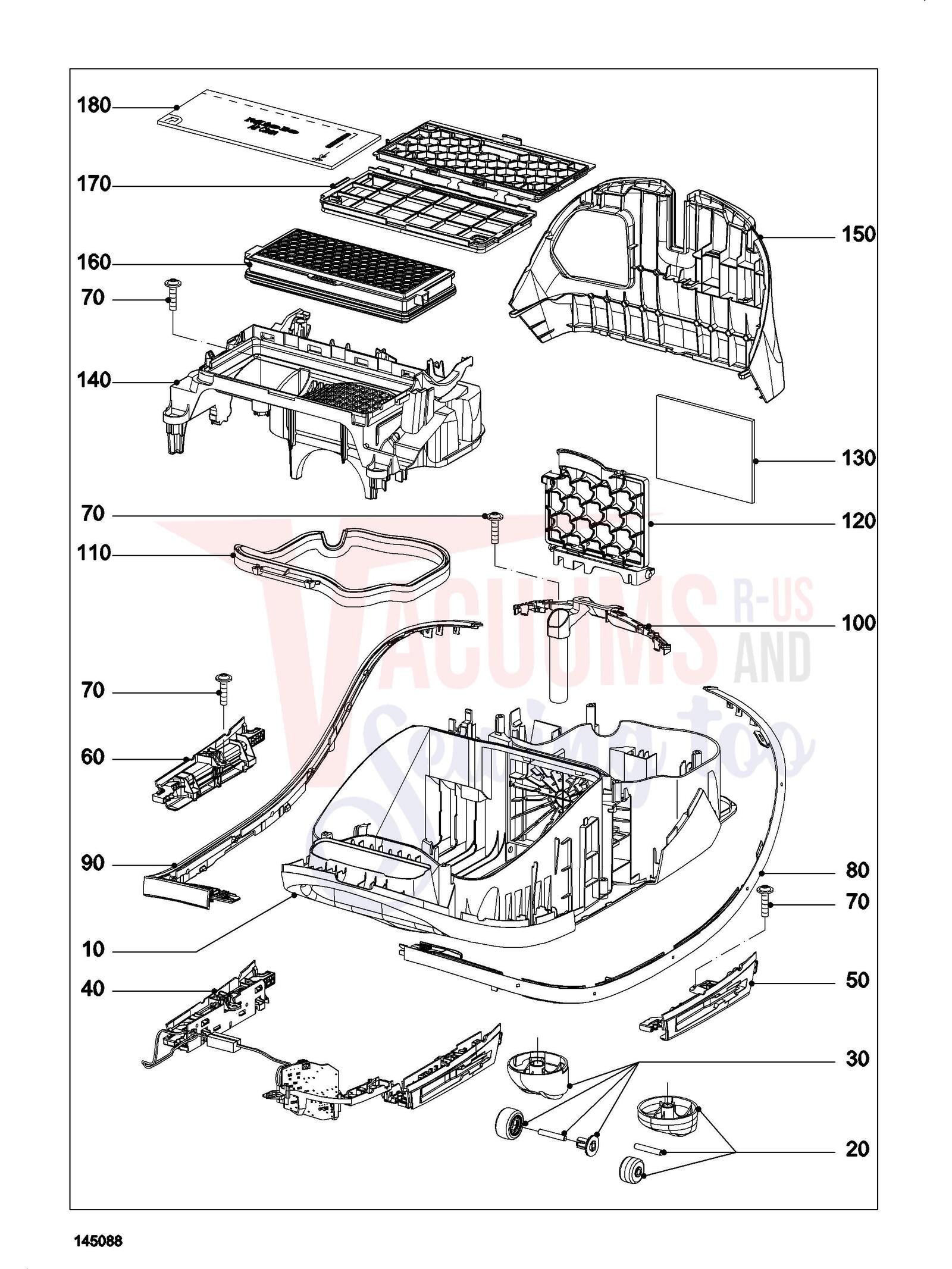

| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele Damping plate Silence | 10624283 | $6.60Read more |
| xx | | Genuine Miele Insulation matting Mounting plate v.S8 | 9644880 | $0.00Read more |
| xx | | Genuine Miele Insulation matting Mounting plate h.SG | 10372730 | $0.00Read more |
| xx | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |
| xx | | Genuine Miele Insulation matting Spacer bracket S8 | 9644860 | $0.00Read more |
| xx | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10-20+ | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 30 | | Genuine Miele Slide skid Dynamic Drive kpl. | 7781437 | $22.00Read more |
| 50 |  | Genuine Miele Suspension Telescopic pipe left | 7781072 | $10.70Read more |
| 50-60+ | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 60 |  | Genuine Miele Suspension Telescopic pipe right | 7781052 | $10.70Read more |
| 70 | Not Available | undefined For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 80+90 |  | Genuine Miele Buffer | 9239220 | $150.60Read more |
| 100 |  | Genuine Miele Funnel | 7782554 | $71.70Read more |
| 100 |  | Available ReconditionedReconditioned Genuine Miele Funnel More Product Details | 7782554R | $64.70Add to cart |
| 110 | | Genuine Miele Seal Motor housing | 7780793 | $13.50Read more |
| 110-130 |  | Genuine Miele Casing bottom Standard assy | 9283037 | $120.70Read more |
| 110-130 | | Genuine Miele Casing bottom Dynamic Drive assy | 9283058 | $150.60Read more |
| 110-130 | | Genuine Miele Casing bottom Sil. Dyn. Drive assy | 10624233 | $120.70Read more |
| 120 |  | Genuine Miele Filter frame S8 | 7780743 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 |  | Genuine Miele Mounting plate | 9283080 | $0.00Read more |
| 150 |  | Genuine Miele Rear panel | 7781532 | $24.70Read more |
| 150 | | Genuine Miele Rear panel | 7781532 | $24.70Read more |
| 160 |  | Miele ActiveAir Clean Filter SF-AA50 | 9616110 | $49.00Add to cart |
| 160 |  | Miele HEPA AirClean with TimeStrip SF-HA 50 | 4002515317013 | $66.69Read more |
| 160 |  | Genuine Miele Air-Clean filter Plus SF-AP 50 | 10107860 | $25.92Read more |
| 160 |  | Aftermarket Miele SF-HA 50 HEPA Filter | 54236401 | $28.59Add to cart |
| 170 |  | Genuine Miele Spacer bracket Air-Clean filter | 10971051 | $16.00Read more |
| 180 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

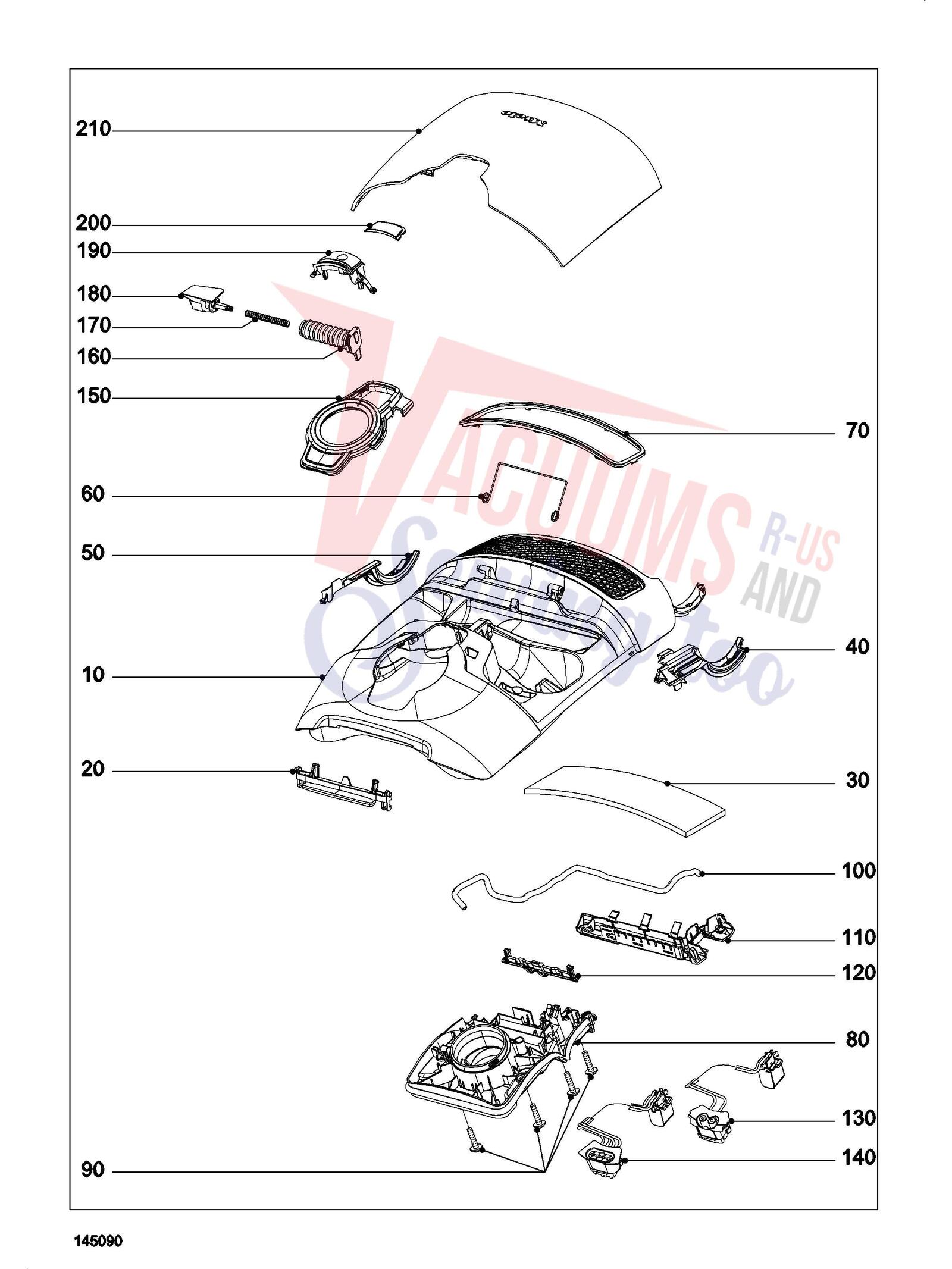

| xx | | Genuine Miele Fascia panel Socket S8 | 9882170 | $10.70Read more |
| xx |  | Genuine Miele Casing top MART assy | 9283632 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| xx | | Genuine Miele Casing top LOWS assy | 9283622 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| xx |  | Genuine Miele Casing top Canary yellow kpl. | 9283651 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| xx | | Genuine Miele Casing top OBSW assy | 9283662 | $98.00Read more |
| xx |  | Genuine Miele Casing top Ivory white kpl.S8 | 9283671 | $98.00Read more |
| xx |  | Genuine Miele Casing top Diamondgrey kpl. | 9283681 | $98.00Read more |
| xx | | Genuine Miele Casing top BRRT 2 assy | 10713092 | $78.10Read more |
| xx | | Genuine Miele Casing top Canary yellow kpl. | 9283651 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| xx |  | Genuine Miele Casing top Sprint blue kpl. S8 | 9283711 | $98.00Read more |
| xx | | Genuine Miele Casing top BRPF assy | 9283732 | $98.00Read more |
| xx |  | Genuine Miele Casing top Mahogany br.met. | 9283771 | $120.70Read more |
| xx | | Genuine Miele Casing top Almond brown S8 | 9806621 | $98.00Read more |
| xx | | Genuine Miele Casing top Havanna brown kpl. | 9791241 | $120.70Read more |
| xx | | Genuine Miele Casing top Marine blue kpl. | 9782521 | $98.00Read more |
| xx | | Genuine Miele Casing top Racing green | 9791191 | $98.00Read more |
| xx | | Genuine Miele Casing top PETR assy | 10645492 | $78.10Read more |
| xx | | Genuine Miele Casing top Curry yellow kpl. SG | 10645501 | $78.10Read more |
| xx | | Genuine Miele Casing top GRGR assy | 10645512 | $78.10Read more |
| xx | | Genuine Miele Casing top Technoblue kpl. SG | 10645521 | $85.50Read more |
| xx | Not Available | Casing top Deep sea blue met. S8 For Miele COMPLETE C3 SGFF4 SGFF4 | 9531811 | Not Available |
| xx | Not Available | Casing top Tizia red metallic For Miele COMPLETE C3 SGFF4 SGFF4 | 9283761 | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| xx | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 20 |  | Genuine Miele Lock S8 | 7804723 | $2.30Read more |
| 30 |  | Genuine Miele Insulation matting | 7815232 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Genuine Miele reinforcement unit left for Miele c3 | 7815254 | $9.70Read more |
| 50 |  | Genuine Miele reinforcement right for c3 canisters | 7815274 | $9.70Read more |
| 60 | | Genuine Miele Torsion spring Lid | 7815243 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele Trim Casing top SG | 7936893 | $13.50Read more |
| 80 |  | Genuine Miele Dust channel | 7782964 | $16.00Read more |
| 90 | Not Available | undefined For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 110 |  | Genuine Miele Cover strip S8 | 7805283 | $15.00Read more |
| 120 |  | Genuine Miele interlock Lid | 7810882 | $2.30Read more |
| 130 |  | Genuine Miele Flush socket outlet 2 pole assy | 7805082 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 |  | Genuine Miele Ring (ohne Öffnung) | 7783073 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 |  | Genuine Miele Conc.shaped hose Change filter ind. | 7797301 | $10.70Read more |
| 170 |  | Genuine Miele Spring für FWA S8 | 9184811 | $13.50Read more |
| 170 | | Genuine Miele Spring für FWA S8 | 9184811 | $13.50Read more |
| 180 |  | Genuine Miele Slide f. FWA | 7783013 | $2.30Read more |
| 190 |  | Genuine Miele Pushbutton Lid | 7783052 | $2.30Read more |
| 200 |  | Genuine Miele Viewing screen Change filter ind. | 7783002 | $4.90Read more |
| 210 | | Genuine Miele Lid Lotos white KD Complete C3 | 10084170 | $52.20Read more |
| 210 | | Genuine Miele Lid Canary yellow KD Complete C3 | 10084180 | $52.20Read more |
| 210 | | Genuine Miele Lid Obsidian black KD Complete C3 | 10082620 | $52.20Read more |
| 210 | | Genuine Miele Lid Tayberry red KD Complete C3 | 10084201 | $52.20Read more |
| 210 | | Genuine Miele Lid Bronze-pearl finish KD CompleteC3 | 10084290 | $52.20Read more |
| 210 | | Genuine Miele Lid Ivory white KD Complete C3 | 10084210 | $52.20Read more |
| 210 | | Genuine Miele Lid Autumn red KD Complete C3 | 10082450 | $52.20Read more |
| 210 | | Genuine Miele Lid Deep sea blue met. KD Compl.C3 | 10084330 | $76.00Add to cart Special order: ships in 2 to 4 weeks |
| 210 | | Genuine Miele Lid Koi orange KD Complete C3 | 10084230 | $52.20Read more |
| 210 | | Genuine Miele Lid Tizia red metallic KD Comp.C3 | 10084350 | $62.00Read more |
| 210 | | Genuine Miele Lid Mahogany br.met. KD CompleteC3 | 10084380 | $62.00Read more |
| 210 | | Genuine Miele Lid Almond brown S8xxx | 9958730 | $52.20Read more |
| 210 | | Genuine Miele Lid Havanna brown KD Complete C3 | 10084250 | $52.20Read more |
| 210 | | Genuine Miele Lid Marine blue KD Complete C3 | 10084270 | $52.20Read more |
| 210 | | Genuine Miele Lid Racing green KD Complete C3 | 10084260 | $62.00Read more |
| 210 | No Image | Lid Graphite Grey Kd Complete C3 | 10729610 | $76.00Read more |
| 210 | | Genuine Miele Lid Petrol KD Complete C3 | 10729690 | $71.70Read more |
| 210 | | Genuine Miele Lid Curry yellow KD Complete C3 | 10729720 | $39.50Read more |
| 210 | | Genuine Miele Lid Technoblue KD Complete C3 | 10729670 | $52.20Read more |
| 210 | Not Available | Lid Sprint blue KD Complete C3 For Miele COMPLETE C3 SGFF4 SGFF4 | 10084220 | Not Available |
| 210 | Not Available | Lid Diamondgrey KD Complete C3 For Miele COMPLETE C3 SGFF4 SGFF4 | 10084240 | Not Available |
| # | Part image | Description | SKU | Price |

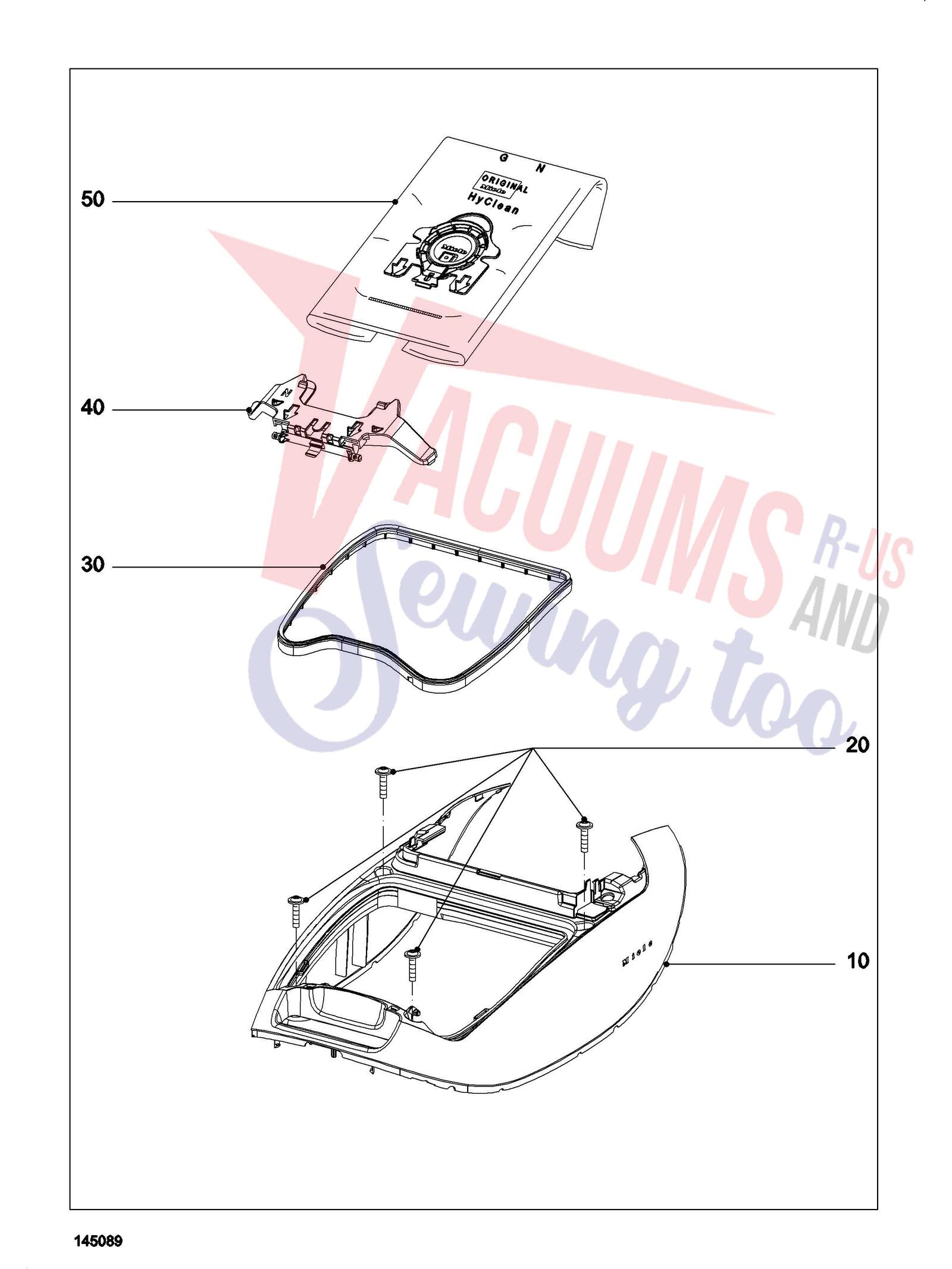

| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+ | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 10+ | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 10+ | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 10+ | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 10+ | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 10+ | Not Available | For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 20 | Not Available | undefined For Miele COMPLETE C3 SGFF4 SGFF4 | noop | Not Available |
| 30 | | Genuine Miele Seal für Staubraum | 7793083 | $13.50Read more |
| 30+40 | | Genuine Miele Cover frame Autumn red kpl. SG | 9283343 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Ivory white kpl.SG | 9283373 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Lotos white kpl. SG | 9283333 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Canary yellow kpl.SG | 9283353 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Obsidian black SG | 9283363 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Diamondgrey kpl.SG | 9283383 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Tayberry red 2 SG | 10713073 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Koi orange kpl.SG | 9283403 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Bronze-pearl finish SG | 9283453 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Sprint blue kpl. S8 | 9283412 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Mahogany br.met. S8 | 9283462 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Deep sea blue met. S8 | 9531792 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Tizia red metallic | 9283482 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Almond brown kpl. S8 | 9806592 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Havanna brown kpl. SG | 9791223 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Marine blue kpl. SG | 9782503 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Racing green SG | 9791153 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Graphite grey kpl. SG | 10645413 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Technoblue kpl. SG | 10645433 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Petrol kpl. SG | 10645383 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Curry yellow kpl. SG | 10645403 | $78.10Read more |
| 40 |  | Miele Blue Bag Dock Type GN for C3 and S8000 Series Canisters PN 7793096 | 7793096 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Miele HEPA Vacuum Bags Type GN - 8pk | 10455150 | $49.00Read more |
| 50 |  | Aftermarket Miele GN Bags 5pk with Filters | WP10968 | $19.16Add to cart |
| 50 | No Image | Compatible alternateAftermarket Miele GN value package 8 bags aftermarket sf-ha50 filter and pre filter More Product Details | AMGNVP | $44.99Add to cart |
| 50 | No Image | Compatible alternateAftermarket 4 pack Miele GN bags without filters More Product Details | AMMIELEGN4PK | $13.99Add to cart |
| 50 |  | Miele HEPA Vacuum Bags Type GN - 4pk | 4002515578971 | $25.49Read more |
