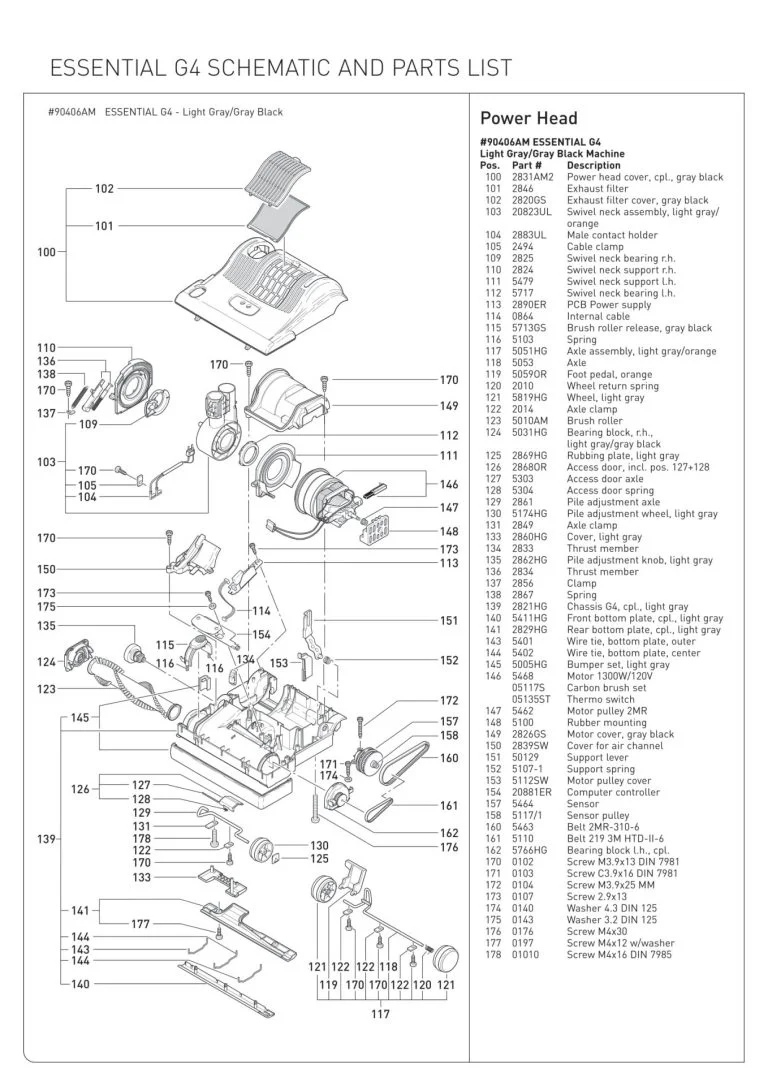

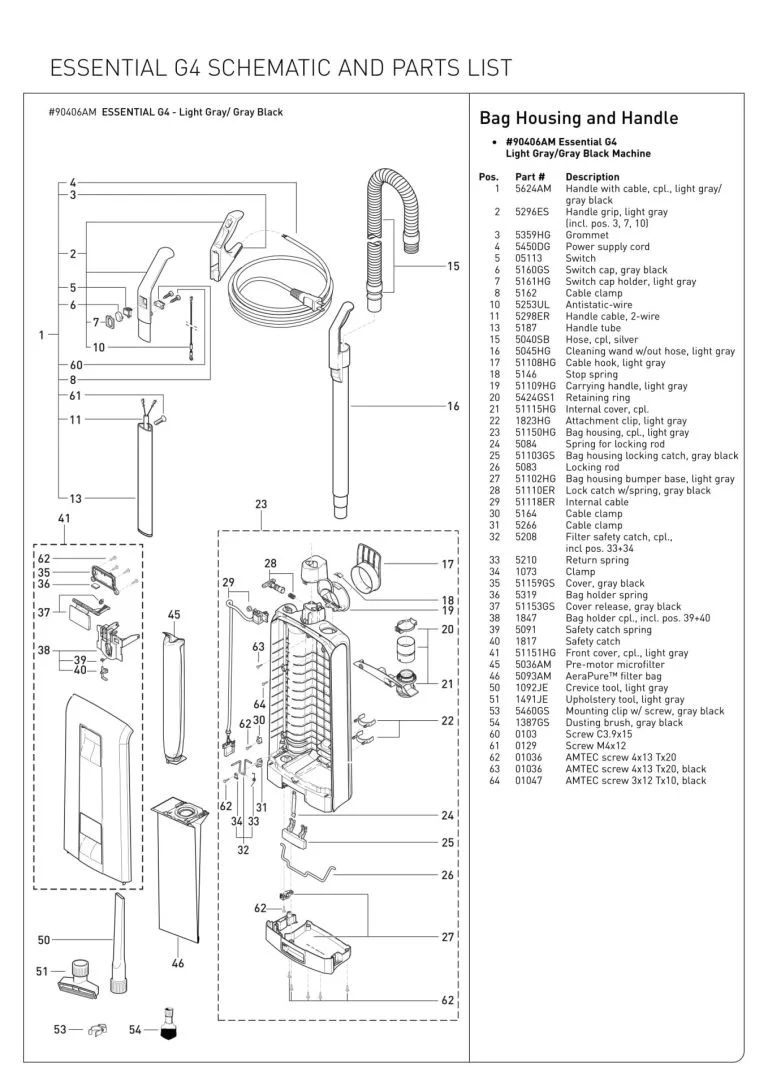

Schematic Parts Book for Sebo Model: ESSENTIAL G4 90406AMtest

Schematic Parts Book for Sebo Model: ESSENTIAL G4 90406AM


# Part image Description SKU Price
100Product ThumbnailPower Head Cover, without exhaust filter and cover, for X7 (white) Sebo vacuum cleaner repair part

More Product Details

52126WEAM

$42.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
100Product ThumbnailPower Head Cover, complete, for G4 (gray black) Sebo vacuum cleaner repair part

More Product Details

2831AM2

$46.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
101Product ThumbnailSebo Exhaust Filter for G1 Series

More Product Details

WP11325

$14.99Read more

102Product ThumbnailExhaust Filter Cover, for G series (gray black) Sebo vacuum cleaner repair part

More Product Details

2820GS

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
103Product ThumbnailSwivel Neck Assembly, for G4/G5 (light gray/orange) Sebo vacuum cleaner repair part

More Product Details

20823UL

$42.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
104Product ThumbnailMale Contact Holder through swivel neck, for G series Sebo vacuum cleaner repair part

More Product Details

2883UL

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
105Product ThumbnailHANDLE, UPPER HANDLE W/TURBO HOLDER Part Number: 203-2494 for Bissell

More Product Details

2032494

$29.62Read more

109Product ThumbnailSwivel Neck Bearing, for G series Sebo vacuum cleaner repair part

More Product Details

2825

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
110Product ThumbnailSwivel Neck Support R.H., for G series Sebo vacuum cleaner repair part

More Product Details

2824

$14.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
111Product ThumbnailSwivel Neck Support, L.H., (w/1 screw and 5718 seal), for G series and X4 (use w/5482GS chassis) Sebo vacuum cleaner repair part

More Product Details

5479

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
112No ImagePIGTAIL, :( CORD 15" 2 PIN FEMALE 2 BLADE MALE BLA Part Number: 32-5717-63 for Fitall

More Product Details

32571763

$4.66Read more

113Product ThumbnailPCB Power Supply with ribbon cable, for G series Sebo vacuum cleaner repair part

More Product Details

2890ER

$43.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
114Product ThumbnailRibbon Cable, PCB to computer controller, for G series Sebo vacuum cleaner repair part

More Product Details

0864

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
115Product ThumbnailBrush Roller Release, for G1, G4, red X4, and graphite X4 BOOST (gray black) Sebo vacuum cleaner repair part

More Product Details

5713GS

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
116Product ThumbnailGrip, Blk or gry Handle C2133/1950/C4047/S647/S66 Part Number: 25103A355N for Eureka

More Product Details

25103A355N

$8.16Read more

117Product ThumbnailAxle with Wheels, Foot Pedal, and Spring, for G series (light gray) Sebo vacuum cleaner repair part

More Product Details

5051HG

$30.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
118No ImageSwitch, Saftey Kit B1500 Part Number: 45-0534-3 for Koblenz

More Product Details

4505343

$32.47Read more

119No ImageFoot Pedal, for X1, X2, X4, X5, and G series (orange) Sebo vacuum cleaner repair part

More Product Details

WP11782

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
120No ImageFilter, Hepa UZ934 Part Number: 1407542010 for Advance

More Product Details

1407542010

$243.74Read more

121Product ThumbnailWheel, complete, for G series (light gray) Sebo vacuum cleaner repair part

More Product Details

5819HG

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
122Product ThumbnailAxle Clamp (10 pack), for X1, X2, X4, X5, G series, 300/350, 370 series, and ET-C Sebo vacuum cleaner repair part

More Product Details

2014ER

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
123Product ThumbnailSebo Brush Roller 12" for X1, X4, X7, G1, G4, Felix, Dart, K3, E3, D4, and ET-1 Power Head

More Product Details

5010AM

$34.99Add to cart

124Product ThumbnailBearing Block, R.H., for G series (light gray/dark gray) Sebo vacuum cleaner repair part

More Product Details

5031HG

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
125Product ThumbnailRubbing Plate for pile adjustment axle for G series, 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

2869HG

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
126Product ThumbnailDoor, Orange Access SR12/SRS15 Part Number: 8.613-770.0 for Windsor

More Product Details

86137700

$33.15Add to cart

Product is special order please allow 2-4 weeks for delivery.
127Product ThumbnailAccess Door Axle, for X and G series Sebo vacuum cleaner repair part

More Product Details

5303

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
128Product ThumbnailAccess Door Spring, for X and G series Sebo vacuum cleaner repair part

More Product Details

5304

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
129Product ThumbnailPile Adjustment Axle, for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2861

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
130Product ThumbnailPile Adjustment Wheel, for G series and 300/350 (light gray) Sebo vacuum cleaner repair part

More Product Details

5174HG

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
131Product ThumbnailAxle Clamp, for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2849

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
133Product ThumbnailAccess Door / Axle Cover, for G series (light gray) Sebo vacuum cleaner repair part

More Product Details

2860HG

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
134Product ThumbnailThrust Member for pile adjustment knob, for G series, 370 COMFORT, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2833

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
135Product ThumbnailPile Adjustment Knob, for G series (light gray) Sebo vacuum cleaner repair part

More Product Details

2862HG

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
136Product ThumbnailThrust Member for pile adjustment axle, for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2834

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
137Product ThumbnailClamp for axle thrust member spring, for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2856

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
138Product ThumbnailSpring for axle for chassis thrust member for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2867

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
139Product ThumbnailChassis, complete, for G1 and G4 (light gray) Sebo vacuum cleaner repair part

More Product Details

2821HG

$58.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
140Product ThumbnailFront Bottom Plate, complete, for G1 and G4 (light gray) Sebo vacuum cleaner repair part

More Product Details

5411HG

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
141Product ThumbnailRear Bottom Plate, complete, for G1 and G4 (light gray) Sebo vacuum cleaner repair part

More Product Details

2829HG

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
143Product ThumbnailHose, 6 1/2' X 1 1/4" Blank Non-Elect SVF Beige Part Number: 035401250170 for Fitall

More Product Details

035401250170

$11.63Add to cart

Product is special order please allow 2-4 weeks for delivery.
144Product ThumbnailWire Tie (long), for X and G series, and ET-1/ET-2 Sebo vacuum cleaner repair part

More Product Details

5402

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
145Product ThumbnailBumper Set, for G1 and G4 (light gray) Sebo vacuum cleaner repair part

More Product Details

5005HG

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
146No ImageVacuum Motor 120V / 1300W, with pulley and mount, for X4/X5 and G series Sebo vacuum cleaner repair part

More Product Details

WP11958

$95.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
147Product ThumbnailMotor Pulley, for X4/X5, X7/X8, and G series Sebo vacuum cleaner repair part

More Product Details

5462

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
148Product ThumbnailRubber Mounting, G series and X4/X5, X7/X8 (for 5468 motor), and X1/X2 (for 5211UL motor) Sebo vacuum cleaner repair part

More Product Details

5100

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
149Product ThumbnailMotor Cover, for G series (gray black) Sebo vacuum cleaner repair part

More Product Details

2826GS

$20.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
150No ImageCover for Air Channel, for G series (black) Sebo vacuum cleaner repair part

More Product Details

WP11608

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
151Product ThumbnailSupport Lever, for G4 and G5 Sebo vacuum cleaner repair part

More Product Details

50129

$7.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
152Product ThumbnailSpring for Support Lever, for X and G series, and 300/350 Sebo vacuum cleaner repair part

More Product Details

5107-1

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
153Product ThumbnailMotor Pulley Cover, for X and G series (black) Sebo vacuum cleaner repair part

More Product Details

5112SW

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
154Product ThumbnailKit Containing Power Supply and Computer Controller

More Product Details

WP11851

$94.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
157Product ThumbnailSensor, with pulley and screws, for X4, G1, and G4 (has yellow ring) Sebo vacuum cleaner repair part

More Product Details

5464

$44.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
158Product ThumbnailSensor Pulley for X4/X5 and G series. Motor Pulley for 300/350. Sensor & Motor Pulley for X1/X2. Sebo vacuum cleaner repair part

More Product Details

5117/1

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
160No ImageHOOD, WITH BASE BI-5701 POWER NOZZLE Part Number: 155463 for Built-In

More Product Details

155463

$66.90Read more

161Not AvailableBelt 219 3M HTD-II-6 5110Not Available
162Product ThumbnailBearing Block L.H., complete, for X1/X4 and G series (internal) Sebo vacuum cleaner repair part

More Product Details

5766HG

$32.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
170Product ThumbnailScrew F 3.9 x 13 DIN 7981 (10 pack), for X, G, and 370 series, 300/350, C and D series, ET-C, ET-H, and DISCO Sebo vacuum cleaner repair part

More Product Details

0102ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
171Product ThumbnailScrew C 3.9 x 16 DIN 7981 (10 pack), for X series, FELIX series, G series, 370 series, ET-C, and duo Sebo vacuum cleaner repair part

More Product Details

0103ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
172Product ThumbnailScrew C 3.9 x 25 DIN 7981 (10 pack), for X and G series, and 300/350 Sebo vacuum cleaner repair part

More Product Details

0104ER

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
173Product ThumbnailScrew C 2.9 x 13 DIN 7981 (10 pack), for X1/X2/X4/X5, G series, 300/350, and ET-H Sebo vacuum cleaner repair part

More Product Details

0107ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
174Product ThumbnailWasher 4.3 (10 pack), for G series Sebo vacuum cleaner repair part

More Product Details

0140ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
175Product ThumbnailWasher 3.2 DIN 125 (10 pack), for X1/X2/X4/X5, and G series Sebo vacuum cleaner repair part

More Product Details

0143ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
176Product ThumbnailScrew AM4 x 30 DIN 7985 (10 pack), for X and G series, 370 COMFORT, 300/350, ET-1, ET-2, and duo Sebo vacuum cleaner repair part

More Product Details

0176ER

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
177Product ThumbnailScrew M 4 x 12, w/washer (10 pack), for X and G series, 370 COMFORT, and 300/350 Sebo vacuum cleaner repair part

More Product Details

0197ER

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
178Product ThumbnailScrew AM4 x 16, DIN 7985 (10 pack), for G series and 300/350 Sebo vacuum cleaner repair part

More Product Details

01010ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
5135Not Availableswitch ThermoNot Available




# Part image Description SKU Price
1No ImageHandle with Cord, Tube, and Switch, for G series (light gray/gray black) Sebo vacuum cleaner repair part

More Product Details

WP11542

$90.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailHandle Grip with 5161, 5253 and 5359 for G series (light gray) Sebo vacuum cleaner repair part

More Product Details

5296ES

$24.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
3Product ThumbnailGrommet (10 pack), for G and and 370 series (light gray) Sebo vacuum cleaner repair part

More Product Details

5359HE

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
4Product ThumbnailPower Supply Cord, for X4/X5, X7/X8, and G series (dark gray) Sebo vacuum cleaner repair part

More Product Details

5450DG

$50.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
5Product ThumbnailSwitch with screws, 2-Pol. 1802.3108, for X series, G series, and duo Sebo vacuum cleaner repair part

More Product Details

05113

$24.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
6Product ThumbnailSwitch Cap, for G series (gray black) Sebo vacuum cleaner repair part

More Product Details

5160GS

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
7Product ThumbnailSwitch Cap Holder, for G series (light gray) Sebo vacuum cleaner repair part

More Product Details

5161HG

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
8Product ThumbnailScrew, 1/4-20 X 1/2” Part Number 15162 for Cleanmax Models CM-WAV

More Product Details

15162

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
10Product ThumbnailWire Antistatic, for X and G series Sebo vacuum cleaner repair part

More Product Details

5253UL

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
11Product ThumbnailHandle Cable, for X1/X2, X4/X5, X7/X8, and G series Sebo vacuum cleaner repair part

More Product Details

5298ER

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
13Product ThumbnailHandle Tube, 345mm, for X and G series Sebo vacuum cleaner repair part

More Product Details

5187

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
15No ImageHose, for X, G, and 370 series, 300 and 350 (silver) Sebo vacuum cleaner repair part

More Product Details

WP12019

$38.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
16Product ThumbnailCleaning Wand (on-board), for G series (light gray) Sebo vacuum cleaner repair part

More Product Details

5045HG

$20.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
17Product ThumbnailCable Hook, for G4 and G5 (light gray) Sebo vacuum cleaner repair part

More Product Details

51108HG

$7.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
18No ImageSCREW, HANDLE QPV 10.5B Part Number: 15146-99-6 for Shop Vac

More Product Details

15146996

$2.94Read more

19Product ThumbnailCarrying Handle, for G4 and G5 (light gray) Sebo vacuum cleaner repair part

More Product Details

51109HG

$9.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
20Product ThumbnailRetaining Ring (10 pack), for X1/X2, X4/X5, G and 370 series, 300/350 (gray black) Sebo vacuum cleaner repair part

More Product Details

5424GS

$15.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
21Product ThumbnailInternal Cover, complete, for G4 and G5 (light gray) Sebo vacuum cleaner repair part

More Product Details

51115HG

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
22Product ThumbnailAttachment Clip on bag housing, for G and 370 series, and 300/350 (light gray) Sebo vacuum cleaner repair part

More Product Details

1823HG

$2.50Add to cart

Product is special order please allow 2-4 weeks for delivery.
23Product ThumbnailBag Housing with bumper, complete, for G4 and G5 (light gray) Sebo vacuum cleaner repair part

More Product Details

51150HG

$79.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
24Product ThumbnailCarbon Brush Set w/capacitor Brush M. (for 3049ER, motor with pulley), for duo Sebo vacuum cleaner repair part

More Product Details

05084S

$20.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
25Product ThumbnailBag Housing Locking Catch, for G4 and G5 (gray black) Sebo vacuum cleaner repair part

More Product Details

51103GS

$5.50Add to cart

Product is special order please allow 2-4 weeks for delivery.
26Product ThumbnailLocking Rod, bag holder, for X and G series Sebo vacuum cleaner repair part

More Product Details

5083

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
27Product ThumbnailBag Housing Bumper Base, for G4 and G5 (light gray) Sebo vacuum cleaner repair part

More Product Details

51102HG

$15.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
28Product ThumbnailHandle Catch, with spring, for G4 and G5 (gray black) Sebo vacuum cleaner repair part

More Product Details

51110ER

$5.50Add to cart

Product is special order please allow 2-4 weeks for delivery.
29Product ThumbnailInternal Cable, for G4 and G5 Sebo vacuum cleaner repair part

More Product Details

51118ER

$14.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
30Product ThumbnailCarbon Brush, Domel Motor SuperCoach/ProVac 2Pk Part Number: 105164 for Proteam

More Product Details

105164

$40.22Add to cart

Product is special order please allow 2-4 weeks for delivery.
31Product ThumbnailClamp for internal cable, for X, G, and D series Sebo vacuum cleaner repair part

More Product Details

5266

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
32Product ThumbnailFilter Safety Catch, for X and G series Sebo vacuum cleaner repair part

More Product Details

5208

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
33No Image***NLS MOTOR, 6500C Part Number: 01-8521-08 for Evolution

More Product Details

1852108

$143.34Read more

34Product ThumbnailClamp for filter safety catch, for X series, G series, and 370 series Sebo vacuum cleaner repair part

More Product Details

1073

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
35Product ThumbnailCover for cover release, on G4 and G5 (gray black) Sebo vacuum cleaner repair part

More Product Details

51159GS

$8.50Add to cart

Product is special order please allow 2-4 weeks for delivery.
36Product ThumbnailBag Holder Spring, for X and G series Sebo vacuum cleaner repair part

More Product Details

5319

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
37Product ThumbnailCover Release, for G4 (gray black) Sebo vacuum cleaner repair part

More Product Details

51153GS

$7.00Read more

38Product ThumbnailHose, Assembly W/Cuff 33N8 Part Number: 161-8470 for Bissell

More Product Details

1618470

$26.48Read more

39Product ThumbnailGrunge Basics Vanilla Natural 100% Cotton Textured Solids Made in Japan By Moda

More Product Details

3015091

$9.37Read more

40Product ThumbnailMotor, Power Nozzle 240/220 Volt Flat Shaft Part Number: 118173-73 for Lamb

More Product Details

11817373

$86.96Add to cart

Product is special order please allow 2-4 weeks for delivery.
41Not AvailableFront cover, cpl., light gray 51151HGNot Available
45Product ThumbnailSebo Hospital Grade Filter for X and G Series, and 300 350 Mechanical Models

More Product Details

5036AM

$29.99Add to cart

46Product ThumbnailSebo Vacuum Bags for X4 and X7 Uprights - 8pk

More Product Details

676224050932

$34.99Add to cart

50Not AvailableCrevice nozzle, light gray 1092JENot Available
51Not AvailableUpholstery nozzle, light gray 1491JENot Available
53Product ThumbnailMounting Clip for Dusting Tool Sebo x7 x4 uprights

More Product Details

5460GS

$5.00Read more

54Product ThumbnailSebo Triangle Dusting Brush tool for Felix X7 X4 Dart and canisters

More Product Details

1387DG

$24.99Add to cart

60Product ThumbnailScrew C 3.9 x 16 DIN 7981 (10 pack), for X series, FELIX series, G series, 370 series, ET-C, and duo Sebo vacuum cleaner repair part

More Product Details

0103ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
61Product ThumbnailScrew M4 x 12 DIN 966 (10 pack), for X series, G series, and duo Sebo vacuum cleaner repair part

More Product Details

0129ER

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
62Product ThumbnailScrew, AMTEC, 4 x 13 Tx 20 (10 pack), for X7/X8, G4/G5, DART, 370 COMFORT, 300/350, D and E series Sebo vacuum cleaner repair part

More Product Details

01036ER

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
63Product ThumbnailScrew, AMTEC, 4 x13 Tx 20 (10 pack), black, for G4/G5 Sebo vacuum cleaner repair part

More Product Details

01036SW

$4.00


Product is special order please allow 2-4 weeks for delivery.
64Product ThumbnailScrew, AMTEC, 3 x 12 Tx 10 (10 pack), black, for G4/G5 Sebo vacuum cleaner repair part

More Product Details

01047ER

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.



Report errors on this page HERE
