Schematic Parts Book for Sebo Model: DART 9855AMtest

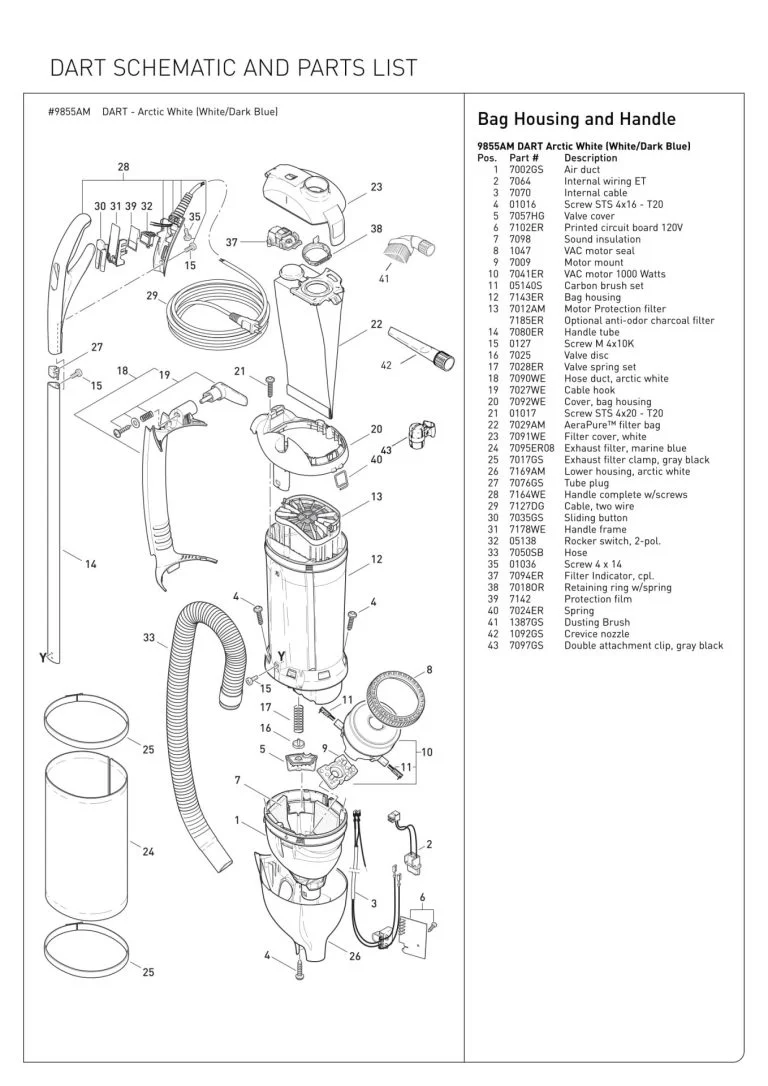

Schematic Parts Book for Sebo Model: DART 9855AM


# Part image Description SKU Price
1Product ThumbnailAir Duct, for DART (gray black) Sebo vacuum cleaner repair part

More Product Details

7002GS

$29.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailCaster Wheel Part Number 3624706400 for Simplicity Models GUSTO,MOXIE,S36, S36L,S38

More Product Details

3624706400



Product is special order please allow 2-4 weeks for delivery.
3Product ThumbnailInternal Cable, for DART and FELIX 1 (9802AM) with non-adjusting handles Sebo vacuum cleaner repair part

More Product Details

7070

$28.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
4Product ThumbnailScrew STS 4 x 16-T20 (single), for X7/X8, FELIX series, DART, 300/350, and DISCO Sebo vacuum cleaner repair part

More Product Details

01016

$0.30Add to cart

Product is special order please allow 2-4 weeks for delivery.
5Product ThumbnailValve Cover, for DART and FELIX 1 (9802AM) with non-adjusting handles (light gray) Sebo vacuum cleaner repair part

More Product Details

7057HG

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
6Product ThumbnailPrinted Circuit Board 120V,with no variable suction control, for DART Sebo vacuum cleaner repair part

More Product Details

7102ER

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
7No ImageBrush Shoe, 12" Spectrum 12P Part Number: 1470988500 for Advance

More Product Details

1470988500

$32.06Read more

8Product ThumbnailScrew, AMTEC, 3 x 12 Tx 10 (10 pack), black, for G4/G5 Sebo vacuum cleaner repair part

More Product Details

01047ER

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
9Product ThumbnailRubber Mounting, for 7041ER vacuum motor, for FELIX series and DART Sebo vacuum cleaner repair part

More Product Details

7009

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
10No ImageVacuum Motor 120V / 1000W, for FELIX series and DART Sebo vacuum cleaner repair part

More Product Details

WP11192

$79.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
11Product ThumbnailCarbon Brush Set, for 7041ER Suction Motor, for FELIX series and DART Sebo vacuum cleaner repair part

More Product Details

05140S

$21.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
12Product ThumbnailDust Bag Housing, for DART, FELIX series, and FELIX Ice Blue (new and old handle configuration) Sebo vacuum cleaner repair part

More Product Details

7143ER

$36.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
13Product ThumbnailFilter, Motor Protection For Felix Part Number: 7012ER for Sebo

More Product Details

7012ER

$29.93Read more

14Product ThumbnailHandle Tube, 660 mm, for DART and FELIX 1 (9802AM) with non-adjusting handles Sebo vacuum cleaner repair part

More Product Details

7080ER

$22.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
15Product ThumbnailScrew M4 x 10 k (single), for FELIX and 370 series, DART, 300/350, and duo Sebo vacuum cleaner repair part

More Product Details

0127

$0.30Add to cart

Product is special order please allow 2-4 weeks for delivery.
16No ImageCREVICE TOOL, POWERMAX CANISTER Part Number: 38617025 for Hoover

More Product Details

38617025

$6.32Read more

17Product ThumbnailValve Spring Set, for FELIX series and DART (set of two springs: one #7028 old version, one #8128UL new version) Sebo vacuum cleaner repair part

More Product Details

7028ER

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
18Product ThumbnailHose Duct, for FELIX White and DART (arctic white) Sebo vacuum cleaner repair part

More Product Details

7090WE

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
19Product ThumbnailCord Hook, for FELIX White and DART (arctic white) Sebo vacuum cleaner repair part

More Product Details

7027WE

$8.50Add to cart

Product is special order please allow 2-4 weeks for delivery.
20Product ThumbnailCover, dust bag housing, for DART with non-adjusting handle (arctic white) Sebo vacuum cleaner repair part

More Product Details

7092WE

$20.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
21Product ThumbnailScrew STS 4 x 20-T20 (single), for FELIX and E series, DART, and 370 COMFORT Sebo vacuum cleaner repair part

More Product Details

01017

$0.30Add to cart

Product is special order please allow 2-4 weeks for delivery.
22Product ThumbnailSebo Vacuum Bags for Felix Upright - 8pk

More Product Details

676224070299

$34.99Add to cart

23Product ThumbnailFilter Cover, for FELIX Ice Blue, White, and DART (arctic white) Sebo vacuum cleaner repair part

More Product Details

7091WE

$24.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
24Not AvailableExhaust filter - marine blue7095ER08Not Available
25Product ThumbnailExhaust Filter Clamp, for FELIX Ice Blue, Fun, and DART (gray black) Sebo vacuum cleaner repair part

More Product Details

7017GS

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
26Product ThumbnailLower Housing, for DART (arctic white) Sebo vacuum cleaner repair part

More Product Details

7169AM

$20.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
27Product ThumbnailTube Plug, for DART (gray black) Sebo vacuum cleaner repair part

More Product Details

7076GS

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
28Product ThumbnailRefer to 7164WE Handle Grip, complete (2 pcs.), with grommet, cable clamp, and two screws, for DART (arctic white) Sebo vacuum cleaner repair part

More Product Details

7163WE

$34.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
29Product ThumbnailCable with USA-plug, for FELIX series and DART (dark gray) Sebo vacuum cleaner repair part

More Product Details

7127DG

$40.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
30Product ThumbnailSliding Button, for DART (gray black) Sebo vacuum cleaner repair part

More Product Details

7035GS

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
31Product ThumbnailSwitch Frame, for DART (arctic white) Sebo vacuum cleaner repair part

More Product Details

7178WE

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
32Product ThumbnailRocker Switch, 2-pol., for DART Sebo vacuum cleaner repair part

More Product Details

05138

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
33Product ThumbnailHose, complete, for FELIX Classic Sebo vacuum cleaner repair part

More Product Details

WP10989

$40.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
35Product ThumbnailScrew, AMTEC, 4 x 13 Tx 20 (single), for X7/X8, G4/G5, DART, 370 COMFORT, 300/350, D & E series Sebo vacuum cleaner repair part

More Product Details

01036

$0.40Add to cart

Product is special order please allow 2-4 weeks for delivery.
37Product ThumbnailFilter Indicator, complete, for FELIX series and DART Sebo vacuum cleaner repair part

More Product Details

7094ER

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
38Product ThumbnailRetaining Ring, with spring, for FELIX series and DART hose (orange) Sebo vacuum cleaner repair part

More Product Details

7018OR

$7.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
39Product ThumbnailProtection Film for switch, on DART Sebo vacuum cleaner repair part

More Product Details

7142

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
40Product ThumbnailCover Latch Spring Set, for FELIX series and DART (set of two springs: one old version, one new version) Sebo vacuum cleaner repair part

More Product Details

7024ER

$7.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
41Product ThumbnailSebo Triangle Dusting Brush tool for Felix X7 X4 Dart and canisters

More Product Details

1387DG

$24.99Add to cart

42Product ThumbnailSebo K series canister and upright crevice nozzle crevice tool

More Product Details

WP11965

$14.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
43Product ThumbnailMounting Clip with screw for 2 attachments, DART and FELIX Rosso (gray black) Sebo vacuum cleaner repair part

More Product Details

7097GS

$9.00Add to cart

Product is special order please allow 2-4 weeks for delivery.




# Part image Description SKU Price
100Product ThumbnailChassis, for ET-1 (gray black) Sebo vacuum cleaner repair part

More Product Details

2324GS

$36.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
101No ImageBumper, for ET-1 (gray black) Sebo vacuum cleaner repair part

More Product Details

WP10993

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
102Product ThumbnailBearing Block, L.H., complete, for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part

More Product Details

2314GS

$28.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
103Not AvailableSebo Belt 333 3M HTDII-6 WP11787Not Available
104Product ThumbnailSebo Brush Roller 12" for X1, X4, X7, G1, G4, Felix, Dart, K3, E3, D4, and ET-1 Power Head

More Product Details

5010AM

$34.99Add to cart

105Product ThumbnailBearing Block RH, complete, for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part

More Product Details

2313GS

$16.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
106Product ThumbnailSpring for axle adjustment assembly, for ET-1 and ET-2 Sebo vacuum cleaner repair part

More Product Details

2929

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
107Product ThumbnailPile Adjustment Assembly, for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part

More Product Details

2316GS

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
108Product ThumbnailAccess Door with axle and spring, for ET-1 and ET-2 (orange) Sebo vacuum cleaner repair part

More Product Details

2909VO

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
109Product ThumbnailRear Bottom Plate, for ET-1 (gray black) Sebo vacuum cleaner repair part

More Product Details

2304GS

$10.00Add to cart

110Product ThumbnailPile Adjustment Knob for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part

More Product Details

2931GS

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
111Not AvailableSebo Wheel, cpl. noopNot Available
112Product ThumbnailFoot Pedal with axle and spring, for ET-1, ET-2, and DISCO (orange) Sebo vacuum cleaner repair part

More Product Details

2937OR

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
113Product ThumbnailSwivel Neck, complete, for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part

More Product Details

WP11436

$44.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
114Product ThumbnailWiring for swivel neck, for ET-1, ET-2, and DISCO Sebo vacuum cleaner repair part

More Product Details

0876ER

$10.00Add to cart

115Product ThumbnailBack Cover, TS-neck, for ET-1, ET-2, FELIX (except White), and DISCO (gray black) Sebo vacuum cleaner repair part

More Product Details

2947GS

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
116Product ThumbnailBearing Segments, metal TS neck, for all ET-1, ET-2, and DISCO swivel necks (6-pc. set) Sebo vacuum cleaner repair part

More Product Details

2950ER

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
117Product ThumbnailRelease Button with leaf spring, for ET-1, ET-2, ET-C, ET-H, and DISCO swivel necks (gray black) Sebo vacuum cleaner repair part

More Product Details

1737GS

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
118Product ThumbnailRelease Button Cover, for ET-1, ET-2, FELIX swivel neck #2307GS, and DISCO (gray black) Sebo vacuum cleaner repair part

More Product Details

2952GS

$4.50Add to cart

Product is special order please allow 2-4 weeks for delivery.
119Product ThumbnailSwivel Neck Slide, for ET-1, ET-2, FELIX (except White), and DISCO (gray black) Sebo vacuum cleaner repair part

More Product Details

2945GS

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
120Product ThumbnailSocket Cover TS-neck, for ET-1, ET-2, FELIX (except White), and DISCO (gray black) Sebo vacuum cleaner repair part

More Product Details

2951GS

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
121Product ThumbnailScrew F 3.9 x 9.5 DIN 7981 (single), for ET-1 and ET-2 Sebo vacuum cleaner repair part

More Product Details

01027

$0.20Add to cart

Product is special order please allow 2-4 weeks for delivery.
122Product ThumbnailSwivel Neck Bearing, for ET-1, ET-2, and DISCO Sebo vacuum cleaner repair part

More Product Details

2954

$4.50Add to cart

Product is special order please allow 2-4 weeks for delivery.
123No ImageMOTOR, 5.7" 240 VOLT 3 STAGE TANGENTIAL BYPASS Part Number: 117123-11 for Lamb

More Product Details

11712311

$344.04Read more

124Product ThumbnailFilter, Micron Exhaust Jet Pac Backpack Part Number: 14-2312-04 for Fitall

More Product Details

14231204

$2.05Read more

125No ImageSCREW, CONCEPT HANDLE Part Number: 018805-- for Hoover

More Product Details

018805

$0.73Read more

126No ImageMOTOR, EBK280 Part Number: 12.9 282-03 for Fitall

More Product Details

12928203

$80.10Read more

127Product ThumbnailScrew F 3.9 x 13 DIN 968 (single), for ET-1 and ET-2 Sebo vacuum cleaner repair part

More Product Details

01021

$0.20Add to cart

Product is special order please allow 2-4 weeks for delivery.
128Product ThumbnailBrush Motor 120V, 175W, with pulley, for ET-1 and 370 COMFORT Power Head Sebo vacuum cleaner repair part

More Product Details

2973ER

$75.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
129Product ThumbnailCarbon Brush Set, for ET-1 and 370 COMFORT power head (2973ER), ET-2 (2974ER), and DISCO (3252ER) Sebo vacuum cleaner repair part

More Product Details

05141S

$13.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
130Product ThumbnailScrew F 3.9 x 21 DIN 968 (single) Sebo vacuum cleaner repair part

More Product Details

01020

$0.20Add to cart

Product is special order please allow 2-4 weeks for delivery.
131Product ThumbnailLever with leaf spring, for ET-1 and ET-2 Sebo vacuum cleaner repair part

More Product Details

2958ER

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
132Product ThumbnailSwitch, single pol., for ET-1 and ET-2 Sebo vacuum cleaner repair part

More Product Details

05114

$10.99Add to cart

133Product ThumbnailMotor Mount-Rear (F/E)-All Bernina Upt. For: evolution-bernina

More Product Details

01V8815V07

$6.21Add to cart

Product is special order please allow 2-4 weeks for delivery.
134Product ThumbnailPrinted Circuit Board, 175W, for ET-1 Power Head. (New version with yellow on/off light.) Sebo vacuum cleaner repair part

More Product Details

WP12069

$49.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
135No ImageCOVER, P/N NOZZLE ET-1 WHITE Part Number: 2326GW for Sebo

More Product Details

2326GW

$64.38Read more

136Product ThumbnailScrew, AM4 x 30 DIN 7985 TL (single), for X and G series, 370 COMFORT, 300/350, ET-1, ET-2, and duo Sebo vacuum cleaner repair part

More Product Details

0176TL

$0.30Add to cart

Product is special order please allow 2-4 weeks for delivery.
137Product ThumbnailWire Tie (long), for X and G series, and ET-1/ET-2 Sebo vacuum cleaner repair part

More Product Details

5402

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
138Product ThumbnailMotor Pulley, for ET-1, ET-2, and 370 COMFORT Sebo vacuum cleaner repair part

More Product Details

2319

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
139No ImageWAND, WD900K WET/DRY VAC Part Number: 13-2295-7 for Koblenz

More Product Details

1322957

$34.43Read more

140No ImageCOVER, SWITCH RY6000 Part Number: 1863295600 for Royal

More Product Details

1863295600

$2.11Read more

141Product ThumbnailSwitch, complete, with lever and leaf spring (#2958ER and #05114), and wire (#0881) to PCB, for ET-1 and ET-2 Sebo vacuum cleaner repair part

More Product Details

WP11944

$19.00Add to cart

142Product ThumbnailSebo Central Vacuum Wand Adapter for ET-2 and ET-1 Power Nozzles

More Product Details

2780am

$29.99Add to cart




Report errors on this page HERE
