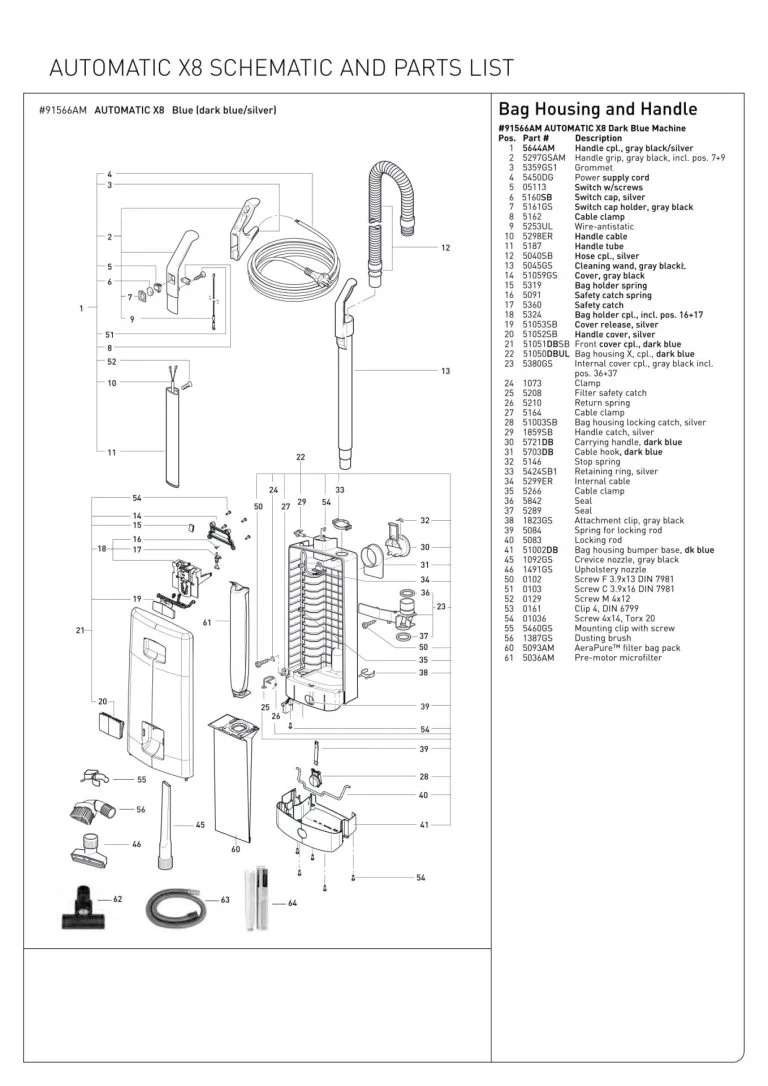

Schematic Parts Book for Sebo Model: AUTOMATIC X8 91566AM


# Part image Description SKU Price
1Product ThumbnailHandle with Cord, Tube, and Switch, for red X7, graphite X7 and X4 Boost, and blue X8 (gray black/silver). May also refer to 50639AM. Sebo vacuum cleaner repair part

More Product Details

5644AM

$89.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailHandle Grip, with 5161, 5253, and 5359, for X series (gray black) Sebo vacuum cleaner repair part

More Product Details

5297GSAM

$24.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
3Product ThumbnailGrommet (10 pack), for X series, FELIX new handle, and DART (gray black) Sebo vacuum cleaner repair part

More Product Details

5359GS

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
4Product ThumbnailPower Supply Cord, for X4/X5, X7/X8, and G series (dark gray) Sebo vacuum cleaner repair part

More Product Details

5450DG

$50.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
5Product ThumbnailSwitch with screws, 2-Pol. 1802.3108, for X series, G series, and duo Sebo vacuum cleaner repair part

More Product Details

05113

$24.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
6Product ThumbnailSwitch Cap, for X4, X7, and X8 (silver) Sebo vacuum cleaner repair part

More Product Details

5160SB

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
7Product ThumbnailSwitch Cap Holder, for X series (gray black) Sebo vacuum cleaner repair part

More Product Details

5161GS

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
8Product ThumbnailScrew, 1/4-20 X 1/2” Part Number 15162 for Cleanmax Models CM-WAV

More Product Details

15162

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
9Product ThumbnailWire Antistatic, for X and G series Sebo vacuum cleaner repair part

More Product Details

5253UL

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
10Not AvailableHandle cable 5216ERNot Available
11Product ThumbnailHandle Tube, 345mm, for X and G series Sebo vacuum cleaner repair part

More Product Details

5187

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
12No ImageHose, for X, G, and 370 series, 300 and 350 (silver) Sebo vacuum cleaner repair part

More Product Details

WP12019

$38.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
13No ImageCleaning Wand (on-board), for X and 370 series (gray black) Sebo vacuum cleaner repair part

More Product Details

WP11583

$0.00


Product is special order please allow 2-4 weeks for delivery.
14Product ThumbnailCover for latch release, for X7 and X8 (gray black) Sebo vacuum cleaner repair part

More Product Details

51059GS

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
15Product ThumbnailBag Holder Spring, for X and G series Sebo vacuum cleaner repair part

More Product Details

5319

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
16Product ThumbnailGrunge Basics Vanilla Natural 100% Cotton Textured Solids Made in Japan By Moda

More Product Details

3015091

$9.37Read more

17Product ThumbnailSafety Catch for bag holder, for X series and G1/G2 Sebo vacuum cleaner repair part

More Product Details

5360

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
18Product ThumbnailBag Holder, complete, for X series and G1/G2 Sebo vacuum cleaner repair part

More Product Details

5324

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
19Product ThumbnailCover Release, for X7 and X8 (silver) Sebo vacuum cleaner repair part

More Product Details

51053SB

$16.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
20Product ThumbnailHandle Cover, for X7 and X8 (silver) Sebo vacuum cleaner repair part

More Product Details

51052SB

$20.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
21Not AvailableFront cover cpl., dark bluenoopNot Available
21Product ThumbnailFront Cover, Complete, for X7 (white) Sebo vacuum cleaner repair part

More Product Details

51051WESB

$48.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
22Product ThumbnailDust Bag Housing, Complete, for X7 (white) Sebo vacuum cleaner repair part

More Product Details

51050WEUL

$90.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
22Not AvailableBag housing cpl., dark bluenoopNot Available
23No ImageInternal Cover, complete, for X series (gray black) Sebo vacuum cleaner repair part

More Product Details

WP11781

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
24Product ThumbnailClamp for filter safety catch, for X series, G series, and 370 series Sebo vacuum cleaner repair part

More Product Details

1073

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
25Product ThumbnailFilter Safety Catch, for X and G series Sebo vacuum cleaner repair part

More Product Details

5208

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
26No Image***NLS MOTOR, 6500C Part Number: 01-8521-08 for Evolution

More Product Details

1852108

$143.34Read more

27Product ThumbnailCarbon Brush, Domel Motor SuperCoach/ProVac 2Pk Part Number: 105164 for Proteam

More Product Details

105164

$40.22Add to cart

Product is special order please allow 2-4 weeks for delivery.
28Product ThumbnailDust Bag Housing Locking Catch, for X7 and X8 (silver) Sebo vacuum cleaner repair part

More Product Details

51003SB

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
29Product ThumbnailHandle Catch, for X4 black, X7, and X8 (silver) Sebo vacuum cleaner repair part

More Product Details

1859SB

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
30Product ThumbnailCarrying Handle, for X4/X5 and X8 (dark blue) Sebo vacuum cleaner repair part

More Product Details

5721DB

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
31Product ThumbnailCable Hook, for X4/X5 and X8 (dark blue) Sebo vacuum cleaner repair part

More Product Details

5703DB

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
32No ImageSCREW, HANDLE QPV 10.5B Part Number: 15146-99-6 for Shop Vac

More Product Details

15146996

$2.94Read more

33Product ThumbnailRetaining Ring (10 pack), for X4 black and graphite, and all X7/X8 (silver) Sebo vacuum cleaner repair part

More Product Details

5424SB

$15.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
34Not AvailableInternal cable 5217ERNot Available
35Product ThumbnailClamp for internal cable, for X, G, and D series Sebo vacuum cleaner repair part

More Product Details

5266

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
36No ImageCORD, EL8500 Part Number: 39584-25 for Eureka

More Product Details

3958425

$36.66Read more

37Product ThumbnailSeal, Filter Tube, for X series, G1/G2, 300/350, and 370 series Sebo vacuum cleaner repair part

More Product Details

5289

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
38Product ThumbnailAttachment Clip on bag housing, for X series (gray black) Sebo vacuum cleaner repair part

More Product Details

1823GS

$2.50Add to cart

Product is special order please allow 2-4 weeks for delivery.
39Product ThumbnailCarbon Brush Set w/capacitor Brush M. (for 3049ER, motor with pulley), for duo Sebo vacuum cleaner repair part

More Product Details

05084S

$20.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
40Product ThumbnailLocking Rod, bag holder, for X and G series Sebo vacuum cleaner repair part

More Product Details

5083

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
41Product ThumbnailDust Bag Housing Bumper Base, for X8 (dark blue) Sebo vacuum cleaner repair part

More Product Details

51002DB

$16.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
45Not AvailableCrevice nozzle, gray black 1092GSNot Available
46Not AvailableUpholstery nozzle 1491GSNot Available
50Product ThumbnailScrew F 3.9 x 13 DIN 7981 (10 pack), for X, G, and 370 series, 300/350, C and D series, ET-C, ET-H, and DISCO Sebo vacuum cleaner repair part

More Product Details

0102ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
51Product ThumbnailScrew C 3.9 x 16 DIN 7981 (10 pack), for X series, FELIX series, G series, 370 series, ET-C, and duo Sebo vacuum cleaner repair part

More Product Details

0103ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
52Product ThumbnailScrew M4 x 12 DIN 966 (10 pack), for X series, G series, and duo Sebo vacuum cleaner repair part

More Product Details

0129ER

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
53Product ThumbnailC Clip for handle catch (10 pack), 4 DIN 6799, for X4/X5, X7/X8, and 370 series Sebo vacuum cleaner repair part

More Product Details

0161ER

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
54Product ThumbnailScrew, AMTEC, 4 x 13 Tx 20 (10 pack), for X7/X8, G4/G5, DART, 370 COMFORT, 300/350, D and E series Sebo vacuum cleaner repair part

More Product Details

01036ER

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
55Product ThumbnailMounting Clip for Dusting Tool Sebo x7 x4 uprights

More Product Details

5460GS

$5.00Read more

56Product ThumbnailSebo Triangle Dusting Brush tool for Felix X7 X4 Dart and canisters

More Product Details

1387DG

$24.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
60Product ThumbnailSebo Vacuum Bags for X4 and X7 Uprights - 8pk

More Product Details

676224050932

$34.99Add to cart

61Product ThumbnailSebo Hospital Grade Filter for X and G Series, and 300 350 Mechanical Models

More Product Details

5036AM

$29.99Add to cart

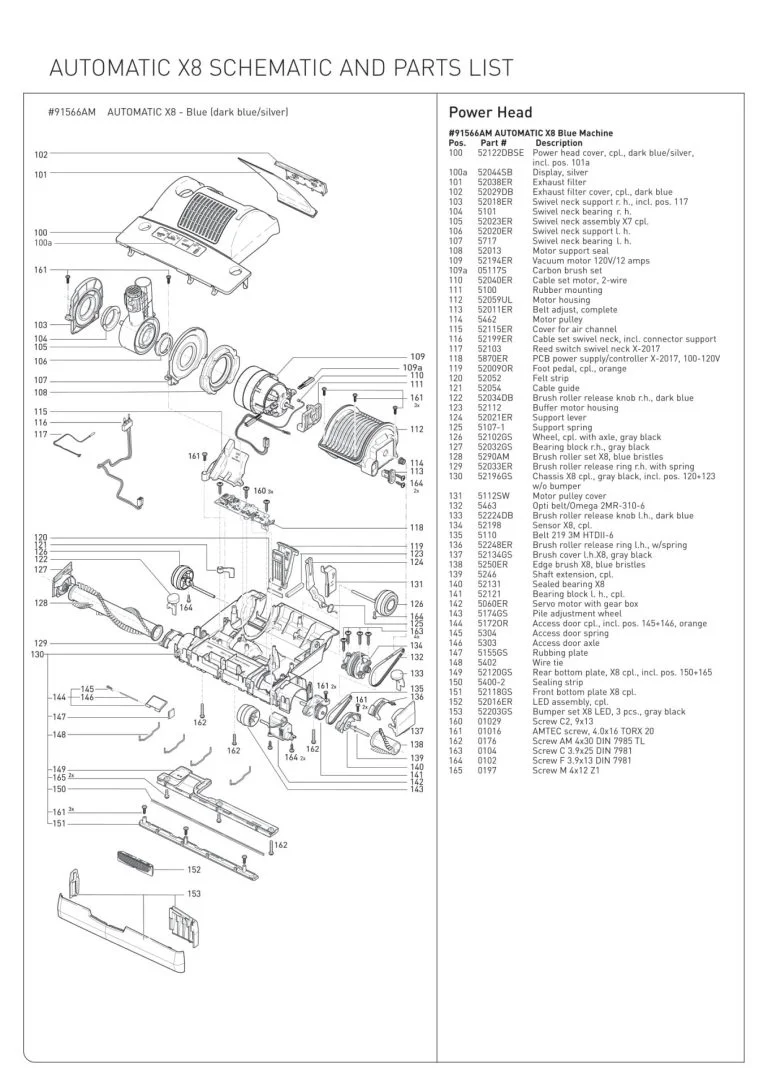

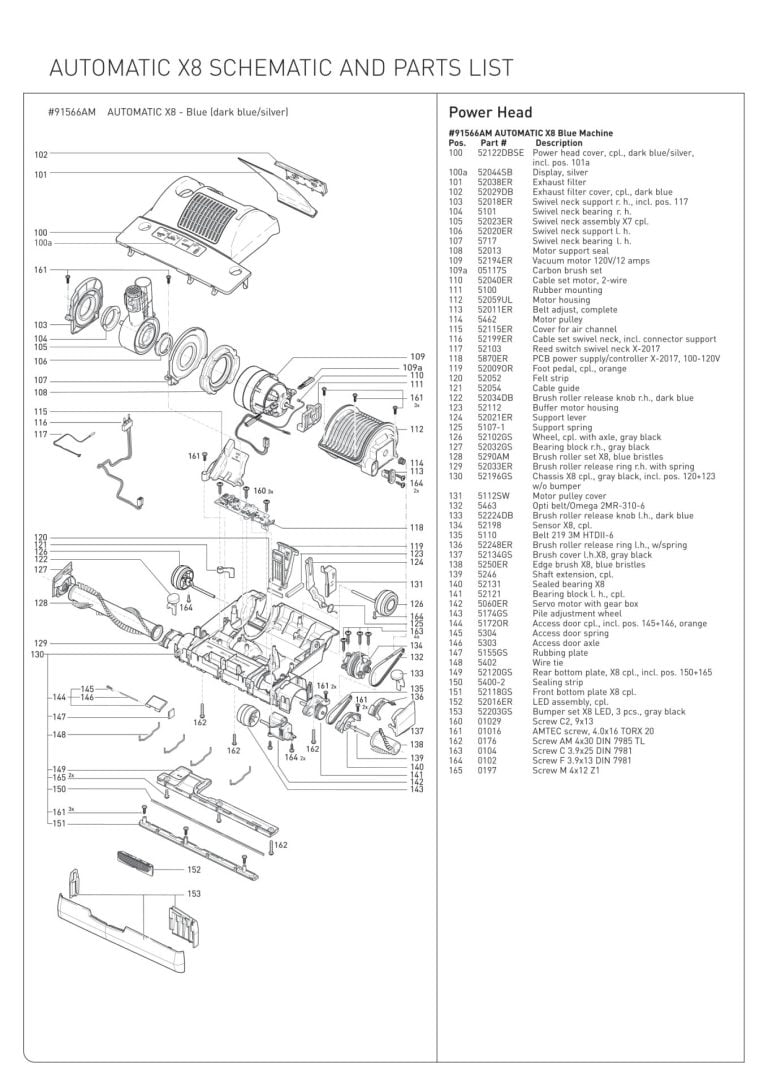

# Part image Description SKU Price
w/oNot Availableblack bumpernopeNot Available
100Product ThumbnailPower Head Cover, without exhaust filter and cover, for X8 (dark blue) Sebo vacuum cleaner repair part

More Product Details

52122DBSE

$42.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
101Not AvailableExhaust filter 52038ERNot Available
102Product ThumbnailExhaust Filter Cover, for X8 (dark blue) Sebo vacuum cleaner repair part

More Product Details

52029DB

$16.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
103Product ThumbnailSwivel Neck Support, right hand, Complete with Reed switch (#52103) for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52018ER

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
104Product ThumbnailCarbon Brush Set, for vacuum motor (#6165), for C series Sebo vacuum cleaner repair part

More Product Details

05101S

$17.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
105Product ThumbnailSwivel Neck Assembly, Complete, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52023ER

$34.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
106Product ThumbnailSwivel Neck Support, left hand, Complete, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52020ER

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
107No ImagePIGTAIL, :( CORD 15" 2 PIN FEMALE 2 BLADE MALE BLA Part Number: 32-5717-63 for Fitall

More Product Details

32571763

$4.66Read more

108Product ThumbnailMotor Support Seal, Domel, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52013

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
109aProduct ThumbnailCarbon Brush Set, for 5468, 1843/2 (after 2001), and 50465ER vacuum motors, for X4/X5, X7/X8, G series, 370 series, and 300/350 Sebo vacuum cleaner repair part

More Product Details

05117S

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
109Product ThumbnailVacuum Motor 120V / 1300W, with bumper ring, pulley and mount, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52194ER

$99.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
110Product ThumbnailWiring Harness, for motor (52194ER), X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52040ER

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
111Product ThumbnailRubber Mounting, G series and X4/X5, X7/X8 (for 5468 motor), and X1/X2 (for 5211UL motor) Sebo vacuum cleaner repair part

More Product Details

5100

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
112Product ThumbnailMotor Cover, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52059UL

$24.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
113Product ThumbnailBelt Adjuster, complete, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52011ER

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
114No ImageFILTER COVER, 6140 Part Number: 15546-2 for Eureka

More Product Details

155462

$19.64Read more

115Product ThumbnailCover for air channel, X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52115ER

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
116Product ThumbnailMale Contact Holder through swivel neck, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52199ER

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
117Product ThumbnailReed Switch for Swivel Neck Support, X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52103

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
118Product ThumbnailPCB Power Supply/Computer Controller, 120V, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

5870ER

$60.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
119Product ThumbnailFoot Pedal, Complete, for X7 and X8 (light gray/orange) Sebo vacuum cleaner repair part

More Product Details

WP11592

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
120Product ThumbnailFelt Strip, between chassis and swivel neck, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52052

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
121Product ThumbnailGuide, for motor wiring harness, X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52054

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
122Product ThumbnailBrush Roller Release Button, right hand, for X8 (dark blue) Sebo vacuum cleaner repair part

More Product Details

52034DB

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
123Product ThumbnailBuffer, for motor cover, X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52112

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
124Product ThumbnailSupport Lever, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52021ER

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
125Product ThumbnailSpring for Support Lever, for X and G series, and 300/350 Sebo vacuum cleaner repair part

More Product Details

5107-1

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
126Product ThumbnailWheel with Axle, for X7 and X8 (gray black) Sebo vacuum cleaner repair part

More Product Details

52102GS

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
127Product ThumbnailBearing Block, right hand, for X8 (gray black) Sebo vacuum cleaner repair part

More Product Details

52032GS

$14.00Add to cart

128Product ThumbnailSebo Brush Roller Set for X2 X5 and X8

More Product Details

5290AM

$44.99Add to cart

129Product ThumbnailBrush Roller Release Ring with spring, right hand, for X7 and X8 (light gray) Sebo vacuum cleaner repair part

More Product Details

52033ER

$7.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
130Product ThumbnailChassis, without bumper, with felt strip and housing buffer, for X8 (gray black) Sebo vacuum cleaner repair part

More Product Details

52196GS

$49.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
131Product ThumbnailMotor Pulley Cover, for X and G series (black) Sebo vacuum cleaner repair part

More Product Details

5112SW

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
132No ImageHOOD, WITH BASE BI-5701 POWER NOZZLE Part Number: 155463 for Built-In

More Product Details

155463

$66.90Read more

133Product ThumbnailBrush Roller Release Knob, L.H., for X8 (dark blue) Sebo vacuum cleaner repair part

More Product Details

52224DB

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
134Product ThumbnailSensor, with pulley and screws, for X8 Sebo vacuum cleaner repair part

More Product Details

52198

$46.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
135Not AvailableBelt 219 3M HTDII-6 5110Not Available
136Product ThumbnailBrush Roller Release Ring, L.H., with Spring, for X8 (light gray) Sebo vacuum cleaner repair part

More Product Details

52248ER

$7.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
137Product ThumbnailBrush Cover, L.H., for X8 (gray black) Sebo vacuum cleaner repair part

More Product Details

52134GS

$14.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
138Not AvailableEdge brush X8, blue bristles 5250ERNot Available
139No ImageCORD, W/2 GROMMETS 643 Part Number: 52370-13 for Eureka

More Product Details

5237013

$44.56Read more

140Product ThumbnailSealed Bearing, for X8 Sebo vacuum cleaner repair part

More Product Details

52131

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
141Product ThumbnailBearing Block, L.H., complete, for X8 (internal) Sebo vacuum cleaner repair part

More Product Details

52121

$32.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
142Product ThumbnailServo Motor with gear box, for X series Sebo vacuum cleaner repair part

More Product Details

5060ER

$42.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
143Product ThumbnailPile Adjustment Wheel, for X series (gray black) Sebo vacuum cleaner repair part

More Product Details

5174GS

$10.00Add to cart

144Not AvailableAccess door cpl., incl. pos. 145+146, orange 5151ORNot Available
145Product ThumbnailAccess Door Spring, for X and G series Sebo vacuum cleaner repair part

More Product Details

5304

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
146Product ThumbnailAccess Door Axle, for X and G series Sebo vacuum cleaner repair part

More Product Details

5303

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
147Product ThumbnailRubbing Plate for pile adjustment axle, on X series (gray black) Sebo vacuum cleaner repair part

More Product Details

5155GS

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
148Product ThumbnailWire Tie (long), for X and G series, and ET-1/ET-2 Sebo vacuum cleaner repair part

More Product Details

5402

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
149Product ThumbnailRear Bottom Plate, with sealing strip and screws, for X8 (gray black) Sebo vacuum cleaner repair part

More Product Details

52120GS

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
150No ImageBRUSHROLL, APU255 Part Number: 26540-02 for Oreck

More Product Details

2654002

$30.76Read more

151Product ThumbnailFront Bottom Plate, for X8 (gray black) Sebo vacuum cleaner repair part

More Product Details

52118GS

$15.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
152Product ThumbnailLED Assembly, Complete, for X7 and X8 Sebo vacuum cleaner repair part

More Product Details

52016ER

$27.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
153Product ThumbnailBumper Set, three-piece, for X8 LED (gray black) Sebo vacuum cleaner repair part

More Product Details

52203GS

$20.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
160Product ThumbnailScrew C 2.9 x 13 (10 pack), for X7/X8 and DISCO Sebo vacuum cleaner repair part

More Product Details

01029ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
161Product ThumbnailScrew STS 4 x 16-T20 (10 pack), for X7/X8, FELIX series, DART, 300/350, and DISCO Sebo vacuum cleaner repair part

More Product Details

01016ER

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
162Product ThumbnailScrew AM4 x 30 DIN 7985 (10 pack), for X and G series, 370 COMFORT, 300/350, ET-1, ET-2, and duo Sebo vacuum cleaner repair part

More Product Details

0176ER

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
163Product ThumbnailScrew C 3.9 x 25 DIN 7981 (10 pack), for X and G series, and 300/350 Sebo vacuum cleaner repair part

More Product Details

0104ER

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
164Product ThumbnailScrew F 3.9 x 13 DIN 7981 (10 pack), for X, G, and 370 series, 300/350, C and D series, ET-C, ET-H, and DISCO Sebo vacuum cleaner repair part

More Product Details

0102ER

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
165Product ThumbnailScrew M 4 x 12, w/washer (10 pack), for X and G series, 370 COMFORT, and 300/350 Sebo vacuum cleaner repair part

More Product Details

0197ER

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
