Schematic and parts list for: Shop-Vac Model: VN92550A
This is a list of parts and a diagram and schematic for: Shop-Vac Model: VN92550A

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: VN92550A (14 Gal, 5.5 HP, Yellow)

Popular Supplies

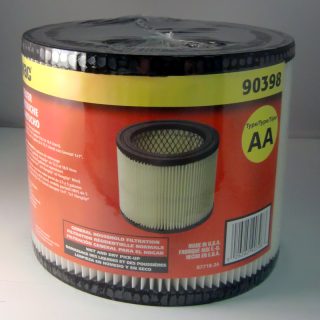

Filter, HangUp Cartridge Portable Wet/Dry Part Number: 90398-00 for Shop Vac

Product is special order please allow 2-4 weeks for delivery.
Filter, HangUp Cartridge Portable Wet/Dry Part Number: 90398-00 for Shop Vac

Product is special order please allow 2-4 weeks for delivery.

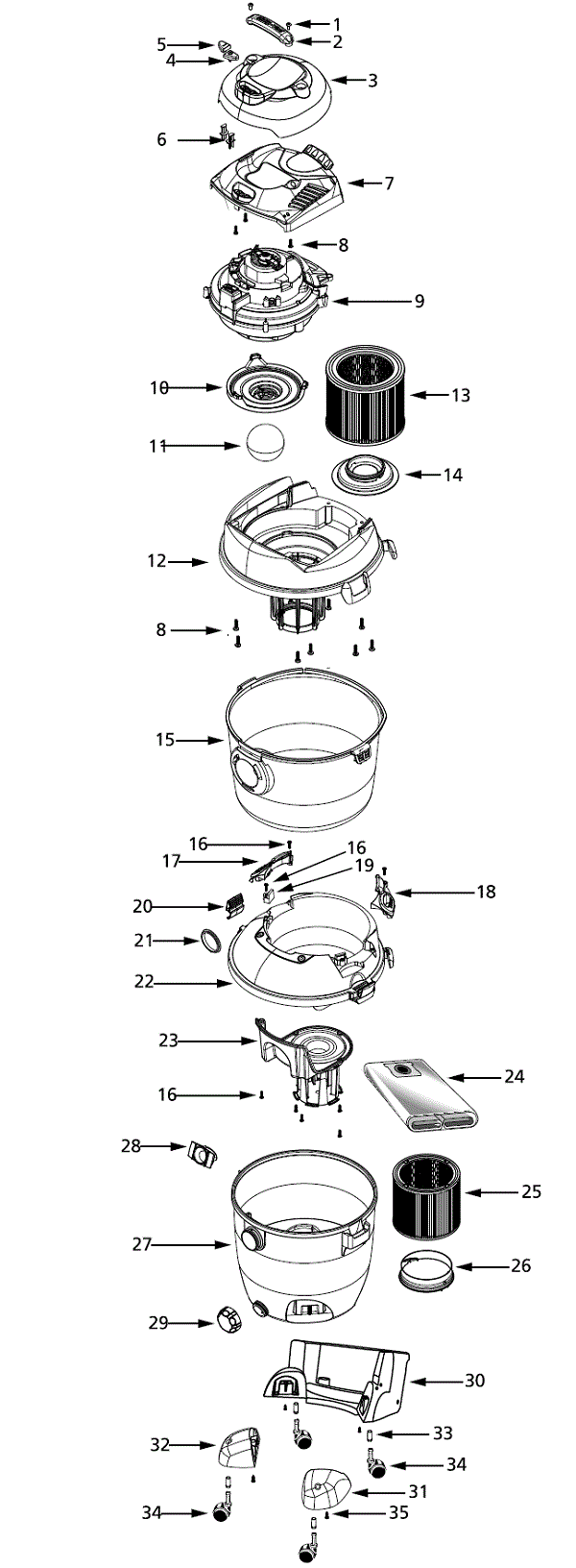

# Part image Description SKU Price
01Not AvailableShop-Vac Screw 1/4 x 1.5' Trilobe PH Pan SV-1517499Not Available
02Not AvailableShop-Vac Handle SV-1944448Not Available
03Not AvailableShop-Vac Outer Motor Cover SV-3740551Not Available
04Not AvailableShop-Vac Switch Button - I SV-7414200Not Available
05Not AvailableShop-Vac Switch Button - O SV-7414210Not Available
06Not AvailableShop-Vac Switch Button Extension SV-7414250Not Available
07Not AvailableShop-Vac Inner Motor Cover SV-3741054Not Available
08Not AvailableShop-Vac Screw 10 x 3/4 Trilobe SV-1516599Not Available
09Not AvailableShop-Vac Power Unit Assembly SV-8137297Not Available
10Not AvailableShop-Vac Grid Plate SV-8866000Not Available
11Not AvailableShop-Vac Ball Float SV-0081120Not Available
12Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944473Not Available
13Product ThumbnailFilter, HangUp Cartridge Portable Wet/Dry Part Number: 90398-00 for Shop Vac

More Product Details

9039800

$29.95Add to cart

Product is special order please allow 2-4 weeks for delivery.
14Not AvailableShop-Vac Filter Retainer SV-3183000Not Available
15Not AvailableShop-Vac Tank Assembly SV-1094797Not Available
16Not AvailableShop-Vac Screw 1/4 x 3/4 Trilobe SV-1517699Not Available
17Not AvailableShop-Vac Securement Arm - Left SV-3540721Not Available
18Not AvailableShop-Vac Securement Arm - Right SV-3540701Not Available
19Not AvailableShop-Vac Stop SV-3540751Not Available
20Not AvailableShop-Vac Lid Latch SV-7444500Not Available
21Not AvailableShop-Vac Inlet Gasket SV-2075000Not Available
22Not AvailableShop-Vac Cradle Assembly SV-1944447Not Available
23Not AvailableShop-Vac Filter Cage Assembly SV-1944433Not Available
24Not AvailableShop-Vac Collection Bag SV-9066300Not Available
25Not AvailableShop-Vac Cartridge Filter SV-9030400Not Available
26Not AvailableShop-Vac Filter Retainer SV-3008000Not Available
27Not AvailableShop-Vac Tank Assembly SV-7345497Not Available
28Not AvailableShop-Vac Inlet Deflector SV-7413100Not Available
29Not AvailableShop-Vac Drain Cover SV-7446800Not Available
30Not AvailableShop-Vac Tool Holder SV-8411300Not Available
31Not AvailableShop-Vac Casterfoot A SV-7431330Not Available
32Not AvailableShop-Vac Casterfoot B SV-7431350Not Available
33Not AvailableShop-Vac Retainer SV-8565700Not Available
34Not AvailableShop-Vac Caster SV-6773900Not Available
35Not AvailableShop-Vac Screw 10 x 3/4' SL Hex Head SV-1503999Not Available

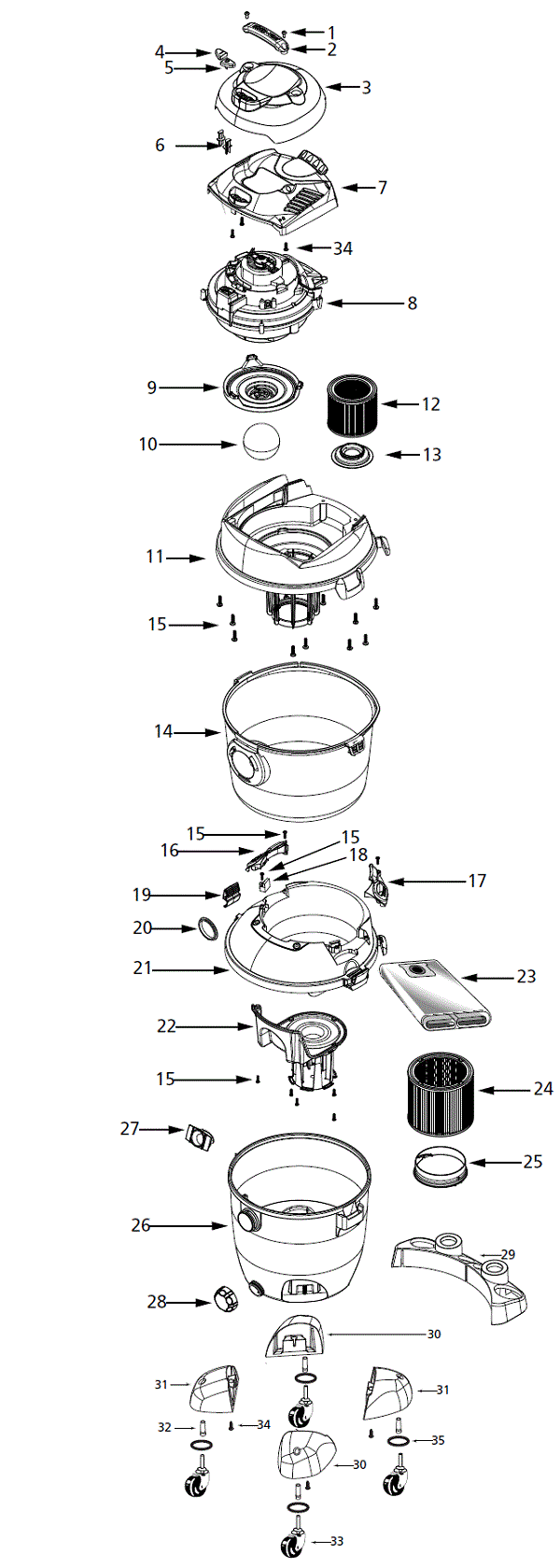

# Part image Description SKU Price
01Not AvailableShop-Vac Screw 1/4 x 1.5' Trilobe PH Pan SV-1517499Not Available
02Not AvailableShop-Vac Handle SV-1944448Not Available
03Not AvailableShop-Vac Outer Motor Cover SV-3740551Not Available
04Not AvailableShop-Vac Switch Button - I SV-7414200Not Available
05Not AvailableShop-Vac Switch Button - O SV-7414210Not Available
06Not AvailableShop-Vac Switch Button Extension SV-7414250Not Available
07Not AvailableShop-Vac Inner Motor Cover SV-3741054Not Available
08Not AvailableShop-Vac Power Unit Assembly SV-8137297Not Available
09Not AvailableShop-Vac Grid Plate SV-8866000Not Available
10Not AvailableShop-Vac Ball Float SV-0081120Not Available
11Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944473Not Available
12Product ThumbnailFilter, HangUp Cartridge Portable Wet/Dry Part Number: 90398-00 for Shop Vac

More Product Details

9039800

$29.95Add to cart

Product is special order please allow 2-4 weeks for delivery.
13Not AvailableShop-Vac Filter Retainer SV-3183000Not Available
14Not AvailableShop-Vac Tank Assembly SV-1094797Not Available
15Not AvailableShop-Vac Screw 1/4 x 3/4 Trilobe SV-1517699Not Available
16Not AvailableShop-Vac Securement Arm - Left SV-3540721Not Available
17Not AvailableShop-Vac Securement Arm - Right SV-3540701Not Available
18Not AvailableShop-Vac Stop SV-3540751Not Available
19Not AvailableShop-Vac Lid Latch SV-7444500Not Available
20Not AvailableShop-Vac Inlet Gasket SV-2075000Not Available
21Not AvailableShop-Vac Cradle Assembly SV-1944447Not Available
22Not AvailableShop-Vac Filter Cage Assembly SV-1944433Not Available
23Not AvailableShop-Vac Collection Bag SV-9066300Not Available
24Not AvailableShop-Vac Cartridge Filter SV-9030400Not Available
25Not AvailableShop-Vac Filter Retainer SV-3008000Not Available
26Not AvailableShop-Vac Tank Assembly SV-7345497Not Available
27Not AvailableShop-Vac Inlet Deflector SV-7413100Not Available
28Not AvailableShop-Vac Drain Cover SV-7446800Not Available
29Not AvailableShop-Vac Tool Holder SV-8411300Not Available
30Not AvailableShop-Vac Casterfoot A SV-7431330Not Available
31Not AvailableShop-Vac Casterfoot B SV-7431350Not Available
32Not AvailableShop-Vac Retainer SV-8565700Not Available
33Not AvailableShop-Vac Caster SV-6773900Not Available
34Not AvailableShop-Vac Screw 10 x 3/4' SL Hex Head SV-1503999Not Available
35Not AvailableShop-Vac Flatwasher SV-0704399Not Available
