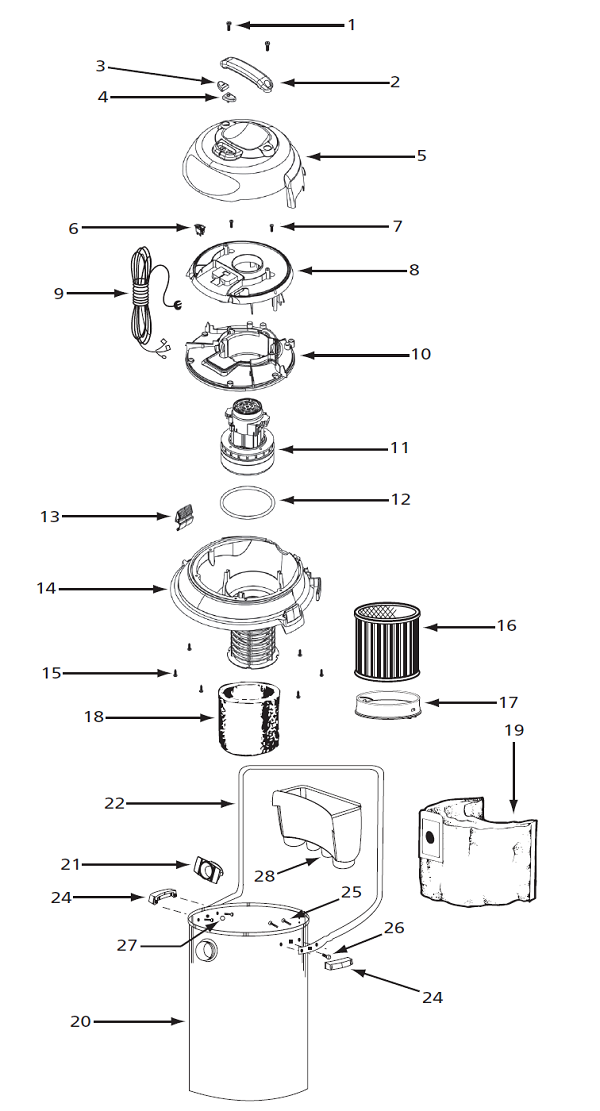

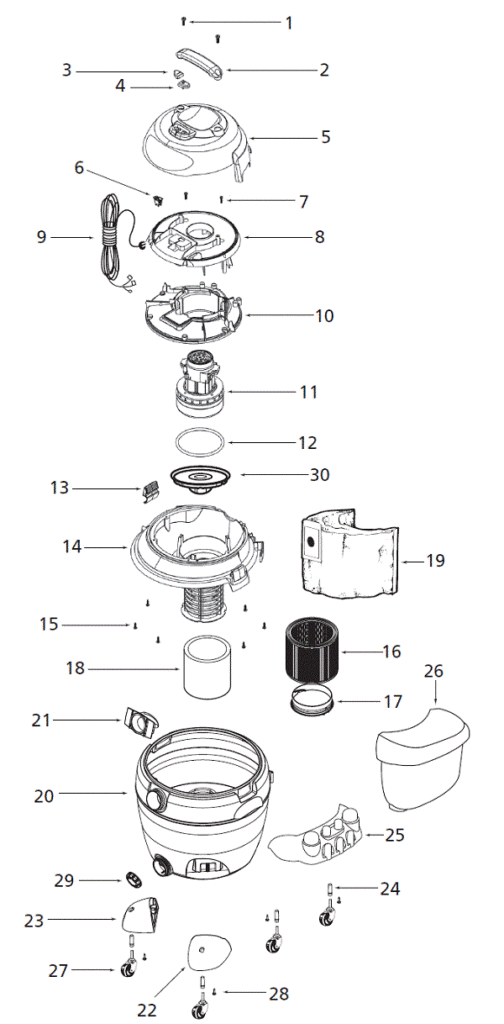

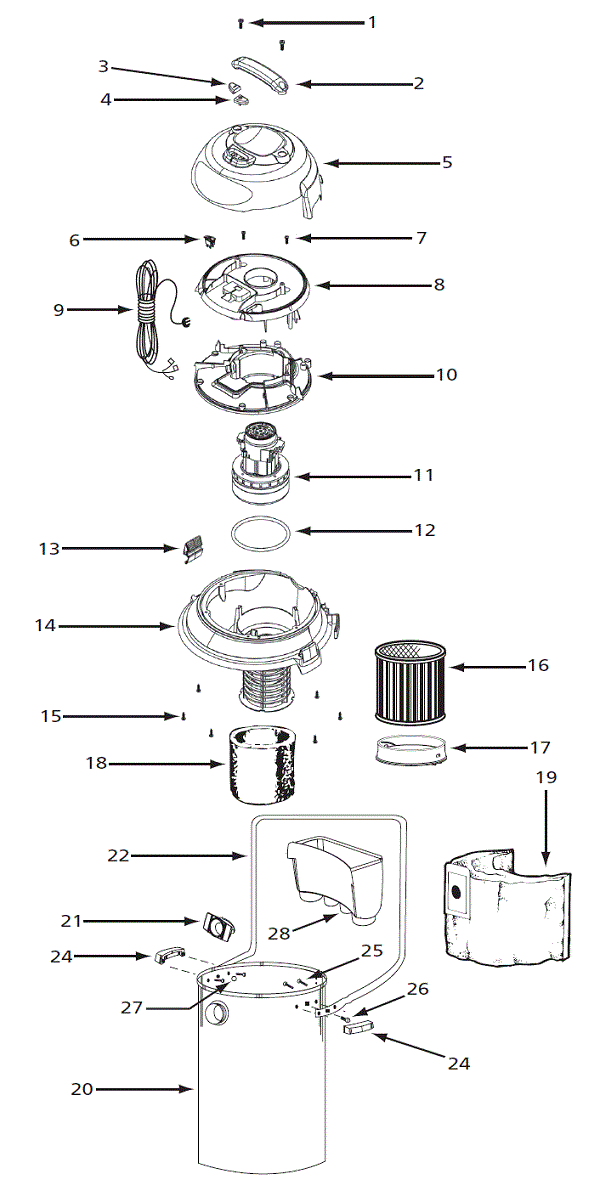

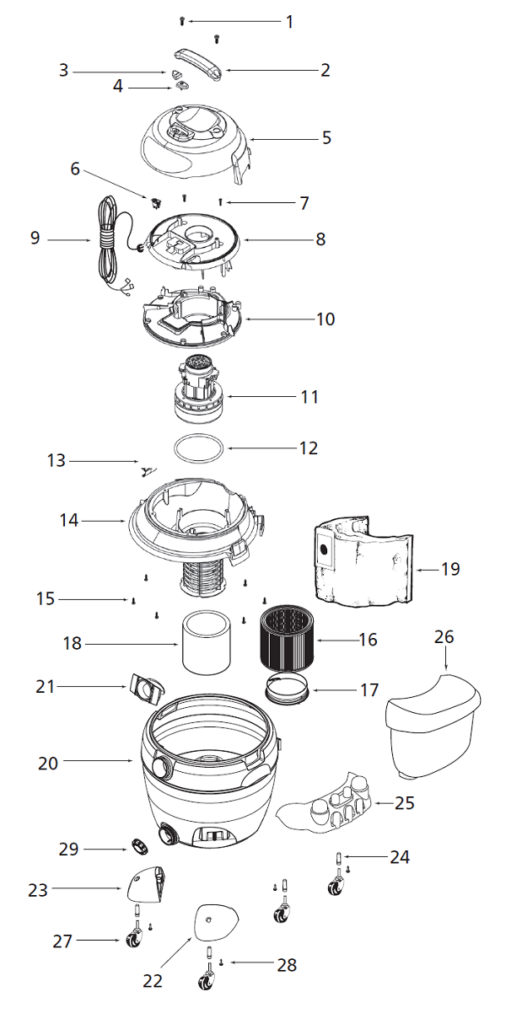

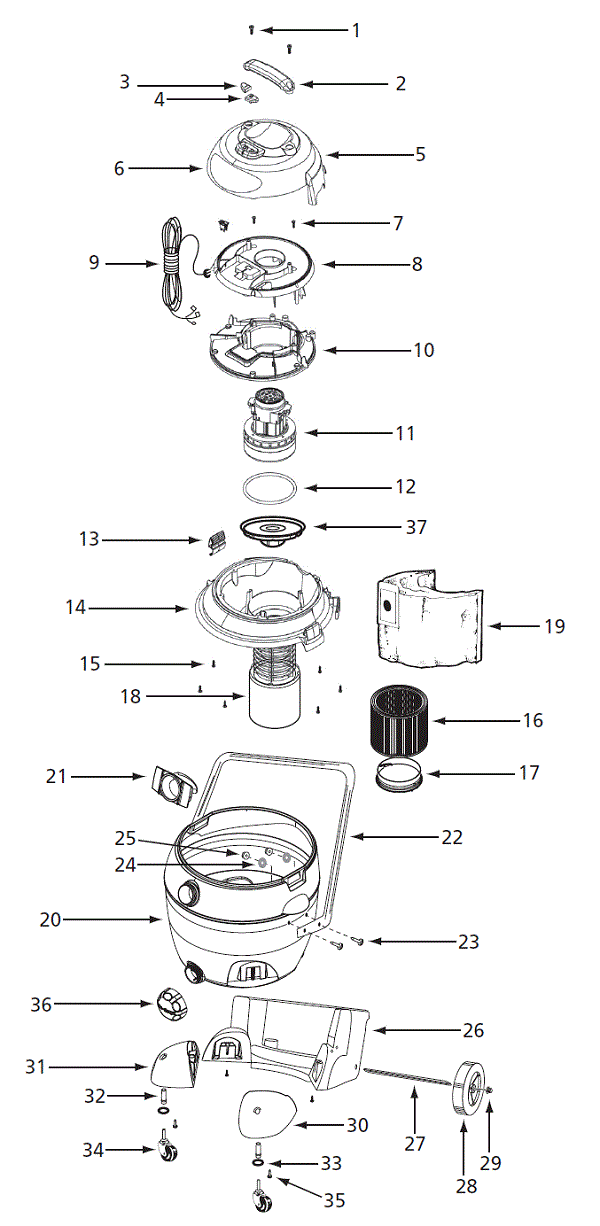

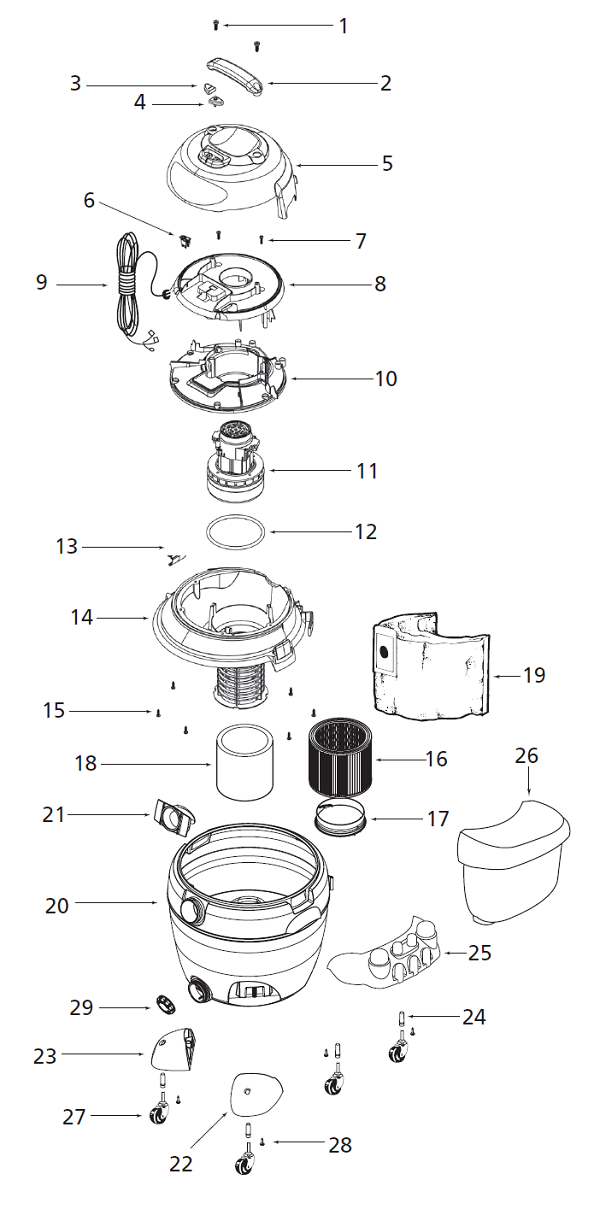

This is a list of parts and a diagram and schematic for: Shop-Vac Model: UM2S250
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: UM2S250 (10 Gal, 2.5 HP, Stainless Steel)
| # |
Part image |
Description |
SKU |
Price |
| 01 | Not Available | Shop-Vac Screw 1/4" x 3/4" Trilobe T30 HD | SV-1516499 | Not Available |
|
| 02 | Not Available | Shop-Vac Handle | SV-7444400 | Not Available |
|
| 03 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
|
| 04 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
|
| 05 | Not Available | Shop-Vac Motor Cover Assembly | SV-1944303 | Not Available |
|
| 06 | Not Available | Shop-Vac Switch | SV-8232311 | Not Available |
|
| 07 | Not Available | Shop-Vac Screw 10 x 3/4" Type AB | SV-1515399 | Not Available |
|
| 08 | Not Available | Shop-Vac Baffle | SV-1957712 | Not Available |
|
| 09 | Not Available | Shop-Vac Power Cord | SV-2650004 | Not Available |
|
| 10 | Not Available | Shop-Vac Motor Housing | SV-1957710 | Not Available |
|
| 11 | Not Available | Shop-Vac Motor | SV-1944249 | Not Available |
|
| 12 | Not Available | Shop-Vac Lower Motor Gasket | SV-2071600 | Not Available |
|
| 13 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
|
| 14 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944305 | Not Available |
|
| 15 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe | SV-1517699 | Not Available |
|
| 16 | Not Available | Shop-Vac Cartridge Filter | SV-9039010 | Not Available |
|
| 17 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
|
| 18 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
|
| 19 | Not Available | Shop-Vac High Efficiency Collection Bag | SV-9190610 | Not Available |
|
| 21 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
|
| 22 | Not Available | Shop-Vac Carriage Handle | SV-2088200 | Not Available |
|
| 23 | Not Available | Shop-Vac Handle and Hardware package (Includes 24-27) | SV-9355596 | Not Available |
|
| 24 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
|
| 25 | Not Available | Shop-Vac Screw #10 x 3/4" Hex Head | SV-1503999 | Not Available |
|
| 26 | Not Available | Shop-Vac Bolt 1/4 - 20 x 1/2" | SV-6401299 | Not Available |
|
| 27 | Not Available | Shop-Vac 1/4 - 20 Hex Nut | SV-1300199 | Not Available |
|
| 28 | Not Available | Shop-Vac Accessory Basket | SV-9194900 | Not Available |
|
| # |
Part image |
Description |
SKU |
Price |
| 01 | Not Available | Shop-Vac Screw 1/4" x 3/4" Trilobe T30 HD | SV-1516499 | Not Available |
|
| 02 | Not Available | Shop-Vac Handle | SV-7444400 | Not Available |
|
| 03 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
|
| 04 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
|
| 05 | Not Available | Shop-Vac Motor Cover Assembly | SV-1944303 | Not Available |
|
| 06 | Not Available | Shop-Vac Switch | SV-8232311 | Not Available |
|
| 07 | Not Available | Shop-Vac Screw 10 x 3/4" Type AB | SV-1515399 | Not Available |
|
| 08 | Not Available | Shop-Vac Baffle | SV-1957712 | Not Available |
|
| 09 | Not Available | Shop-Vac Power Cord | SV-2650004 | Not Available |
|
| 10 | Not Available | Shop-Vac Motor Housing | SV-1957710 | Not Available |
|
| 11 | Not Available | Shop-Vac Motor | SV-1944249 | Not Available |
|
| 12 | Not Available | Shop-Vac Lower Motor Gasket | SV-2071600 | Not Available |
|
| 13 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
|
| 14 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944305 | Not Available |
|
| 15 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe | SV-1517699 | Not Available |
|
| 16 | Not Available | Shop-Vac Cartridge Filter | SV-9039010 | Not Available |
|
| 17 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
|
| 18 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
|
| 19 | Not Available | Shop-Vac High Efficiency Collection Bag | SV-9190610 | Not Available |
|
| 21 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
|
| 22 | Not Available | Shop-Vac Carriage Handle | SV-2088200 | Not Available |
|
| 23 | Not Available | Shop-Vac Handle and Hardware package (Includes 24-27) | SV-9355596 | Not Available |
|
| 24 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
|
| 25 | Not Available | Shop-Vac Screw #10 x 3/4" Hex Head | SV-1503999 | Not Available |
|
| 26 | Not Available | Shop-Vac Bolt 1/4 - 20 x 1/2" | SV-6401299 | Not Available |
|
| 27 | Not Available | Shop-Vac 1/4 - 20 Hex Nut | SV-1300199 | Not Available |
|
| 28 | Not Available | Shop-Vac Accessory Basket | SV-9194900 | Not Available |
|
| # |
Part image |
Description |
SKU |
Price |
| 01 | Not Available | Shop-Vac Screw 1/4" X 3/4" Trilobe T30 HD | SV-1516499 | Not Available |
|
| 02 | Not Available | Shop-Vac Handle | SV-7444400 | Not Available |
|
| 03 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
|
| 04 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
|
| 05 | Not Available | Shop-Vac Motor Cover Assembly | SV-1944303 | Not Available |
|
| 06 | Not Available | Shop-Vac Switch | SV-1944262 | Not Available |
|
| 07 | Not Available | Shop-Vac Screw 10 x 3/4" Type AB | SV-1515399 | Not Available |
|
| 08 | Not Available | Shop-Vac Baffle | SV-1957712 | Not Available |
|
| 09 | Not Available | Shop-Vac Power Cord | SV-2650004 | Not Available |
|
| 10 | Not Available | Shop-Vac Motor Housing | SV-1957710 | Not Available |
|
| 11 | Not Available | Shop-Vac Motor | SV-1944249 | Not Available |
|
| 12 | Not Available | Shop-Vac Lower Motor Gasket | SV-2071600 | Not Available |
|
| 13 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
|
| 14 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944305 | Not Available |
|
| 15 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe | SV-1517699 | Not Available |
|
| 16 | Not Available | Shop-Vac Cartridge Filter | SV-9039010 | Not Available |
|
| 17 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
|
| 18 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
|
| 19 | Not Available | Shop-Vac High Efficiency Collection Bag | SV-9190610 | Not Available |
|
| 20 | Not Available | Shop-Vac Tank Assembly | SV-7360497 | Not Available |
|
| 21 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
|
| 22 | Not Available | Shop-Vac Caster Foot A | SV-8567000 | Not Available |
|
| 23 | Not Available | Shop-Vac Caster Foot B | SV-8567010 | Not Available |
|
| 24 | Not Available | Shop-Vac Retainer | SV-8565500 | Not Available |
|
| 25 | Not Available | Shop-Vac Rear Caster Dolly | SV-7431135 | Not Available |
|
| 26 | Not Available | Shop-Vac Accessory Basket | SV-9064800 | Not Available |
|
| 27 | Not Available | Shop-Vac Caster | SV-6772200 | Not Available |
|
| 28 | Not Available | Shop-Vac Screw #10 x 3/4" | SV-1503999 | Not Available |
|
| 29 | Not Available | Shop-Vac Drain Cover | SV-7446800 | Not Available |
|
| 30 | Not Available | Shop-Vac Grid Plate | SV-8865500 | Not Available |
|
| # |
Part image |
Description |
SKU |
Price |
| 01 | Not Available | Shop-Vac Screw 1/4" X 3/4" Trilobe T30 HD | SV-1516499 | Not Available |
|
| 02 | Not Available | Shop-Vac Handle | SV-7444400 | Not Available |
|
| 03 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
|
| 04 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
|
| 05 | Not Available | Shop-Vac Motor Cover Assembly | SV-1944303 | Not Available |
|
| 06 | Not Available | Shop-Vac Switch | SV-8232311 | Not Available |
|
| 07 | Not Available | Shop-Vac Screw 10 x 3/4" Type AB | SV-1515399 | Not Available |
|
| 08 | Not Available | Shop-Vac Baffle | SV-1957712 | Not Available |
|
| 09 | Not Available | Shop-Vac Power Cord | SV-2650004 | Not Available |
|
| 10 | Not Available | Shop-Vac Motor Housing | SV-1957710 | Not Available |
|
| 11 | Not Available | Shop-Vac Motor | SV-1944249 | Not Available |
|
| 12 | Not Available | Shop-Vac Lower Motor Gasket | SV-2071600 | Not Available |
|
| 13 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
|
| 14 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944305 | Not Available |
|
| 15 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe | SV-1517699 | Not Available |
|
| 16 | Not Available | Shop-Vac Cartridge Filter | SV-9039010 | Not Available |
|
| 17 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
|
| 18 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
|
| 19 | Not Available | Shop-Vac High Efficiency Collection Bag | SV-9190610 | Not Available |
|
| 20 | Not Available | Shop-Vac Tank Assembly | SV-1027397 | Not Available |
|
| 21 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
|
| 22 | Not Available | Shop-Vac Caster Foot A | SV-8567000 | Not Available |
|
| 23 | Not Available | Shop-Vac Caster Foot B | SV-8567010 | Not Available |
|
| 24 | Not Available | Shop-Vac Retainer | SV-8565500 | Not Available |
|
| 25 | Not Available | Shop-Vac Rear Caster Dolly | SV-7431135 | Not Available |
|
| 26 | Not Available | Shop-Vac Accessory Basket | SV-9064800 | Not Available |
|
| 27 | Not Available | Shop-Vac Caster | SV-6772200 | Not Available |
|
| 28 | Not Available | Shop-Vac Screw #10 x 3/4" | SV-1503999 | Not Available |
|
| 29 | Not Available | Shop-Vac Drain Cover | SV-7446800 | Not Available |
|
| # |
Part image |
Description |
SKU |
Price |
| 01 | Not Available | Shop-Vac Screw 1/4" X 3/4" Trilobe T30 HD | SV-1516499 | Not Available |
|
| 02 | Not Available | Shop-Vac Handle | SV-7444400 | Not Available |
|
| 03 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
|
| 04 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
|
| 05 | Not Available | Shop-Vac Motor Cover Assembly | SV-1944303 | Not Available |
|
| 06 | Not Available | Shop-Vac Switch | SV-1944262 | Not Available |
|
| 07 | Not Available | Shop-Vac Screw 10 x 3/4" Type AB | SV-1515399 | Not Available |
|
| 08 | Not Available | Shop-Vac Baffle | SV-1957714 | Not Available |
|
| 09 | Not Available | Shop-Vac Power Cord | SV-2580089 | Not Available |
|
| 10 | Not Available | Shop-Vac Motor Housing | SV-1957708 | Not Available |
|
| 11 | Not Available | Shop-Vac Motor | SV-1944249 | Not Available |
|
| 12 | Not Available | Shop-Vac Lower Motor Gasket | SV-2071600 | Not Available |
|
| 13 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
|
| 14 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944305 | Not Available |
|
| 15 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe T25 HD | SV-1516599 | Not Available |
|
| 16 | Not Available | Shop-Vac Cartridge Filter | SV-9039010 | Not Available |
|
| 17 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
|
| 18 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
|
| 19 | Not Available | Shop-Vac High Efficiency Collection Bag | SV-9190610 | Not Available |
|
| 20 | Not Available | Shop-Vac Tank Assembly | SV-7368097 | Not Available |
|
| 21 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
|
| 22 | Not Available | Shop-Vac Carriage Handle | SV-2088000 | Not Available |
|
| 23 | Not Available | Shop-Vac Screw 1/4" - 20 x 3/4" Slotted Thread | SV-0810899 | Not Available |
|
| 24 | Not Available | Shop-Vac Sealing Washer | SV-0701299 | Not Available |
|
| 25 | Not Available | Shop-Vac 1/4" - 20 Locknut - Heavy Hex HD | SV-1304599 | Not Available |
|
| 26 | Not Available | Shop-Vac Rear Dolly/Basket | SV-7417350 | Not Available |
|
| 27 | Not Available | Shop-Vac Axle | SV-2442100 | Not Available |
|
| 28 | Not Available | Shop-Vac 8" Rear Wheel | SV-2425010 | Not Available |
|
| 29 | Not Available | Shop-Vac Cap Nut | SV-4300299 | Not Available |
|
| 30 | Not Available | Shop-Vac Casterfoot A | SV-7431300 | Not Available |
|
| 31 | Not Available | Shop-Vac Casterfoot B | SV-7431310 | Not Available |
|
| 32 | Not Available | Shop-Vac Retainer | SV-8565700 | Not Available |
|
| 33 | Not Available | Shop-Vac Flatwasher | SV-0704399 | Not Available |
|
| 34 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
|
| 35 | Not Available | Shop-Vac Screw 10 x 3/4" SL Hex Head | SV-1503999 | Not Available |
|
| 36 | Not Available | Shop-Vac Drain Cover | SV-7413620 | Not Available |
|
| 37 | Not Available | Shop-Vac Grid Plate | SV-8865500 | Not Available |
|
