Schematic and parts list for: Shop-Vac Model: 84L250B

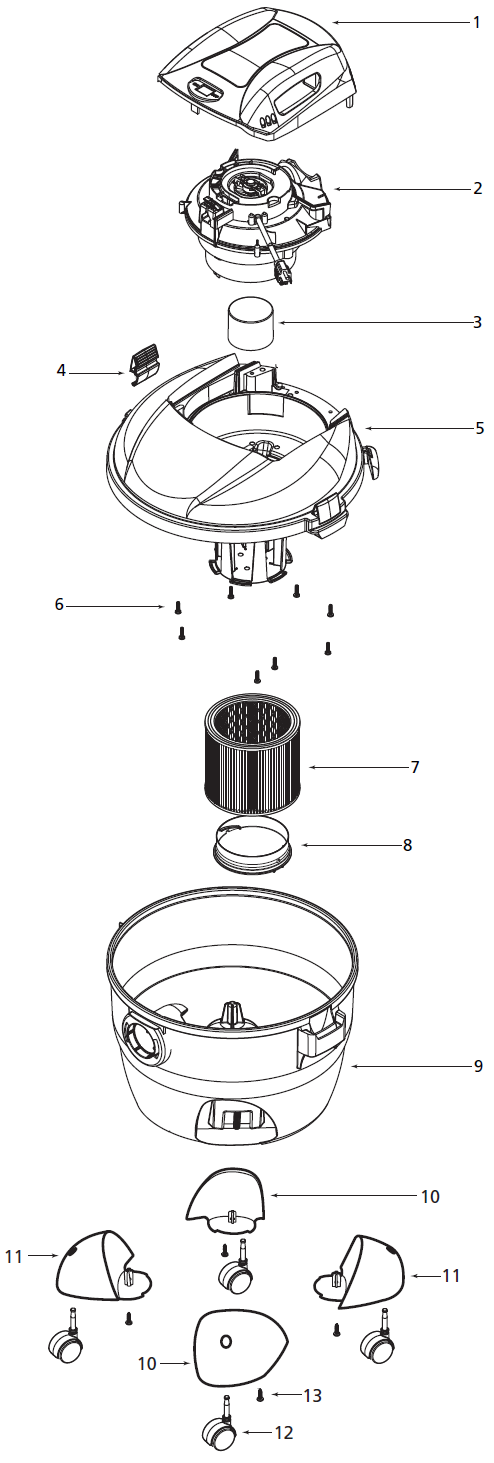

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 84L250B

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: 84L250B (8 Gal, 2.5 HP)


# Part image Description SKU Price
01Not AvailableShop-Vac Motor Cover SV-3742000Not Available
02Not AvailableShop-Vac Power Unit Assembly SV-8130197Not Available
03Not AvailableShop-Vac Float SV-3545000Not Available
04Not AvailableShop-Vac Lid Latch SV-7444500Not Available
05Not AvailableShop-Vac Lid Cage & Latch Assembly SV-1944094Not Available
06Not AvailableShop-Vac Screw 10 x 3/4' Trilobe T25 HD SV-1516599Not Available
07Not AvailableShop-Vac Cartridge Filter SV-9030400Not Available
08Not AvailableShop-Vac Filter Retainer SV-3008000Not Available
09Not AvailableShop-Vac Tank Assembly SV-1025597Not Available
10Not AvailableShop-Vac Caster Foot A SV-8568401Not Available
11Not AvailableShop-Vac Caster Foot B SV-8568411Not Available
12Not AvailableShop-Vac Caster SV-6774200Not Available
13Not AvailableShop-Vac Screw 10 x 3/4' SL Hex Head SV-1503999Not Available
