Schematic and parts list for: Sanitaire Model: SC5845A-2
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC5845A-2
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC5845A-2
Popular Supplies

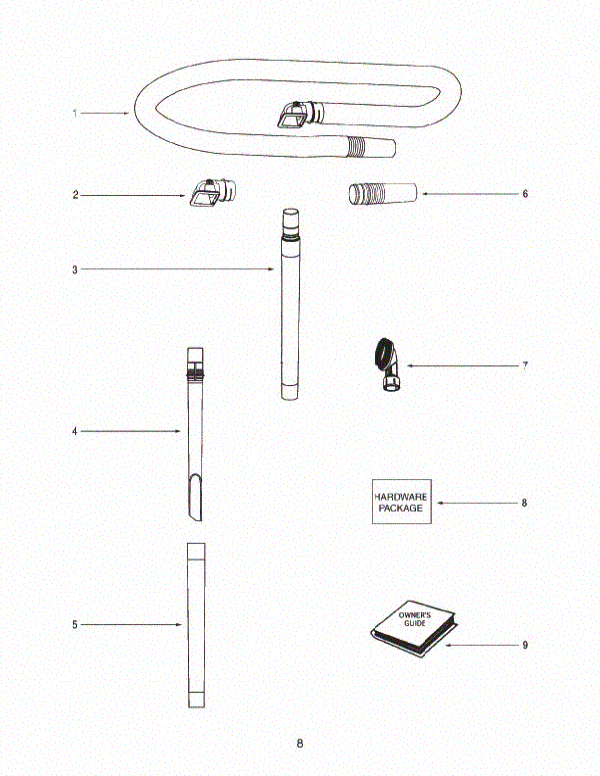

| # | Part image | Description | SKU | Price |
| 01 |  | Hose, Attach W/Adaptor/Coupling Litespeed 5811A Part Number: 618654 for Eureka | 618654 | $50.80Read more |
| 02 |  | Adapter, Hose 5800/2900/SC5713/SC5815 Series Part Number: 71725313N for Eureka | 71725313N | $9.69Read more |
| 03 |  | CREVICE TOOL, GE5500/5550/106575/10658 Part Number: 7750522 for Eureka | 7750522 | $12.36Read more |
| 04 |  | Crevice Tool, Gray Wand 1956A Part Number: 77506355N for Eureka | 77506355N | $10.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Sanitaire Wand - Outer | 77507-119N | Not Available |
| 06 |  | Coupling, Hose 2900/3200/5800 Series Upright Part Number: 70559A119N for Eureka | 70559A119N | $11.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | Adapter Wand Lower Bissell repair part number: 1609902 | 1609902 | $2.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Sanitaire Hardware Package | 72322 | Not Available |
| 09 | Not Available | Sanitaire Owner's Guide | 73551 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Dampener- End Cap (Lh) | 82082-119N | Not Available |
| xx | Not Available | Sanitaire Dampener- End Cap (Rh) | 82083-119N | Not Available |
| 01 |  | Transmission gear housing for kitchenaid mixer | WP12257 | $99.99Read more |
| 02 | Not Available | Sanitaire Base Hose Assy | 71447-119N | Not Available |
| 03 | Not Available | Sanitaire Felt - Base | 73153 | Not Available |
| 04 |  | Knob, Gray Height Adjustment SC5713/SC5815 Series Part Number: 71448355N for Eureka | 71448355N | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Sanitaire Base Assembly - Packaged Includes Items 3,4,6,7,8,9,15,18,19,20,21,22,26 & 27 | 61877-10 | Not Available |
| 06 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | Carriage, Front Wheel 5812A/5855AN/5857AZ Part Number: 71446A119N for Eureka | 71446A119N | $14.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 11 | Not Available | Sanitaire Screw Package Pkg Of 10 | 53238-27 | Not Available |
| 12 | Not Available | Sanitaire Base Hose Assy | 71726-119N | Not Available |
| 13 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Hood, Red/Gray Plastic Commercial Uprt. SC5815B Part Number: 6187828 for Eureka | 6187828 | $35.50Read more |
| 15 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $5.30Read more |
| 16 | Not Available | Sanitaire Screw Package Pkg Of 10 | 53238-27 | Not Available |
| 17 | No Image | Clamp, Motor Part Number: 71487 for Eureka | 71487 | $8.52Read more |
| 18 |  | Pedal, Gray Foot Handle Release SC-5845 Part Number: 71457355N for Eureka | 71457355N | $7.25Read more |
| 19 | Not Available | Sanitaire Retaining Ring | 54432-1 | Not Available |
| 20 |  | Wheel, Rear SC5713/SC5815/SC5845/SC5816 Part Number: 725121 for Eureka | 725121 | $11.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Sanitaire Bushing - Axle | 73432 | Not Available |
| 22 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $8.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Cover, Off-Wht Plastic Belt Cap 5700-5800 Series Part Number: 71741A for Eureka | 71741A | $6.49Read more |
| 24 | Not Available | Sanitaire Felt-Belt Cap Includes Item 24 | 71672A | Not Available |
| 25 |  | Brushroll, 14.5 Inch Plastic Sc5815/Sc5845 Part Number: 622284 for Eureka | 622284 | $35.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Sanitaire Furniture Guard Sold On Hood Assy Only. | FNLA | Not Available |
| 27 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |

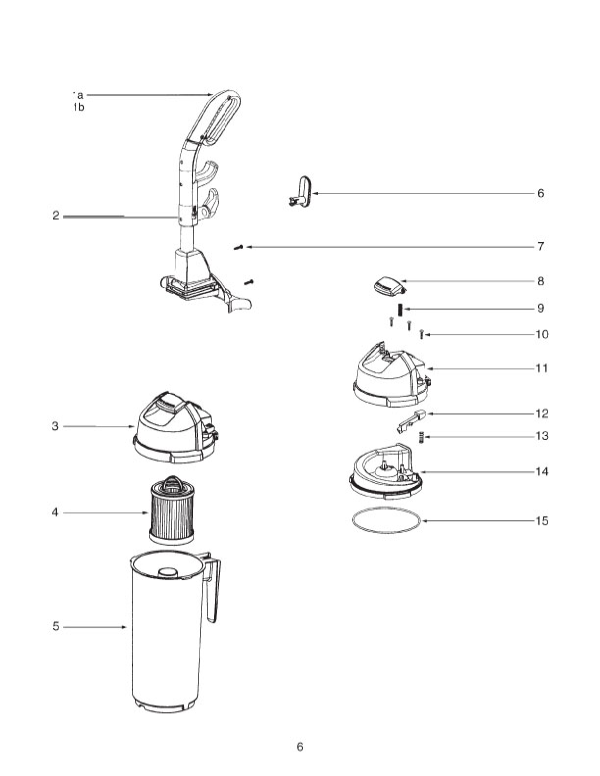

| # | Part image | Description | SKU | Price |
| 01a | Not Available | Sanitaire Grip - Left Handle | 15596-355N | Not Available |
| 01b | Not Available | Sanitaire Grip - Right Handle | 15597-355N | Not Available |
| 02 | Not Available | Sanitaire Upper Handle Assembly | 73175-1SV | Not Available |
| 03 | Not Available | Sanitaire Cyclone Assembly | 71537-37 | Not Available |
| 04 | Not Available | Sanitaire Dust Cup Filter | 62136 | Not Available |
| 05 | | Pet multi surface Brushroll Bissell repair part number: 1618641 | 1618641 | $24.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 |  | Cord Hook, Upper C4571A/C4910A/C5712A/EP9110A Part Number: 28316355N for Eureka | 28316355N | $7.25Read more |
| 07 | Not Available | Sanitaire Screw Package Pkg Of 10 | 54669-5 | Not Available |
| 08 |  | Latch, Dirt Cup SC5845A/5800 Series Part Number: 71479355N for Eureka | 71479355N | $5.98Read more |
| 09 | Not Available | Sanitaire Spring Package Pkg Of 5 | 61866 | Not Available |
| 10 | Not Available | Sanitaire Screw Package Pkg Of 10 | 53238-27 | Not Available |
| 11 | Not Available | Sanitaire Top Cover On Cyclone Assy Complete. | FNLA | Not Available |
| 12 | Not Available | Sanitaire Catch - Filter In Place | 71785-119N | Not Available |
| 13 | No Image | SPRING 5840 Part Number: 61867 for Eureka | 61867 | $6.49Read more |
| 14 | Not Available | Sanitaire Cyclone | 71451-119N | Not Available |
| 15 |  | Gasket,Cyclone Top Lightspeed 5740/5840 Part Number: 71475 for Eureka | 71475 | $6.18Add to cart Product is special order please allow 2-4 weeks for delivery. |

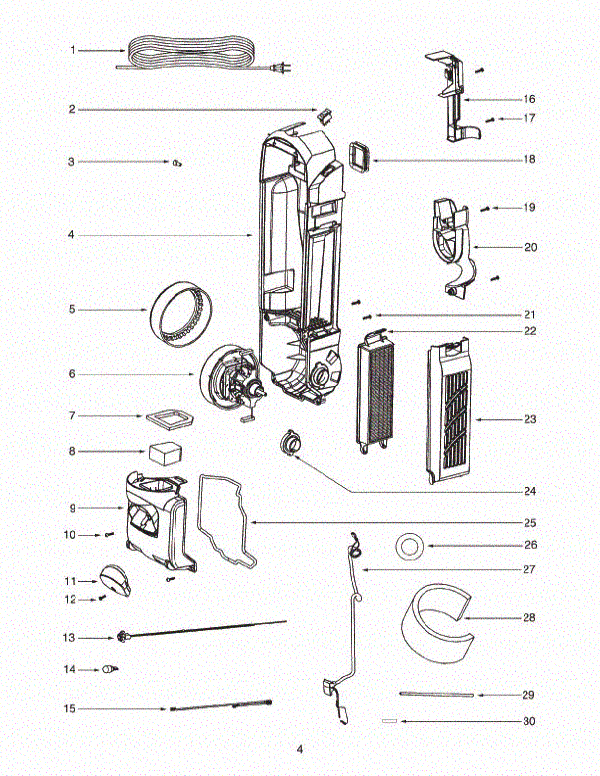

| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Shield - Wire Wire Shield | 75329 | Not Available |
| xx | Not Available | Sanitaire Filter Cover & Graphics A(for models whose serial number begins with 1408 or higher) | 72006-16 | Not Available |
| 01 |  | Cord, 40' Grey 2-Wire SC5815/C5712A Upright Part Number: 3868032 for Eureka | 3868032 | $38.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Switch, Black Rect Rocker On/Off Ultra Smart Vac Part Number: 28073A for Eureka | 28073A | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 04 | Not Available | Sanitaire Rear Housing Assembly Includes Items 18 & 25 | 72126B-1 | Not Available |
| 05 | Not Available | Sanitaire Gasket - Motor Can | 75348 | Not Available |
| 06 |  | Motor, 3670G-2/3686/SC5745 Mighty Mite & Uprights Part Number: 623941 for Eureka | 623941 | $79.66Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | GASKET, DIRT CUP 5844 Part Number: 71483 for Eureka | 71483 | $6.49Read more |
| 08 |  | Filter, Secondary Foam 5740/5840/5843/5844/5846 Part Number: 71480 for Eureka | 71480 | $3.97Read more |
| 09 |  | Cover, Red Plstic Motor SC5845/SC5845A-1/SC5845A-2 Part Number: 6186314 for Eureka | 6186314 | $26.11Read more |
| 10 | Not Available | Sanitaire Screw Package | 53238-27 | Not Available |
| 11 | Not Available | Sanitaire Lens - Headlamp | 71460-313N | Not Available |
| 12 | | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Sanitaire Socket Assembly | 70513-4 | Not Available |
| 14 | Not Available | Sanitaire Lamp - Headlight | 57940-3 | Not Available |
| 15 | Not Available | Sanitaire Thermostat 110 Deg | 59213-7 | Not Available |
| 16 | No Image | SWITCH COVER ASSEMBLY Part Number: 721271 for Eureka | 721271 | $8.82Read more |
| 17 | Not Available | Sanitaire Screw Package Pkg Of 10 | 53238-27 | Not Available |
| 18 |  | Gasket, Square Black Intake 5902AVZ Part Number: 71482 for Eureka | 71482 | $6.63Read more |
| 19 | Not Available | Sanitaire Screw Package Pkg Of 10 | 53238-27 | Not Available |
| 20 |  | Tool Pack, Lower 5800 Series Part Number: 71455119N for Eureka | 71455119N | $11.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Sanitaire Screw Package Pkg Of 10 | 53238-27 | Not Available |
| 22 | Not Available | Sanitaire Washable Hepa Filter - Pk | 61840 | Not Available |
| 23 | Not Available | Sanitaire Filter Cover & Graphics A | 72006-5 | Not Available |
| 24 | Not Available | Sanitaire Bushing - Motor Support | 75100A | Not Available |
| 25 | No Image | GASKET, MOTOR COVER 5845 Part Number: 71484 for Eureka | 71484 | $5.09Read more |
| 27 | Not Available | Sanitaire Cord - Jumper | 71465-3 | Not Available |
| 28 | Not Available | Sanitaire Foam - Sound | FNLA | Not Available |
| 29 | Not Available | Sanitaire Tube - Flexible | 70651-1 | Not Available |
| 30 | Not Available | Sanitaire Plug | 72167 | Not Available |
