Schematic and parts list for: Sanitaire Model: SC5713A-1
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC5713A-1
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC5713A-1
Popular Supplies

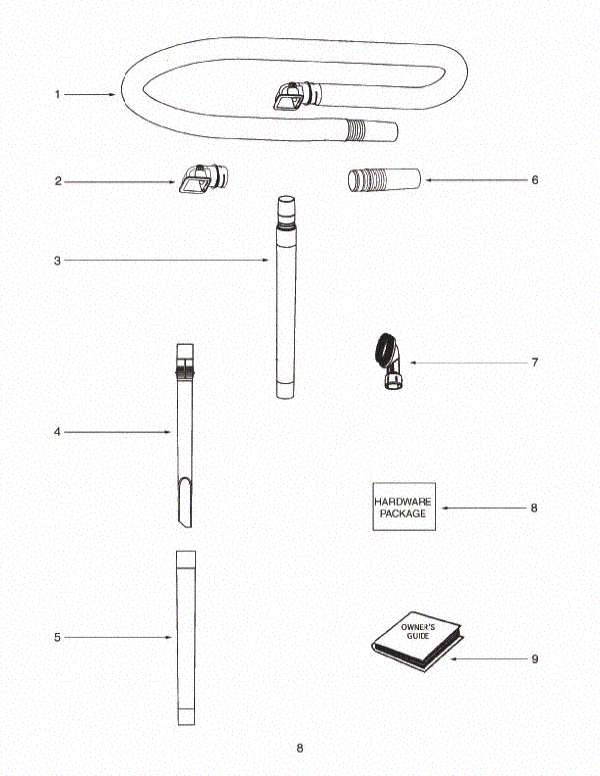

| # | Part image | Description | SKU | Price |
| 01 |  | Hose, Attach W/Adaptor/Coupling Litespeed 5811A Part Number: 618654 for Eureka | 618654 | $50.80Read more |
| 02 |  | Adapter, Hose 5800/2900/SC5713/SC5815 Series Part Number: 71725313N for Eureka | 71725313N | $9.69Read more |
| 03 | Not Available | Sanitaire Nesting Wand Assembly | 71492A | Not Available |
| 04 | Not Available | Sanitaire Crevice Wand | 71956A-355N | Not Available |
| 05 | Not Available | Sanitaire Wand - Outer | 71973-119N | Not Available |
| 06 |  | Coupling, Hose 2900/3200/5800 Series Upright Part Number: 70559A119N for Eureka | 70559A119N | $11.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | Adapter Wand Lower Bissell repair part number: 1609902 | 1609902 | $2.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Sanitaire Hardware Package | 72322 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 |  | Transmission gear housing for kitchenaid mixer | WP12257 | $99.99Read more |
| 02 | Not Available | Sanitaire Base Hose Assy | 71447-119N | Not Available |
| 03 | Not Available | Sanitaire Felt - Base | 73153 | Not Available |
| 04 |  | Knob, Gray Height Adjustment SC5713/SC5815 Series Part Number: 71448355N for Eureka | 71448355N | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Base, C5712A/C5712A-1/SC5713A/SC5713A-1 Part Number: 624111 for Eureka | 624111 | $59.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | Carriage, Front Wheel 5812A/5855AN/5857AZ Part Number: 71446A119N for Eureka | 71446A119N | $14.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 12 | Not Available | Sanitaire Base Hose Assy | 71726-119N | Not Available |
| 13 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Hood, Assembly Sanitaire SC5713A/SC5745A Part Number: 624123 for Eureka | 624123 | $22.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $5.30Read more |
| 16 | Not Available | Sanitaire Screw Package | 53238-27 | Not Available |
| 17 | No Image | Clamp, Motor Part Number: 71487 for Eureka | 71487 | $8.52Read more |
| 18 |  | Pedal, Gray Foot Handle Release SC-5845 Part Number: 71457355N for Eureka | 71457355N | $7.25Read more |
| 19 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Wheel, Rear SC5713/SC5815/SC5845/SC5816 Part Number: 725121 for Eureka | 725121 | $11.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Sanitaire Bushing - Axle | 73432 | Not Available |
| 22 |  | Brushroll, 18 In Vs18/Vsp18 Part Number: 8.613-859.0 for Windsor | 86138590 | $293.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Cover, Off-Wht Plastic Belt Cap 5700-5800 Series Part Number: 71741A for Eureka | 71741A | $6.49Read more |
| 24 |  | Belt Cap, White Felt SC5713/SC5815/SP5816 Part Number: 73152 for Eureka | 73152 | $5.44Read more |
| 25 |  | Brushroll, 12 In Wood Upright 4700 Reverse Helix | E-60844-5 | $37.95Read more |
| 26 | Not Available | Sanitaire Guard - Furniture | 71456-355N | Not Available |
| 27 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |

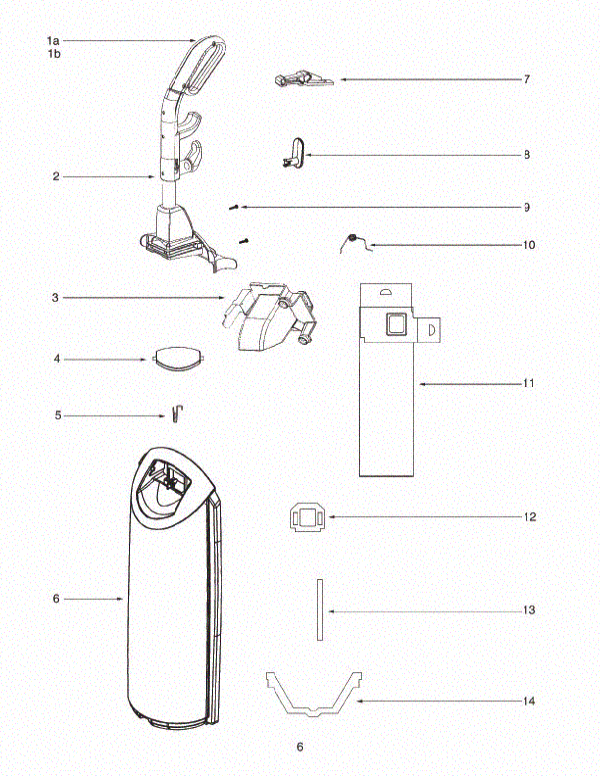

| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Exhaust Filter | 71801A | Not Available |
| 01 | Not Available | Sanitaire Grip - Left Handle | 15596-355N | Not Available |
| 01B | Not Available | Sanitaire Grip - Right Handle | 15597-355N | Not Available |
| 02 | Not Available | Sanitaire Upper Handle Assembly | 73175-1SV | Not Available |
| 03 | No Image | ADAPTOR, CLIP Part Number: 71746119N for Eureka | 71746119N | $7.47Read more |
| 05 | Not Available | Sanitaire Spring - Torsion | 71852 | Not Available |
| 06 | Not Available | Sanitaire Bag Cover Assembly - Pkgd | 61880-7 | Not Available |
| 07 | Not Available | Sanitaire Bag-In-Place Arm | 71747-119N | Not Available |
| 08 |  | Cord Hook, Upper C4571A/C4910A/C5712A/EP9110A Part Number: 28316355N for Eureka | 28316355N | $7.25Read more |
| 09 | | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Sanitaire Spring - Torsion | 71748 | Not Available |
| 11 | No Image | aftermarket Eureka Type LS Sanitaire Vacuum Bags, LiteSpeed Upright, Bagged, Boss Signature Genesis, Refurb Powerline Limited, Sanitaire Commercial Vacuum Cleaners, Series 5700 & 5800, 62123 61820A, SC5815A, SC5713A | 836301003156 | $8.95Read more |
| 12 | No Image | ADAPTOR, GASKET SC5815 UPRIGHT Part Number: 71854 for Eureka | 71854 | $5.98Read more |
| 13 | Not Available | Sanitaire Gasket - Bag Cover | 71512 | Not Available |
| 14 | Not Available | Sanitaire Gasket - Lower Bag | 71765A | Not Available |

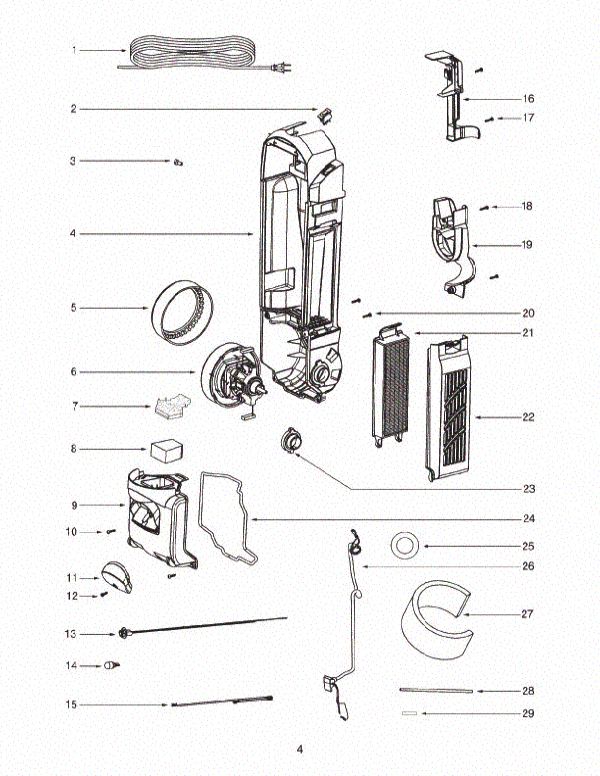

| # | Part image | Description | SKU | Price |
| 01 |  | Cord, 40' Grey 2-Wire SC5815/C5712A Upright Part Number: 3868032 for Eureka | 3868032 | $38.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Switch, Black Rect Rocker On/Off Ultra Smart Vac Part Number: 28073A for Eureka | 28073A | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 04 |  | HOUSING, REAR SC5815 Part Number: 717442 for Eureka | 717442 | $36.56Read more |
| 05 | Not Available | Sanitaire Gasket - Motor Can | 75348 | Not Available |
| 06 | Not Available | Sanitaire Motor Assembly - Packaged | 62394 | Not Available |
| 07 | No Image | SCREEN, MOTOR SC5815 Part Number: 71851119N for Eureka | 71851119N | $6.49Read more |
| 08 |  | Filter, Secondary Foam 5740/5840/5843/5844/5846 Part Number: 71480 for Eureka | 71480 | $3.97Read more |
| 09 | Not Available | Sanitaire Motor Cover Assy - Pkgd | 61879-5 | Not Available |
| 11 | Not Available | Sanitaire Not On This Model. | FNLA | Not Available |
| 12 | Not Available | Sanitaire Not On This Model. | FNLA | Not Available |
| 13 | Not Available | Sanitaire Not On This Model. | FNLA | Not Available |
| 14 | Not Available | Sanitaire Not On This Model. | FNLA | Not Available |
| 15 |  | THERMOSTAT, 4870 Part Number: 39252-1 for Eureka | 392521 | $10.76Read more |
| 16 | No Image | SWITCH COVER ASSEMBLY Part Number: 721271 for Eureka | 721271 | $8.82Read more |
| 19 |  | Tool Pack, Lower 5800 Series Part Number: 71455119N for Eureka | 71455119N | $11.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Sanitaire Screw Package | 53238-27 | Not Available |
| 21 | Not Available | Sanitaire Washable Hepa Filter - Pk | 61840 | Not Available |
| 22 | Not Available | Sanitaire Filter Cover & Graphics A | 72006-5 | Not Available |
| 23 | No Image | CREVICE TOOL, POWER TEAM 116.24212400 Part Number: 8175100 for Kenmore | 8175100 | $27.68Read more |
| 24 | No Image | GASKET, MOTOR COVER 5845 Part Number: 71484 for Eureka | 71484 | $5.09Read more |
| 26 | No Image | UPHOLSTERY TOOL, FITALL FOR JET PACK 1 1/4" Part Number: 14-1714-65 for Fitall | 14171465 | $0.88Read more |
| 27 | No Image | FOAM, SOUND Part Number: 722241 for Eureka | 722241 | $4.63Read more |
| 29 | Not Available | Sanitaire Plug | 72167 | Not Available |
| 30 | Not Available | Sanitaire Shield - Wire | 75329 | Not Available |
