Schematic and parts list for: ProTeam Model: Pro Gen 12

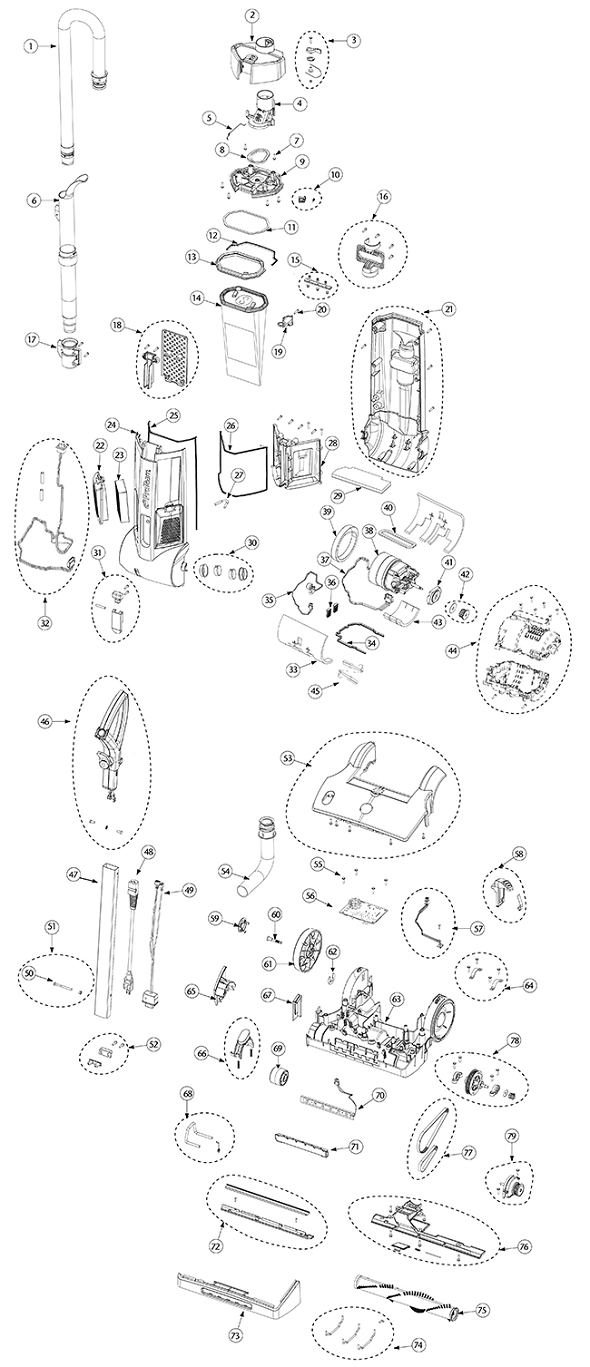

This is a list of parts and a diagram and schematic for: ProTeam Model: Pro Gen 12
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: ProGen 12 Upright Vacuum
| # | Part image | Description | SKU | Price |
| xx | Not Available | ProTeam Handle Tube Bushing | PT-834743 | Not Available |
| 1 | Not Available | ProTeam Hose Assembly | PT-510259 | Not Available |
| 2 | Not Available | ProTeam Filter Cover Assembly | PT-835354 | Not Available |
| 3 | Not Available | ProTeam Filter Lid Cam Lock Assembly | PT-835696 | Not Available |
| 4 | Not Available | ProTeam Upright Transition Duct Assembly | PT-834688 | Not Available |
| 5 | Not Available | ProTeam Filter Housing Spring Hose | PT-834753 | Not Available |
| 6 |  | WAND, PROGEN 12 & 15 TELESCOPIC Part Number: 510258 for Proteam | 510258 | $15.79Read more |
| 8 | Not Available | ProTeam Transition Duct Gasket | PT-834691 | Not Available |
| 9 | Not Available | ProTeam Bag Cover Housing Plate | PT-834687 | Not Available |
| 10 | Not Available | ProTeam Bag Cover Housing Interlock Assembly | PT-835697 | Not Available |
| 11 | Not Available | ProTeam Bag Cover Gasket Plate | PT-834690 | Not Available |
| 12 | Not Available | ProTeam Lid Rear Tree Gasket | PT-834730-3 | Not Available |
| 13 | Not Available | ProTeam Bag Housing Rim | PT-834823 | Not Available |
| 14 | Not Available | ProTeam Intercept Micro Filter Bag, Fits Progen (10 Pk.) | PT-107377 | Not Available |
| 15 | Not Available | ProTeam Hinge With Rivet Assembly | PT-835698 | Not Available |
| 16 | Not Available | ProTeam Carry Handle With Tool Caddy Assembly | PT-835694 | Not Available |
| 17 | Not Available | ProTeam Power Nozzle Adaptor Hose | PT-835351 | Not Available |
| 18 | Not Available | ProTeam Filter Housing Harness Enclosure Assembly | PT-835690 | Not Available |
| 19 | Not Available | ProTeam Extension Handle Clip | PT-834724 | Not Available |
| 20 | Not Available | ProTeam Pan Screw M4 20Mm | PT-835358 | Not Available |
| 21 | Not Available | ProTeam Rear Bag Housing Assembly | PT-835693 | Not Available |
| 22 | Not Available | ProTeam Exhaust Filter Cover | PT-834717 | Not Available |
| 23 | Not Available | ProTeam Filter Cartridge Made From Hepa Media, Fits Proforce, Progen, Super Halfvac Pro | PT-107005 | Not Available |
| 24 | Not Available | ProTeam 15" Front Bag Housing | PT-835687 | Not Available |
| 24 | Not Available | ProTeam 12" Front Bag Housing | PT-835708 | Not Available |
| 25 | Not Available | ProTeam Bag Housing Tree Gasket | PT-834730 | Not Available |
| 26 | Not Available | ProTeam Filter Housing Tree Gasket | PT-834730-1 | Not Available |
| 27 | Not Available | ProTeam Filter Housing Gasket Separator | PT-835150 | Not Available |
| 28 | Not Available | ProTeam Filter Housing Separator | PT-834718 | Not Available |
| 29 | Not Available | ProTeam Motor Intake Filter | PT-834721 | Not Available |
| 30 | Not Available | ProTeam Bag Housing Pivot Sleeve Assembly | PT-835695 | Not Available |
| 31 |  | Cord Wrap, Lower Assembly ProGen 12/15 Part Number: 835688 for Proteam | 835688 | $6.91Read more |
| 32 | Not Available | ProTeam Filter Housing Harness Assembly | PT-835689 | Not Available |
| 33 | Not Available | ProTeam Foam Filter Housing | PT-834722 | Not Available |
| 34 | Not Available | ProTeam Motor Housing Tree Gasket | PT-834730-2 | Not Available |
| 35 | Not Available | ProTeam Bag Full Indicator Sensor | PT-834723 | Not Available |
| 36 | Not Available | ProTeam Motor Support Gasket | PT-840042 | Not Available |
| 37 | Not Available | ProTeam Motor Harness | PT-835344 | Not Available |
| 38 | Not Available | ProTeam Motor Assembly | PT-834705 | Not Available |
| 39 | Not Available | ProTeam Blower Gasket Housing | PT-834696 | Not Available |
| 40 | Not Available | ProTeam Inlet Motor Gasket | PT-834697 | Not Available |
| 41 | Not Available | ProTeam Motor Mount Gasket | PT-834701 | Not Available |
| 42 | Not Available | ProTeam Motor Pulley Assembly | PT-835692 | Not Available |
| 43 | Not Available | ProTeam Foam Motor Housing | PT-834704 | Not Available |
| 44 | Not Available | ProTeam Motor Housing Assembly | PT-835691 | Not Available |
| 45 | Not Available | ProTeam Motor Brush | PT-835714 | Not Available |
| 46 | Not Available | ProTeam Handle Assembly | PT-842344 | Not Available |
| 47 | Not Available | ProTeam Aluminum Tube Handle | 834746 | Not Available |
| 48 | Not Available | ProTeam 50' Power Cord | PT-834740-1 | Not Available |
| 48 | Not Available | ProTeam 40' Power Cord With Strain Relief | PT-834740 | Not Available |
| 49 | Not Available | ProTeam Handle Tube Harness | PT-834750 | Not Available |
| 50 | Not Available | ProTeam Handle Screw Nut Assembly | PT-835701 | Not Available |
| 51 | Not Available | ProTeam Cam Lock Latch Assembly | PT-835700 | Not Available |
| 52 | Not Available | ProTeam 15" Base Cover Assembly | PT-835686 | Not Available |
| 52 | Not Available | ProTeam 12" Base Cover | PT-835707 | Not Available |
| 53 | Not Available | ProTeam Hose Power Head Assembly | PT-510252 | Not Available |
| 54 | Not Available | ProTeam Washer Pan Screw M4 | PT-835345 | Not Available |
| 55 | Not Available | ProTeam Main Control Board | PT-834797 | Not Available |
| 56 | Not Available | ProTeam Control Board Hall Effect Assembly | PT-835683 | Not Available |
| 57 | Not Available | ProTeam 15" Foot Pedal Assembly | PT-835676 | Not Available |
| 57 | Not Available | ProTeam 12" Foot Pedal Assembly | PT-835702 | Not Available |
| 58 | Not Available | ProTeam Cap Button | PT-834788 | Not Available |
| 59 | Not Available | ProTeam 15" Rear Wheel Shaft | PT-834789 | Not Available |
| 60 | Not Available | ProTeam 15" Rear Wheel | PT-834787 | Not Available |
| 61 | Not Available | ProTeam Retaining Ring | PT-834790 | Not Available |
| 62 | Not Available | ProTeam Progen 12 Service Base Assembly | PT-836627 | Not Available |
| 62 | Not Available | ProTeam 15" Power Nozzle Base | PT-834804 | Not Available |
| 63 | Not Available | ProTeam Filter Housing Clamp Assembly | PT-835684 | Not Available |
| 64 | Not Available | ProTeam 12" Brush Removal Cover Assembly | PT-835352 | Not Available |
| 65 | Not Available | ProTeam Brush Release Button 12" Assembly | PT-835705 | Not Available |
| 65 | Not Available | ProTeam Brush Release Button 15" Assembly | PT-835682 | Not Available |
| 66 | Not Available | ProTeam 12" Side Base Bumper | PT-835036 | Not Available |
| 66 | Not Available | ProTeam 15" Side Base Bumper | PT-834810 | Not Available |
| 67 | Not Available | ProTeam Center Wheel Pivot Rod Assembly | PT-835675 | Not Available |
| 68 | Not Available | ProTeam Center Wheel | PT-834791 | Not Available |
| 69 | Not Available | ProTeam Led Strip Light Harness Assembly | PT-835349 | Not Available |
| 70 | Not Available | ProTeam Led Strip Light Lens | PT-834816 | Not Available |
| 71 | Not Available | ProTeam 12" Front Base Plate Assembly | PT-835703 | Not Available |
| 71 | Not Available | ProTeam 15" Front Base Plate Assembly | PT-835680 | Not Available |
| 72 | Not Available | ProTeam 15" Front Base Bumper | PT-834809 | Not Available |
| 72 | Not Available | ProTeam 12" Front Base Bumper | PT-835035 | Not Available |
| 73 | Not Available | ProTeam Base Wire Brace | PT-835679 | Not Available |

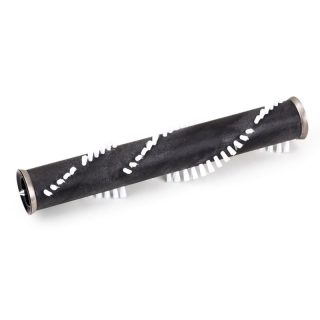

| 74 | Not Available | ProTeam 12" Brush Roll | PT-841817 | Not Available |
| 75 | Not Available | ProTeam 12" Rear Base Plate Assembly | PT-835704 | Not Available |
| 75 | Not Available | ProTeam 15" Rear Base Plate Assembly | PT-835681 | Not Available |
| 76 | Not Available | ProTeam Timing Belt Assembly | PT-835678 | Not Available |
| 77 | Not Available | ProTeam 15" Pulley Assembly | PT-835685 | Not Available |
| 77 | Not Available | ProTeam 12" Pulley Assembly | PT-835706 | Not Available |
| 78 | Not Available | ProTeam Brush Roller Clutch Assembly | PT-835677 | Not Available |
