Schematic and parts list for: Oreck Model: XLS465

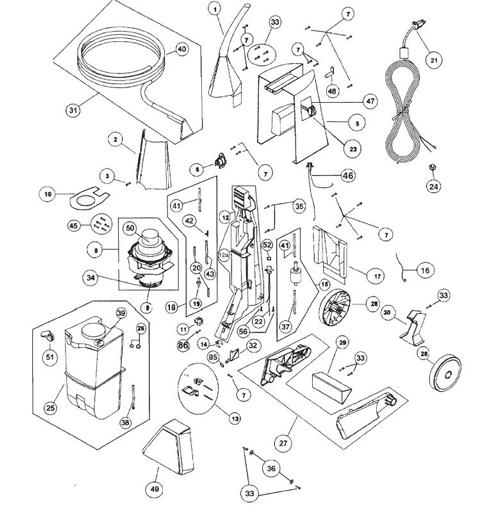

This is a list of parts and a diagram and schematic for: Oreck Model: XLS465
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: XLS465
| # | Part image | Description | SKU | Price |
| xx | Not Available | Oreck XLS465 Manual, Owners | 5309403 | Not Available |
| 1 | Not Available | Oreck XLS465: Handle Assembly, Dk Cherry (Only Avail in Black Now) | 95293104 | Not Available |
| 2 | Not Available | Oreck XLS465: Front Housing, Cherry | 95310001 | Not Available |
| 5 | No Image | HOUSING, REAR XLS465 Part Number: 52929010384 for Oreck | 52929010384 | $38.03Read more |
| 6 | Not Available | Oreck Bottle Docking Assembly | 95310601 | Not Available |
| 8 | Not Available | Oreck Motor & Separator Assembly | FNLA | Not Available |
| 9 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Body Separator Assy ONLY | 95306702 | Not Available |
| 10 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Motor Baffle | 5295101 | Not Available |
| 11 | Not Available | Oreck Tank Block, Creme | 52432P2453 | Not Available |
| 12 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Mainframe Assy, Gray | 95305701 | Not Available |
| 12a | Not Available | Oreck Gasket, Foam, Mainframe Tank | 5274701 | Not Available |
| 13 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Lever Latch Assy, Gray | 95307501 | Not Available |
| 14 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Button, Lock, Crimson Red | 52427P20419 | Not Available |
| 15 | Not Available | Oreck Pump with Nipple / Tube Assembly | 95255301 | Not Available |
| 16 | Not Available | Oreck Pump Lead Assembly with Terminal | 5263001 | Not Available |
| 17 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Pump Cover, Gray | 52417040384 | Not Available |
| 18 | Not Available | Oreck XLS465 / XLS465Q: Connector T' Hose Assembly | 95276801 | Not Available |
| 19 | Not Available | Oreck Check Valve | 5251001 | Not Available |
| 20 | Not Available | Oreck Check Valve Tube | 5251101 | Not Available |
| 21 | Not Available | Oreck Power Cord Assembly w/ ALCI | 5261204 | Not Available |
| 22 | Not Available | Oreck Power Scrubber Receptacle | 5261103 | Not Available |
| 23 | No Image | Switch, Crimson Red Power Rinse-A-Matic Part Number: 52613-02 for Oreck | 5261302 | $10.87Read more |
| 24 | Not Available | Oreck Strain Relief, Square | 30041401 | Not Available |
| 25 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Tank Assembly, Gray | 95306901 | Not Available |
| 26 | Not Available | Oreck Port O-Ring | 5267701 | Not Available |
| 27 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Strut Pkg, Left & Right, Gray | 95307401 | Not Available |
| 28 | Not Available | Oreck XLS465 / XLS465Q: Wheel, Gray | 52421P10384 | Not Available |
| 29 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Tie Bar Strut, Gray | 52433P10384 | Not Available |
| 30 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q:Mainframe Stand, Gray | 52412020384 | Not Available |
| 31 | Not Available | Oreck Upholstery Nozzle Assy w/Hose, Black | 95294003 | Not Available |
| 32 | Not Available | Oreck XLS465 Nipple Quick Connect with O-Ring, Gray | 95305801 | Not Available |
| 34 | Not Available | Oreck Separator Seal, Rubber | 5291301 | Not Available |
| 37 | Not Available | Oreck Tube, Pump to Nipple Quick | 5246002 | Not Available |
| 38 | Not Available | Oreck Supply Tank Tube with Filter | 95306801 | Not Available |
| 39 | Not Available | Oreck XLS465 / XLS465Q / XLS700 / XLS700Q: Port, Gray | 52042P20384 | Not Available |
| 40 | Not Available | Oreck Hose, 10 Ft, Blue | 52360P1438 | Not Available |
| 41 | Not Available | Oreck XLS465 Tube T' Connector to Pump | 5245901 | Not Available |
| 42 | Not Available | Oreck XLS465 Connector T' | 52436P1 | Not Available |
| 43 | Not Available | Oreck Tube, Bottle Dock to Tank Block & CV to DCV | 5245701 | Not Available |
| 44 | Not Available | Oreck XLS465 Motor / Separator Gasket | 53690029 | Not Available |
| 46 | Not Available | Oreck Wire Harness, Female | 5293601 | Not Available |
| 47 | Not Available | Oreck XLS465 Switch Plate, Gray | 52961010384 | Not Available |
| 48 | Not Available | Oreck XLS465 Cord Dump, Gray | 56948020384 | Not Available |
| 49 | Not Available | Oreck XLS465 Floor Nozzle Assembly, 9' FNLA (All Units Now Use The M800 12' | FNLA (All Units Now Use The M800 12' Nozzle) | Not Available |
| 49 | Not Available | Oreck Order (1) Button Lock along | 52427P3452 | Not Available |
| 49 | No Image | NOZZLE, FLOOR ASSEMBLY 12" M800 Part Number: 09-53365-52 for Oreck | 095336552 | $196.20Read more |
| 50 |  | Oreck shampooer model XLS465 / XLS465Q / XLS700 / XLS700Q PN 52981-02 main motor | 5298102 | $99.00Read more |
| 51 | Not Available | Oreck XLS465 Tank Cap, Gray | 52927010384 | Not Available |
| 52 | Not Available | Oreck Gasket, Receptacle | 5274201 | Not Available |
| 53 | Not Available | Oreck XLS465 Nozzle Cover, 9' | 52600020329 | Not Available |
| 54 | Not Available | Oreck XLS465 Rear Nozzle, 9' | 95307801 | Not Available |
| 55 | Not Available | Oreck XLS465 Nozzle Gasket | 5273801 | Not Available |
| 58 | Not Available | Oreck XLS465 Motor Cover | 52602010384 | Not Available |
| 60 | Not Available | Oreck Motor Clamp | 2662601 | Not Available |
| 62 | Not Available | Oreck Cord, Power Scrubber Plug | 5261002 | Not Available |
| 63 | Not Available | Oreck Power Scrubber Motor | 5260901 | Not Available |
| 64 | Not Available | Oreck Motor Insulation, Round | 5274101 | Not Available |
| 65 | Not Available | Oreck XLS465 Connector T' & Tubing Assembly | 95277001 | Not Available |
| 66 | Not Available | Oreck Connector T' Power Scrubber | 5271401 | Not Available |
| 67 | Not Available | Oreck XLS465 Tube, Spray Tip | 5260601 | Not Available |
| 68 | Not Available | Oreck Power Scrubber Spray Tip | 52605010327 | Not Available |
| 69 | Not Available | Oreck XLS465 Spray Tip Clip | 5261401 | Not Available |
| 70 | Not Available | Oreck XLS465 Belt, Motor | 2661002 | Not Available |
| 72 | Not Available | Oreck Belt Cover, Blue | 5260101438 | Not Available |
| 74 | Not Available | Oreck Dowel Clamp | 5260301 | Not Available |
| 75 | Not Available | Oreck XLS465 Dowel Brush, 9' | 5260802 | Not Available |
| 76 | Not Available | Oreck Pinch Tube, Upholstery Nozzle | 5254301 | Not Available |
| 77 | Not Available | Oreck Spray Tip, Upholstery, Black | 52716020327 | Not Available |
| 78 | Not Available | Oreck XLS465 Trigger, Upholstery, Yellow | 52424P2452 | Not Available |
| 79 | Not Available | Oreck Spring, Upholstery Trigger | 5254201 | Not Available |
| 80 | No Image | BRUSH STRIP, UPHOLSTERY NOZZLE Part Number: 52384P1-0327 for Oreck | 52384P10327 | $14.20Read more |
| 81 | Not Available | Oreck Hose Clamp | 30042401 | Not Available |
| 85 |  | O-Ring, XL700 Steamer Part Number: 52679-01 for Oreck | 5267901 | $15.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 | Not Available | Oreck Wire Tie, Purse Lock | 30043601 | Not Available |
| 90 | Not Available | Oreck Detergent Control Knob | 5331201452 | Not Available |
| 96 | Not Available | Oreck Gasket, Pump | 5302101 | Not Available |
