Schematic and parts list for: Oreck Model: U8200S

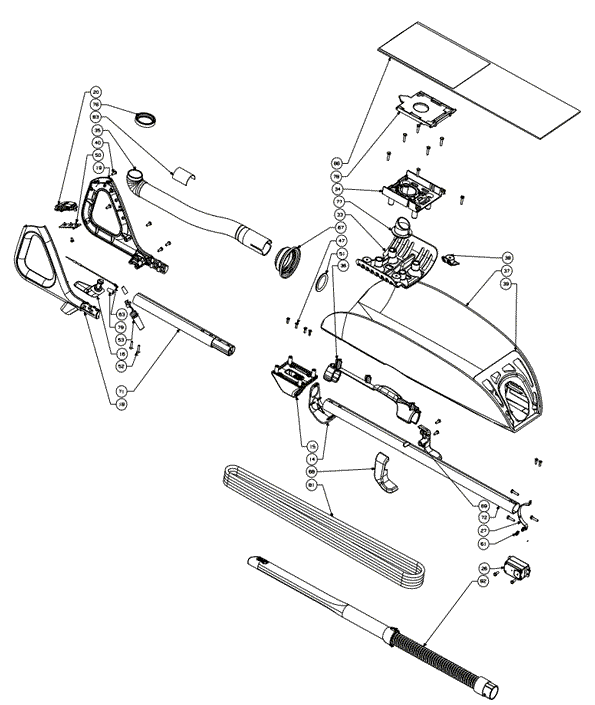

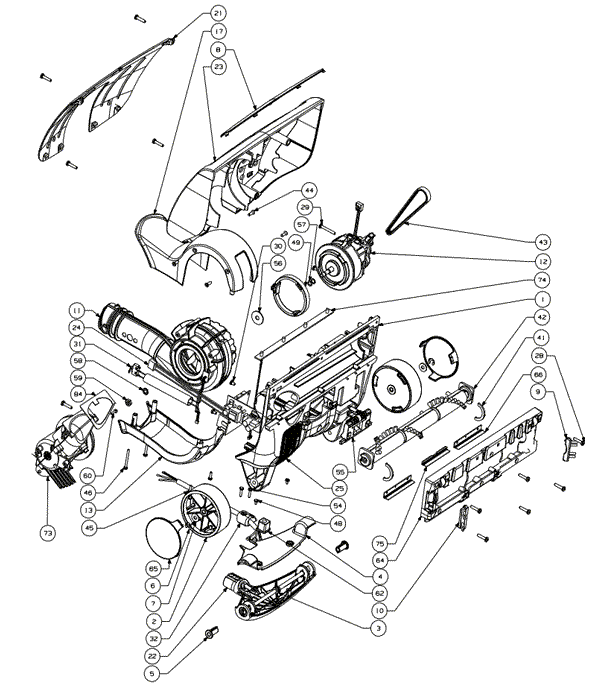

This is a list of parts and a diagram and schematic for: Oreck Model: U8200S
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U8200S U8210S XL Edge
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| 1 | No Image | Bottom Plate, XL Edge Series U8200S Part Number: 74046-02-0327 for Oreck | 74046020327 | $24.15Read more |
| 2 | No Image | Wheel, Rear Assy XL Edge U8200S Part Number: 74048-01-0327 for Oreck | 74048010327 | $16.83Read more |
| 3 | Not Available | Oreck Axle, Rear, .250 X 3.500 | 74028-01 | Not Available |
| 4 | Not Available | Oreck Cover, Yoke | 74081-01-0327 | Not Available |
| 5 | Not Available | Oreck Bushing, Flanged .250 Shaft | 74059-01-0327 | Not Available |
| 6 | Not Available | Oreck E-Ring, .250 Shaft | 03-00671-01 | Not Available |
| 7 | Not Available | Oreck Washer, Nylon .260Id X .625Od | 74086-01 | Not Available |
| 8 | Not Available | Oreck Lens, Edge Clear | 74005-01-0329 | Not Available |
| 9 | Not Available | Oreck Brush, Left Edge | 74101-01 | Not Available |
| 10 | Not Available | Oreck Brush, Right Edge | 74102-01 | Not Available |
| 11 | Not Available | Oreck Assy, Fan Hsng W/ Mgnt Edg Svc | 09-74201-52 | Not Available |
| 12 | Not Available | Oreck Motor Kit Edge Service | 09-74019-51 | Not Available |
| 13 | Not Available | Oreck Cover, Rear Scroll | 74006-01-0327 | Not Available |
| 14 | Not Available | Oreck Wrap, Top-Side Mb Lower Cord | 74096-02-474 | Not Available |
| 15 | No Image | Slider Assembly, XL Edge U8100S Part Number: 430001040 for Oreck | 430001040 | $23.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Oreck Dump, Burnt Orange Mb Cord | 74056-02-474 | Not Available |
| 17 | No Image | Cover, Edge Front Scroll XL Edge U8100S Part Number: 74007-01-488 for Oreck | 7400701488 | $13.39Read more |
| 18 | Not Available | Oreck Assy, Right Black W/ Overmold | 09-74053-03 | Not Available |
| 19 | Not Available | Oreck Assy, Left Black With Overmold | 09-74055-03 | Not Available |
| 20 | Not Available | Oreck Assembly, Mb Button | 09-74206-02 | Not Available |
| 21 | Not Available | Oreck Assy, Silver Fascia W/ Hs | 09-74012-02 | Not Available |
| 22 | Not Available | Oreck Yoke, Edge | 74031-01 | Not Available |
| 23 | Not Available | Oreck Cover, Top W/ Om | 09-74044-03 | Not Available |
| 24 | Not Available | Oreck Board, Main Circuit | 74069-04 | Not Available |
| 25 | Not Available | Oreck Board, Power Supply | 74032-01 | Not Available |
| 27 | Not Available | Oreck Retainer, Valve Body | 74011-01 | Not Available |
| 31 | Not Available | Oreck Board, Hall-Effect Sensor | 74108-01 | Not Available |
| 33 | Not Available | Oreck Stiffener, Upper Bag | 74065-01-0327 | Not Available |
| 34 | Not Available | Oreck Dock, Rear | 74077-01-0327 | Not Available |
| 35 | Not Available | Oreck Tube, Inner Dirt | 74063-01 | Not Available |
| 36 | Not Available | Oreck Holder, Wand | 74049-01-0327 | Not Available |
| 37 | Not Available | Oreck Bag, Outer | 74064-01 | Not Available |
| 38 | Not Available | Oreck Clip, Wand Holder | 74095-02-0327 | Not Available |
| 39 | Not Available | Oreck Stiffener, Lower Bag | 74061-01-0327 | Not Available |
| 41 | Not Available | Oreck Gasket, Brushroll Base Plate | 74100-01 | Not Available |
| 42 | Not Available | Oreck Brushroll, Red With Magnet | 7424802 | Not Available |
| 43 | No Image | Belt, Non Stretch Flat Edge | O-74253-02 | $13.99Read more |
| 49 | Not Available | Oreck Detent, Edge | 74282-01-0000 | Not Available |
| 50 | Not Available | Oreck Board, Handle Switch Circuit | 74088-01 | Not Available |
| 51 | No Image | O-Ring, XL Edge U8200S Part Number: 74085-01 for Oreck | 7408501 | $4.52Read more |
| 55 | Not Available | Oreck Assembly, Lifter Wheel | 09-74204-02 | Not Available |
| 63 | Not Available | Oreck Wire, Edge Handle Ground | 74217-01 | Not Available |
| 64 |  | PLATE, BOTTOM U8000, U81000S,U8200S,U8210S SERIES Part Number: 430001105 for Oreck | 430001105 | $31.07Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | Not Available | Oreck Cap, Rear Wheel Hub | 74091-01-0327 | Not Available |
| 66 | Not Available | Oreck Squeegee, Edge | 74106-01 | Not Available |
| 67 | Not Available | Oreck Collar, Black | 74062-01-0327 | Not Available |
| 68 | Not Available | Oreck Wrap, Mb Right Lower Cord | 74051-02-0327 | Not Available |
| 69 | Not Available | Oreck Wrap, Left-Side Mb Lower Cord | 74050-02-0327 | Not Available |
| 70 | Not Available | Oreck Assy, 8001C Upr & Lwr Tube | 74240-02 | Not Available |
| 71 | Not Available | Oreck Assy, Silver Tube & Intercnct | 74260-03 | Not Available |
| 72 | Not Available | Oreck Tube, Lower Outer Edge | 74029-03 | Not Available |
| 74 | Not Available | Oreck Pcb, Led With Hall Effect | 74092-02 | Not Available |
| 75 | Not Available | Oreck Squeegee | 74121-01 | Not Available |
| 76 | Not Available | Oreck Flange, Inner Dirt Tube | 74083-01-0327 | Not Available |
| 77 | Not Available | Oreck Rubber Lead | 87601+008+4280 | Not Available |
| 78 | Not Available | Oreck Assembly, Black Bag Dock | 09-93020-03 | Not Available |
| 81 | Not Available | Oreck Cord, Black 30' Svt | 75896-04-327 | Not Available |
| 82 | Not Available | Oreck Assembly, Edge Hose | 74015-01 | Not Available |
| 84 | No Image | Gasket, Valve Body XL Edge Series U8100S Part Number: 74097-01 for Oreck | 7409701 | $3.65Read more |
| 86 | Not Available | Oreck Harness, Edge Main | 74268-01 | Not Available |
