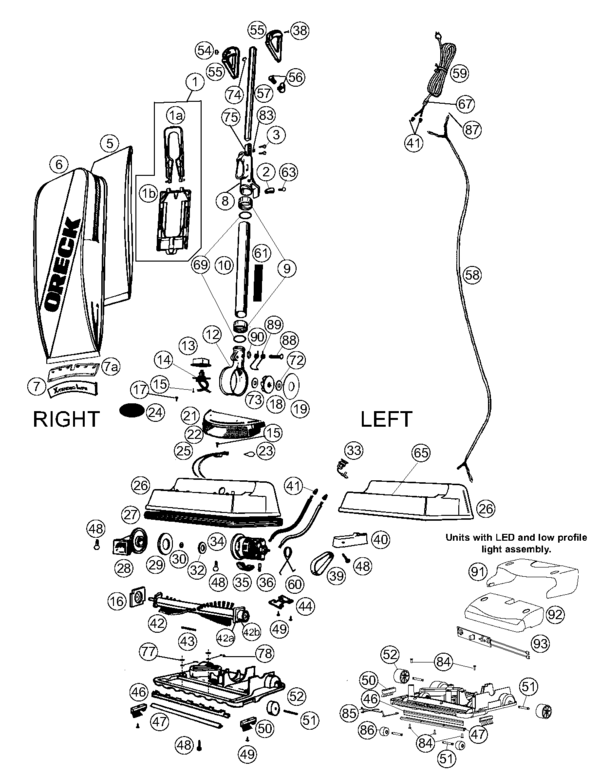

This is a list of parts and a diagram and schematic for: Oreck Model: U4170HH
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U4170HH XL Premier Deluxe
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| xx |  | Screw, #8 x.811 W/Int Washer XL Classic 100PK Part Number: 03-00608-01M for Oreck | 030060801M | $1.71Read more |
| 1 | Not Available | Oreck Kit - Bag Dock / Antimicrobial - Type Cc | 09-75657-02 | Not Available |
| 1a | Not Available | Oreck Dock, Rear Bag Type Cc, Black | 75583-02-480 | Not Available |
| 1b | Not Available | Oreck Bag Dock Type Cc, , Black | 75582-02-480 | Not Available |
| 2 | Not Available | Oreck Cord Clamp | 03-00619-01M | Not Available |
| 3 | Not Available | Oreck Screw 8-32 X .440 | 03-00478-02M | Not Available |
| 5 |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $32.99Add to cart |
| 5 |  | Compatible alternatePaper Bag, CC Purple Superior Filtration 6Pk More Product Details | O-AK1CC6H | $62.50Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Compatible alternatePaper Bag, DVC Oreck CC Upright after market DVC or envirocare 8Pk More Product Details | OR-1473 | $17.05Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Compatible alternatePaper Bag, Old Style W/O Bag Docking 9 Pk Part Number: PK80009DW for Oreck More Product Details | PK80009DW | $51.48Add to cart Special order: ships in 2 to 4 weeks |
| 7a | Not Available | Oreck U4170Hh: Bag Clip, Rear, Black | 75593-01-0327 | Not Available |
| 8 | Not Available | Oreck Connector Assembly Kit, Includes Items #3 & #83 | 09-75308-57 | Not Available |
| 9 | Not Available | Oreck Collar | 75199-02-0327 | Not Available |
| 10 | Not Available | Oreck Tube Assembly | 75198-05 | Not Available |
| 12 | Not Available | Oreck Fan Housing Assembly Includes Rivet & Spring | 09-75343-03 | Not Available |
| 15 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 16 | Not Available | Oreck Endcard, Metal Pulley Brush, Rt | 75704-01 | Not Available |
| 17 | Not Available | Oreck Screw, #8 - 10 X 1.25 Plt 30 | 03751M | Not Available |
| 18 |  | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $13.76Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Oreck Fan Cup Seal | 75012-01 | Not Available |
| 23 |  | NO LONGER AVAILABLE Bulb, 14 Volt 2000/3000/4000/XL21 Series Part Number: 430001260 for Oreck | 430001260 | $11.87Read more |
| 24 | Not Available | Oreck U4170Hh: Label, Xl Dome Black On Silver | 75772-01 | Not Available |
| 25 | Not Available | Oreck U4170Hh: Lamp Holder | 75539-01 | Not Available |
| 26 | Not Available | Oreck U4170Hh: Top Cover, Black | 09-75780-17 | Not Available |
| 27 | Not Available | Oreck Bumper, Clear W/Blue Tint, | 75765-01 | Not Available |
| 29 |  | Cover Frame Tayberry Red Of 3 Parking | 7506501 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Oreck 1/4 X 32 Yellow Chrome | 03-00448-01M | Not Available |
| 32 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $2.06Read more |
| 33 | Not Available | Oreck Cord Retainer, Square | 03-00494-01 | Not Available |
| 34 | Not Available | Oreck Motor Assembly Kit | 09-75505-01 | Not Available |
| 35 | Not Available | Oreck Motor Seal | 75095-01 | Not Available |
| 36 | Not Available | Oreck Kit, Motor Brush / Spring | 09-75514-01 | Not Available |
| 38 | Not Available | Oreck Screw, #8 X .75 | 03-00476-01M | Not Available |
| 39 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $22.28Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Compatible alternateBelt, Oreck Upright Replacement DVC 2Pk More Product Details | OR-1010 | $10.99Add to cart |
| 39a |  | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart |
| 40 | Not Available | Oreck U4160Hh : Door, Belt, Black | 75057-01-0327 | Not Available |
| 41 | Not Available | Oreck Wire Nut | 03-00599-01M | Not Available |
| 42 |  | Oreck XL Wooden Brush Roller 9000 Series w/o Magnet - 75202-01 | OR2000 | $24.69Add to cart Special order: ships in 2 to 4 weeks |
| 42a | Not Available | Oreck Endcard, Metal Pulley Side, Lft | 75705-01 | Not Available |
| 42b | Not Available | Oreck Brush Roll Pulley, Metal | 75706-01 | Not Available |
| 43 | Not Available | Oreck Seal, Baseplate | 75008-01 | Not Available |
| 44 | Not Available | Oreck Plastic Detent, (Uses 2 #49 Screws) | 75299-01 | Not Available |

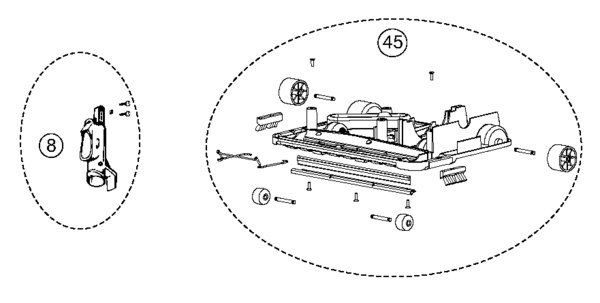

| 45 | Not Available | Oreck Complete Baseplate Assembly Includes: | 09-75901-01 | Not Available |
| 46 | Not Available | Oreck Micro Sweep Blade | 75700-02 | Not Available |
| 47 | Not Available | Oreck Channel | 75701-01 | Not Available |
| 48 | Not Available | Oreck Screw, #8 X .75 Phillips | 03-00476-01M | Not Available |
| 49 | Not Available | Oreck Screw, #7 X .38 Phillips | 03-00475-01M | Not Available |
| 50 | Not Available | Oreck Edge Brush | 75766-03 | Not Available |
| 51 | Not Available | Oreck Wheel Axle | 03-00630-01M | Not Available |
| 52 | Not Available | Oreck Soft Rear Wheel, Black | 75187-02-0327 | Not Available |
| 54 | Not Available | Oreck Switch, 2 Position Assembly | 75585-01 | Not Available |
| 55 | Not Available | Oreck U4170Hh: Grips, Black, Set | 09-75576-34 | Not Available |
| 55 |  | Oreck Handle Grip for U2000 - Black | 097557624 | $32.99Add to cart |
| 55 |  | Available ReconditionedCertified Reconditioned Oreck Handle Grip for classic Oreck XL type and modern commercial machine... More Product Details | 097557624R | $23.99Add to cart |
| 56 |  | Cord Hook, Black 9800 Model Part Number: 430001073 for Oreck | 430001073 | $8.64Add to cart Special order: ships in 2 to 4 weeks |
| 56 |  | Available ReconditionedCertified Reconditioned Cord Hook, COLOR WILL VARY More Product Details | 430001073R | $9.99Add to cart |
| 57 |  | Handle, Upper Metal U2000/XL2100RHS Part Number: 430000905 for Oreck | 430000905 | $23.84Add to cart Special order: ships in 2 to 4 weeks |
| 57 |  | Available ReconditionedPre owned Oreck chrome/black handle for classic style orecks. Square silver or metal handle More Product Details | 7519007R | $14.99Add to cart |
| 58 | Not Available | Oreck U4170Hh: Cord, Harness Assembly, Black | 75896-02-327 | Not Available |
| 59 | Not Available | Oreck U4170Hh: Cord Set, Blk W/Molded Strain Relief | 75896-03-327 | Not Available |
| 60 | Not Available | Oreck Motor Spring | 75283-01 | Not Available |
| 61 | Not Available | Oreck Tube Label | 75087-05 | Not Available |
| 63 | Not Available | Oreck Screw 10 X .5 - Phillips | 03-00450-01M | Not Available |
| 67 |  | 3MM TO 6.5MM strain relief compair to heyco PG7 | 3TO65MMSTRAIN | $9.89Add to cart |
| 69 | Not Available | Oreck O-Ring | 75191-02M | Not Available |
| 72 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.30Read more |
| 73 | Not Available | Oreck Washer, Lock External Tooth | 03-00480-01M | Not Available |
| 74 | Not Available | Oreck Steel Bushing Ring | 03-00598-01M | Not Available |
| 75 | Not Available | Oreck Stiffener, Through Bolt Connector | 75619-01 | Not Available |
| 77 | Not Available | Oreck Retainer Clip | 03528M | Not Available |
| 78 | Not Available | Oreck Wireform | 75194-03M | Not Available |
| 83 |  | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $2.01Add to cart |
| 84 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 85 | Not Available | Oreck Wireform, One-Piece | 75698-01 | Not Available |
| 86 |  | Wheel, Front XL Uprights Part Number: 430000957 for Oreck | 430000957 | $6.59Add to cart Special order: ships in 2 to 4 weeks |
| 87 | Not Available | Oreck Insulator - Jst | 75679-01M | Not Available |
| 88 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $39.33Read more |
| 89 | Not Available | Oreck Bag Spring | 75015-01M | Not Available |
| 90 | Not Available | Oreck Push Nut | 03-00636-01M | Not Available |
| 91 | Not Available | Oreck U4170Hh: Lamp Housing Low Profile, Black | 75763-01-0327 | Not Available |
| 92 | Not Available | Oreck Lens Low Profile | 75762-01-0329 | Not Available |
| 93 |  | Oreck XL Headlight With Circuit Board | 7577001 | $65.99Read more |
