Schematic and parts list for: Oreck Model: U3780HH

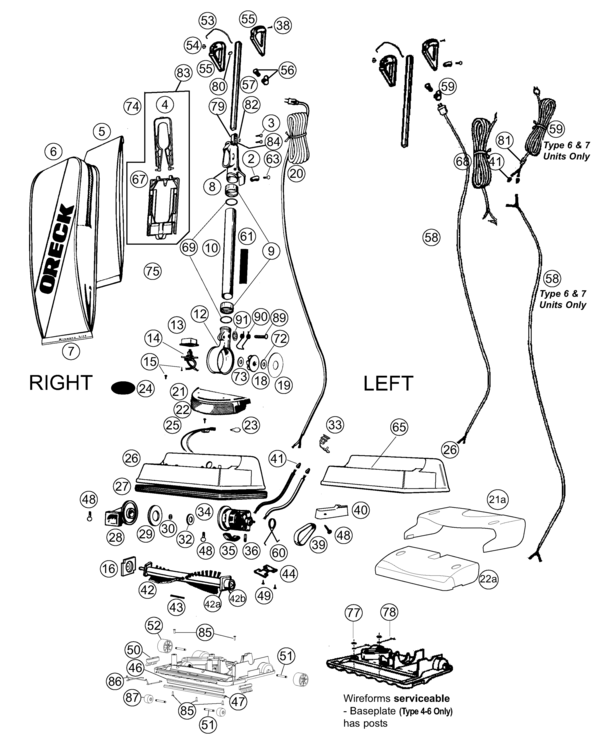

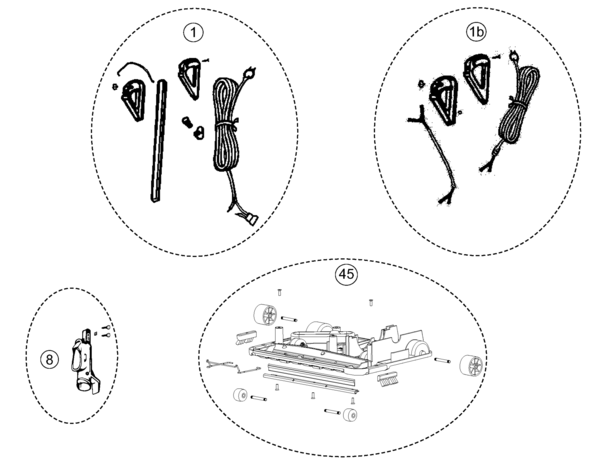

This is a list of parts and a diagram and schematic for: Oreck Model: U3780HH
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U3780HH XL Silver
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| xx | No Image | BELT DOOR, MODEL U4300H2B Part Number: 76002010327 for Oreck | 76002010327 | $11.89Read more |
| xx | Not Available | Oreck Dust Bag, (25 Pk.) Hypo Allergenic | AK1CC25A | Not Available |
| xx | Not Available | Oreck U3772Hhb:Outer Bag, Antimicrobial | 76120-02 | Not Available |
| xx | Not Available | Oreck U3772Hhb:Cord Wrap Assembly, Black | FNLA | Not Available |
| xx | Not Available | Oreck U3772Hhb:Grip Set, Black Antimicrobial | 09-75576-34 | Not Available |
| xx | Not Available | Oreck U3772Hhb:Fascia Delux W/Logo Assy, Blue | 09-76126-56 | Not Available |
| xx | Not Available | Oreck Top Cover / Belt Door Assembly - Black Antimicrobial | 09-76074-03 | Not Available |
| xx | No Image | Screw, #8 x.811 W/Int Washer XL Classic 100PK Part Number: 03-00608-01M for Oreck | 030060801M | $39.42Read more |
| xx | Not Available | Oreck Screw, #8-32 X .545 W/ Washer | 03-00504-02M | Not Available |
| xx |  | SCREW, W/WASHER HANDLE TUBE COMM. UPRT 100PK Part Number: 03-00605-01M for Oreck | 030060501M | $62.92Read more |
| xx | Not Available | Oreck Screw, #8 X .75 | 03-00476-01M | Not Available |
| xx | Not Available | Oreck U3773Txam: Outer Bag, Antimicrobial WARRANTY | WARRANTY ONLY | Not Available |
| 2 | Not Available | Oreck Cord Clamp | 03-00619-01M | Not Available |
| 3 | Not Available | Oreck Screw 8-32 X .440 | 03-00478-02M | Not Available |
| 4 | Not Available | Oreck Bag Dock Type Cc Antimicrobial | 75582-02-480 | Not Available |
| 5 | No Image | Oreck SUPERIOR HEPA Media Filtration Bags | AK1CC6A | $26.99Read more |
| 6 | Not Available | Oreck Outer Bag, Antimicrobial | 76062-01 | Not Available |
| 6 | Not Available | Oreck U3773Tx: Outer Bag, Antimicrobial WARRANTY | WARRANTY ONLY | Not Available |
| 8 | Not Available | Oreck Connector Assembly Kit, Includes Items #3 & #84 | 09-75308-57 | Not Available |
| 9 | Not Available | Oreck Collar Modified | 75199-02-0327 | Not Available |
| 10 | Not Available | Oreck Tube Assembly | 75198-05 | Not Available |
| 12 | Not Available | Oreck Fan Housing Assembly | 09-75221-12 | Not Available |
| 15 | Not Available | Oreck Screw, #8 - 10 X 1.25 Plt 30 | 03751M | Not Available |
| 15 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 16 | Not Available | Oreck Endcard, Metal Pulley Brush, Rt | 75704-01 | Not Available |
| 18 | No Image | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $15.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Oreck Fan Cup Seal | 75012-01 | Not Available |
| 20 | Not Available | Oreck Cord Set | FNLA | Not Available |
| 23 |  | Bulb, 14 Volt 2000/3000/4000/XL21 Series Part Number: 430001260 for Oreck | 430001260 | $10.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Oreck Lamp Holder | 75539-01 | Not Available |
| 26 | Not Available | Oreck Top Cover / Belt Door Assembly - Black Antimicrobial | 09-76074-03 | Not Available |
| 26 | Not Available | Oreck Top Cover, Belt Door Assembly, Antimicrobial | 09-76074-01 | Not Available |
| 27 | Not Available | Oreck Bumper, Clear Antimoicrobial | 75765-01 | Not Available |
| 28 | Not Available | Oreck Intake Pivot Assembly With Felt Seal | 09-75066-02 | Not Available |
| 29 |  | Circular White Felt Gasket for Oreck | 7506501 | $14.95Read more |
| 30 | Not Available | Oreck 1/4 X 32 Yellow Chrome | 03-00448-01M | Not Available |
| 32 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $1.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Oreck Cord Retainer, Square | 03-00655-01 | Not Available |
| 34 | Not Available | Oreck Motor Assembly Kit | 09-75886-01 | Not Available |
| 35 | Not Available | Oreck Motor Seal | 75095-01 | Not Available |
| 36 | Not Available | Oreck Kit, Motor Brush / Spring | 09-75514-01 | Not Available |
| 38 | No Image | SCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck | 030045601M | $18.25Read more |
| 39a | No Image | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart |
| 39 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | BELT DOOR, MODEL U4300H2B Part Number: 76002010327 for Oreck | 76002010327 | $11.89Read more |
| 40 | Not Available | Oreck Belt Door, Antimicrobial | 76002-01-470 | Not Available |
| 41 | Not Available | Oreck Wire Nut | 03-00599-01M | Not Available |
| 42 | Not Available | Oreck Brushroll, Silver Ion | 75104-03 | Not Available |
| 42b | Not Available | Oreck Pulley, Metal (For Brushroll) | 75706-01 | Not Available |
| 43 | Not Available | Oreck Seal, Baseplate | 75008-01 | Not Available |
| 44 | Not Available | Oreck Plastic Detent, (Uses 2 #49 Screws) | 75299-01 | Not Available |
| 45 | Not Available | Oreck Complete Baseplate Assembly Antimicrobial | 09-75715-07 | Not Available |
| 46 | Not Available | Oreck Micro Sweep Blade | 75700-02 | Not Available |
| 47 | Not Available | Oreck Channel | 75701-01 | Not Available |
| 48 | Not Available | Oreck Screw, #8 X .75 Phillips | 03-00476-01M | Not Available |
| 49 | Not Available | Oreck Screw, #7 X .38 Phillips | 03-00475-01M | Not Available |
| 50 | Not Available | Oreck Edge Brush Silver | 75766-03 | Not Available |
| 51 | Not Available | Oreck Wheel Axle | 03-00630-01M | Not Available |
| 52 | Not Available | Oreck Soft Rear Wheel, Black | 75187-02-0327 | Not Available |
| 54 |  | Switch, Blk Rocker 1-Speed Handle Type 6 XL7 Uprts Part Number: 430000914 for Oreck | 430000914 | $10.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | Not Available | Oreck Grip Set, Black Antimicrobial | 09-75576-34 | Not Available |
| 55 | Not Available | Oreck Grip Set, Lt Gray Antimicrobial | 09-75576-3 | Not Available |
| 56 | Not Available | Oreck Cord Wrap Assembly, Lt Gray | 09-75185-24 | Not Available |
| 56 |  | Cord Hook, Black 9800 Model Part Number: 430001073 for Oreck | 430001073 | $18.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | Not Available | Oreck Handle Tube, Chrome | 75190-03 | Not Available |
| 58 | Not Available | Oreck Cord, Harness Assembly, White | 75600-02-328 | Not Available |
| 59 | Not Available | Oreck Cord Set | 75896-03-327 | Not Available |
| 60 | Not Available | Oreck Motor Spring | 75283-01 | Not Available |
| 61 | Not Available | Oreck Tube Label | 75087-05 | Not Available |
| 63 | Not Available | Oreck Screw 10 X .5 - Phillips | 03-00450-01M | Not Available |
| 67 | Not Available | Oreck Bag Dock Hinge, Black Antimicrobial | 75583-02-480 | Not Available |
| 69 | Not Available | Oreck O-Ring | 75191-02M | Not Available |
| 72 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.27Read more |
| 73 | Not Available | Oreck Washer, Lock External Tooth | 03-00480-01M | Not Available |
| 74 | Not Available | Oreck 1 X 3, Loop Fastener | 75304-01M | Not Available |
| 75 | Not Available | Oreck 1 X 1, Hook Fastener | 75303-01M | Not Available |
| 77 | Not Available | Oreck Retainer Clip | 03528M | Not Available |
| 78 | Not Available | Oreck Wireform | 75194-03M | Not Available |
| 80 | Not Available | Oreck Steel Bushing Ring | 03-00598-01M | Not Available |
| 81 |  | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 | Not Available | Oreck Kit - Bag Dock / Antimicrobial - Type Cc | 09-75657-02 | Not Available |
| 84 |  | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $3.00Add to cart |
| 85 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 86 | Not Available | Oreck Wireform, One-Piece | 75698-01 | Not Available |
| 87 |  | Wheel, Front XL Uprights Part Number: 430000957 for Oreck | 430000957 | $7.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 88 | Not Available | Oreck Insulator - Jst | 75679-01M | Not Available |
| 89 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $35.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | Not Available | Oreck Bag Spring | 75015-01M | Not Available |
| 91 | Not Available | Oreck Push Nut | 03-00636-01M | Not Available |
| 93 | Not Available | Oreck Fascia Delux W/ Logo Assy | 09-76126-51 | Not Available |
| 93 | Not Available | Oreck U3773Tx: Fascia Delux W/ Logo WARRANTY | WARRANTY ONLY | Not Available |
| 94 | Not Available | Oreck Bag Stiffener | 76061-01-0327 | Not Available |
| # | Part image | Description | SKU | Price |
| 8 | Not Available | Oreck Connector Assembly Kit, includes items #3 & #84 | 09-75308-57 | Not Available |
| 45 | Not Available | Oreck Complete Baseplate Assembly Antimicrobial | 09-75715-07 | Not Available |
