Schematic and parts list for: Oreck Model: U3710HH

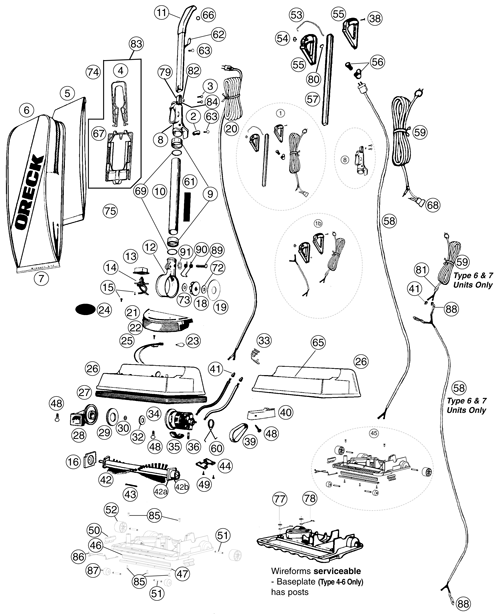

This is a list of parts and a diagram and schematic for: Oreck Model: U3710HH
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U3710HH
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| XX | Not Available | Oreck 57 . U3710HH: Handle Tube, Black | 7519003 | Not Available |
| xx | Not Available | Oreck Magnet Clean Vacuum Protector | MC4BK | Not Available |
| xx | Not Available | Oreck Users Manual | 7541605 | Not Available |
| 01b | Not Available | Oreck Kit, Retro, Handle Assembly, Residential, Black, 097561201 (Includes items #38, #54, #55, #58, | 097561201 (Includes items #38, #54, #55, #58, #59, | Not Available |
| 04 | Not Available | Oreck Docking Clip, Rear, Type CC (use w/#67 or order #83) | 75583030000 | Not Available |
| 05 |  | Paper Bag, CC Purple Superior Filtration 6Pk | O-AK1CC6H | $34.99Read more |
| 05 | No Image | Oreck SUPERIOR HEPA Media Filtration Bags | AK1CC6A | $26.99Read more |
| 05 | Not Available | Oreck Bag Paper Hypo-Allergen 25 Pack | AK1CC25A | Not Available |
| 05 | No Image | Oreck STANDARD Antimicrobial Filtration Bags - 25pk | AK1CC25 | $49.99Read more |
| 06 |  | Cloth Bag, Outer Hypo-Allergenic 3700HH/U3 Part Number: 430001401 for Oreck | 430001401 | $55.84Read more |
| 07 | Not Available | Oreck U3710HH: Bag Clip, White w/Silver | 097507822 | Not Available |
| 08 | Not Available | Oreck Connector Assembly Kit, includes items #3 & #84 | 097530857 | Not Available |
| 09 | Not Available | Oreck Collar | 75309020327 | Not Available |
| 10 | Not Available | Oreck Tube Assembly Type 5, 6 & 7 Units Only | 7519805 | Not Available |
| 10 | Not Available | Oreck Tube Assembly Type 4 Units Only | 7518801 | Not Available |
| 12 | Not Available | Oreck Fan Housing Assembly includes Rivet & Spring | 097534303 | Not Available |
| 16 | Not Available | Oreck U3700HH / U3710HH: Endcard, Metal Pulley Brush, Rt | 7570401 | Not Available |
| 18 | No Image | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $15.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Oreck Fan Cup Seal | 7501201 | Not Available |
| 20 | Not Available | Oreck Cord Set see #59 | FNLA | Not Available |
| 21 | Not Available | Oreck Lamp Housing, White | 75521010431 | Not Available |
| 22 | Not Available | Oreck Lens | 7552002455 | Not Available |
| 23 | Not Available | Oreck Bulb | 9650019 | Not Available |
| 24 | Not Available | Oreck U3700HH / U3710HH: Badge Decal, Blue | 7302003 | Not Available |
| 25 | Not Available | Oreck Lamp Holder | 7553901 | Not Available |
| 26 | Not Available | Oreck Housing, White | 097578011 | Not Available |
| 27 | Not Available | Oreck Bumper, White | 7518103 | Not Available |
| 28 | Not Available | Oreck Intake Pivot Assembly, with Felt Seal | 097506602 | Not Available |
| 29 |  | Circular White Felt Gasket for Oreck | 7506501 | $14.95Read more |
| 32 | Not Available | Oreck Felt Seal, Motor | 7511701 | Not Available |
| 33 | Not Available | Oreck Cord Retainer, Square | 030065501 | Not Available |
| 34 | Not Available | Oreck Motor Assembly Kit | 097588601 | Not Available |
| 35 | Not Available | Oreck Motor Seal | 7509501 | Not Available |
| 36 | Not Available | Oreck Kit, Motor Brush / Spring | 97551401 | Not Available |
| 39a | Not Available | Oreck Drive Belt, Single | 7502401 | Not Available |
| 39 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Oreck Door Belt, White | 75057010431 | Not Available |
| 42b | Not Available | Oreck XL3600HH / U3700HH / U3710HH: Pulley, Metal (For Brushroll) | 7570601 | Not Available |
| 42 | Not Available | Oreck U3700HH / U3710HH: Brush Roll, Metal Pulley | 7520201 | Not Available |
| 42a | Not Available | Oreck XL3600HH / U3700HH / U3710HH: Endcard, Metal Pulley Side, Lft | 7570501 | Not Available |
| 43 | Not Available | Oreck Seal, Baseplate | 7500801 | Not Available |
| 44 | Not Available | Oreck Plastic Detent, (uses 2 #49 screws) | 7529901 | Not Available |
| 45 | Not Available | Oreck Complete Baseplate Assembly 097571501 (Includes: #43, #46, #47, #50, #51, | 097571501 (Includes: #43, #46, #47, #50, #51, #52, | Not Available |
| 46 | Not Available | Oreck MICRO SWEEP Blade Type 4, 5 & 6 Units Only | 7500901 | Not Available |
| 46 | Not Available | Oreck MICRO SWEEP Blade Type 7 Units Only | 7570002 | Not Available |
| 47 | Not Available | Oreck Channel Type 7 Units Only | 7570101 | Not Available |
| 47 | Not Available | Oreck Channel Type 4, 5 & 6 Units Only | 7500702 | Not Available |
| 50 | Not Available | Oreck Edge Brush, w/o Wheels, Left or Right | 7576603 | Not Available |
| 50 |  | Brush Strip, Black Edge All U2000 Series Uprights Part Number: 430000961 for Oreck | 430000961 | $7.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 |  | Axle, :( Front & Rear Wheel XL100C Part Number: 03-00630-01 for Oreck | 030063001 | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | Not Available | Oreck Soft Rear Wheel, Black | 75187020327 | Not Available |
| 53 | Not Available | Oreck Static Wire Type 4 & 5 Units Only | 7503701 | Not Available |
| 54 | Not Available | Oreck Lighted 2 position Switch Kit Type 4 & 5 Units Only | 097552301 | Not Available |
| 54 | Not Available | Oreck Switch, 2 Position Assembly, Lighted Type 6 & 7 Units Only | 7552303 | Not Available |
| 55 | Not Available | Oreck Grips, White Set Type 4 & 5 Units Only | 097530119 | Not Available |
| 55 | Not Available | Oreck Grips, White Set Type 6 & 7 Units Only | 097557619 | Not Available |
| 56 | Not Available | Oreck Cord Wrap Assembly w/Post and Cord Wrap | 097518505 | Not Available |
| 58 | Not Available | Oreck Cord, Harness Assembly, White Type 6 & 7 Units Only | 7560002328 | Not Available |
| 58 | Not Available | Oreck Cord, Harness Assembly, White Type 4 & 5 Units Only | 7508101 | Not Available |
| 59 | Not Available | Oreck Cord Set, White w/ #81 Type 6 & 7 Units Only | 7555602328 | Not Available |
| 59 |  | Cord, :( 30' White Harness Assmbly 2-Wire 3000 Ser Part Number: 75896-01-328 for Oreck | 7589601328 | $26.66Read more |
| 60 | Not Available | Oreck Motor Spring | 7528301 | Not Available |
| 61 | Not Available | Oreck Tube Label | 7508705 | Not Available |
| 67 | Not Available | Oreck Bag Dock Hinge, Type CC (use w/#4 or order #83) | 75582030000 | Not Available |
| 68 | Not Available | Oreck Receptacle Type 4 & 5 Units Only | 755240 | Not Available |
| 79 | Not Available | Oreck Stiffener (uses same length screws, notched) | 7518902 | Not Available |
| 79 | Not Available | Oreck Stiffener, Through Bolt Connector (uses different length screws) | 7561901 | Not Available |
| 81 |  | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 | Not Available | Oreck Kit, Bag Dock | 097565702 | Not Available |
| 87 |  | Wheel, Front XL Uprights Part Number: 430000957 for Oreck | 430000957 | $7.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
