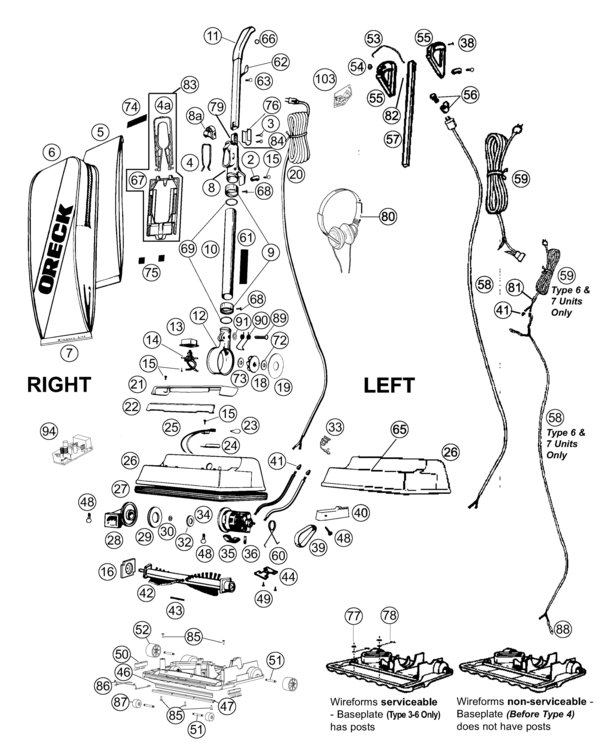

This is a list of parts and a diagram and schematic for: Oreck Model: U2530RH
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U2530RH XL Classic Commercial
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| xx |  | Brush Strip, Black Edge All U2000 Series Uprights Part Number: 430000961 for Oreck | 430000961 | $6.66Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx |  | Screw, #8 x.811 W/Int Washer XL Classic 100PK Part Number: 03-00608-01M for Oreck | 030060801M | $1.71Read more |
| xx |  | SCREW, W/WASHER HANDLE TUBE COMM. UPRT 100PK Part Number: 03-00605-01M for Oreck | 030060501M | $62.92Read more |
| xx |  | Oreck STANDARD Antimicrobial Filtration Bags - 25pk | AK1CC25 | $49.99Read more |
| 1e | Not Available | Oreck Upper Handle Assembly - D Style Handle Black | 09-75612-01 | Not Available |
| 2 | Not Available | Oreck Cord Clamp | 03-00613-01M | Not Available |
| 3 | Not Available | Oreck Screw 8-32 X .440 | 03-00478-02M | Not Available |
| 4a |  | Dock, Blue Rear Bag Part Number: 430000946 for Oreck | 430000946 | $15.73Read more |
| 5 |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $32.99Add to cart |
| 5 |  | Compatible alternatePaper Bag, CC Purple Superior Filtration 6Pk More Product Details | O-AK1CC6H | $62.50Add to cart Special order — allow 2-4 weeks. |
| 5 |  | Compatible alternatePaper Bag, DVC Oreck CC Upright after market DVC or envirocare 8Pk More Product Details | OR-1473 | $17.05Add to cart Special order — allow 2-4 weeks. |
| 5 |  | Compatible alternatePaper Bag, Old Style W/O Bag Docking 9 Pk Part Number: PK80009DW for Oreck More Product Details | PK80009DW | $51.48Add to cart Special order — allow 2-4 weeks. |
| 6 | Not Available | Oreck U2530Rh: Outer Bag, Dark Gray, Blue, Blue | 75246-37 | Not Available |
| 7 | Not Available | Oreck U2530Rh: Bag Clip, Blue / Silver | 09-75078-24 | Not Available |
| 8 | Not Available | Oreck Connector Assembly Kit | 09-75308-57 | Not Available |
| 8a | Not Available | Oreck Deflector, Black, Snap Type 1 & 2 Units Only | 75220-01-0327 | Not Available |
| 9 |  | Plastic collar for Oreck XL type vacuums | 75309020327 | $14.99Read more |
| 10 | Not Available | Oreck Tube Assembly Type 1, 2, 3 & 4 Units Only | FNLA | Not Available |
| 12 | Not Available | Oreck Fan Housing Assembly Includes Rivet & Spring | 09-75343-03 | Not Available |
| 15 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 16 | Not Available | Oreck End Cap | 0134623 | Not Available |
| 18 |  | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $13.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Oreck Fan Seal Cup | 75012-01 | Not Available |
| 20 | Not Available | Oreck Cord Set | FNLA | Not Available |
| 26 | Not Available | Oreck U2530Rh: Housing, Blue W/Label | 09-75780-29 | Not Available |
| 27 | Not Available | Oreck U2530Rh: Bumper, White | 75181-03 | Not Available |
| 28 | Not Available | Oreck Intake Pivot Assembly With Felt Seal | 09-75066-02 | Not Available |
| 29 |  | Cover Frame Tayberry Red Of 3 Parking | 7506501 | $100.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Oreck 1/4 X 32 Yellow Chrome | 03-00448-01M | Not Available |
| 32 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $2.06Read more |
| 33 | Not Available | Oreck Cord Retainer, Round Type 1, 2 & 3 Units Only | 03-00455-01 | Not Available |
| 34 | Not Available | Oreck Motor Assembly Kit | 09-75505-01 | Not Available |
| 35 | Not Available | Oreck Motor Seal | 75095-01 | Not Available |
| 36 | Not Available | Oreck Kit, Motor Brush (Large & Small) / Spring | 09-75514-01 | Not Available |
| 38 | No Image | SCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck | 030045601M | $18.25Read more |
| 39 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $22.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | Compatible alternateBelt, Oreck Upright Replacement DVC 2Pk More Product Details | OR-1010 | $10.99Add to cart |
| 39a |  | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart |
| 40 | Not Available | Oreck U2530Rh: Door Belt, Blue | 75057-01-442 | Not Available |
| 41 | Not Available | Oreck Wire Nut | 03-00599-01M | Not Available |
| 42 |  | Oreck XL Wooden Brush Roller 9000 Series w/o Magnet - 75202-01 | OR2000 | $24.69Add to cart |
| 43 | Not Available | Oreck Seal, Baseplate | 75008-01 | Not Available |
| 44 | Not Available | Oreck Plastic Detent, (Uses 2 #49 Screws) | 75299-01 | Not Available |
| 45 | Not Available | Oreck Complete Baseplate Assembly | 09-75715-01 | Not Available |
| 46 | Not Available | Oreck Micro Sweep Blade Type 1-6 Units Only | 75700-02 | Not Available |
| 47 | Not Available | Oreck Channel Type 1-6 Units Only | 75007-02 | Not Available |
| 48 | Not Available | Oreck Screw, #8 X .75 Phillips | 03-00476-01M | Not Available |
| 49 | Not Available | Oreck Screw, #7 X .38 Phillips | 03-00475-01M | Not Available |
| 50 | Not Available | Oreck Edge Brush W/Wheel, Left Type 1-6 Units Only | 09-75249-02 | Not Available |
| 51 | Not Available | Oreck Wheel Axle | 03-00630-01M | Not Available |
| 52 | Not Available | Oreck Soft Rear Wheel, Black | 75187-02-0327 | Not Available |
| 53 | Not Available | Oreck Wire - Static Ground | 75037-01 | Not Available |
| 54 |  | 15AMP 120V ON/OFF rocker switch oreck hoover Riccar Simplicity | 15AROCKERLG | $10.99Add to cart |
| 54 |  | Compatible alternateMain Switch Part Number 25.104 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPPB, CMP... More Product Details | 25104 | $3.99Add to cart Special order — allow 2-4 weeks. |
| 54 |  | Compatible alternateSwitch, Blk Rocker 1-Speed Handle Type 6 XL7 Uprts Part Number: 430000914 for Oreck More Product Details | 430000914 | $7.47Add to cart Special order — allow 2-4 weeks. |
| 55 | Not Available | Oreck U2530Rh: Grips, Blue Set | 09-75576-30 | Not Available |
| 55 |  | Oreck Handle Grip for U2000 - Black | 097557624 | $32.99Add to cart |
| 55 |  | Available ReconditionedCertified Reconditioned Oreck Handle Grip for classic Oreck XL type and modern commercial machine... More Product Details | 097557624R | $23.99Add to cart |
| 56 |  | Cord Hook, Black 9800 Model Part Number: 430001073 for Oreck | 430001073 | $8.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 |  | Available ReconditionedCertified Reconditioned Cord Hook, COLOR WILL VARY More Product Details | 430001073R | $9.99Add to cart |
| 57 |  | Handle, Upper Metal U2000/XL2100RHS Part Number: 430000905 for Oreck | 430000905 | $23.84Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | Available ReconditionedPre owned Oreck chrome/black handle for classic style orecks. Square silver or metal handle More Product Details | 7519007R | $14.99Add to cart |
| 58 |  | Oreck Cord W/molded Plug-oreck Xl2600 Black | 58581208 | $38.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | | Oreck Cord W/molded Plug-oreck Xl2600 Black | 58581208 | $38.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Oreck Motor Spring | 75283-01 | Not Available |
| 61 | Not Available | Oreck Tube Label | 75087-05 | Not Available |
| 63 | Not Available | Oreck Screw 10 X .5 - Phillips | 03-00450-01M | Not Available |
| 65 | Not Available | Oreck Oreck" Name Plate Label`1`1`` | 75599-03 | Not Available |
| 67 | Not Available | Oreck Bag Dock Hinge, Type Cc (Use W/#4A Or Order #83) | 75582-03-480 | Not Available |
| 68 | Not Available | Oreck Screw, #6-20 X 1/4" | 03-00482-01M | Not Available |
| 69 | Not Available | Oreck O-Ring | 75191-02M | Not Available |
| 72 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.30Read more |
| 73 | Not Available | Oreck Washer, Lock External Tooth | 03-00480-01M | Not Available |
| 74 | Not Available | Oreck 1" X 3", Loop Fastener | 75304-01M | Not Available |
| 75 | Not Available | Oreck 1" X 1", Hook Fastener | 75303-01M | Not Available |
| 77 | Not Available | Oreck Retainer Clip | 03528M | Not Available |
| 78 | Not Available | Oreck Wireform | 75194-03M | Not Available |
| 79 | Not Available | Oreck Stiffener (Uses Same Length Screws, Notched) | FNLA | Not Available |
| 81 |  | 3MM TO 6.5MM strain relief compair to heyco PG7 | 3TO65MMSTRAIN | $9.89Add to cart |
| 82 | Not Available | Oreck Steel Bushing Ring | 03-00598-01M | Not Available |
| 83 |  | Bag Dock Kit CC Style | 09-75675-01 | $12.68Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 |  | Available ReconditionedPre-owned Oreck Bag Dock Kit CC Style More Product Details | 09-75675-01R | $9.99Add to cart |
| 84 |  | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $2.01Add to cart |
| 85 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 86 | Not Available | Oreck Wireform, One-Piece | 75698-01 | Not Available |
| 87 |  | Wheel, Front XL Uprights Part Number: 430000957 for Oreck | 430000957 | $6.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 88 | Not Available | Oreck Insulator - Jst | 75679-01M | Not Available |
| 89 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $39.33Read more |
| 90 | Not Available | Oreck Bag Spring | 75015-01M | Not Available |
| 91 | Not Available | Oreck Push Nut | 03-00636-01M | Not Available |
