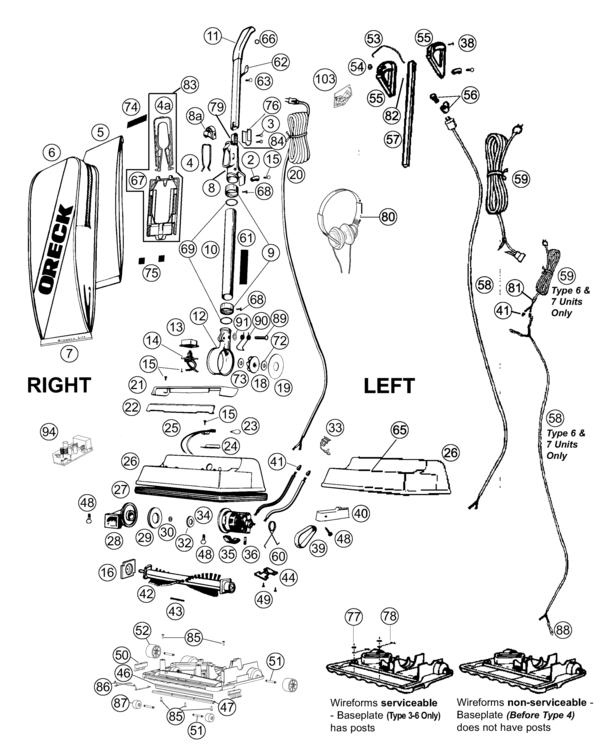

Schematic and parts list for: Oreck Model: U2520RH
This is a list of parts and a diagram and schematic for: Oreck Model: U2520RH
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U2520RH XL Classic Commercial
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| xx | Not Available | Oreck Cord Clamp | 03-00619-01M | Not Available |
| xx | No Image | Oreck STANDARD Antimicrobial Filtration Bags - 25pk | AK1CC25 | $49.99Read more |
| xx | Not Available | Oreck Screw, 7-18X0.75 Torx (Use T-20 Bit Screwdriver) | 03-00688-01M | Not Available |
| xx | Not Available | Oreck Screw, #8 X .75 | 03-00476-01M | Not Available |
| xx |  | SCREW, W/WASHER HANDLE TUBE COMM. UPRT 100PK Part Number: 03-00605-01M for Oreck | 030060501M | $62.92Read more |
| xx | Not Available | Oreck Screw, #8-32 X .545 W/ Washer | 03-00504-02M | Not Available |
| xx | No Image | Screw, #8 x.811 W/Int Washer XL Classic 100PK Part Number: 03-00608-01M for Oreck | 030060801M | $39.42Read more |
| xx | Not Available | Oreck Magnet Clean Vacuum Protector | MC4BK | Not Available |
| xx | Not Available | Oreck Standard Fastener Hardware Listing | FNLA | Not Available |
| xx | Not Available | Oreck Vacuum Cleaner Cover | VACCOVER | Not Available |
| xx | Not Available | Oreck User'S Manual | 75416-05 | Not Available |
| xx |  | Brush Strip, Black Edge All U2000 Series Uprights Part Number: 430000961 for Oreck | 430000961 | $7.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Oreck Tube Assembly Type 5, 6 & 7 Units Only | 75198-05 | Not Available |
| xx | Not Available | Oreck Cord Retainer, Square Type 4, 5, 6 & 7 Units Only | 03-00494-01 | Not Available |
| xx | Not Available | Oreck Micro Sweep Blade Type 7 Units Only | 75700-02 | Not Available |
| xx | Not Available | Oreck Channel Type 7 Units Only | 75701-01 | Not Available |
| xx | Not Available | Oreck Edge Brush W/Wheel, Right Type 1-6 Units Only | 09-75250-02 | Not Available |
| xx | Not Available | Oreck Stiffener, Through Bolt Connector (Uses Different Length Screws) | 75619-01 | Not Available |
| 2 | Not Available | Oreck Cord Clamp | 03-00613-01M | Not Available |
| 3 | Not Available | Oreck Screw 8-32 X .440 | 03-00478-02M | Not Available |
| 4a | No Image | Dock, Blue Rear Bag Part Number: 430000946 for Oreck | 430000946 | $14.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Oreck STANDARD Antimicrobial Filtration Bags | AK1CCA | $19.99Read more |
| 6 | Not Available | Oreck U2520Rh: Outer Bag, Dark Gray, Black, White | FNLA | Not Available |
| 7 | Not Available | Oreck U2520Rh: Bag Clip, White / Silver | 09-75078-22 | Not Available |
| 8 | Not Available | Oreck Connector Assembly Kit | 09-75308-57 | Not Available |
| 8a | Not Available | Oreck Deflector, Black, Snap Type 1 & 2 Units Only | 75220-01-0327 | Not Available |
| 9 | Not Available | Oreck Collar | 75309-02-0327 | Not Available |
| 10 | Not Available | Oreck Tube Assembly Type 1, 2, 3 & 4 Units Only | FNLA | Not Available |
| 12 | Not Available | Oreck Fan Housing Assembly Includes Rivet & Spring | 09-75343-03 | Not Available |
| 15 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 16 | Not Available | Oreck End Cap | 0134623 | Not Available |
| 18 | No Image | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $15.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Oreck Fan Seal Cup | 75012-01 | Not Available |
| 20 | Not Available | Oreck Cord Set | FNLA | Not Available |
| 26 | Not Available | Oreck U2520Rh: Housing, White W/Label | 09-75426-24 | Not Available |
| 27 | Not Available | Oreck U2520Rh: Bumper, White | 75181-03 | Not Available |
| 28 | Not Available | Oreck Intake Pivot Assembly With Felt Seal | 09-75066-02 | Not Available |
| 29 |  | Circular White Felt Gasket for Oreck | 7506501 | $14.95Read more |
| 30 | Not Available | Oreck 1/4 X 32 Yellow Chrome | 03-00448-01M | Not Available |
| 32 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $1.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Oreck Cord Retainer, Round Type 1, 2 & 3 Units Only | 03-00455-01 | Not Available |
| 34 | Not Available | Oreck Motor Assembly Kit | 09-75505-01 | Not Available |
| 35 | Not Available | Oreck Motor Seal | 75095-01 | Not Available |
| 36 | Not Available | Oreck Kit, Motor Brush (Large & Small) / Spring | 09-75514-01 | Not Available |
| 38 | No Image | SCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck | 030045601M | $18.25Read more |
| 39a | No Image | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart |
| 39 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Oreck U2520Rh: Door Belt, White | 75057010431 | Not Available |
| 41 | Not Available | Oreck Wire Nut | 03-00599-01M | Not Available |
| 42 | Not Available | Oreck Brush Roll Assembly | 75104-02 | Not Available |
| 43 | Not Available | Oreck Seal, Baseplate | 75008-01 | Not Available |
| 44 | Not Available | Oreck Plastic Detent, (Uses 2 #49 Screws) | 75299-01 | Not Available |
| 45 | Not Available | Oreck Complete Baseplate Assembly | 09-75715-01 | Not Available |
| 46 | Not Available | Oreck Micro Sweep Blade Type 1-6 Units Only | 75700-02 | Not Available |
| 47 | Not Available | Oreck Channel Type 1-6 Units Only | 75007-02 | Not Available |
| 48 | Not Available | Oreck Screw, #8 X .75 Phillips | 03-00476-01M | Not Available |
| 49 | Not Available | Oreck Screw, #7 X .38 Phillips | 03-00475-01M | Not Available |
| 50 | Not Available | Oreck Edge Brush W/Wheel, Left Type 1-6 Units Only | 09-75249-02 | Not Available |
| 51 | Not Available | Oreck Wheel Axle | 03-00630-01M | Not Available |
| 52 | Not Available | Oreck Soft Rear Wheel, Black | 75187-02-0327 | Not Available |
| 53 | Not Available | Oreck Wire - Static Ground | 75037-01 | Not Available |
| 54 |  | Switch, Blk Rocker 1-Speed Handle Type 6 XL7 Uprts Part Number: 430000914 for Oreck | 430000914 | $10.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | Not Available | Oreck U2520Rh: Grips, White Set | 09-75576-19 | Not Available |
| 56 | Not Available | Oreck Cord Wrap Assembly With Post And Cord Wrap - White | 09-75185-05 | Not Available |
| 57 | No Image | Oreck Handle Tube Assembly (Chrome) | 75190-07 | $0.00 |
| 58 |  | Cord, :( 30' White Harness Assmbly 2-Wire 3000 Ser Part Number: 75896-01-328 for Oreck | 7589601328 | $26.66Read more |
| 59 | | Cord, :( 30' White Harness Assmbly 2-Wire 3000 Ser Part Number: 75896-01-328 for Oreck | 7589601328 | $26.66Read more |
| 60 | Not Available | Oreck Motor Spring | 75283-01 | Not Available |
| 61 | Not Available | Oreck Tube Label | 75087-05 | Not Available |
| 63 | Not Available | Oreck Screw 10 X .5 - Phillips | 03-00450-01M | Not Available |
| 65 | Not Available | Oreck Oreck" Name Plate Label`1`1`` | 75599-03 | Not Available |
| 67 | Not Available | Oreck Bag Dock Hinge, Type Cc (Use W/#4A Or Order #83) | 75582-03-480 | Not Available |
| 68 | Not Available | Oreck Screw, #6-20 X 1/4" | 03-00482-01M | Not Available |
| 69 | Not Available | Oreck O-Ring | 75191-02M | Not Available |
| 72 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.27Read more |
| 73 | Not Available | Oreck Washer, Lock External Tooth | 03-00480-01M | Not Available |
| 74 | Not Available | Oreck 1" X 3", Loop Fastener | 75304-01M | Not Available |
| 75 | Not Available | Oreck 1" X 1", Hook Fastener | 75303-01M | Not Available |
| 77 | Not Available | Oreck Retainer Clip | 03528M | Not Available |
| 78 | Not Available | Oreck Wireform | 75194-03M | Not Available |
| 79 | Not Available | Oreck Stiffener (Uses Same Length Screws, Notched) | FNLA | Not Available |
| 81 |  | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 | Not Available | Oreck Steel Bushing Ring | 03-00598-01M | Not Available |
| 83 |  | Bag Dock Kit CC Style | 09-75675-01 | $17.99Add to cart |
| 84 |  | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $3.00Add to cart |
| 85 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 86 | Not Available | Oreck Wireform, One-Piece | 75698-01 | Not Available |
| 87 |  | Wheel, Front XL Uprights Part Number: 430000957 for Oreck | 430000957 | $7.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 88 | Not Available | Oreck Insulator - Jst | 75679-01M | Not Available |
| 89 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $35.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | Not Available | Oreck Bag Spring | 75015-01M | Not Available |
| 91 | Not Available | Oreck Push Nut | 03-00636-01M | Not Available |

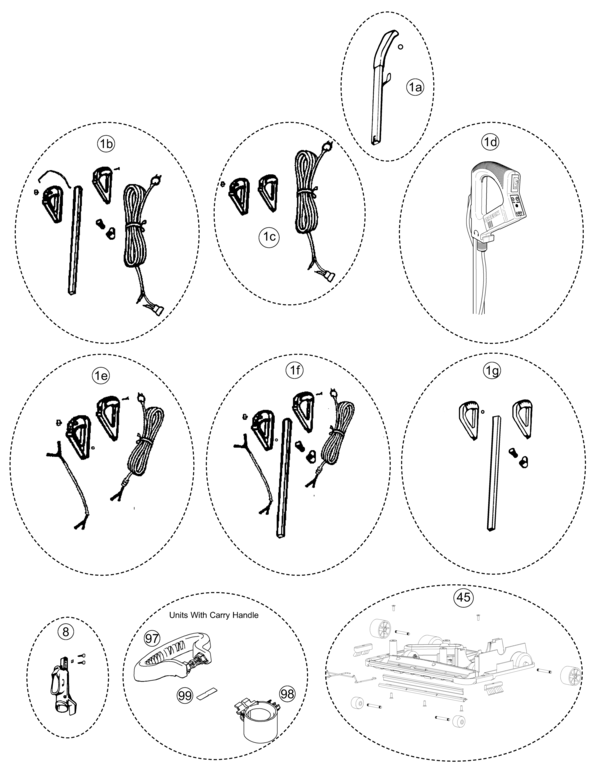

| # | Part image | Description | SKU | Price |
| 1e | Not Available | Oreck Upper Handle Assembly - D Style Handle Black | 09-75612-01 | Not Available |
| 8 | Not Available | Oreck Connector Assembly Kit | 09-75308-57 | Not Available |
| 45 | Not Available | Oreck Complete Baseplate Assembly | 09-75715-01 | Not Available |
