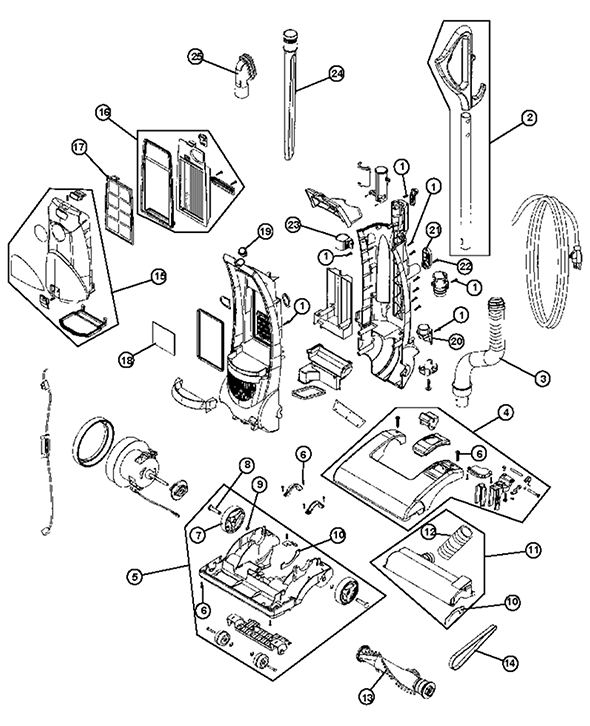

This is a list of parts and a diagram and schematic for: Oreck Model: U2440900
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U2440900 NanoLite
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Oreck Screw - Body M4 / 16 | 83311340 | Not Available |
| 2 | Not Available | Oreck Handle Assembly | 28500010 | Not Available |
| 3 | Not Available | Oreck Wbd Suction Hose Assembly | 21200040 | Not Available |
| 4 | Not Available | Oreck Nozzle Cover Assembly | 22010320 | Not Available |
| 5 | Not Available | Oreck Nozzle Base Assembly | 22350280 | Not Available |
| 6 | Not Available | Oreck Screw - Nozzle Base M4 / 20 | 83311350 | Not Available |
| 7 | Not Available | Oreck Wheel Rear Assembly | 12300080 | Not Available |
| 8 | Not Available | Oreck Rear Wheel Axle | 12070140 | Not Available |
| 9 | Not Available | Oreck Rear Wheel E-Ring | 14110010 | Not Available |
| 10 | Not Available | Oreck Nozzle Cover Felt | 13510020 | Not Available |
| 11 | Not Available | Oreck Brush Roll Housing Assembly | 22010330 | Not Available |
| 12 | Not Available | Oreck Suction Hose | 11010130 | Not Available |
| 13 | Not Available | Oreck Agitator Assembly | 13100190 | Not Available |
| 14 | Not Available | Oreck Belt | 12080030 | Not Available |
| 15 | Not Available | Oreck Wbd Dirt Cup Assembly | 24510240 | Not Available |
| 16 | Not Available | Oreck Filter Assembly | 40110013 | Not Available |
| 17 | Not Available | Oreck Pre Filter Assembly | 14800100 | Not Available |
| 18 | Not Available | Oreck Air Inlet Filter | 12471000 | Not Available |
| 19 | Not Available | Oreck Switch | 14100400 | Not Available |
| 20 | Not Available | Oreck Lower Cord Hook - Gray | 18010880 | Not Available |
| 21 | Not Available | Oreck Upper Cord Hook - Gray | 18010070 | Not Available |
| 22 | Not Available | Oreck Screw - Upper Cord Hook M4 / 14 | 83311330 | Not Available |
| 23 | Not Available | Oreck Crevice Tool Holder - Blue | 11580130 | Not Available |
| 24 | Not Available | Oreck Wbd Crevice Tool | 81110070 | Not Available |
| 25 | Not Available | Oreck Dusting Brush | 81300060 | Not Available |
