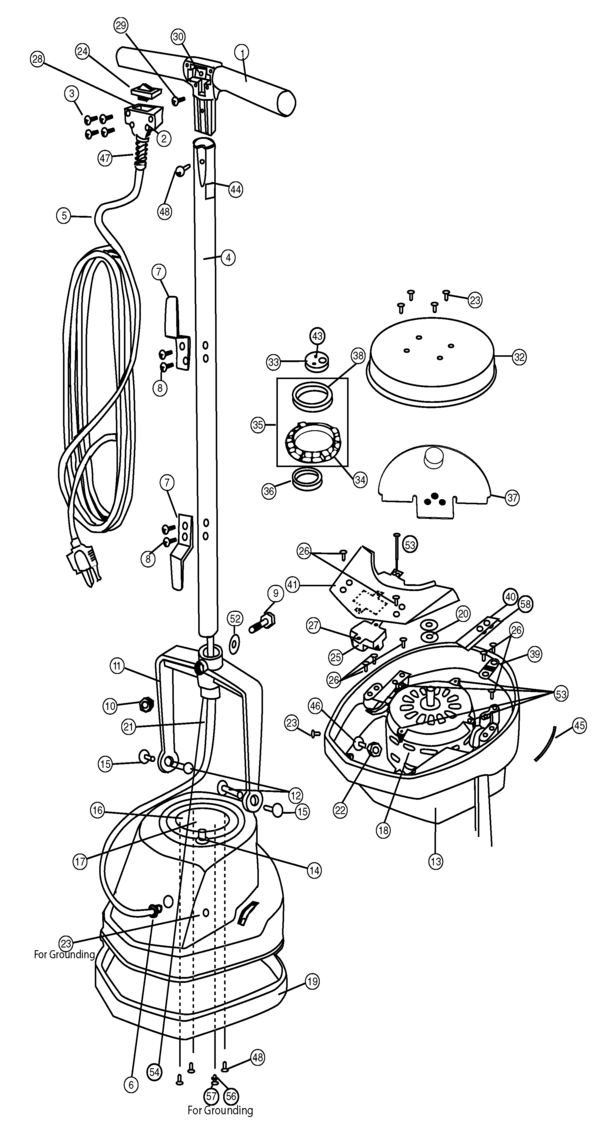

This is a list of parts and a diagram and schematic for: Oreck Model: ORB556MC
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: ORB556MC
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Oreck T-Handle, Black | 53140-02-0327 | Not Available |
| 2 | Not Available | Oreck Cover Switch | 53258-03-0327 | Not Available |
| 4 | Not Available | Oreck Tube, Chrome | 53141-03 | Not Available |
| 5 | Not Available | Oreck Power Cord, Black (Orb556Mc) 35' Australia | 53406-01-327 | Not Available |
| 6 | Not Available | Oreck Strain Relief | 03-00455-02 | Not Available |
| 7 | Not Available | Oreck Cord Hooks, Chrome | 53147-02 | Not Available |
| 11 | Not Available | Oreck Yoke, Painted | 53148-01 | Not Available |
| 12 | Not Available | Oreck Handle Pin | 03-00529-01 | Not Available |
| 13 |  | Housing, Main Body ORB556MC Part Number: 430001118 for Oreck | 430001118 | $155.94Read more |
| 14 | Not Available | Oreck Reset Button, Red | 53150-01-451 | Not Available |
| 15 | Not Available | Oreck Delrin Bushing | 53237-01 | Not Available |
| 16 | No Image | Cover, Painted Grill/Motor Orbiter Part Number: 53151-01 for Oreck | 5315101 | $36.09Read more |
| 17 | Not Available | Oreck Label, Orbiter, Red | 53371-01 | Not Available |
| 18 | Not Available | Oreck Motor Kit | 09-53153-01 | Not Available |
| 19 | Not Available | Oreck Bumper, Red | 53154-01-451 | Not Available |
| 21 | Not Available | Oreck Harness | 53349-01-327 | Not Available |
| 24 |  | NO LONGER AVAILABLE Switch, :( Black/Red Rocker 3 Leads ORB550 Part Number: 53156-01 for Oreck | 5315601 | $11.36Read more |
| 25 | Not Available | Oreck Relay | 53158-01 | Not Available |
| 32 |  | Pan, Bottom Orbiter ORB550 Part Number: 430001168 for Oreck | 430001168 | $23.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Oreck Plug Bearing | 53160-01 | Not Available |
| 34 | Not Available | Oreck Bearing Retainer | 53162-01 | Not Available |
| 35 | Not Available | Oreck Retainer Bearing & Ball Bearing Assembly | 09-53266-51 | Not Available |
| 36 | Not Available | Oreck Spacer | 53163-01 | Not Available |
| 37 | Not Available | Oreck Flywheel W/ Counterweight | 09-53335-02 | Not Available |
| 38 |  | Oreck Orbiter bearing | 5316101 | $43.99Read more |
| 39 | Not Available | Oreck Pillow Block (Yoke Pin Holder) | 53165-01 | Not Available |
| 40 | No Image | Spring, Swing Arm ORB556MC/ORB600MW Part Number: 430001063 for Oreck | 430001063 | $12.45Read more |
| 41 | Not Available | Oreck Plate Cover | 53167-03 | Not Available |
| 44 | Not Available | Oreck Warning Label | 53172-02 | Not Available |
| 45 | Not Available | Oreck Cable Tie | 03-00404-01 | Not Available |
| 47 | Not Available | Oreck Strain Relief | 03-00521-01 | Not Available |
| 54 | Not Available | Oreck Strain Relief | 03-00455-02 | Not Available |
| 58 | Not Available | Oreck Spring, Nylon | 53337-01 | Not Available |
