Schematic and parts list for: Oreck Model: ORB550MW

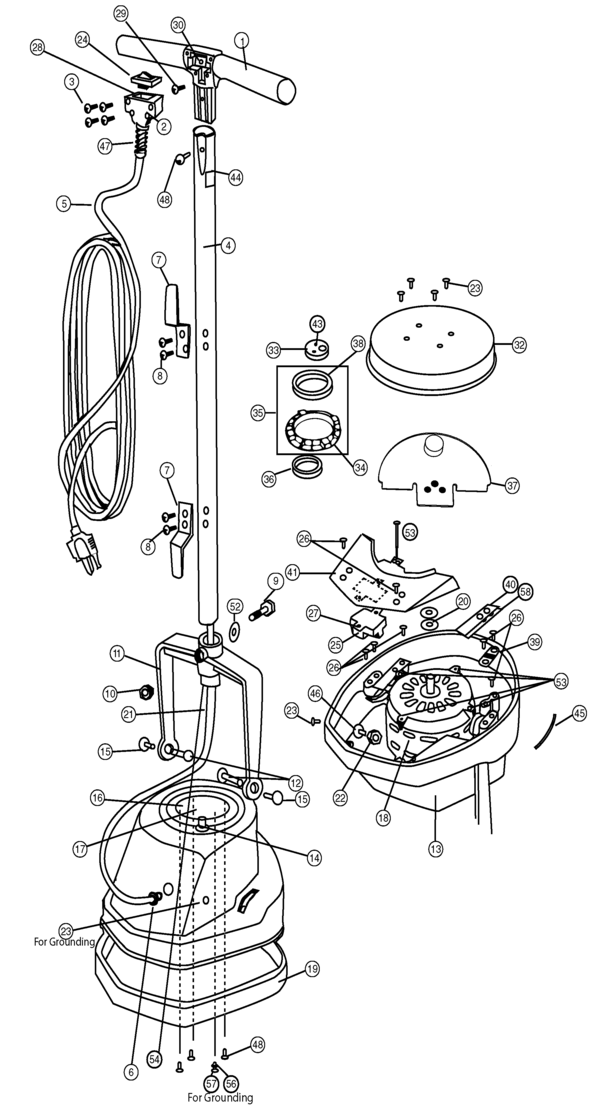

This is a list of parts and a diagram and schematic for: Oreck Model: ORB550MW
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: ORB550MW
| # | Part image | Description | SKU | Price |
| XX | Not Available | Oreck Manual, Owner'S | 53367-01 | Not Available |
| XX | Not Available | Oreck Label, Xlpro, Red (Orb550Mw) | 53368-01 | Not Available |
| 1 | Not Available | Oreck T-Handle, Blue (Orb550Mw) | 53140-02-438 | Not Available |
| 2 | Not Available | Oreck Cover Switch | 53258-02-0327 | Not Available |
| 4 | Not Available | Oreck Tube, Chrome | 53141-03 | Not Available |
| 5 | Not Available | Oreck Power Cord, Red 50' | 53565-01-451 | Not Available |
| 6 | Not Available | Oreck Strain Relief | 03-00520-01 | Not Available |
| 7 | Not Available | Oreck Cord Hooks, Chrome | 53147-02 | Not Available |
| 11 | Not Available | Oreck Yoke, White (Orb550Mw) | 53148-02 | Not Available |
| 12 | Not Available | Oreck Handle Pin | 03-00529-01 | Not Available |
| 13 | Not Available | Oreck Main Body Housing, Chrome (Orb550Mw) | 53149-05 | Not Available |
| 14 | Not Available | Oreck Reset Button, Red | 53150-01-451 | Not Available |
| 15 | Not Available | Oreck Delrin Bushing | 53237-01 | Not Available |
| 16 | No Image | PN KIT, HOSE, WAND W POWER NOZZLE TRISTAR/COMPACT Part Number: 99.2 360-xxx for Compact Replacement | 992360XXX | $510.58Read more |
| 17 | Not Available | Oreck Label, Orbiter, Red (Orb550Mw) | 53371-01 | Not Available |
| 18 |  | Motor Kit Svc 700 Series | WP11800 | $0.00Read more |
| 19 | Not Available | Oreck Bumper, Blue (Orb550Mw) | 53154-01-438 | Not Available |
| 21 | Not Available | Oreck Pigtail | 53169-01 | Not Available |
| 24 |  | Switch, :( Black/Red Rocker 3 Leads ORB550 Part Number: 53156-01 for Oreck | 5315601 | $10.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Oreck Relay | 53157-01 | Not Available |
| 32 |  | Pan, Bottom Orbiter ORB550 Part Number: 430001168 for Oreck | 430001168 | $26.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Oreck Plug Bearing | 53160-01 | Not Available |
| 34 | Not Available | Oreck Bearing Retainer | 53162-01 | Not Available |
| 35 | Not Available | Oreck Retainer Bearing & Ball Bearing Assembly | 09-53266-51 | Not Available |
| 36 | Not Available | Oreck Spacer | 53163-01 | Not Available |
| 37 | Not Available | Oreck Flywheel W/ Counterweight | 09-53335-02 | Not Available |
| 38 |  | Oreck Orbiter bearing | 5316101 | $23.53Read more |
| 39 | Not Available | Oreck Pillow Block (Yoke Pin Holder) | 53165-01 | Not Available |
| 40 | No Image | Spring, Swing Arm ORB556MC/ORB600MW Part Number: 430001063 for Oreck | 430001063 | $11.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Oreck Plate Cover | 53167-03 | Not Available |
| 44 | Not Available | Oreck Warning Label | 53172-02 | Not Available |
| 45 | Not Available | Oreck Cable Tie | 03-00404-01 | Not Available |
| 47 | Not Available | Oreck Strain Relief | 03-00621-01 | Not Available |
| 54 | Not Available | Oreck Strain Relief | 03-00637-01 | Not Available |
| 58 | Not Available | Oreck Spring, Nylon | 53337-01 | Not Available |
