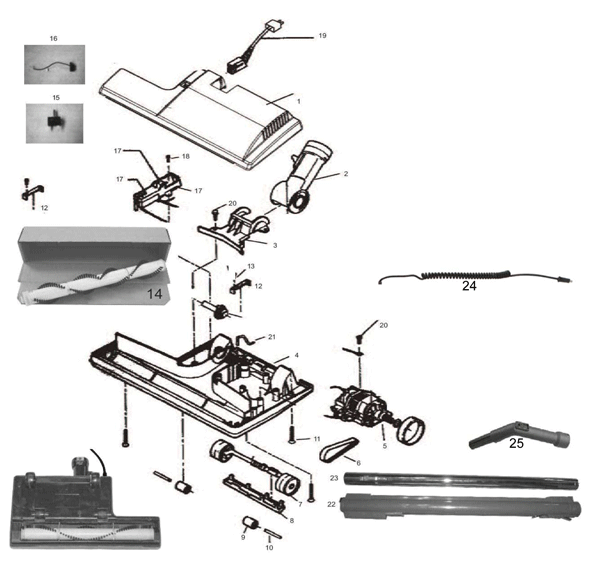

This is a list of parts and a diagram and schematic for: Oreck Model: OR-BPAK1
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: OR-BPAK1
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Oreck Power Nozzle Cover | ORPN-01A | Not Available |
| 2 | Not Available | Oreck Neck Assembly | ORPN-05 | Not Available |
| 3 | Not Available | Oreck Inlet Cover | ORPN-06 | Not Available |
| 4 | Not Available | Oreck Power Nozzle Base Assembly | ORPN-02 | Not Available |
| 5 | Not Available | Oreck Power Nozzle Motor | ORPN-17 | Not Available |
| 6 | Not Available | Oreck Timing Belt | ORPN-BELT | Not Available |
| 7 | Not Available | Oreck Rear Wheel Assembly | ORPN-03 | Not Available |
| 8 | Not Available | Oreck Wheel Cover Plate | ORPN-04 | Not Available |
| 9 | Not Available | Oreck Front Roller | ORPN-22 | Not Available |
| 10 | Not Available | Oreck Front Roller Axle | ORPN-23 | Not Available |
| 11 | Not Available | Oreck Screw for Cover Mounting | ORPN-15 | Not Available |
| 12 | Not Available | Oreck Brush Roller Holder Plate | ORPN-16 | Not Available |
| 13 | Not Available | Oreck Screw for Brush Roller Mounting | ORPN-13 | Not Available |
| 14 | Not Available | Oreck Brush Roller Complete with Bearings | ORPN-07 | Not Available |
| 15 | Not Available | Oreck Circuit Breaker | ORPN-10 | Not Available |
| 16 | Not Available | Oreck Plug Assembly | ORPN-09 | Not Available |
| 17 | Not Available | Oreck Circuit Breaker Holder | ORPN-11 | Not Available |
| 18 | Not Available | Oreck Screw for Circuit Breaker Holder | ORPN-14 | Not Available |
| 19 | Not Available | Oreck Lower Power Nozzle Cord | ORPN-18 | Not Available |
| 20 | Not Available | Oreck Screw for Inlet Cover & Motor | ORPN-15 | Not Available |
| 21 | Not Available | Oreck Rear Wheel Shaft Retainer | ORPN-24 | Not Available |
| 22 | Not Available | Oreck Upright Sheath Complete & Sheath Cord | ORPN-19 | Not Available |
| 23 | Not Available | Oreck Metal Lower Sheath Wand | ORPN-20 | Not Available |
| 24 | Not Available | Oreck Switch Box to Power Nozzle Cord(not shown) | ORBP-18 | Not Available |
