Schematic and parts list for: Oreck Model: DTX1400

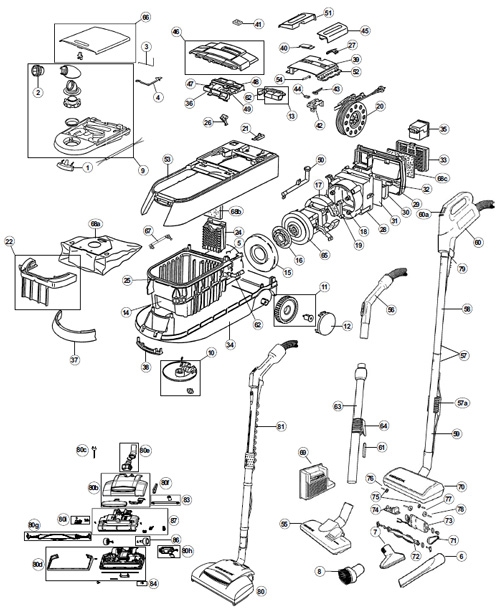

This is a list of parts and a diagram and schematic for: Oreck Model: DTX1400
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: DTX1400
| # | Part image | Description | SKU | Price |
| XX | Not Available | Oreck 1. Snap Lock | 8200201446 | Not Available |
| xx | Not Available | Oreck Manual, Owners, DTX1300 | 8222303 | Not Available |
| xx | Not Available | Oreck Manual, Owners, DTX1400 | 8227401 | Not Available |
| 2 | Not Available | Oreck Hose Lock | 8200501446 | Not Available |
| 3 | Not Available | Oreck Spring Access Cover | 8200601 | Not Available |
| 4 | Not Available | Oreck Lead Lid White | 82020010328 | Not Available |
| 5 | Not Available | Oreck Cord Clamp | 8202101 | Not Available |
| 6 | Not Available | Oreck Crevice Tool | 8202201 | Not Available |
| 7 | Not Available | Oreck Upholstery Nozzle | 8202301 | Not Available |
| 8 | Not Available | Oreck Dusting Brush | 8202402 | Not Available |
| 9 | Not Available | Oreck Assembly, RMC Swivel / Dust Cover, Harness | 98202504 | Not Available |
| 10 | No Image | Wheel, Caster/Dish Assy Dutchtech DTX1100-DTX1400 Part Number: 09-82028-01 for Oreck | 098202801 | $35.01Read more |
| 11 | Not Available | Oreck Assembly, Wheel | 98203201 | Not Available |
| 12 | Not Available | Oreck Wheel Cap, Gray | 82035010327 | Not Available |
| 12 | Not Available | Oreck Wheel Cap, White | 82035010328 | Not Available |
| 13 | Not Available | Oreck Assembly, Check Bag Indicator | 98203601 | Not Available |
| 14 | Not Available | Oreck Dust Chamber | 82044010384 | Not Available |
| 15 | Not Available | Oreck Motor Front Disc | 8204501 | Not Available |
| 16 | Not Available | Oreck Buffer Ring (Type 1 & 2) | 8204601 | Not Available |
| 16a | Not Available | Oreck Buffer Ring (Type 3) | 8204602 | Not Available |
| 17 | Not Available | Oreck Foam Motor Silencer | 8204901 | Not Available |
| 18 | Not Available | Oreck Grommet, Motor Rearside | 8205001 | Not Available |
| 19 | Not Available | Oreck Rear Spacer, Motor (Type 1 & 2) | 8205101 | Not Available |
| 19a | No Image | Spacer - Rear - Oreck Dtx1300 & Dtx1400 Canister For: oreck | 8205102 | $2.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Oreck Cord Winder Kit | 98229401 | Not Available |
| 21 | Not Available | Oreck Switch | 8205901 | Not Available |
| 22 | Not Available | Oreck Assembly, Dust Bag Carrier | 98206401 | Not Available |
| 24 | Not Available | Oreck Inlet Grill | 8207001438 | Not Available |
| 25 | Not Available | Oreck Sealing Rim | 8207201 | Not Available |
| 26 | Not Available | Oreck Actuator, Cord Winder | 82076010327 | Not Available |
| 27 | Not Available | Oreck Leaf Spring Button | 8207701 | Not Available |
| 28 | Not Available | Oreck Motor Housing | 82082010000 | Not Available |
| 29 | Not Available | Oreck Back Lid | 8208401446 | Not Available |
| 30 | Not Available | Oreck Air Screen | 8208501446 | Not Available |
| 31 | Not Available | Oreck Screen Silencer | 8208601 | Not Available |
| 32 | Not Available | Oreck Grill Stud | 8208701 | Not Available |
| 33 | Not Available | Oreck Back Grill | 8208801446 | Not Available |
| 34 | Not Available | Oreck Lower Housing | 8208901446 | Not Available |
| 35 | Not Available | Oreck Cord Outlet | 82090010327 | Not Available |
| 36 | Not Available | Oreck Circuit Board | 8209302 | Not Available |
| 37 | Not Available | Oreck Buffer Strap | 8209501436 | Not Available |
| 38 | Not Available | Oreck Retaining Plate | 8209601446 | Not Available |
| 39 | Not Available | Oreck Window | 82100010329 | Not Available |
| 40 | Not Available | Oreck Service Lid | 82102010328 | Not Available |
| 41 | Not Available | Oreck Knob, Slide | 8210401446 | Not Available |
| 42 | Not Available | Oreck Support, Park | 82105010327 | Not Available |
| 43 | Not Available | Oreck Lever, Park Switch, DTX1300 | 82106010419 | Not Available |
| 44 | Not Available | Oreck Micro Switch, DTX1300 | 8210701 | Not Available |
| 45 | Not Available | Oreck Pedal, Switch | 98210901 | Not Available |
| 46 | Not Available | Oreck Assembly, Slide Panel, DTX1400 | 98211103 | Not Available |
| 46 | Not Available | Oreck Assembly, Slide Panel, DTX1300 | 98211101 | Not Available |
| 47 | Not Available | Oreck PCB Holder1 | 82114010000 | Not Available |
| 48 | Not Available | Oreck Driving Wheel | 8211501 | Not Available |
| 49 | Not Available | Oreck Foam Assembly | 8211601 | Not Available |
| 50 | Not Available | Oreck Cooling Pipe | 82120010000 | Not Available |
| 51 | Not Available | Oreck Pedal, Cord Winder | 98212301 | Not Available |
| 52 | Not Available | Oreck Cover, Park White, w/Window #39, DTX1400 | 98212402 | Not Available |
| 52 | Not Available | Oreck Cover, Park White, w/Window #39, DTX1300 | 98212401 | Not Available |
| 53 | Not Available | Oreck Upper Housing | 98212501 | Not Available |
| 54 | Not Available | Oreck Service Lid Spring | 8212701 | Not Available |
| 55 | Not Available | Oreck Canister Floor Nozzle | 8213001 | Not Available |
| 56 | Not Available | Oreck Hose, Standard | 8213101 | Not Available |
| 57a | Not Available | Oreck Clip, Friction Wand, DTX1300 | 8213301 | Not Available |
| 57 | Not Available | Oreck Friction Wand, DTX1300 | 8213201 | Not Available |
| 58 | Not Available | Oreck Wand, Upper w/Cord Management, DTX1300 | 8213801 | Not Available |
| 59 | Not Available | Oreck Wand, Lower, w/Cord Channel, DTX1300 | 8213901 | Not Available |
| 60 | Not Available | Oreck Hose, Electric | 98227851 | Not Available |
| 60a | Not Available | Oreck Kit, Hose Switch Assembly | 8226701 | Not Available |
| 61 | Not Available | Oreck Gasket, Tube Clip | 8214101 | Not Available |
| 62 | Not Available | Oreck Assembly, Hose and Kneebend, Bag Full | 98214801 | Not Available |
| 63 | No Image | WAND, TELESCOPIC DTX1400 DUTCH TECH CANIST Part Number: 09-82152-52 for Oreck | 098215252 | $70.84Read more |
| 64 | Not Available | Oreck Clip, Telescopic Tube | 8215301 | Not Available |
| 65 | Not Available | Oreck Motor (Type 1 and 2) | 98220701 | Not Available |
| 65 | Not Available | Oreck Motor Kit (Type 3) Incl, Buffer Ring and Spacer | 98220702 | Not Available |
| 66 | Not Available | Oreck Accessory Cover w/Spring White | 98221602 | Not Available |
| 67 | Not Available | Oreck Assembly, Cooling Tube Cord Winder, DTX1300 | 98222201 | Not Available |
| 67 | Not Available | Oreck Assembly, Cooling Tube Cord Winder, DTX1400 | 98222202 | Not Available |
| 68c | Not Available | Oreck Exhaust Filter | 8207901 | Not Available |
| 68b | No Image | Filter,:( Safety (Duo) Part Number: 82071-01 for Oreck | 8207101 | $1.87Read more |
| 68a |  | Oreck Paper Bags for DTX1100 DTX1200 DTX1300 DTX1400 Canister 5pk with Filters | ET511PK | $44.99Read more |
| 69 | No Image | Oreck Canister Vacuum Cleaner Model DTX1300 Hepa Filter | 1300HF | $79.99Read more |
| 70e | Not Available | Oreck Pivot, DTX1300 | 8228501 | Not Available |
| 70d | Not Available | Oreck Baseplate, DTX1300 | 8228401 | Not Available |
| 70c |  | CORD, EBK340 DTX1100 12000 13000 14000 Part Number: 82299-01 for Oreck | 8229901 | $62.06Read more |
| 70b | Not Available | Oreck Top Cover, DTX1300 | 8228201 | Not Available |
| 70a | Not Available | Oreck Squeegee, Power Nozzle, DTX1300 | 8226401 | Not Available |
| 70 | Not Available | Oreck Power Nozzle, DTX1300 | EBK280 | Not Available |
| 71 | Not Available | Oreck Replacement Belt, Power Head, DTX1300 | 8222701 | Not Available |
| 72 | Not Available | Oreck Brushroll, Power Head, DTX1300 | 8222601 | Not Available |
| 73 | Not Available | Oreck Motor, Power Head, DTX1300 | 8222801 | Not Available |
| 73 | Not Available | Oreck Cog, DTX1300 | 8231901 | Not Available |
| 74 | Not Available | Oreck Circuit Board, Power Head, DTX1300 | 8222901 | Not Available |
| 75 | Not Available | Oreck Wheels, Power Nozzle, Front, DTX1300 | 8223601 | Not Available |
| 76 | Not Available | Oreck Axle, Power Nozzle, Front, DTX1300 | 30051301 | Not Available |
| 77 | Not Available | Oreck Wheels, Power Nozzle, Rear, DTX1300 | 8223701 | Not Available |
| 78 | Not Available | Oreck Axle, Power Nozzle, Rear, DTX1300 | 30051401 | Not Available |
| 79 | Not Available | Oreck Valve, Suction Control, DTX1300 | 8224901 | Not Available |
| 80i | Not Available | Oreck Circuit Board, Power Head, DTX1400 | 8230501 | Not Available |
| 80h | Not Available | Oreck Motor, Power Head, DTX1400 | 8230401 | Not Available |
| 80g | Not Available | Oreck Brushroll, Power Head, DTX1400 | 8230301 | Not Available |
| 80f | Not Available | Oreck Replacement Belt, Power Head, DTX1400 | 8230201 | Not Available |
| 80e | Not Available | Oreck Pivot, DTX1400 | 8230101 | Not Available |
| 80d | Not Available | Oreck Baseplate, DTX1400 | 8230001 | Not Available |
| 80c | | CORD, EBK340 DTX1100 12000 13000 14000 Part Number: 82299-01 for Oreck | 8229901 | $62.06Read more |
| 80b | Not Available | Oreck Top Cover, DTX1400 | 8229801 | Not Available |
| 80a | Not Available | Oreck Squeegee, DTX1400 | 8229701 | Not Available |
| 80 | Not Available | Oreck Power Nozzle, DTX1400 | EBK340 | Not Available |
| 81 | Not Available | Oreck Wand, Telescopic w/Cord management, DTX1400 | 8227601 | Not Available |
| 82 | Not Available | Oreck Bumper, DTX1400 | 8230601 | Not Available |
| 83 | Not Available | Oreck Light Kit, DTX1400 | 8230701 | Not Available |
| 84 | Not Available | Oreck Wheel & Axle Assy, Power Nozzle, Front, DTX1400 | 8230801 | Not Available |
| 86 | Not Available | Oreck Wheel & Axle Assy, Power Nozzle, Rear, DTX1400 | 8230901 | Not Available |
| 87 | Not Available | Oreck Motor Cover, DTX1400 | 8232001 | Not Available |
| 88 | Not Available | Oreck O-Ring #009 CW | 8229501 | Not Available |
