Schematic and parts list for: Oreck Model: DTX1200

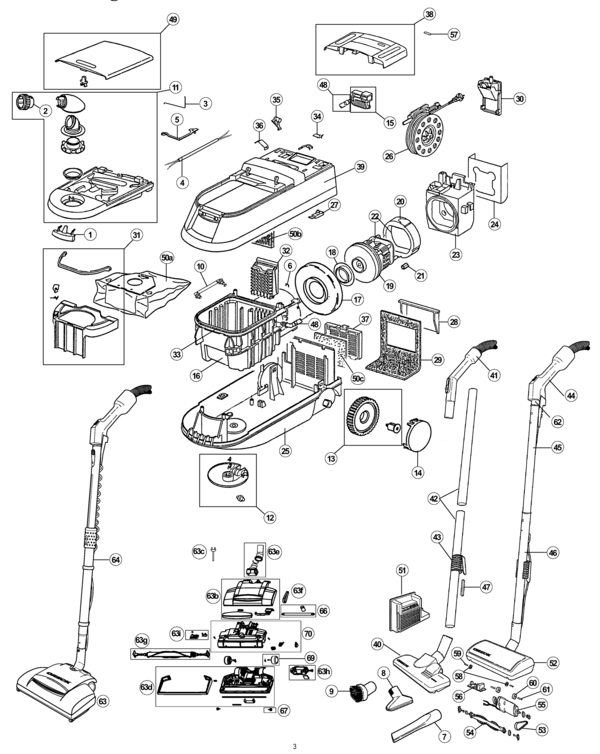

This is a list of parts and a diagram and schematic for: Oreck Model: DTX1200
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: DTX1200 DTX 1200 DutchTech Electritech
| # | Part image | Description | SKU | Price |
| XX | Not Available | Oreck Manual Owner'S, Dtx1200 | 82275-01 | Not Available |
| XX | Not Available | Oreck Wheel Cap, Gray | 82035-01-0327 | Not Available |
| 1 | Not Available | Oreck Snap Lock | 82002-01-446 | Not Available |
| 2 | Not Available | Oreck Hose Lock | 82005-01-446 | Not Available |
| 3 | Not Available | Oreck Spring, Access Cover | 82006-01 | Not Available |
| 4 | Not Available | Oreck Harness, 2 Core | 82019-02 | Not Available |
| 5 | Not Available | Oreck Lead, Lid | 82020-01-439 | Not Available |
| 6 | Not Available | Oreck Cord Clamp | 82021-01 | Not Available |
| 7 | Not Available | Oreck Crevice Tool | 82022-01 | Not Available |
| 8 | Not Available | Oreck Upholstery Nozzle | 82023-01 | Not Available |
| 9 | Not Available | Oreck Dusting Brush | 82024-02 | Not Available |
| 10 | Not Available | Oreck Assembly, Cooling Tube, Cord Winder, Dtx1200 | 09-82222-02 | Not Available |
| 11 | Not Available | Oreck Assembly, Rmc Swivel/Dustcover | 09-82025-03 | Not Available |
| 12 | No Image | Wheel, Caster/Dish Assy Dutchtech DTX1100-DTX1400 Part Number: 09-82028-01 for Oreck | 098202801 | $35.01Read more |
| 13 | Not Available | Oreck Assembly, Rear Wheel | 09-82032-01 | Not Available |
| 14 | Not Available | Oreck Wheel Cap, Green | 82035-01-439 | Not Available |
| 15 | Not Available | Oreck Assembly, Check Bag Indicator | 09-82036-01 | Not Available |
| 16 | Not Available | Oreck Dust Chamber | 82044-01-0384 | Not Available |
| 17 | Not Available | Oreck Motor Front Disc | 82045-01 | Not Available |
| 18 | Not Available | Oreck Buffer Ring | 82046-02 | Not Available |
| 19 | Not Available | Oreck Motor | 09-82047-01 | Not Available |
| 20 | Not Available | Oreck Foam, Motor Silencer | 82049-01 | Not Available |
| 21 | Not Available | Oreck Grommet, Motor | 82050-01 | Not Available |
| 22 | No Image | Spacer - Rear - Oreck Dtx1300 & Dtx1400 Canister For: oreck | 8205102 | $2.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Oreck Housing, Motor | 82052-01-0000 | Not Available |
| 24 | Not Available | Oreck Cardboard Noise Suppressor | 82053-01 | Not Available |
| 25 | Not Available | Oreck Lower Housing | 82054-01-446 | Not Available |
| 26 | Not Available | Oreck Cord Winder Kit | 09-82294-01 | Not Available |
| 27 | Not Available | Oreck Switch | 82059-01 | Not Available |
| 28 | Not Available | Oreck Noise Suppressor, Plastic | 82061-01-446 | Not Available |
| 29 | No Image | PN KIT, HOSE, WAND W POWER NOZZLE TRISTAR/COMPACT Part Number: 99.2 360-xxx for Compact Replacement | 992360XXX | $510.58Read more |
| 30 | Not Available | Oreck Cord Outlet | 82063-01-0327 | Not Available |
| 31 | Not Available | Oreck Assy, Dust Bag Carrier | 09-82064-01 | Not Available |
| 32 | Not Available | Oreck Inlet Grill | 82070-01-438 | Not Available |
| 33 | Not Available | Oreck Sealing Rim | 82072-01 | Not Available |
| 34 | Not Available | Oreck Lever, Switch | 82075-01-0000 | Not Available |
| 35 | Not Available | Oreck Actuator, Cord Winder | 82076-01-0327 | Not Available |
| 36 | Not Available | Oreck Button Leaf Spring | 82077-01 | Not Available |
| 37 | Not Available | Oreck Exhaust Grille | 82080-01-446 | Not Available |
| 38 | Not Available | Oreck Assembly, Rear Panel, W/Window #57, Dtx1200 | 09-82110-02 | Not Available |
| 39 | Not Available | Oreck Upper Housing | 09-82126-01 | Not Available |
| 40 | No Image | PN KIT, HOSE, WAND W POWER NOZZLE TRISTAR/COMPACT Part Number: 99.2 360-xxx for Compact Replacement | 992360XXX | $510.58Read more |
| 41 | Not Available | Oreck Hose, Standard | 82131-01 | Not Available |
| 42 | Not Available | Oreck Wand, 21" Friction | 82132-01 | Not Available |
| 43 | Not Available | Oreck Clip, Friction Wand | 82133-01 | Not Available |
| 44 | Not Available | Oreck Electric Hose | 09-82279-51 | Not Available |
| 47 | Not Available | Oreck Gasket, Tube Clip | 82141-01 | Not Available |
| 48 | Not Available | Oreck Assembly, Hose And Kneebend, Bag Full | 09-82148-01 | Not Available |
| 49 | Not Available | Oreck Accessory Cover W/Lock Spring, Green | 09-82216-01 | Not Available |
| 50a |  | Oreck Paper Bags for DTX1100 DTX1200 DTX1300 DTX1400 Canister 5pk with Filters | ET511PK | $44.99Read more |
| 50b | No Image | Filter,:( Safety (Duo) Part Number: 82071-01 for Oreck | 8207101 | $1.87Read more |
| 50c | Not Available | Oreck Exhaust Filter | 82079-01 | Not Available |
| 51 | Not Available | Oreck External Hepa-Filter | 1100HF | Not Available |
| 57 | Not Available | Oreck Window | 82100-01-0329 | Not Available |
| 62 | Not Available | Oreck Valve, Suction Control | 82249-01 | Not Available |
| 63a | Not Available | Oreck Squeegee, Ebk340, Dtx1200 | 82297-01 | Not Available |
| 63h | Not Available | Oreck Motor, Power Head, Ebk340, Dtx1200 | 82304-01 | Not Available |
| 63 | Not Available | Oreck Power Nozzle, Dtx1200 | EBK340 | Not Available |
| 63g | Not Available | Oreck Brushroll, Power Head, Ebk340, Dtx1200 | 82303-01 | Not Available |
| 63f | Not Available | Oreck Replacement Belt, Power Head, Ebk340, Dtx1200 | 82302-01 | Not Available |
| 63e | Not Available | Oreck Pivot, Ebk340, Dtx1200 | 82301-01 | Not Available |
| 63i | Not Available | Oreck Circuit Board, Power Head, Ebk340, Dtx1200 | 82305-01 | Not Available |
| 63d | Not Available | Oreck Baseplate, Ebk340, Dtx1200 | 82300-01 | Not Available |
| 63c |  | CORD, EBK340 DTX1100 12000 13000 14000 Part Number: 82299-01 for Oreck | 8229901 | $62.06Read more |
| 63b | Not Available | Oreck Top Cover, Ebk340, Dtx1200 | 82298-01 | Not Available |
| 64 | Not Available | Oreck Wand, Telescopic W/Cord Management, Ebk340, Dtx1200 | 82276-01 | Not Available |
| 65 | Not Available | Oreck Bumper, Ebk340, Dtx1200 | 82306-01 | Not Available |
| 66 | Not Available | Oreck Light Kit, Ebk340, Dtx1200 | 82307-01 | Not Available |
| 67 | Not Available | Oreck Wheel & Axle Assy, Power Nozzle, Front, Ebk340, Dtx1200 | 82308-01 | Not Available |
| 69 | Not Available | Oreck Wheel & Axle Assy, Power Nozzle, Rear, Ebk340, Dtx1200 | 82309-01 | Not Available |
| 70 | Not Available | Oreck Motor Cover, Ebk340, Dtx1200 | 82320-01 | Not Available |
| 71 | Not Available | Oreck O-Ring #009 Cw | 82295-01 | Not Available |
