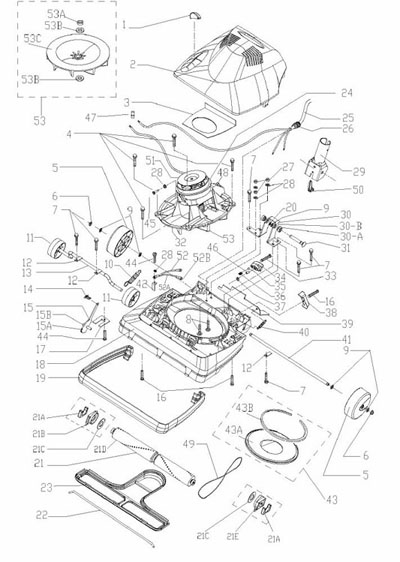

This is a list of parts and a diagram and schematic for: Koblenz Model: U-75
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U-75 Upright Vacuum
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Koblenz Handle Grip | 13-0947-5 | Not Available |
| 2 | Not Available | Koblenz Upper Handle Black | 05-4091-01-2 | Not Available |
| 3 | No Image | SCREW, 10X3/8 U75 Part Number: 01-0290-5 for Koblenz | 0102905 | $1.60Read more |
| 4 | Not Available | Koblenz Cord Hook Black U-75 | 05-4089-01-6 | Not Available |
| 5 | Not Available | Koblenz Cord Retainer | 13-1462-4 | Not Available |
| 6 | Not Available | Koblenz Screw 8 X | 01-0283-0 | Not Available |
| 7 | Not Available | Koblenz Lock Nylon Nut 10-32 | 02-0141-8 | Not Available |
| 8 |  | Cloth Bag, Dump U75/U80/U90 Commercial Part Number: 46-3231-1 for Koblenz | 4632311 | $61.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Koblenz Lower Handle Black | 05-4090-01-4 | Not Available |
| 10 | Not Available | Koblenz Label U-75 Cover | 17-4777-3 | Not Available |
| 11 | No Image | BASE, U75 Part Number: 13-2883-0 for Koblenz | 1328830 | $152.97Read more |
| 12 | Not Available | Koblenz Plastic Cover U-75 | 13-2949-9 | Not Available |
| 13 | Not Available | Koblenz Belt Retainer | 13-0304-9 | Not Available |
| 14 | Not Available | Koblenz Belt 210X137/ 16-83A | 12-0814-01-07 | Not Available |
| 15 | Not Available | Koblenz Special Screw For Handle | 01-2034-01-3 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 |  | Koblenz Knob Cam Koblenz U75 Upright Commercial | 1331479 | $2.07Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Koblenz Plastic Cover U-75 | 13-2949-9 | Not Available |
| 3 | Not Available | Koblenz Baffle | 12-0936-0 | Not Available |
| 4 | Not Available | Koblenz Screw B Type 10-16X3/4 | 01-15006 | Not Available |
| 5 |  | Rear Wheel Koblenz Upright For: koblenz | 1331446 | $4.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Koblenz Washer Cap Retainer | 04-0671-0 | Not Available |
| 7 | Not Available | Koblenz Screw Hexagonal No 10-16X5/8 | 01-1499-1 | Not Available |
| 8 | Not Available | Koblenz Screw 10X 5/8 | 01-0664-1 | Not Available |
| 9 | Not Available | Koblenz Flat Washer 5/16 X | 04-0589-4 | Not Available |
| 10 | Not Available | Koblenz Front Axle Spring | 24-0308-7 | Not Available |
| 11 | Not Available | Koblenz Front Wheel U-75 | 13-3143-8 | Not Available |
| 12 | Not Available | Koblenz Axle Retainer Plate | 05-4489-0 | Not Available |
| 13 | Not Available | Koblenz Galvanized Front Axle | 25-1349-02-3 | Not Available |
| 14 | Not Available | Koblenz Screw B Type No 6 | 01-1651-7 | Not Available |
| 15 | Not Available | Koblenz Cam Assy | 46-3206-3 | Not Available |
| 15-B | Not Available | Koblenz Bolt For Cam | 25-1345-5 | Not Available |
| 15-A | Not Available | Koblenz U-75 Cam | 05-4722-4 | Not Available |
| 16 | Not Available | Koblenz Screw No 6X5/8 Type Bc/Phillips | 01-0093-3 | Not Available |
| 17 | Not Available | Koblenz Cam Retainer Plate | 05-4721-6 | Not Available |
| 18 | No Image | BASE, U75 Part Number: 13-2883-0 for Koblenz | 1328830 | $152.97Read more |
| 19 | Not Available | Koblenz U-75 Bumper Guard | 12-0952-7 | Not Available |
| 20 | Not Available | Koblenz Po-25 Lock Washer | 04-0469-9 | Not Available |
| 21-A |  | GASKET, BEARING SUPPORT U210 Part Number: 12-0522-8 for Koblenz | 1205228 | $1.76Read more |
| 21-B | Not Available | Koblenz Left Bearing Support | 13-1801-3 | Not Available |
| 21-C | No Image | Bearing Support Felt Konblenz U510 For: koblenz | 3701307 | $1.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21-D |  | Brushroll, 12 In U310/U75 Uprt W/Ends Cmmrcial U80 Part Number: 46-2375-7 for Koblenz | 4623757 | $25.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21-E |  | Bearing Support End Cap Koblenz U510 For: koblenz | 1312529 | $5.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | Brushroll, 12 In U310/U75 Uprt W/Ends Cmmrcial U80 Part Number: 46-2375-7 for Koblenz | 4623757 | $25.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Retainer-Bottom Plate-Koblenz U-310 For: koblenz | 2509974 | $6.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Koblenz Bottom Plate | 46-3207-1 | Not Available |
| 24 | Not Available | Koblenz Motor Cooling Cover | 13-3146-1 | Not Available |
| 25 |  | Cord, 50' Yellow 3-Wire U-75 Part Number: 28-1644-5 for Koblenz | 2816445 | $63.04Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Koblenz Grommet Heyco 1232 | 12-0953-5 | Not Available |
| 27 | Not Available | Koblenz Hexagonal Nut No.10-24 | 02-0041-0 | Not Available |
| 28 | Not Available | Koblenz Washer Stars No 10X.204 | 04-0271-9 | Not Available |
| 29 |  | Handle Yoke - Koblenz U75 - Commercial For: koblenz | 054734025 | $36.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Koblenz Yoke Support Bushing Assy | 46-3260-0 | Not Available |
| 30-A | Not Available | Koblenz Bushing Yoke | 13-3148-7 | Not Available |
| 30-B |  | Koblenz Yoke Support Koblenz U75 Upright | 0547257 | $12.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Koblenz Bolt For Yoke | 25-1346-3 | Not Available |
| 32 | Not Available | Koblenz Motor Mount Gasket | 12-0495-01-5 | Not Available |
| 33 | Not Available | Koblenz Screw 8X 3/4 | 01-0285-5 | Not Available |
| 34 | Not Available | Koblenz Bag Knob | 13-2126-4 | Not Available |
| 35 | Not Available | Koblenz Ball Arm Shaft/R 30465P2 | 26-0001-3 | Not Available |
| 36 |  | SPRING, Part Number: 24-0014-1 for Koblenz | 2400141 | $2.64Read more |
| 37 | Not Available | Koblenz Flat Washer (02-0101) | 04-0026-7 | Not Available |
| 38 | Not Available | Koblenz Bag Support | 13-2127-2 | Not Available |
| 39 |  | Handle Release Pedal - Koblenz U75 Upright For: koblenz | 054724026 | $19.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Koblenz Pedal Spring | 24-0316-0 | Not Available |
| 41 | Not Available | Koblenz Rear Axle | 25-1322-4 | Not Available |
| 42 | Not Available | Koblenz Grounding Terminal | 05-4993-1 | Not Available |
| 43 |  | Cover, Clear Plastic Fan Assy W/Gasket U75/U40/U80 Part Number: 46-3208-9 for Koblenz | 4632089 | $19.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43-A | Not Available | Koblenz Fan Cover | 13-3145-3 | Not Available |
| 43-B | Not Available | Koblenz Fan Cover Gasket | 12-0834-7 | Not Available |
| 44 | Not Available | Koblenz Screw Phillips 6 X 3/8 " " A " | 01-0270-7 | Not Available |
| 45 | Not Available | Koblenz Screw T Type 8-32 X 1/4 | 01-1683-0 | Not Available |
| 46 |  | Bag Knob Spacer-Koblenz Upright For: koblenz | 0509976 | $1.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Koblenz Cable Connector | 10-0137-9 | Not Available |
| 48 |  | Switch, Black Rectangular Rocker Koblenz U310/U75 Part Number: 11-0159-1 for Koblenz | 1101591 | $8.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 |  | Belt, Koblenz Commercial Uprights, Clear Round Part Number: 12-0814-01-7 for Koblenz | 120814017 | $6.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Koblenz Switch Actuator | 13-3273-3 | Not Available |
| 51 | Not Available | Koblenz Assy U-75 Motor | 46-3099-2 | Not Available |
| 52 | Not Available | Koblenz Ground Cord Assy | 28-1664-3 | Not Available |
| 52-A | Not Available | Koblenz Grounding Cable | 09-1319-4 | Not Available |
| 52-B | Not Available | Koblenz Terminal Of Earth Return | 30-0197-1 | Not Available |
| 53 |  | Fan, Clear Lexan Plastic W/Washers U75/U80/U90 Part Number: 45-0524-4 for Koblenz | 4505244 | $16.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53A | Not Available | Koblenz Buje P/Turbina Plastico | 04-0123-2 | Not Available |
| 53B | Not Available | Koblenz Rondana De Fibra 0 Int. .315 | 13-2442-5 | Not Available |
| 53C | Not Available | Koblenz Turbina 9 Aletas | 26-0221-7 | Not Available |
