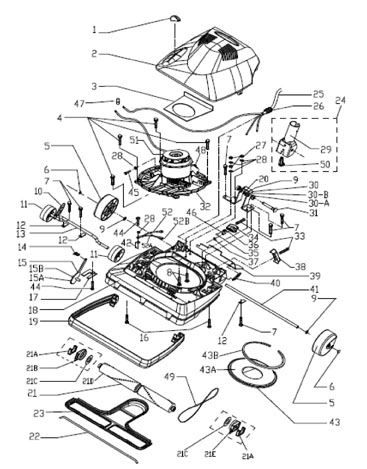

This is a list of parts and a diagram and schematic for: Koblenz Model: U-40
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U-40 Upright Vacuum
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Koblenz Handle Grip | 13-0947-5 | Not Available |
| 2 | Not Available | Koblenz Black Tube Top U-75 | 05-4091-01-2 | Not Available |
| 3 | No Image | SCREW, 10X3/8 U75 Part Number: 01-0290-5 for Koblenz | 0102905 | $1.60Read more |
| 4 | Not Available | Koblenz Cord Hook | 05-4089-01-6 | Not Available |
| 5 | Not Available | Koblenz Hook Line Cable | 13-1462-4 | Not Available |
| 6 | Not Available | Koblenz Screw 8 x 1/2" | 01-0283-0 | Not Available |
| 7 | Not Available | Koblenz Nut | 02-0141-8 | Not Available |
| 8 |  | Cloth Bag, Dump U75/U80/U90 Commercial Part Number: 46-3231-1 for Koblenz | 4632311 | $61.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Koblenz Lower Handle Black | 05-4090-01-4 | Not Available |
| 10 | Not Available | Koblenz Label Cover Upright | 17-571-0 | Not Available |
| 11 |  | Base Assembly-Koblenz U75
U80 For: koblenz | 132883018 | $63.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Koblenz Plastic Cover Upright | 13-2949-01-7 | Not Available |
| 13 | Not Available | Koblenz Cord Retainer | 13-0304-9 | Not Available |
| 14 |  | Belt, Koblenz Commercial Uprights, Clear Round Part Number: 12-0814-01-7 for Koblenz | 120814017 | $6.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Koblenz Screw Handle | 01-2034-01-3 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 |  | Koblenz Knob Cam Koblenz U75 Upright Commercial | 1331479 | $2.07Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Koblenz Plastic Cover Upright U-40 | 13-2949-01-7 | Not Available |
| 3 | Not Available | Koblenz Baffle | 12-0936-0 | Not Available |
| 4 | Not Available | Koblenz Screw B 10-16X3/4 | 01-15006 | Not Available |
| 5 |  | Rear Wheel Koblenz Upright For: koblenz | 1331446 | $4.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Koblenz Blind Security Type Hat | 04-0671-0 | Not Available |
| 7 | Not Available | Koblenz Screw Hex No 10-16X5/8 | 01-1499-1 | Not Available |
| 8 | Not Available | Koblenz Screw 10X5/8 | 01-0664-1 | Not Available |
| 9 | Not Available | Koblenz Flat Washer 5/16X1/2 | 04-0589-4 | Not Available |
| 10 | Not Available | Koblenz Front Axle Spring | 24-0308-7 | Not Available |
| 11 | Not Available | Koblenz Front Wheel | 13-3143-8 | Not Available |
| 12 | Not Available | Koblenz Reten Plate Shaft | 05-4489-0 | Not Available |
| 13 | Not Available | Koblenz Front Axle Galvanized | 25-1349-02-3 | Not Available |
| 14 | Not Available | Koblenz Screw Type Bt No 6 | 01-1651-7 | Not Available |
| 15 | Not Available | Koblenz Cam Assembly | 46-3206-3 | Not Available |
| 15-A | Not Available | Koblenz Cam Upright | 05-4722-4 | Not Available |
| 15-B | Not Available | Koblenz Bolt For Cam | 25-1345-5 | Not Available |
| 16 | Not Available | Koblenz Screw No 6 X 5/8 Type Bc/Phillips | 01-0093-3 | Not Available |
| 17 | Not Available | Koblenz Reten Cam Plate | 05-4721-6 | Not Available |
| 18 | | Base Assembly-Koblenz U75
U80 For: koblenz | 132883018 | $63.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Koblenz Upright For Plastic Molding | 12-0952-7 | Not Available |
| 20 | Not Available | Koblenz Security Padlock Po-25 | 04-0469-9 | Not Available |
| 21-A |  | GASKET, BEARING SUPPORT U210 Part Number: 12-0522-8 for Koblenz | 1205228 | $1.76Read more |
| 21-B | Not Available | Koblenz Carrier Bearing Left | 13-1801-3 | Not Available |
| 21-C | No Image | Bearing Support Felt Konblenz U510 For: koblenz | 3701307 | $1.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21-D |  | Brushroll, 12 In U310/U75 Uprt W/Ends Cmmrcial U80 Part Number: 46-2375-7 for Koblenz | 4623757 | $25.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21-E |  | Bearing Support End Cap Koblenz U510 For: koblenz | 1312529 | $5.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | Brushroll, 12 In U310/U75 Uprt W/Ends Cmmrcial U80 Part Number: 46-2375-7 for Koblenz | 4623757 | $25.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Retainer-Bottom Plate-Koblenz U-310 For: koblenz | 2509974 | $6.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Koblenz Roller Assembly Cover Tilt | 46-3207-1 | Not Available |
| 24 | Not Available | Koblenz Switch-Actuator Yoke Assembly | 46-3433-3 | Not Available |
| 25 | Not Available | Koblenz Cable Assembly Line U-40 | 28-1644-01-3 | Not Available |
| 26 | Not Available | Koblenz Gromet Heyco 1232 | 12-0953-5 | Not Available |
| 27 | Not Available | Koblenz Nut Hex. No 10-24 | 02-0041-0 | Not Available |
| 28 | Not Available | Koblenz Star Washer No 10X204 | 04-0271-9 | Not Available |
| 29 |  | Handle Yoke - Koblenz U75 - Commercial For: koblenz | 054734025 | $36.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Koblenz Support Yoke Bushing Assembly | 46-3260-0 | Not Available |
| 30-A | Not Available | Koblenz Yoke Bushing | 13-3148-7 | Not Available |
| 30-B |  | Koblenz Yoke Support Koblenz U75 Upright | 0547257 | $12.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Koblenz Pin For Yoke | 25-1346-3 | Not Available |
| 32 | Not Available | Koblenz Packing Seal Motor Base | 12-0495-01-5 | Not Available |
| 33 | Not Available | Koblenz Screw De 8X3/4 | 01-0285-5 | Not Available |
| 34 | Not Available | Koblenz Knob For Exchange Couplings | 13-2126-4 | Not Available |
| 35 | Not Available | Koblenz Fork Bullets Loca | 26-0001-3 | Not Available |
| 36 |  | SPRING, Part Number: 24-0014-1 for Koblenz | 2400141 | $2.64Read more |
| 37 | Not Available | Koblenz Flat Washer (02-0101) | 04-0026-7 | Not Available |
| 38 | Not Available | Koblenz Couplings Reten Bag | 13-2127-2 | Not Available |
| 39 |  | Handle Release Pedal - Koblenz U75 Upright For: koblenz | 054724026 | $19.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Koblenz Pedal Spring Handle Upright | 24-0316-0 | Not Available |
| 41 | Not Available | Koblenz Rear Wheel Axle | 25-1322-4 | Not Available |
| 42 | Not Available | Koblenz Angle For Soil | 05-4993-1 | Not Available |
| 43 |  | Cover, Clear Plastic Fan Assy W/Gasket U75/U40/U80 Part Number: 46-3208-9 for Koblenz | 4632089 | $19.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43-A | Not Available | Koblenz Turbine Cover | 13-3145-3 | Not Available |
| 43-B | Not Available | Koblenz Turbine Seal Cover Gasket | 12-0834-7 | Not Available |
| 44 | Not Available | Koblenz Screw 6x3 | 01-0270-7 | Not Available |
| 45 | Not Available | Koblenz Screw Type T 8-32 | 01-1683-0 | Not Available |
| 46 |  | Bag Knob Spacer-Koblenz Upright For: koblenz | 0509976 | $1.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Koblenz Staple Insulated Connector | 10-0137-9 | Not Available |
| 48 |  | Switch, Black Rectangular Rocker Koblenz U310/U75 Part Number: 11-0159-1 for Koblenz | 1101591 | $8.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | | Belt, Koblenz Commercial Uprights, Clear Round Part Number: 12-0814-01-7 for Koblenz | 120814017 | $6.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Koblenz Actuator Switch | 13-3273-3 | Not Available |
| 51 | No Image | Motor, Koblenz U40 Part Number: 46-3383-01-8 for Koblenz | 463383018 | $84.68Read more |
| 52 | Not Available | Koblenz Cable Assembly Ground | 28-1664-3 | Not Available |
| 52-A | Not Available | Koblenz Cable Green Earth | 09-1319-4 | Not Available |
| 52-B | Not Available | Koblenz Connection Terminal A | 30-0197-1 | Not Available |
