Schematic and parts list for: Koblenz Model: BP-1400

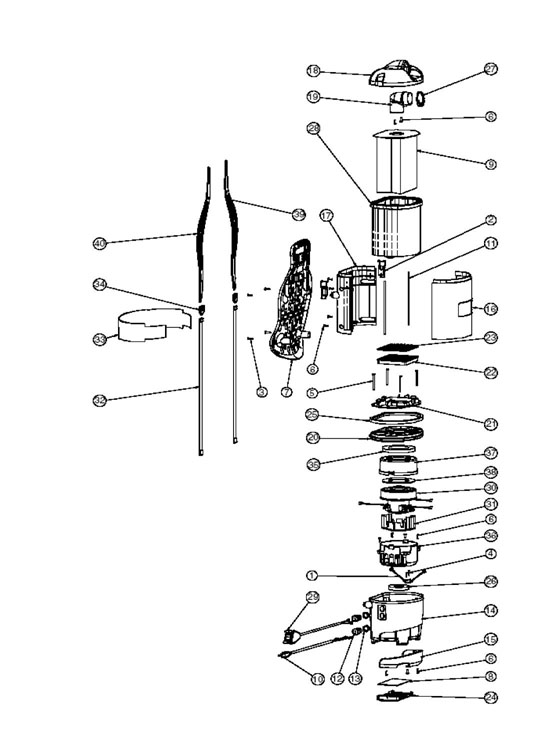

This is a list of parts and a diagram and schematic for: Koblenz Model: BP-1400
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: BP-1400 BackPack Vacuum
| # | Part image | Description | SKU | Price |
| xx | Not Available | Koblenz 50' Cable-Extension 16 | 49-5800-28-6 | Not Available |
| xx | Not Available | Koblenz Crevise Tool | 49-5818-7 | Not Available |
| xx | Not Available | Koblenz Upholstery Tool | 49-5817-9 | Not Available |
| xx | Not Available | Koblenz Dust Brush Tool Body | 49-5819-5 | Not Available |
| xx | Not Available | Koblenz Dust Brush Bristles | 49-5820-3 | Not Available |
| xx | No Image | RUG TOOL, KOBLENZ BACK PACK BP-1400 Part Number: 49-5822-9 for Koblenz | 4958229 | $33.18Read more |
| xx | Not Available | Koblenz Carpet Tool Bumper | 49-5823-7 | Not Available |
| xx | Not Available | Koblenz Bare Floor Tool Body | 49-5824-5 | Not Available |
| xx |  | BRUSH, BARE FLOOR TOOL Part Number: 49-5825-2 for Koblenz | 4958252 | $58.90Read more |
| xx | Not Available | Koblenz Hose | 49-5816-1 | Not Available |
| xx | Not Available | Koblenz Telescope Wand | 49-5800-27-8 | Not Available |
| 1 | Not Available | Koblenz Thermal Protection Switch | 49-5800-01-3 | Not Available |
| 2 | Not Available | Koblenz Latch | 49-5800-5 | Not Available |
| 3 | Not Available | Koblenz #10 .750 Type B Phi Lips Pan Head Screw | 49-5800-02-1 | Not Available |
| 4 | Not Available | Koblenz #6 X .375 Hi-Lo Phi Lips Pan Head Screw | 49-5800-03-9 | Not Available |
| 5 | Not Available | Koblenz #8-16 X 2.500 Phi Lips Pan Head Screw | 49-5800-04-7 | Not Available |
| 6 | Not Available | Koblenz #8 X .625 Hi-Lo Phi Lips Pan Head Screw | 49-5800-05-4 | Not Available |
| 7 | Not Available | Koblenz Back Rest | 49-5800-06-2 | Not Available |
| 8 | Not Available | Koblenz Post Filter | 49-5802-1 | Not Available |
| 9 | Not Available | Koblenz Paper Bag 10 Pack | 45-0778-06 | Not Available |
| 10 | Not Available | Koblenz Power Harness | 49-5804-7 | Not Available |
| 11 | Not Available | Koblenz Bag Compartment Seal | 49-5805-4 | Not Available |
| 12 | Not Available | Koblenz Heyco Fitting | 49-5800-07-0 | Not Available |
| 13 | Not Available | Koblenz Heyo Fitting Nut | 49-5800-08-8 | Not Available |
| 14 | Not Available | Koblenz Motor Compartment | 49-5800-09-6 | Not Available |
| 15 | Not Available | Koblenz Bumper | 49-5800-10-4 | Not Available |
| 16 | Not Available | Koblenz Front Plate | 49-5806-2 | Not Available |
| 17 | Not Available | Koblenz Back Plate | 49-5807-0 | Not Available |
| 18 | Not Available | Koblenz Cover | 49-5808-8 | Not Available |
| 19 | Not Available | Koblenz Hose Inlet | 49-5809-6 | Not Available |
| 20 | Not Available | Koblenz Motor Cover | 49-5800-11-2 | Not Available |
| 21 | Not Available | Koblenz Secondary Filter Plate | 49-5800-12-0 | Not Available |
| 22 | Not Available | Koblenz Secondary Filter Frame | 49-5800-13-8 | Not Available |
| 23 | Not Available | Koblenz Secondary Filter Cap | 49-5800-14-6 | Not Available |
| 24 | Not Available | Koblenz Post Filter Frame | 49-5800-15-3 | Not Available |
| 25 | Not Available | Koblenz Body Seal | 49-5800-16-1 | Not Available |
| 26 | Not Available | Koblenz Bottom Motor Mount | 49-5800-17-9 | Not Available |
| 27 | Not Available | Koblenz Inlet Seal | 49-5800-18-7 | Not Available |
| 28 | Not Available | Koblenz Shake Out Bag | 49-5810-4 | Not Available |
| 29 | Not Available | Koblenz Switch Harness | 49-5811-2 | Not Available |
| 30 | Not Available | Koblenz 5.1" Single Stage Tek Motor | 49-5812-0 | Not Available |
| 31 | Not Available | Koblenz Tek Motor Shroud Pc | 49-5800-19-5 | Not Available |
| 32 | Not Available | Koblenz Shoulder Harness Strap | 49-5813-8 | Not Available |
| 33 | Not Available | Koblenz Waist Belt | 49-5800-20-3 | Not Available |
| 34 | Not Available | Koblenz Shoulder Strap Buckle | 49-5800-21-1 | Not Available |
| 35 | Not Available | Koblenz Top Motor Mount | 49-5800-22-9 | Not Available |
| 36 | Not Available | Koblenz Motor Shroud Bottom 5.1 - 1 Stage | 49-5800-23-7 | Not Available |
| 37 | Not Available | Koblenz Motor Shroud Top 5.1 - 1 Stage | 49-5800-24-5 | Not Available |
| 38 | Not Available | Koblenz Motor Seal | 49-5814-6 | Not Available |
| 39 | Not Available | Koblenz Right Shoulder Harness | 49-5800-25-2 | Not Available |
| 40 | Not Available | Koblenz Left Shoulder Harness | 49-5800-26-0 | Not Available |
