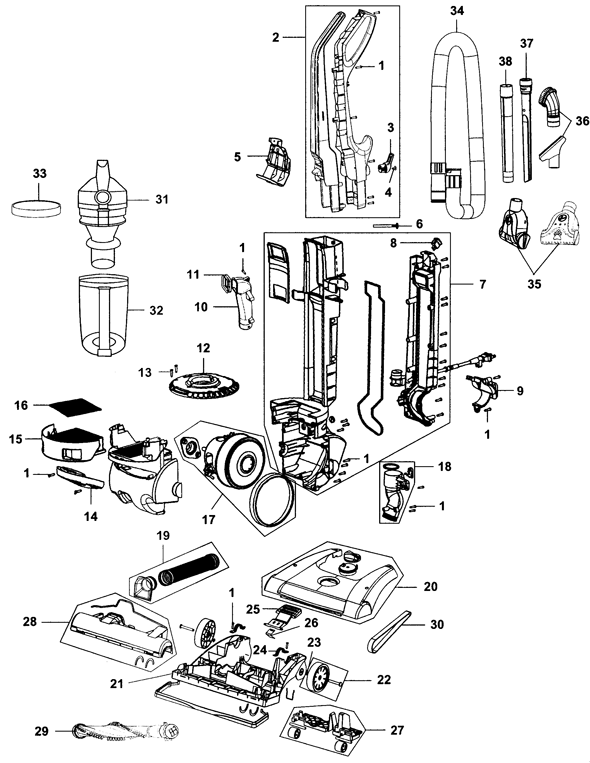

This is a list of parts and a diagram and schematic for: Hoover Model: UH70816
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: WindTunnel2 High Capacity Pet Bagless Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Body Screw - #6 - 10Self Tapping | 21447228 | Not Available |
| 3 | Not Available | Hoover Upper Cord Hook | 521067001 | Not Available |
| 4 | Not Available | Hoover Screw Withwasher -Cord Hook | 660128007 | Not Available |
| 5 | Not Available | Hoover Turbo Tool Clip | 440003990 | Not Available |
| 6 |  | Screw, Handle UH70200/UH70110/UH70105/UH70205 Part Number: 430001077 for Hoover | 430001077 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Hoover Main Back Panel Assembly - Shodow Gray | 440003977 | Not Available |
| 8 |  | Switch, Red Circulr Rocker UH70800/UH70816/UH70820 | H-440003992 | $5.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Hoover Cord / Hose Wrap -Lower | 521068001 | Not Available |
| 10 | Not Available | Hoover Inlet Tube Assembly -Dirt Cup | 304083001 | Not Available |
| 11 | Not Available | Hoover Seal - Inlet Tube | 562269001 | Not Available |
| 12 | Not Available | Hoover Exhaust Filter Cover | 440003989 | Not Available |
| 13 | Not Available | Hoover Body Screw - #8 X16Mm | 660021002 | Not Available |
| 14 | Not Available | Hoover Stair Handle - Shadow Gray | 521064001 | Not Available |
| 15 |  | Aftermarket Hoover Exhaust Filter for UH70800 Models | H-305687001 | $16.84Add to cart |
| 15 | No Image | Compatible alternateFilter,Hepa Exhaust-Hoover Uh70130 Windtunnel T Orig Is 39-2371-02 More Product Details | F290 | $21.97Add to cart Special order — allow 2-4 weeks. |
| 16 |  | Hoover Exhaust Filter for UH70210 | H902404001 | $9.89Read more |
| 17 |  | Motor, UH70832/UH70800/UH70829 WindTunnel Rewind | 440003978 | $30.99Read more |
| 18 | Not Available | Hoover Lower Hose Adaptor Assembly | 303832001 | Not Available |
| 19 | Not Available | Hoover Lower Hose Assembly | 440003985 | Not Available |
| 21 |  | Hoover base assembly for WindTunnel 2 models; UH70800, UH70816, UH70820 and UH70830 | 440003982 | $35.20Read more |
| 22 | Not Available | Hoover Rear Wheel Assembly | 440003986 | Not Available |
| 23 | Not Available | Hoover E-Clip | 691040002 | Not Available |
| 24 | Not Available | Hoover Pivot Clamp | 440004033 | Not Available |
| 25 |  | Pedal, Silver Metallic Handle Release W Part Number: 440013591 for Hoover | 440013591 | $9.67Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Hoover Spring - Handle Release Pedal | 633197001 | Not Available |
| 27 |  | Roller Lifter, :( Front WindTunnel II UH70820/UH70 | 440003984 | $15.39Read more |
| 28 | Not Available | Hoover Brush Roll Housing Assembly | 440003981 | Not Available |
| 29 |  | NLA Brushroll, Uh70800/Uh70816/Uh70820/Uh70830 | H440003987 | $32.99Read more |
| 29 | Not Available | Hoover Brush Roll Assembly -Orange Bristles | 440004193 | Not Available |
| 30 | Not Available | Hoover Belt - Stretch | 562932001 | Not Available |
| 32 | Not Available | Hoover Dirt Cup Assembly -Long | 440003980 | Not Available |
| 33 |  | Aftermarket Hoover Filter Dirt Cup UH70600/UH71009 Round Primary | H-304087001 | $11.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Compatible alternateFilter - Primary - Hoover Uh70600 - Uh70603 W/T Max Upr.
Uh72600 - Uh71250 For: hoover More Product Details | 304087001 | $8.36Add to cart Special order — allow 2-4 weeks. |
| 34 |  | Hose, Upper UH70200/UH70210 Part Number: 440013582 for Hoover | 440013582 | $16.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Upholstery Tool, Pet WindTunnel 2 Part Number: 440004119 for Hoover | 440004119 | $27.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Hoover Upholstery Tool - Pet Orange | 303303001 | Not Available |
| 36 |  | NO LONGER AVAILABLE Dust Brush, Black UH70200/UH70205/UH70130 Part Number: 440013586 for Hoover | 440013586 | $7.38Read more |
| 37 | Not Available | Hoover Crevice Tool - Long Shadow Gray | 522305001 | Not Available |
| 38 | Not Available | Hoover Extension Wand | 500170001 | Not Available |
