Schematic and parts list for: Hoover Model: UH70810

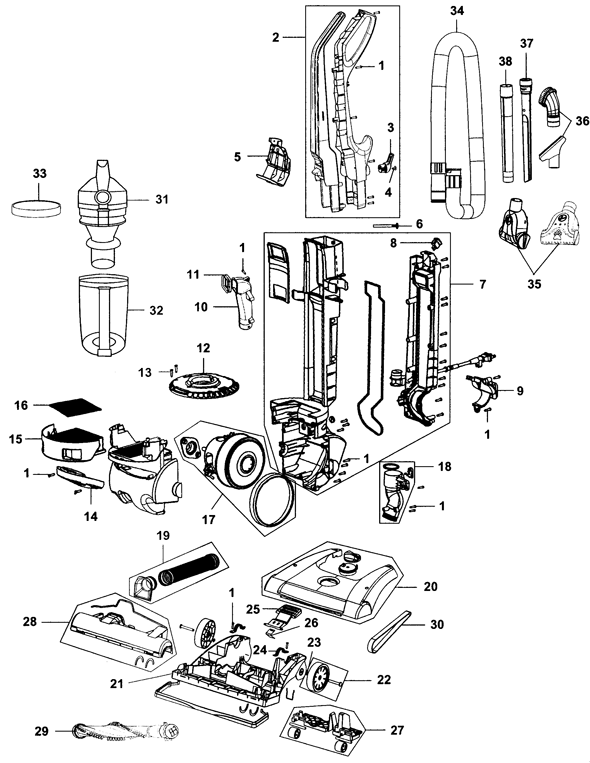

This is a list of parts and a diagram and schematic for: Hoover Model: UH70810
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: WindTunnel2 High Capacity Pet
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Body Screw - #6 - 10 Self Tapping | 21447228 | Not Available |
| 2 | Not Available | Hoover Handle Assembly -Straight / D Style -Iron Ore Metallic | 440003976 | Not Available |
| 2 | Not Available | Hoover Handle Assembly -Straight / D Style -Shadowsmetallic | 440004173 | Not Available |
| 3 | Not Available | Hoover Upper Cord Hook | 521067001 | Not Available |
| 4 | Not Available | Hoover Screw Withwasher -Cord Hook | 660128007 | Not Available |
| 5 | Not Available | Hoover Turbo Tool Clip | 440003990 | Not Available |
| 6 |  | Screw, Handle UH70200/UH70110/UH70105/UH70205 Part Number: 430001077 for Hoover | 430001077 | $5.12Read more |
| 7 | Not Available | Hoover Main Back Panel Assembly - Shodow Gray | 440003977 | Not Available |
| 8 | No Image | Switch, Red Circulr Rocker UH70800/UH70816/UH70820 | H-440003992 | $9.99Read more |
| 9 | Not Available | Hoover Cord / Hose Wrap -Lower | 521068001 | Not Available |
| 10 | Not Available | Hoover Inlet Tube Assembly -Dirt Cup | 304083001 | Not Available |
| 11 | Not Available | Hoover Seal - Inlet Tube | 562269001 | Not Available |
| 12 | Not Available | Hoover Exhaust Filter Cover | 440003989 | Not Available |
| 13 | Not Available | Hoover Body Screw - #8 X 16Mm | 660021002 | Not Available |
| 14 | Not Available | Hoover Stair Handle - Shadow Gray | 521064001 | Not Available |
| 15 |  | Aftermarket Hoover Exhaust Filter for UH70800 Models | H-305687001 | $16.99Add to cart |
| 16 |  | Hoover Exhaust Filter for UH70210 | H902404001 | $4.99Read more |
| 17 | No Image | Motor, UH70832/UH70800/UH70829 WindTunnel Rewind | 440003978 | $28.17Read more |
| 18 | Not Available | Hoover Lower Hose Adaptor Assembly | 303832001 | Not Available |
| 19 | Not Available | Hoover Lower Hose Assembly | 440003985 | Not Available |
| 20 | Not Available | Hoover Nozzle Cover Assembly - Shadows Metallic | 440004175 | Not Available |
| 20 | Not Available | Hoover Nozzle Cover Assembly - Iron Ore Metallic | 440003983 | Not Available |
| 21 | No Image | Hoover base assembly for WindTunnel 2 models; UH70800, UH70816, UH70820 and UH70830 | 440003982 | $32.00Read more |
| 22 | Not Available | Hoover Rear Wheel Assembly | 440003986 | Not Available |
| 23 | Not Available | Hoover E-Clip | 691040002 | Not Available |
| 24 | Not Available | Hoover Pivot Clamp | 440004033 | Not Available |
| 25 |  | Pedal, Silver Metallic Handle Release W Part Number: 440013591 for Hoover | 440013591 | $8.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Hoover Spring - Handle Release Pedal | 633197001 | Not Available |
| 27 | No Image | Roller Lifter, :( Front WindTunnel II UH70820/UH70 | 440003984 | $13.99Read more |
| 28 | Not Available | Hoover Brush Roll Housing Assembly | 440003981 | Not Available |
| 29 | Not Available | Hoover Brush Roll Assembly -Orange Bristles | 440004193 | Not Available |
| 29 |  | NLA Brushroll, Uh70800/Uh70816/Uh70820/Uh70830 | H440003987 | $29.99Read more |
| 30 | Not Available | Hoover Belt - Stretch | 562932001 | Not Available |
| 31 | Not Available | Hoover Dirt Cup Lid Assembly- Red Metallic | 440004433 | Not Available |
| 31 | Not Available | Hoover Dirt Cup Lid Assembly- Lazer Blue Metallic | 440004293 | Not Available |
| 31 | Not Available | Hoover Dirt Cup Lid Assembly- Shadowsmetallic | 440004174 | Not Available |
| 31 | Not Available | Hoover Dirt Cup Lid Assembly- Iron Ore Metallic | 440003979 | Not Available |
| 32 | Not Available | Hoover Dirt Cup Assembly -Long | 440003980 | Not Available |
| 33 | No Image | Hoover Filter Dirt Cup UH70600/UH71009 Round Primary | H-304087001 | $11.99Add to cart |
| 34 |  | Hose, Upper UH70200/UH70210 Part Number: 440013582 for Hoover | 440013582 | $15.07Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | Hoover pet turbo tool, UH30300, UH30302, UH30308, UH30310 T-Series WindTunnel Pet, UH70086 WindTunnel Pet Rewind Plus, UH70130 T-Series WindTunnel Rewind, UH70140 T-Series WindTunnel Rewind Plus, UH70210 T-Series WindTunnel Pet Rewind, UH70211 T-Series WindTunnel Pet Rewind, U | 440004118 | $12.00Read more |
| 35 | No Image | Hoover pet turbo tool, UH30300, UH30302, UH30308, UH30310 T-Series WindTunnel Pet, UH70086 WindTunnel Pet Rewind Plus, UH70130 T-Series WindTunnel Rewind, UH70140 T-Series WindTunnel Rewind Plus, UH70210 T-Series WindTunnel Pet Rewind, UH70211 T-Series WindTunnel Pet Rewind, U | 440004118 | $12.00Read more |
| 36 | Not Available | Hoover Upholstery Tool - Pet Orange | 303303001 | Not Available |
| 36 |  | Upholstery Tool, Pet WindTunnel 2 Part Number: 440004119 for Hoover | 440004119 | $14.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Dust Brush, Black UH70200/UH70205/UH70130 Part Number: 440013586 for Hoover | 440013586 | $6.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | Hoover Crevice Tool - Long Shadow Gray | 522305001 | Not Available |
| 38 | Not Available | Hoover Extension Wand | 50017001 | Not Available |
