Schematic and parts list for: Hoover Model: U8149

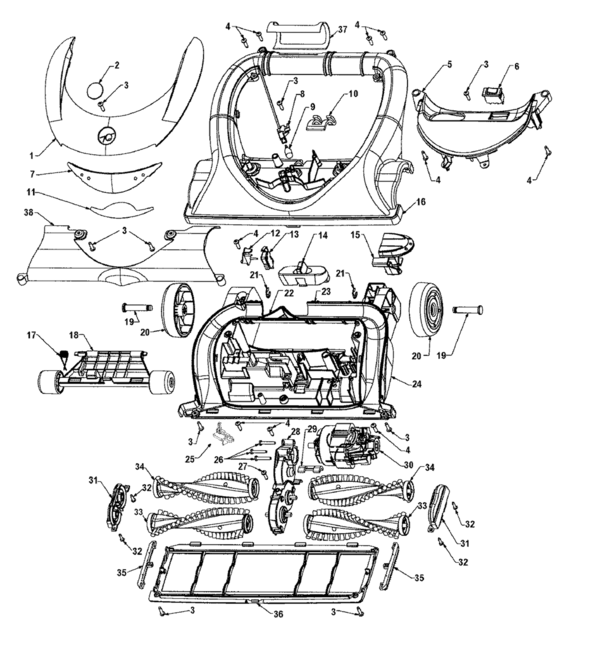

This is a list of parts and a diagram and schematic for: Hoover Model: U8149
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover HoodAcxU8149900 | 37251011 | Not Available |
| 2 | Not Available | Hoover Medallion | 51661020 | Not Available |
| 3 | Not Available | Hoover Screw | 017001FW | Not Available |
| 4 | Not Available | Hoover Body Screw # 8 10 X .625" Self Tapping | 21447242 | Not Available |
| 5 | Not Available | Hoover Control PanelU8148 | 37246140 | Not Available |
| 5 | Not Available | Hoover Control PanelAef | 37246148 | Not Available |
| 6 | Not Available | Hoover Rocker Switch W/Cir Breaker | 27854029 | Not Available |
| 6 | Not Available | Hoover Rocker Sw W/Cir Brk | 27854030 | Not Available |
| 7 | Not Available | Hoover Lens | 39383113 | Not Available |
| 8 | Not Available | Hoover Lamp Socket | 47173037 | Not Available |
| 9 | Not Available | Hoover Lamp Bulb 13 Volt | 27313107 | Not Available |
| 10 |  | SEAL, TRUNNION V2 U8120/ 30/40/42/48 Part Number: 38783030 for Hoover | 38783030 | $2.76Read more |
| 11 | Not Available | Hoover Reflector | 39385008 | Not Available |
| 12 | Not Available | Hoover Switch Bracket Dark Charcoal Gray | 36913031 | Not Available |
| 13 | Not Available | Hoover Microswitch | 28218050 | Not Available |
| 14 | Not Available | Hoover Actuator KnobAg | 38421110 | Not Available |
| 14 | Not Available | Hoover Actuator Knob U8148 | 38421077 | Not Available |
| 15 | Not Available | Hoover Handle Release LeverAg | 38434026 | Not Available |
| 16 | Not Available | Hoover Agit Hsg W/Furniture Guard | 37243045 | Not Available |
| 17 | Not Available | Hoover Torsion Spring | 38355010 | Not Available |
| 18 | Not Available | Hoover Front Wheel CarrAssem | 43248067 | Not Available |
| 18 | Not Available | Hoover Wheel CarriageAbe | 36432044 | Not Available |
| 19 | Not Available | Hoover Rear AxleAax | 32434014 | Not Available |
| 19 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 20 | Not Available | Hoover Rear WheelW/TreadAef/Ag | 38522082 | Not Available |
| 21 | Not Available | Hoover EClip / Lock Ring | 160017 | Not Available |
| 22 | Not Available | Hoover Gasket27In | 38781065 | Not Available |
| 23 | Not Available | Hoover Gasket35In | 38781060 | Not Available |
| 24 | Not Available | Hoover Main BodyAbe | 37241169 | Not Available |
| 24 | Not Available | Hoover Main BodyU8148 | 37241167 | Not Available |
| 25 | Not Available | Hoover Height Adj LvrU8148 | 38458063 | Not Available |
| 26 | No Image | SCREW, GEAR BOX V2 U8126 12 PK Part Number: 21445827 for Hoover | 21445827 | $1.81Read more |
| 27 | Not Available | Hoover ScrewSelf Tapping5/8 | 214793DA | Not Available |
| 28 | Not Available | Hoover Gear Hsg Mtr Aft6/03 Service | 42915024 | Not Available |
| 29 | | SEAL, TRUNNION V2 U8120/ 30/40/42/48 Part Number: 38783030 for Hoover | 38783030 | $2.76Read more |
| 30 | Not Available | Hoover Gear Hsg Mtr Aft6/03 Service | 42915024 | Not Available |
| 31 | Not Available | Hoover End Cap Brush Roll / Graphite Gray | 41435026 | Not Available |
| 32 | Not Available | Hoover ScrewSelf Tap | 21479446 | Not Available |
| 33 | Not Available | Hoover Brush Roll Assembly Laced Right Hand | 48414125 | Not Available |
| 34 | Not Available | Hoover Brush Roll Assembly Laced Left Hand | 48414128 | Not Available |
| 35 | Not Available | Hoover Litter PickerAgs | 39511009 | Not Available |
| 36 | Not Available | Hoover Bottom PlateAbe | 37245102 | Not Available |
| 37 | | SEAL, TRUNNION V2 U8120/ 30/40/42/48 Part Number: 38783030 for Hoover | 38783030 | $2.76Read more |
| 38 | No Image | CORD, U8148 Part Number: 46512004 for Hoover | 46512004 | $10.89Read more |
| 38 | Not Available | Hoover Nozzle LinerCp | 37243036 | Not Available |
| 38 | No Image | CORD, PTO U8148 V2 3 WIRE Part Number: 46512003 for Hoover | 46512003 | $13.29Read more |
