This is a list of parts and a diagram and schematic for: Hoover Model: U7039
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Furniture BrushAg | 43414016 | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $7.15Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Hoover Swivel Connector A | 38644020 | Not Available |
| 7 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 8 | Not Available | Hoover Brush Back S3273S3 | 48447001 | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $12.08Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Compatible alternateFloor Tool,White Metal Neck W/Pin Part Number: 38-1500-93 for Hoover Replacement More Product Details | 38150093 | $12.08Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Upholstery Tool, With plastic bump for hoover porta power | 43414057 | $9.58Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $10.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.32Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 24 | Not Available | Hoover Converter Body Assem | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag U3P03 | 58544004 | Not Available |
| 28 | Not Available | Hoover Hose Sleeve Bz | 32156010 | Not Available |
| 28 | No Image | FAN, ROTATING Part Number: 31213-1 for Lamb | 312131 | $23.17Read more |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 33 | Not Available | Hoover Latch Ring Mv S3 | 36153021 | Not Available |
| 47 | Not Available | Hoover Extension Wand 211 | 43458001 | Not Available |
| 48 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $39.59Add to cart |
| # | Part image | Description | SKU | Price |
| xx | No Image | Washer-Hoover Locking For: hoover | 013704 | $0.39Add to cart Special order: ships in 2 to 4 weeks |
| xx |  | Bellows, Botttom Fill Convertible 1030/U4387 Uprt Part Number: 011064JM for Hoover | 011064JM | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 1 | Not Available | Hoover Outer Bag Complete | 43675131 | Not Available |
| 2 | Not Available | Hoover Support Spring | 38336014 | Not Available |
| 3 | Not Available | Hoover Bag Closure Clip Spr | 43362 | Not Available |
| 4 | Not Available | Hoover Bag Closure Clip Spr | 43362 | Not Available |
| 5 | Not Available | Hoover Outer BagC1431 | 43674221 | Not Available |
| 6 | Not Available | Hoover Screw | 21765159 | Not Available |
| 8 | Not Available | Hoover Nut | 015854EF | Not Available |
| 9 | Not Available | Hoover Screw Self Tapping | 21481273 | Not Available |
| 10 |  | Hndl Bail Cover Plate-Hoover C1429 For: hoover | 37954001 | $3.47Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Hoover Cord Protector | 36215021 | Not Available |
| 13 |  | Cord, 50' Orange 18/3 With Grommet Conquest Part Number: 91001025 for Hoover | 91001025 | $49.65Read more |
| 14 | Not Available | Hoover Handle Assm CompU70 | 48646054 | Not Available |
| 15 | Not Available | Hoover No Desc Available | 23458AG | Not Available |
| 18 | Not Available | Hoover Handle AssmLowerAg | 48631057 | Not Available |
| 19 | Not Available | Hoover Terminals0513 | 12227 | Not Available |
| 20 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 21 | Not Available | Hoover Lead Wire Assem Wh | 46213006 | Not Available |
| 22 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 23 |  | Mtr Lead Wire Sheath/Cover-Convertible For: hoover | 31727010 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Hoover Handle Plug Ag | 37911035 | Not Available |
| 25 | Not Available | Hoover Nut | 12560 | Not Available |
| 26 | Not Available | Hoover Switch | 28212017 | Not Available |
| 28 | Not Available | Hoover Strain Relief Mounti | 34223004 | Not Available |
| 29 | Not Available | Hoover Ring Tongue Terminal | 27661503 | Not Available |
| 30 | Not Available | Hoover Washer | 161507 | Not Available |
| 31 | Not Available | Hoover Bail Ag | 41416010 | Not Available |
| 33 | Not Available | Hoover Handle Retainer Plat | 35463002 | Not Available |
| 35 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 36 | Not Available | Hoover Machine Screw | 21767082 | Not Available |
| 39 | Not Available | Hoover Screw | 45355 | Not Available |
| 41 | Not Available | Hoover Lead Wire Assem Gr | 46214002 | Not Available |
| 42 | Not Available | Hoover Jumper Lead Green | 46128002 | Not Available |
| 43 |  | Lever-Hoover Handle Control For: hoover | 38456050 | $5.66Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Pivot Pin-Trip Lever-Hoover Upright For: hoover | 047450AY | $0.30Read more |
| 45 | Not Available | Hoover Spring Bag Flange Clamp | 048409FW | Not Available |
| 46 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 47 |  | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.15Add to cart Special order: ships in 2 to 4 weeks |
| 48 | Not Available | Hoover Noz Adj Lever | 161511AY | Not Available |
| 50 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.74Read more |
| 51 | Not Available | Hoover Bag Flange Ret Spring | 034344FW | Not Available |
| 52 | Not Available | Hoover RivetTubular | 32242004 | Not Available |
| 53 | Not Available | Hoover Furniture Guard Ag | 36231037 | Not Available |
| 54 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 55 | Not Available | Hoover Front Wheel | 34791AG | Not Available |
| 56 | Not Available | Hoover Frontwheel Shaft | 047457AY | Not Available |
| 57 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 58 |  | Bail Shaft #1070 For: hoover | 161509AY | $3.83Add to cart Special order: ships in 2 to 4 weeks |
| 59 |  | Rear Wheeel Lock Ring For: hoover | 017207AZ | $1.36Read more |
| 60 |  | Rear Wheel Washer All Convertibles For: hoover | 21312772 | $0.78Add to cart Special order: ships in 2 to 4 weeks |
| 61 |  | WHEEL, :( REAR EARLY CONVERTIBLE Part Number: 38521041 for Hoover | 38521041 | $3.96Read more |
| 62 | Not Available | Hoover Spacer | 31148004 | Not Available |
| 63 | Not Available | Hoover Cam Follower Assem | 161514 | Not Available |
| 64 | Not Available | Hoover Rear Wheel Shaft | 33152003 | Not Available |
| 65 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 66 |  | Height Adjustment Lever Spring #1070 For: hoover | 161513 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 68 | No Image | Bottom Plate Latch Rh - All Conv For: hoover | 35446003 | $1.29Add to cart Special order: ships in 2 to 4 weeks |
| 69 | Not Available | Hoover Rivet | 12456 | Not Available |
| 70 | No Image | Bottom Plate Latch Lh - All Conv For: hoover | 35446005 | $1.29Add to cart Special order: ships in 2 to 4 weeks |
| 72 |  | Support Pad-Hoover For: hoover | 34111001 | $1.63Add to cart Special order: ships in 2 to 4 weeks |
| 73 | Not Available | Hoover Bottom Plate Complet | 42246008 | Not Available |
| 75 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $16.28Add to cart Special order: ships in 2 to 4 weeks |
| 75 |  | Compatible alternateBelt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover More Product Details | 049258AG | $9.41Add to cart Special order: ships in 2 to 4 weeks |
| 77 |  | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 78 | No Image | Support Plate Hoover U4313 Guardsman For: hoover | 34355002 | $1.95Add to cart Special order: ships in 2 to 4 weeks |
| 79 |  | Rivet-Hoover Lexan Base Agit Ret Spring For: hoover | 32243001 | $0.24Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Agit Retain Spring-Hoover Metal Bases For: hoover | 047259AY | $2.14Read more |
| 81 |  | Retainer Spring-Hoover 65 Bottom Plate For: hoover | 034439 | $1.38Read more |
| 82 | Not Available | Hoover Rivet | 161882 | Not Available |
| 83 | Not Available | Hoover Main Body AssmCommo | 42242064 | Not Available |
| 84 | Not Available | Hoover MedallionU7047/45/4 | 51661008 | Not Available |
| 85 | No Image | MOTOR, 1 SPEED W/O GUIDE CONVERTIBLE DECADE C1069 Part Number: 43574193 for Hoover | 43574193 | $192.61Read more |
| 85 | Not Available | Hoover Mtr Assm CompU7019 | 43574008 | Not Available |
| 86 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 87 | | Plastic Wand Bissell repair part number: 1614279 | 1614279 | $12.71Add to cart Special order: ships in 2 to 4 weeks |
| 88 | Not Available | Hoover Hood Aaw | 42251325 | Not Available |
| 89 | Not Available | Hoover Circlip | 24735022 | Not Available |
| 90 | Not Available | Hoover Mounting BracketAw | 35217006 | Not Available |
| 91 | Not Available | Hoover Switch Pedal | 38424003 | Not Available |
| 92 | Not Available | Hoover Shaft 1330 | 613802AY | Not Available |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Hoover Hose Sleeve Bz | 32156010 | Not Available |
| 48 | Not Available | Hoover Hose End Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | Hoover Nozz Position Brkt Assy | 43468018 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 59 | Not Available | Hoover Hose Complete | 022671JM | Not Available |
| 60 | Not Available | Hoover Hose End Short 65 | 34355 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector | 35190 | Not Available |
| 64 | Not Available | Hoover Connector | 034202JM | Not Available |
| 65 | Not Available | Hoover HoseLess EndsUltra | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose CompleteMv (J | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assm CompleteU | 012864JM | Not Available |

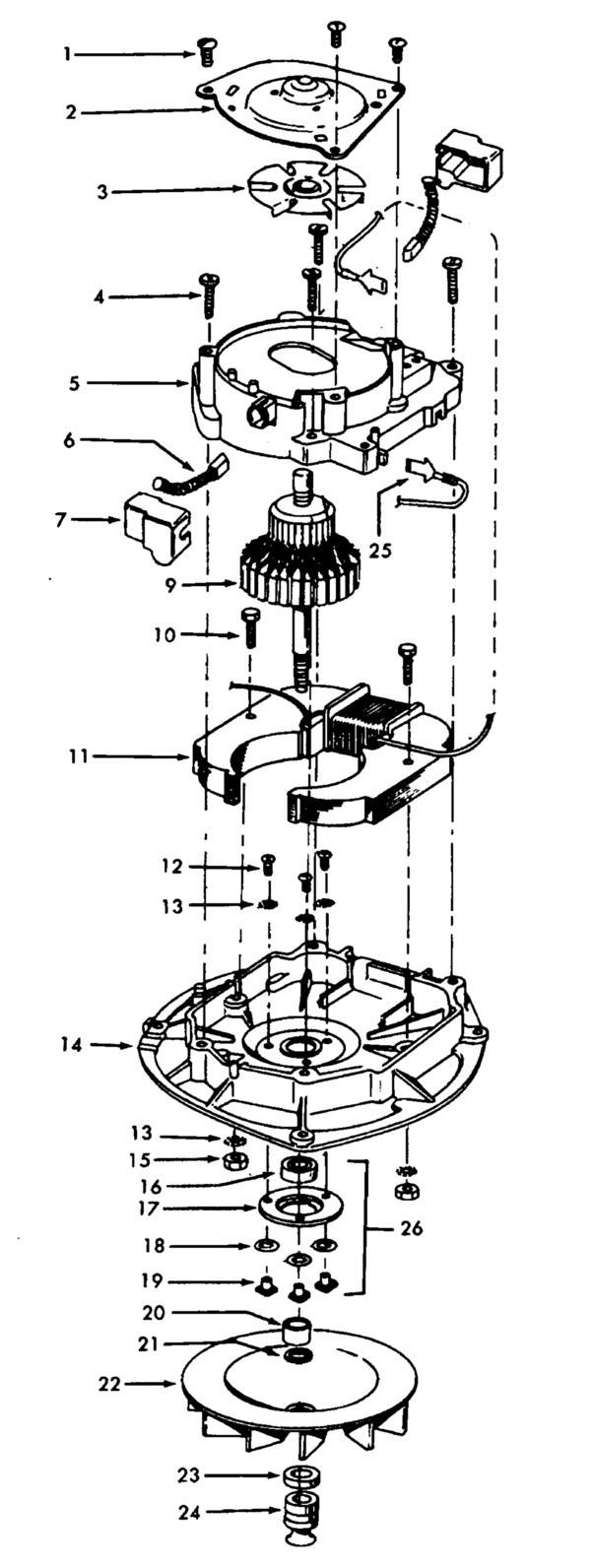

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 3 |  | Armature Cooling Fan #29 & 65 - 38755004 For: hoover | 38755004 | $19.99Read more |
| 4 | Not Available | Hoover Screw | 161535 | Not Available |
| 5 | Not Available | Hoover Upper Motor Casing | 19857 | Not Available |
| 6 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 7 | No Image | Wbd Brush Cap - U4313 For: hoover | 36315003 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Hoover Armature/Sleeve & Ri | 44755002 | Not Available |
| 10 |  | Bolt-Hoover 65 Field Coil For: hoover | 045118 | $1.65Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Hoover FieldU7039 | 45415001 | Not Available |
| 12 | Not Available | Hoover Screw | 21772501 | Not Available |
| 13 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $10.60Add to cart |
| 14 | Not Available | Hoover Motor Case Lh | 42193006 | Not Available |
| 15 |  | Nut-Hoover 65 Field Coil For: hoover | 015673 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $17.99Read more |
| 17 | Not Available | Hoover Bearing Retainer8Mm | 32184003 | Not Available |
| 18 | Not Available | Hoover WasherLock843 | 19772 | Not Available |
| 19 | Not Available | Hoover Nut | 45251 | Not Available |
| 20 | Not Available | Hoover Fan Spacer8Mm | 31731002 | Not Available |
| 21 |  | Washer-For Fan-Concept&8Mm Convertible Hoover For: hoover | 166563 | $0.17Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Hoover Fan Assembly for Convertible/Decade Models - 38755010 | WP12459 | $49.99Read more |
| 23 | Not Available | Hoover WasherHeat Insulati | 31162004 | Not Available |
| 24 | Not Available | Hoover Motor PulleyHeat In | 38532009 | Not Available |
| 25 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.70Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Hoover Bearing Assem Comp8 | 43267006 | Not Available |
