Schematic and parts list for: Hoover Model: U5212
This is a list of parts and a diagram and schematic for: Hoover Model: U5212
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies

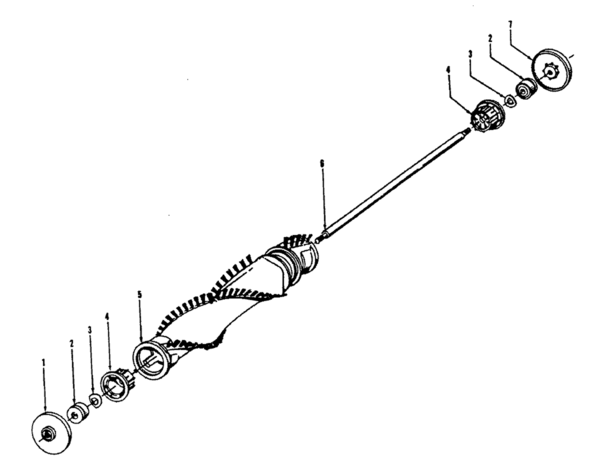

| # | Part image | Description | SKU | Price |
| 1 | No Image | Brushroll, Elite/Legacy/ Futura/Tempo/Empower OEM # 48414081, 48414036 | HR-2010 | $27.99Read more |
| 1 | Not Available | Hoover Agitator-Ag | 48414075 | Not Available |
| 1 | Not Available | Hoover Thread Guard - Rh - | 36423016 | Not Available |
| 2 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | Not Available | Hoover End Cap - Agitator / Brush Roll | 36422022 | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 6 | Not Available | Hoover Agitator Shaft - U44 | 32724013 | Not Available |
| 7 | Not Available | Hoover Thread Guard - Lh - | 36423017 | Not Available |

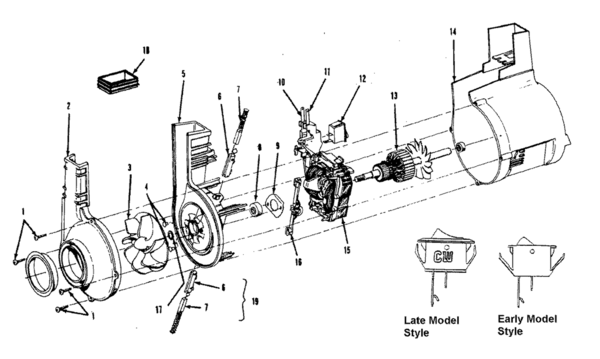

| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Duct Seal - Elite | 38781013 | Not Available |
| xx | Not Available | Hoover Tape - Concept Motor | 54821001 | Not Available |
| 1 | Not Available | Hoover Motor-Breasy W/Hl | 43576204 | Not Available |
| 1 | Not Available | Hoover Screw-Self Tapping-5/8 | 214793DA | Not Available |
| 1 | Not Available | Hoover Motor Complete W/Hl | 43576142 | Not Available |
| 2 | Not Available | Hoover Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Hoover Fan | 38755030 | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 6 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 7 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 8 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 9 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 10 | Not Available | Hoover Switch Bar | 36914004 | Not Available |
| 11 | Not Available | Hoover Attachment Terminal | 39116005 | Not Available |
| 11 | No Image | COVER, MOTOR U5272-9RM BAGLESS UPRIGHT W/HEADLT Part Number: 37194050 for Hoover | 37194050 | $19.25Read more |
| 12 | Not Available | Hoover Rocker Switch | 28218043 | Not Available |
| 12 | Not Available | Hoover Switch Assembly-Elit | 28161062 | Not Available |
| 13 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 14 | Not Available | Hoover Motor End Cap W/Hl | 37194049 | Not Available |
| 15 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 16 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 17 | Not Available | Hoover Washer - U4455 | 21312793 | Not Available |
| 18 | Not Available | Hoover Duct Seal-Molded | 38783020 | Not Available |
| 19 | Not Available | Hoover Brush Holder Assembl | 41311016 | Not Available |

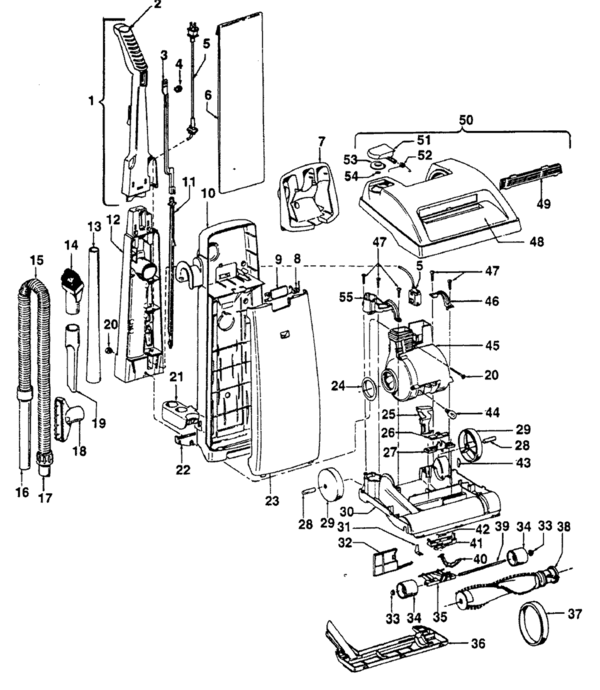

| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Screw - S2095/97/99 | 21434287 | Not Available |
| xx | Not Available | Hoover Owner Manual-U5209/1 | 56511A07 | Not Available |
| xx | Not Available | Hoover Tool Door-Aan-U5215- | 37257147 | Not Available |
| xx | Not Available | Hoover Cleaner Support-Dime | 58369067 | Not Available |
| xx | Not Available | Hoover Cord Wrap | 3944201P | Not Available |
| xx | Not Available | Hoover Hard Bag Support-Dim | 58366099 | Not Available |
| 1 | Not Available | Hoover Upper Handle Assembl | 48663204 | Not Available |
| 2 | Not Available | Hoover Handle Cap-Abe-U5209 | 37911078 | Not Available |
| 3 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 5 | Not Available | Hoover Attach. Cord | 46388027 | Not Available |
| 6 |  | Paper Bag, Type Z allergen Dimension Upright 3 Pk Part Number: 4010100Z for Hoover | 4010100Z | $11.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Hoover Tool Holder-U5212-90 | 36433161 | Not Available |
| 7 | Not Available | Hoover Tool Holder-Abe-U521 | 36433125 | Not Available |
| 8 |  | SPRING, BAG COVER LATCH LEGACY II 5079 Part Number: 38355008 for Hoover | 38355008 | $2.76Read more |
| 9 | Not Available | Hoover Latch-Abe-U5209/15/2 | 36151013 | Not Available |
| 10 | Not Available | Hoover Hard Bag Housing-Abe | 37255021 | Not Available |
| 11 | Not Available | Hoover Lower Switch Rod - Dark Charcoal Gray | 38458046 | Not Available |
| 12 | Not Available | Hoover Lower Hdl-Abe-U5209- | 39464025 | Not Available |
| 13 | Not Available | Hoover Extension Tube - Black | 38634078 | Not Available |
| 14 | Not Available | Hoover Dusting Brush Assem- | 43414146 | Not Available |
| 15 | Not Available | Hoover Hose Comp-Abx/Ag-U52 | 43434024 | Not Available |
| 16 | Not Available | Hoover Hose Adapter-Long-Ag | 32286025 | Not Available |
| 17 | Not Available | Hoover Hose Connector-Ag-U5 | 32377005 | Not Available |
| 18 | Not Available | Hoover Furniture Nozzle-Abr | 38614036 | Not Available |
| 19 | Not Available | Hoover Crevice Tool-Abr-U52 | 38617026 | Not Available |
| 20 | Not Available | Hoover Nut & Bolt Assembly- | 40201085 | Not Available |
| 21 | Not Available | Hoover Lower Hose Support-A | 36433113 | Not Available |
| 22 | Not Available | Hoover Bag Housing Bracket | 36425081 | Not Available |
| 23 | Not Available | Hoover Bag Hsg Door-Mb-U520 | 37257210 | Not Available |
| 23 | Not Available | Hoover Bag Housing Door-Abm | 37257258 | Not Available |
| 23 | Not Available | Hoover Bag Housing Door-U52 | 37257217 | Not Available |
| 24 | Not Available | Hoover Seal - U4455 | 38784016 | Not Available |
| 25 | Not Available | Hoover Handle Release Lever | 38458022 | Not Available |
| 26 | Not Available | Hoover Indicator Knob - U45 | 38567014 | Not Available |
| 27 | Not Available | Hoover Cam Actuator - U4581 | 38567009 | Not Available |
| 28 | Not Available | Hoover Rear Wheel Shaft | 31523012 | Not Available |
| 29 | Not Available | Hoover Rear Wheel - Black | 38522011 | Not Available |
| 30 | Not Available | Hoover Main Body Assm-Legac | 42242266 | Not Available |
| 31 | Not Available | Hoover Cam Actuator Spring- | 34572002 | Not Available |
| 32 | Not Available | Hoover Valve Gate - U4581-9 | 38718005 | Not Available |
| 33 | Not Available | Hoover Wheel Retainer - Natural | 36131056 | Not Available |
| 34 | Not Available | Hoover Front Wheel Assembly - Replaced By 43248073 | 43248059 | Not Available |
| 35 | Not Available | Hoover Front Wheel Assembly - Replaced By 43248073 | 43248059 | Not Available |
| 36 | Not Available | Hoover Bottom Plate -Ag | 37245106 | Not Available |
| 37 | Not Available | Hoover Belt Replaced By 38528040 | 38528027 | Not Available |
| 38 | No Image | Brushroll, Elite/Legacy/ Futura/Tempo/Empower OEM # 48414081, 48414036 | HR-2010 | $27.99Read more |
| 39 | Not Available | Hoover Wheel Shaft - Ay - U | 32563012 | Not Available |
| 40 | Not Available | Hoover Lever | 43248058 | Not Available |
| 41 | Not Available | Hoover Nozzle Height Adjustment Cam | 38563013 | Not Available |
| 42 | Not Available | Hoover Spring | 38351012 | Not Available |
| 43 | Not Available | Hoover Rib Shoe | 13261AY- | Not Available |
| 44 | Not Available | Hoover Lamp - Bulb #912 12 Volt / Can Sub 27313101 | 27313101 | Not Available |
| 45 | Not Available | Hoover Motor Complete W/Hl | 43576142 | Not Available |
| 46 | Not Available | Hoover Motor Retainer | 36131090 | Not Available |
| 47 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 48 | Not Available | Hoover Hood Nameplate-U5209 | 51669066 | Not Available |
| 49 | Not Available | Hoover Dirt Finder Lens-U45 | 39383097 | Not Available |
| 50 | Not Available | Hoover Hood - Mb | 42252A61 | Not Available |
| 50 | Not Available | Hoover Hood-U5105-930 | 42252A66 | Not Available |
| 50 | Not Available | Hoover Hood Assem-Abb-U5079 | 42252292 | Not Available |
| 51 | Not Available | Hoover Air Intake Door Assm | 37257175 | Not Available |
| 52 | Not Available | Hoover Spring - U4581-910 | 38351011 | Not Available |
| 53 | Not Available | Hoover Seal - U4581-910 | 38784056 | Not Available |
| 54 | Not Available | Hoover Speed Nut | 21362006 | Not Available |
| 55 | Not Available | Hoover Air Intake - U4581-9 | 38613029 | Not Available |
