This is a list of parts and a diagram and schematic for: Hoover Model: U5180
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies

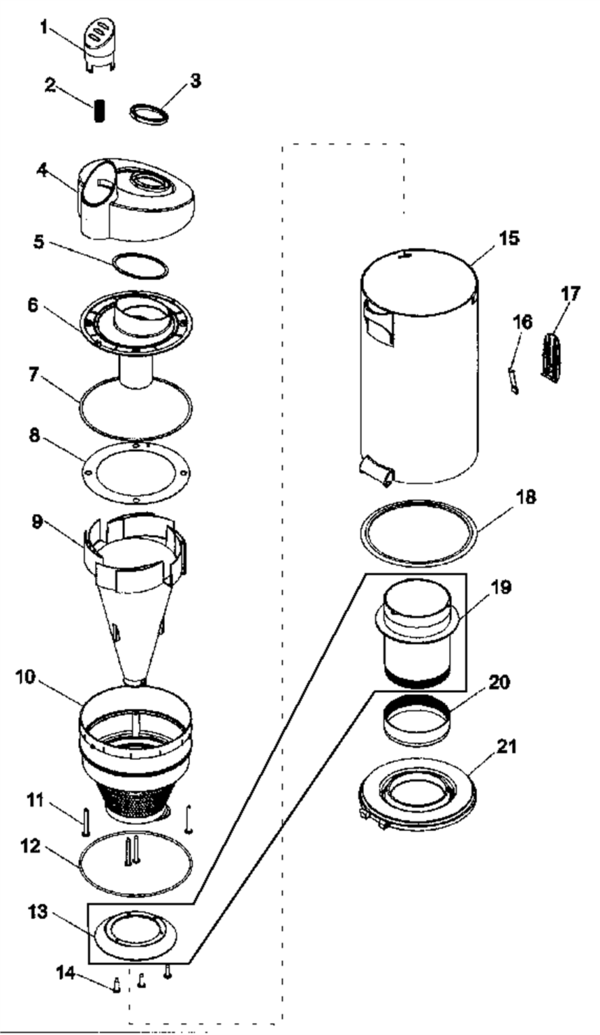

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Dirt Cup Release Button - Cyclone Red | 93001635 | Not Available |
| 2 | Not Available | Hoover Dirt Cup Release Button Spring | 93001656 | Not Available |
| 3 | Not Available | Hoover Seal - Dirt Cup Outlet | 93001647 | Not Available |
| 4 | Not Available | Hoover Dirt Cup Cover - Cyclone Purple | 93001648 | Not Available |
| 5 | Not Available | Hoover Seal - Dirt Cup Lid | 93001649 | Not Available |
| 6 | Not Available | Hoover Duct - Black | 93001650 | Not Available |
| 7 | Not Available | Hoover Seal - Duct B | 93001651 | Not Available |
| 8 | Not Available | Hoover Seal - Duct A | 93001652 | Not Available |
| 9 | Not Available | Hoover Cone Separator - Cyclone Red | 93001653 | Not Available |
| 10 |  | FILTER, CYCLONE U5180-900 RED PLASTIC Part Number: 93001636 for Hoover | 93001636 | $14.33Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Hoover Screw - Self Tapping | 93001730 | Not Available |
| 12 | Not Available | Hoover Filter Seal - 1/8" - Older Models | 93001637 | Not Available |
| 13 | Not Available | Hoover Shroud - Cyclone Red - Order #19 59156220 | 93001638 | Not Available |
| 14 | Not Available | Hoover Screw - Self Tapping | 93001729 | Not Available |
| 15 | Not Available | Hoover Dirt Cup - Clear | 93001639 | Not Available |
| 16 | No Image | SPRING, DIRT CUP RELEASE FUSION UPRIGHT U5180 Part Number: 93001641 for Hoover | 93001641 | $1.62Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Hoover Dirt Cup Door Release Button - Cyclone Red Replaced By 93002328 | 93001640 | Not Available |
| 18 | Not Available | Hoover Dirt Cup Lid Seal | 93001642 | Not Available |
| 19 | Not Available | Hoover Dust Chamber With Shroud - Gray | 59156220 | Not Available |
| 20 | Not Available | Hoover Dust Chamber Seal | 93001644 | Not Available |
| 21 | Not Available | Hoover Bottom Dirt Cup Lid With Seal - Clear | 93001645 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hood Retainer - Left Cyclone Purple | 93001662 | Not Available |
| 2 | Not Available | Hoover Height Adjustment Knob - Cyclone Red | 93001667 | Not Available |
| 3 | Not Available | Hoover Hood Retainer - Right Cyclone Purple | 93001668 | Not Available |
| 4 | Not Available | Hoover Hood - Cyclone Purple / Red | 93001669 | Not Available |
| 5 | Not Available | Hoover Lower Hose - Magnesium Gray | 93001654 | Not Available |
| 6 | Not Available | Hoover Rear Cover - Main Body - Cyclone Purple | 93001665 | Not Available |
| 7 | Not Available | Hoover Inlet Duct - Graphite Gray | 93001655 | Not Available |
| 8 | Not Available | Hoover Screw - Self Tapping | 93001729 | Not Available |
| 9 | Not Available | Hoover Rear Wheel Hub - Cyclone Red | 93001673 | Not Available |
| 10 | Not Available | Hoover Rear Wheel - Graphite Gray | 93001672 | Not Available |
| 11 | Not Available | Hoover Trunnion | 93001663 | Not Available |
| 12 | Not Available | Hoover Screw - Self Tapping | 93001729 | Not Available |
| 13 | Not Available | Hoover Handle Release Pedal - Cyclone Red | 93001664 | Not Available |
| 14 | Not Available | Hoover Main Body / Nozzle Base - Graphite Gray | 93001666 | Not Available |
| 15 |  | BUMPER, CYCLONE RED U5180900 Part Number: 93001670 for Hoover | 93001670 | $4.40Read more |
| 16 | Not Available | Hoover Agitator / Brush Roll Assembly - 15" Wooden | 48414132 | Not Available |
| 17 |  | BELT-HOOVER,38528040,12 AMP ELITE,UPRIGHT | 39-3134-08 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Hoover Style 190 Agitator Belt (2-Pack), | 073502509500 | $12.24Add to cart |
| 18 | Not Available | Hoover Height Adjustment Cam - Graphite Gray | 93001671 | Not Available |
| 19 | Not Available | Hoover Front Wheel Carriage - Graphite Gray | 93001674 | Not Available |
| 20 |  | Wheel, :( Front U5180/U5182/U5183/U5185 Part Number: 93001675 for Hoover | 93001675 | $4.62Read more |
| 21 |  | Shaft, Front Wheel U5180/U5182/U5183/U5 Part Number: 93001676 for Hoover | 93001676 | $2.45Read more |
| # | Part image | Description | SKU | Price |
| 1 |  | COVER, SWITCH BUTTON U5180 U5182 U5183 CYCLONE RED Part Number: 93001707 for Hoover | 93001707 | $2.06Read more |
| 2 |  | Switch Spring For: hoover | 93001706 | $1.49Read more |
| 3 | Not Available | Hoover Switch | 93001705 | Not Available |
| 4 |  | Switch Holder For: hoover | 93001703 | $1.63Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Hoover Handle - Right With Holes Cyclone Purple | 93001699 | Not Available |
| 6 | Not Available | Hoover Switch Sleeve | 93001702 | Not Available |
| 7 | Not Available | Hoover Handle - Left No Holes Cyclone Purple | 59156082 | Not Available |
| 8 | Not Available | Hoover Telescoping Tube | 93001698 | Not Available |
| 9 |  | Male Connector Hoover U5183 Fusion Bagless For: hoover | 93001700 | $4.30Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Female Connector Hoover U5183 Fusion Bagless For: hoover | 93001717 | $8.44Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Hoover Fixing Plate - Male Connector | 93001701 | Not Available |
| 12 | Not Available | Hoover Handle Sleeve | 93001697 | Not Available |
| 13 | Not Available | Hoover Upper Housing - Turbine Cyclone Red | 93001712 | Not Available |
| 14 | Not Available | Hoover Turbine Power Hand Tool 38528037 - Belt 48414088 - Brush Roll 38632013 - Connector Mfg Code Prior To F10 / 0610 | 49129044 | Not Available |
| 15 |  | Removable Brush For: hoover | 93001716 | $2.79Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Hoover Furniture Nozzle - Magnesium Gray | 93001715 | Not Available |
| 17 | Not Available | Hoover Hose Assembly | 93001710 | Not Available |
| 18 | Not Available | Hoover Lower Hose Holder - Magnesium Gray | 93002331 | Not Available |
| 19 | Not Available | Hoover Debris Door - Magnesium Gray | 93001658 | Not Available |
| 20 | Not Available | Hoover Adaptor - Cyclone Purple | 93001690 | Not Available |
| 21 | Not Available | Hoover Upper Hose Holder - Cyclone Purple | 93001711 | Not Available |
| 22 | No Image | SCREW, SELF-TAPPING U5180 U5182 U5183 UH70005 Part Number: 93001728 for Hoover | 93001728 | $1.12Read more |
| 23 | Not Available | Hoover Carry Handle - Cyclone Red | 93001696 | Not Available |
| 24 | Not Available | Hoover Handle Release Button - Cyclone Red | 93001708 | Not Available |
| 25 | No Image | SPRING, HANDLE RELEASE U5180 U5182 U5183 U5185 Part Number: 93001709 for Hoover | 93001709 | $1.49Read more |
| 26 | No Image | COVER, HANDLE U5180 U5182 U5183 CYCLONE PURPLE Part Number: 93001695 for Hoover | 93001695 | $6.11Read more |
| 27 | Not Available | Hoover Cord Hook - Cyclone Purple | 93001694 | Not Available |
| 28 | Not Available | Hoover Power Cord - Black | 93001718 | Not Available |
| 29 | Not Available | Hoover Fixing Plate - Power Cord | 93001693 | Not Available |
| 30 | Not Available | Hoover Turbine Power Hand Tool Holder - Cyclone Purple | 93001692 | Not Available |
| 31 | Not Available | Hoover Combination Brush Holder - Cyclone Purple | 93001691 | Not Available |
| 33 | Not Available | Hoover Seal - Pre Motor Filter Frame | 93001724 | Not Available |
| 34 |  | Filter Set 1 Motor 1 Exhaust U5180/U51 | 401140010 | $12.38Add to cart |
| 35 |  | Pre-Motor Filter Frame2 For: hoover | 93001731 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Hoover Dirt Cup Inlet Seal | 93001720 | Not Available |
| 37 | Not Available | Hoover Wire Cover - Cyclone Purple | 93001719 | Not Available |
| 38 | Not Available | Hoover Back Panel / Dirt Cup Housing - Cyclone Purple | 93001680 | Not Available |
| 39 |  | Duct Cover / Hoover U5180-900 Fusion Upright For: hoover | 93001689 | $6.37Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | Hoover Rear Duct - Cyclone Purple | 93001688 | Not Available |
| 41 | Not Available | Hoover Crevice Tool - Cyclone Red | 93001630 | Not Available |
| 42 | Not Available | Hoover Upper Tube Holder - Cyclone Purple | 93001683 | Not Available |
| 43 | Not Available | Hoover Extension Tube - 14" - Magnesium Gray | 38634092 | Not Available |
| 44 | Not Available | Hoover Lower Tube Holder - Cyclone Purple | 93001681 | Not Available |
| 45 | Not Available | Hoover Final Filter Frame - Magnesium Gray | 93001725 | Not Available |
| 47 |  | Cover, Blue Plastic Fixing -Final Filter Frame Part Number: 93001727 for Hoover | 93001727 | $1.89Read more |
| 48 | Not Available | Hoover Motor Seal | 93001679 | Not Available |
| 49 | Not Available | Hoover Motor | 93001678 | Not Available |
| 50 |  | PLATE, :( REAR MOTOR U5180 U5182 U5183 U5185 UH700 Part Number: 93001677 for Hoover | 93001677 | $4.75Add to cart Special order: ships in 2 to 4 weeks |
| 51 | Not Available | Hoover Motor Cover - Cyclone Purple | 93001661 | Not Available |
| 52 | Not Available | Hoover Lamp - Bulb 13 Volt | 27313107 | Not Available |
| 53 | Not Available | Hoover Lamp Socket | 93001660 | Not Available |
| 54 | Not Available | Hoover Lens | 93001659 | Not Available |
| 55 | Not Available | Hoover Screw - Self Tapping | 93001729 | Not Available |
| 56 | Not Available | Hoover Secondary Filter - Pre Motor | 93002520 | Not Available |
