Schematic and parts list for: Hoover Model: U5105
This is a list of parts and a diagram and schematic for: Hoover Model: U5105
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
| # | Part image | Description | SKU | Price |

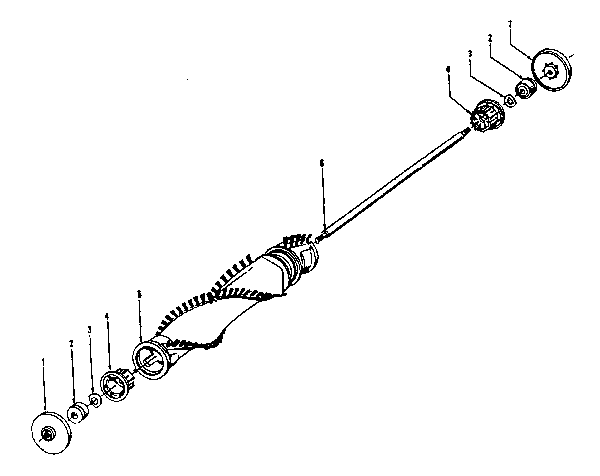

| 1 | Not Available | Hoover Thread Guard - Rh - | 36423016 | Not Available |
| 1 | Not Available | Hoover Agitator-Ag | 48414075 | Not Available |
| 1 | No Image | Brushroll, Elite/Legacy/ Futura/Tempo/Empower OEM # 48414081, 48414036 | HR-2010 | $27.99Read more |
| 2 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | Not Available | Hoover Agitator End - U4455 | 36422022 | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 6 | Not Available | Hoover Agitator Shaft | 32724013 | Not Available |
| 7 | Not Available | Hoover Thread Guard - Lh - | 36423017 | Not Available |
| # | Part image | Description | SKU | Price |

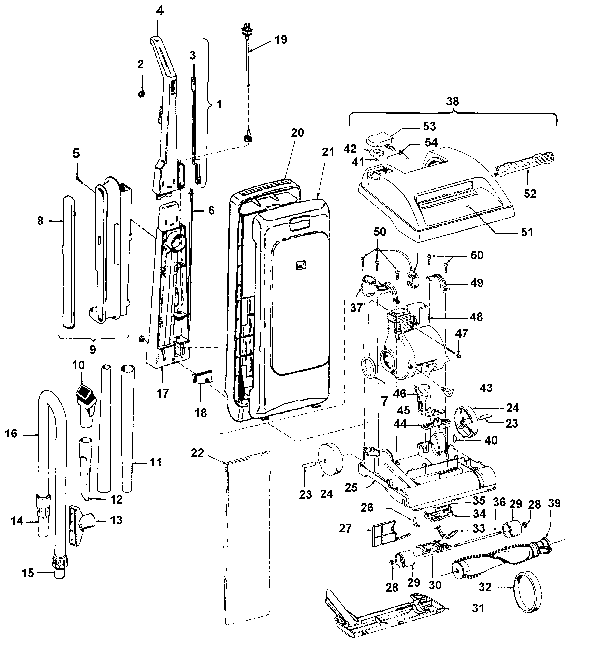

| 1 | Not Available | Hoover Upper Handle Assembly | 48663204 | Not Available |
| 2 | Not Available | Hoover Not Required Part Or See Note Switch Rod - Upper | FNLA | Not Available |
| 3 | Not Available | Hoover Not Required Part Or See Note Switch Button | FNLA | Not Available |
| 4 | Not Available | Hoover Handle Cap-Abe-U5209 | 37911078 | Not Available |
| 5 | Not Available | Hoover Screw-U4581-910 | 21447220 | Not Available |
| 6 | Not Available | Hoover Switch Rod-Lower-Abe | 38458046 | Not Available |
| 7 | Not Available | Hoover Seal - U4455 | 38784016 | Not Available |
| 8 | Not Available | Hoover Tool Holder Door-Leg U5101-930 | 37257170 | Not Available |
| 9 | Not Available | Hoover Tool Holder Assembly U5219-930, U5201-930 | 41426019 | Not Available |
| 9 | Not Available | Hoover Tool Holder/Door Assembly U5101-930, U5105-930 | 41426113 | Not Available |
| 10 | Not Available | Hoover Dusting Brush | 43414145 | Not Available |
| 10 | Not Available | Hoover Dusting Brush Assembly | 43414146 | Not Available |
| 11 | Not Available | Hoover Extension Tube | 38634078 | Not Available |
| 12 | Not Available | Hoover Crevice Tool U5105-930 | 38617026 | Not Available |
| 12 | Not Available | Hoover Crevice Tool | 38617024 | Not Available |
| 13 | Not Available | Hoover Furniture Nozzle-Ag | 38614029 | Not Available |
| 13 | Not Available | Hoover Furniture Nozzle-Abr U5105-930 | 38614036 | Not Available |
| 14 | Not Available | Hoover Hose Adapter-Ag | 32288011 | Not Available |
| 15 | Not Available | Hoover Hose Connector | 32377005 | Not Available |
| 16 | Not Available | Hoover Hose Assembly Comp-U5101 U5101-930, U5105-930 | 43434035 | Not Available |
| 16 | Not Available | Hoover Hose U5219-930, U5201-930 | 43434088 | Not Available |
| 17 | Not Available | Hoover Lower Hdl Assembly | 48669017 | Not Available |
| 18 | Not Available | Hoover Bag Housing Bracket | 36425081 | Not Available |
| 19 | Not Available | Hoover Attachment Cord | 46388027 | Not Available |
| 20 | Not Available | Hoover Bag Housing - U5069 U5219-930, U5201-930 | 37254068 | Not Available |
| 20 | Not Available | Hoover Bag Housing-U5095-93 U5101-930, U5105-930 | 37254069 | Not Available |
| 21 | Not Available | Hoover Bag Housing Door-U52 U5201-930 | 37257226 | Not Available |
| 21 | Not Available | Hoover Bag Door Assembly-Ag-U5 U5101-930 | 37257023 | Not Available |
| 21 | Not Available | Hoover Bag Door-Abm-U5105-9 U5105-930 | 37257247 | Not Available |
| 21 | Not Available | Hoover Bag Door-Abb-U5219-9 U5219-930 | 37257164 | Not Available |
| 22 | No Image | PAPER BAG, :) HVR TYPE A ALLERGAN 3PK Part Number: H4010100A for Hoover Replacement | H4010100A | $8.22Read more |
| 23 | Not Available | Hoover Rear Wheel Shaft | 31523012 | Not Available |
| 24 | Not Available | Hoover Wheel Rear - Ag | 38522011 | Not Available |
| 25 | Not Available | Hoover Main Body Assembly (Incl. It. 23, 24, 40, 46) | 42242266 | Not Available |
| 26 | Not Available | Hoover Cam Actuator Spring- | 34572002 | Not Available |
| 27 | Not Available | Hoover Valve Gate - U4581-9 | 38718005 | Not Available |
| 28 | Not Available | Hoover Front Wheel Assembly | 43248059 | Not Available |
| 28 | Not Available | Hoover Wheel Retainer - Bz U5101-930, U5201-930, U5219-930 | 36131056 | Not Available |
| 29 | Not Available | Hoover Front Wheel Assembly U5101-930, U5201-930, U5219-930 | 43248059 | Not Available |
| 30 | Not Available | Hoover Front Wheel Assembly Incl. It. 29,33,36) | 43248059 | Not Available |
| 31 | Not Available | Hoover Bottom Plate | 37245106 | Not Available |
| 32 | Not Available | Hoover Belt Belt (Use 38528040) | 38528027 | Not Available |
| 33 | Not Available | Hoover Lever (Use Wheel Assem. 43248054) | 43248058 | Not Available |
| 34 | Not Available | Hoover Nozzle Height Adj | 38563013 | Not Available |
| 35 | Not Available | Hoover Spring - U4581-910 | 38351012 | Not Available |
| 36 | Not Available | Hoover Wheel Shaft (Use 43248054) | 32563012 | Not Available |
| 37 | Not Available | Hoover Air Intake - U4581-9 | 38613029 | Not Available |
| 38 | Not Available | Hoover Hood Assembly-Abb-U5079 (Incl. It. 52, 53, 54) U5219-930 | 42252292 | Not Available |
| 38 | Not Available | Hoover Hood Assembly-U5101-930 (Incl. It. 52, 53, 54) U5101-930 | 42252A04 | Not Available |
| 38 | Not Available | Hoover Hood-U5105-930 U5105-930 | 42252A66 | Not Available |
| 39 | No Image | Brushroll, Elite/Legacy/ Futura/Tempo/Empower OEM # 48414081, 48414036 | HR-2010 | $27.99Read more |
| 40 | Not Available | Hoover Rib Shoe | 13261AY- | Not Available |
| 41 | Not Available | Hoover Speed Nut | 21362006 | Not Available |
| 42 | Not Available | Hoover Seal - U4581-910 | 38784056 | Not Available |
| 43 | Not Available | Hoover Lamp | 27313101 | Not Available |
| 44 | Not Available | Hoover Cam Actuator - U4581 | 38567009 | Not Available |
| 45 | Not Available | Hoover Indicator Knob | 38567014 | Not Available |
| 46 | Not Available | Hoover Handle Release Lever | 38458022 | Not Available |
| 47 | Not Available | Hoover Nut & Bolt Assembly | 40201085 | Not Available |
| 48 | Not Available | Hoover Motor Complete With Headlight (Use 43576211) | 43576142 | Not Available |
| 49 | Not Available | Hoover Motor Retainer | 36131090 | Not Available |
| 50 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 51 | Not Available | Hoover Nameplate-Hood-U5105 U5105-930 | 51669076 | Not Available |
| 51 | Not Available | Hoover Hood Nameplate-U5201 U5201-930 | 51669075 | Not Available |
| 51 | Not Available | Hoover Hood Nameplate-U5101 U5101-930 | 51669071 | Not Available |
| 52 | Not Available | Hoover Dirt Finder Lens | 39383097 | Not Available |
| 53 | Not Available | Hoover Air Intake Door Assembly (Incl. It. 41, 42 ) | 37257175 | Not Available |
| 54 | Not Available | Hoover Spring - U4581-910 | 38351011 | Not Available |
| 55 | Not Available | Hoover Owner Manual-U5237-9 U5101-930, U5105-930 | 56511A43 | Not Available |
| 55 | Not Available | Hoover Cleaner Support | 58274014 | Not Available |
| 55 | Not Available | Hoover Hard Bag Support | 58385016 | Not Available |
| 55 | Not Available | Hoover Owner Manual-U5053-9 U5219-930, U5201-930 | 56511234 | Not Available |
| 55 | Not Available | Hoover Indicator Flag-Bz-U5 U5101-930 | 51151004 | Not Available |
| 55 | Not Available | Hoover Cord Wrap | 3944201P | Not Available |
| 55 | Not Available | Hoover Bag Check Diaphragm- U5101-930 | 38733002 | Not Available |
| 55 | Not Available | Hoover Torsion Spring U5105-930 | 38355009 | Not Available |
| 55 |  | SPRING, BAG COVER LATCH LEGACY II 5079 Part Number: 38355008 for Hoover | 38355008 | $2.76Read more |
| 55 | Not Available | Hoover Bag Housing Cap U5201-930 | 37959105 | Not Available |
| 55 | Not Available | Hoover Latch-Abe-U5209/15/2 U5105-930 | 36151013 | Not Available |
| 55 | Not Available | Hoover Latch - U5069/U5079 U5201-930 | 36151006 | Not Available |
| 55 | Not Available | Hoover Cord Wrap - U5433-90 | 39442042 | Not Available |
| # | Part image | Description | SKU | Price |

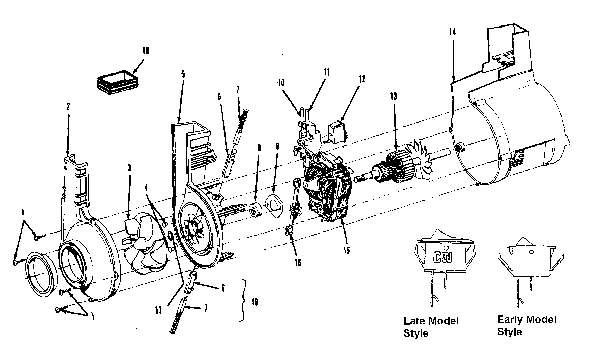

| 1 | Not Available | Hoover Screw-Self Tapping-5/8" | 214793DA | Not Available |
| 1 | Not Available | Hoover Motor Complete With Headlight | 43576142 | Not Available |
| 1 | Not Available | Hoover Motor-Breasy With Headlight | 43576204 | Not Available |
| 2 | Not Available | Hoover Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Hoover Fan | 38755030 | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 6 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 7 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 8 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 9 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 10 | Not Available | Hoover Switch Bus Bar | 36914004 | Not Available |
| 11 | No Image | COVER, MOTOR U5272-9RM BAGLESS UPRIGHT W/HEADLT Part Number: 37194050 for Hoover | 37194050 | $19.25Read more |
| 11 | Not Available | Hoover Attachment Terminal | 39116005 | Not Available |
| 12 | Not Available | Hoover Switch Assembly Late Models (After 5/96) | 28161062 | Not Available |
| 12 | Not Available | Hoover Switch Assembly Early Models (Prior To 5/96) | 28218043 | Not Available |
| 13 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 14 | Not Available | Hoover Motor End Cap With Headlight | 37194049 | Not Available |
| 15 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 16 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 17 | Not Available | Hoover Washer - U4455 | 21312793 | Not Available |
| 18 | Not Available | Hoover Duct Seal-Molded | 38783020 | Not Available |
| 19 | Not Available | Hoover Brush Holder Assembly | 41311016 | Not Available |
| 20 | Not Available | Hoover Tape - Concept Motor | 54821001 | Not Available |
| 20 | Not Available | Hoover Duct Seal - Elite | 38781013 | Not Available |
