Schematic and parts list for: Hoover Model: U5104
This is a list of parts and a diagram and schematic for: Hoover Model: U5104
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

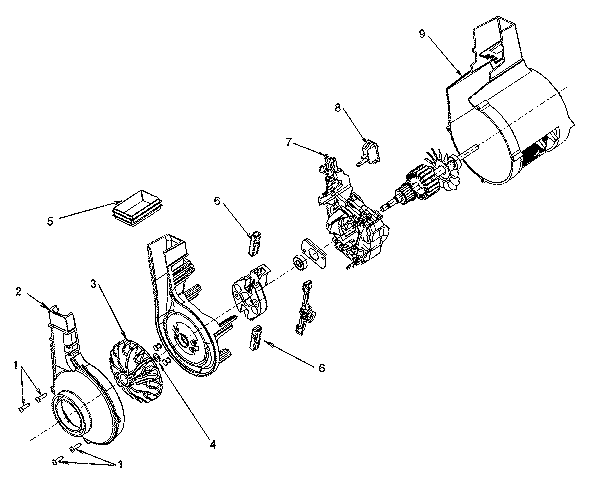

Parts for: WindTunnel
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | No Image | COVER, MOTOR U5272-9RM BAGLESS UPRIGHT W/HEADLT Part Number: 37194050 for Hoover | 37194050 | $19.25Read more |
| xx | Not Available | Hoover Fan 7 Blades | 38755030 | Not Available |
| xx | Not Available | Hoover Motor Assem. Comp. 12 Amp | 43576199 | Not Available |
| xx | Not Available | Hoover Mot0R-12A-U5254/56 | 43576200 | Not Available |
| xx | Not Available | Hoover Motor-Breasy W/Hl 8 Amp | 43576204 | Not Available |
| xx | Not Available | Hoover Motor-12 Amp-U4250 Elite/Legacy Style Models Non-Headlight | 43576205 | Not Available |
| 1 | Not Available | Hoover Screw-Self Tapping-5/8" | 214793DA | Not Available |
| 2 | Not Available | Hoover Fan/Nut Assem 12 Amp | 43565006 | Not Available |
| 2 | Not Available | Hoover Fan Chamber | 38736033 | Not Available |
| 4 | Not Available | Hoover Washer - U4455 | 21312793 | Not Available |
| 5 | Not Available | Hoover Duct Seal-Molded | 38783020 | Not Available |
| 6 | Not Available | Hoover Motor Brush-Svw | 41311022 | Not Available |
| 7 | Not Available | Hoover Switch Bus Bar | 36914006 | Not Available |
| 8 | Not Available | Hoover Rocker Switch | 28161068 | Not Available |
| 9 | Not Available | Hoover Motor End Cap W/Hl | 37194049 | Not Available |

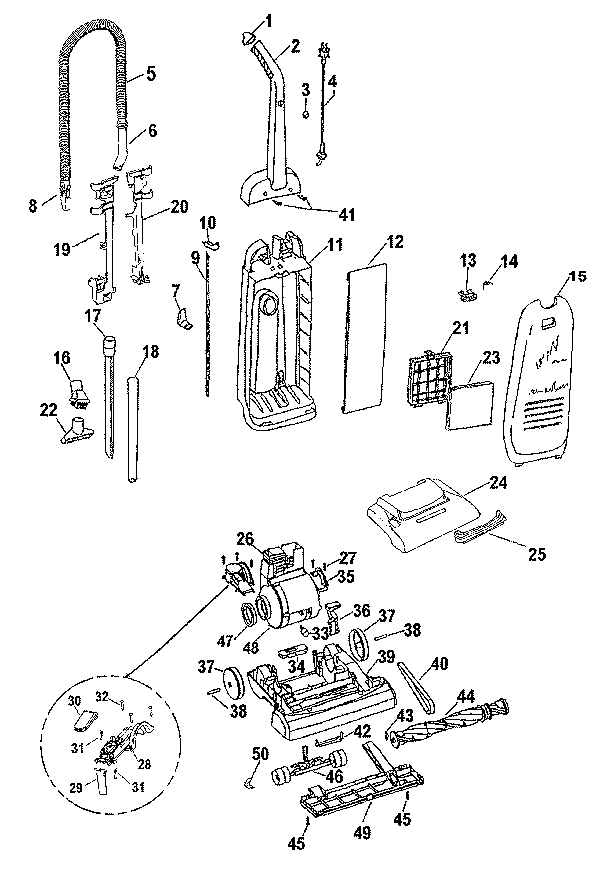

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Handle Cap-Abe-U5209 | 37911078 | Not Available |
| 2 | Not Available | Hoover Upper Handle-Caddy V (Inc. Item 1 & 3) | 39466041 | Not Available |
| 4 | Not Available | Hoover Cord-30 Ft-U5254/56 | 46388043 | Not Available |
| 5 | Not Available | Hoover Hose Comp-Abx/Ag (Inc. Items 6,8) | 43434268 | Not Available |
| 6 | Not Available | Hoover Hand Grip | 39454059 | Not Available |
| 7 | Not Available | Hoover Cord Wrap | 3944201P | Not Available |
| 8 | Not Available | Hoover Hose Connector-U5104 | 38655008 | Not Available |
| 9 | Not Available | Hoover Switch Rod-Caddy Vac | 38458057 | Not Available |
| 10 | Not Available | Hoover Switch Rocker-Caddy | 38433036 | Not Available |
| 11 | Not Available | Hoover Bag Housing-Abe-U5106-90 (Inc Items 7,9,10) - Abe - U5106-900 | 37255022 | Not Available |
| 11 | Not Available | Hoover Bag Housing-Caddy Va Bag Housing ( Inc. Items 7, 9, 10) - Abe - U5104-900 | 37255026 | Not Available |
| 12 |  | Paper Bag, Type Z allergen Dimension Upright 3 Pk Part Number: 4010100Z for Hoover | 4010100Z | $11.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Hoover Latch-Bag Door | 36151010 | Not Available |
| 14 | Not Available | Hoover Torsion Spring | 38355009 | Not Available |
| 15 | Not Available | Hoover Bag Door-Dlx-Jm U5106-900 | 37254236 | Not Available |
| 15 | Not Available | Hoover Bag Door-Ag-U5104 U5104-900 | 37254216 | Not Available |
| 16 | Not Available | Hoover Dusting Brush Assem- | 43414174 | Not Available |
| 17 | Not Available | Hoover Crevice Tool-Abr | 38617031 | Not Available |
| 18 | Not Available | Hoover Extension Tube-Ag | 38634078 | Not Available |
| 19 | Not Available | Hoover Hose/Tool Holder-Rh | 36433184 | Not Available |
| 20 | Not Available | Hoover Hose/Tool Holder-Lh | 36433185 | Not Available |
| 21 | Not Available | Hoover Filter Retainer-Ag | 36426041 | Not Available |
| 22 | Not Available | Hoover Furniture Nozzle | 3861401E | Not Available |
| 23 | Not Available | Hoover Final Filter -(2 Pack) Final Filter ( 2 Pack) | 40110003 | Not Available |
| 24 | Not Available | Hoover Hood-Printed Deluxe-Jm U5106-900 | 42252B59 | Not Available |
| 24 | Not Available | Hoover Hood-Ag-Std-U5104 U5104-900 | 42252B66 | Not Available |
| 25 | Not Available | Hoover Lens-U5110/12-900 U5104-900 | 39383055 | Not Available |
| 25 | Not Available | Hoover Lens-Deluxe-Bz U5106-900 | 39383056 | Not Available |
| 26 | Not Available | Hoover Duct Seal-Molded | 38783020 | Not Available |
| 27 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 28 | Not Available | Hoover Duct Cover-Caddy Vac | 38656034 | Not Available |
| 29 | Not Available | Hoover Valve Door-Caddy Vac | 38718010 | Not Available |
| 30 | Not Available | Hoover Air Intake Door-Cadd | 37257245 | Not Available |
| 31 | Not Available | Hoover Spring-Caddy Vac | 38351020 | Not Available |
| 32 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 33 | Not Available | Hoover Lamp | 27313101 | Not Available |
| 34 | Not Available | Hoover Cam Actuator Assem-C | 40309028 | Not Available |
| 35 | Not Available | Hoover Motor Retainer | 36131090 | Not Available |
| 36 | Not Available | Hoover Handle Release Lever-Caddy | 38458058 | Not Available |
| 37 | Not Available | Hoover Wheel Rear - Ag | 38522011 | Not Available |
| 38 | Not Available | Hoover Rear Wheel Shaft | 31523012 | Not Available |
| 39 | No Image | BASE, CADDY VAC U5110 Part Number: 37241162 for Hoover | 37241162 | $43.16Read more |
| 39 | Not Available | Hoover Main Body-Caddy Vac U5106-900 (Inc. Items 37,38) | 37241157 | Not Available |
| 40 | Not Available | Hoover Ag Belt-12Amp Bulk | 38528040 | Not Available |
| 41 | Not Available | Hoover Screw-Self Tapping-C | 214472ED | Not Available |
| 42 | Not Available | Hoover Nozzle Height Adjustmtent Cam-Ca | 38563008 | Not Available |
| 43 | Not Available | Hoover Rib Shoes | 013261AY | Not Available |
| 44 | Not Available | Hoover Agitator Assembly Comp-Ag | 48414118 | Not Available |
| 45 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 46 | Not Available | Hoover Front Wheel Assy-Ag/Abe | 43248059 | Not Available |
| 47 | Not Available | Hoover Seal - U4455 | 38784016 | Not Available |
| 48 | Not Available | Hoover Motor Assembly Comp. 12 Amp (Inc. Item 26) | 43576199 | Not Available |
| 49 | No Image | BOTTOM PLATE, CADDY VAC U5110 Part Number: 37245047 for Hoover | 37245047 | $26.81Read more |
| 50 | Not Available | Hoover Cam Actuator Spring- | 34572002 | Not Available |
| 58 | Not Available | Hoover Nut & Bolt Assembly | 40201085 | Not Available |
| 58 | Not Available | Hoover Screw-Self Tapping | 21447242 | Not Available |
| 58 | Not Available | Hoover Gasket-Main Body | 34123056 | Not Available |
