Schematic and parts list for: Hoover Model: U5025

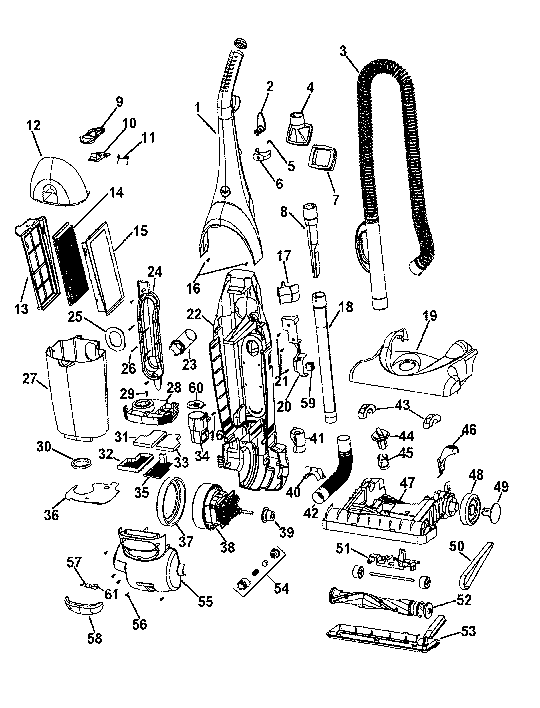

This is a list of parts and a diagram and schematic for: Hoover Model: U5025
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Sprint Bagless Upright
| # | Part image | Description | SKU | Price |
| XX | Not Available | Hoover xx . Power Cord-21 Ft | 59153034 | Not Available |
| 1 | Not Available | Hoover Handle | 59153001 | Not Available |
| 2 | Not Available | Hoover Cord Wrap Upper | 59153006 | Not Available |
| 3 | Not Available | Hoover Hose Assembly | 59153094 | Not Available |
| 4 | Not Available | Hoover Combo Brush | 59153102 | Not Available |
| 5 | Not Available | Hoover St Screw M4X12 | 59153007 | Not Available |
| 6 | Not Available | Hoover Combo Tool Clip | 59153005 | Not Available |
| 8 | Not Available | Hoover Crevice Tool Long | 59153100 | Not Available |
| 12 | Not Available | Hoover Dust Tank Cover (Inc. Items 9,10,11) - Agm - U5025-900 | 59153052 | Not Available |
| 12 | Not Available | Hoover Dust Tank Cover Assembly (Inc. Items 9,10,11) - Agz - U5023-900 | 59153164 | Not Available |
| 13 | Not Available | Hoover Filter Bracket | 59153063 | Not Available |
| 14 |  | Hoover HEPA Filter for Widepath PowerMax Turbo Power | 40110008 | $12.99Read more |
| 15 | Not Available | Hoover Pre-Filter With Screen Pre Filter Screen | 59153060 | Not Available |
| 16 | Not Available | Hoover St Screw M4X12 | 59153007 | Not Available |
| 17 | Not Available | Hoover Wand Clip | 59153013 | Not Available |
| 18 | Not Available | Hoover Extension Tube-Ag | 38634078 | Not Available |
| 18 | Not Available | Hoover Hood Assembly - Agz - U5023-90 | 59153166 | Not Available |
| 19 | Not Available | Hoover Hood Assembly - Agm - U5025-900 | 59153071 | Not Available |
| 20 | Not Available | Hoover Switch Cover | 59153022 | Not Available |
| 21 | Not Available | Hoover St Screw M4X12 | 59153007 | Not Available |
| 22 | Not Available | Hoover Housing Back | 59153010 | Not Available |
| 23 | Not Available | Hoover Elbow Con Tube Elbow Connector Tube | 59153024 | Not Available |
| 24 | Not Available | Hoover Air Path Back Cover | 59153015 | Not Available |
| 25 | Not Available | Hoover Seal-Inlet (3 Pc) Seal - Inlet - (3Pc.) | 59153030 | Not Available |
| 26 | Not Available | Hoover St Screw M3X12 | 59153033 | Not Available |
| 27 |  | DIRT CUP, SPRINT U5025- 900 Part Number: 59153062 for Hoover | 59153062 | $31.91Read more |
| 28 | Not Available | Hoover Dust Tank Ret | 59153012 | Not Available |
| 29 | Not Available | Hoover St Screw M4X12 | 59153007 | Not Available |
| 30 | Not Available | Hoover Seal-Outlet (4 Pc) Seal - Outlet - (4Pc.) | 59153031 | Not Available |
| 31 | Not Available | Hoover Motor Filter | 59153029 | Not Available |
| 32 | Not Available | Hoover Motor Fil Holder | 59153021 | Not Available |
| 33 |  | Filter, :( Final Exhaust U5025 Bagless Bel Part Number: 59153028 for Hoover | 59153028 | $3.91Read more |
| 34 | Not Available | Hoover Hose Handle Rank | 59153018 | Not Available |
| 35 | Not Available | Hoover Exhaust Grid | 59153136 | Not Available |
| 36 | Not Available | Hoover Ex Deflector Cover | 59153016 | Not Available |
| 37 | Not Available | Hoover Blower Inlet Cushion | 59153027 | Not Available |
| 38 | No Image | MOTOR, U5023-900 UPRIGHT Part Number: 59153036 for Hoover | 59153036 | $79.16Read more |
| 39 | Not Available | Hoover Blwr Cush/Belt End | 59153020 | Not Available |
| 40 | Not Available | Hoover Foot Hose Clamp | 59153083 | Not Available |
| 41 | Not Available | Hoover Tool Rack | 59153017 | Not Available |
| 42 | No Image | HOSE, LOWER U5025-900 Part Number: 59153081 for Hoover | 59153081 | $12.18Read more |
| 43 | Not Available | Hoover Pivot Cover/Up Body | 59153079 | Not Available |
| 44 | Not Available | Hoover Ht Adj Knob | 59153074 | Not Available |
| 45 | Not Available | Hoover Ht Adj. Lower | 59153075 | Not Available |
| 46 | Not Available | Hoover Pedal | 59153080 | Not Available |
| 47 | Not Available | Hoover Main Body | 59153073 | Not Available |
| 48 | Not Available | Hoover Rear Wheel | 59153077 | Not Available |
| 49 | Not Available | Hoover Rear Wheel Shaft | 59153078 | Not Available |
| 50 | Not Available | Hoover Ag Belt-12Amp Bulk | 38528040 | Not Available |
| 51 | Not Available | Hoover Fr. Wheel | 59153067 | Not Available |
| 52 | Not Available | Hoover Agitator | 48414127 | Not Available |
| 53 | No Image | BOTTOM PLATE MODEL 5025 Part Number: 59153076 for Hoover | 59153076 | $7.53Read more |
| 54 | Not Available | Hoover Poppet Valve-U502590 | 59153025 | Not Available |
| 55 | Not Available | Hoover Housing Front | 59153011 | Not Available |
| 56 | Not Available | Hoover St Screw M4X12 | 59153007 | Not Available |
| 57 | Not Available | Hoover Bulb | 27313107 | Not Available |
| 58 | Not Available | Hoover Headlt Cover | 59153026 | Not Available |
| 59 | Not Available | Hoover Switch | 59153037 | Not Available |
| 60 | Not Available | Hoover Deflector Door | 59153019 | Not Available |
| 61 | Not Available | Hoover Bulb Socket-U5025900 | 59153042 | Not Available |
