Schematic and parts list for: Hoover Model: U5014

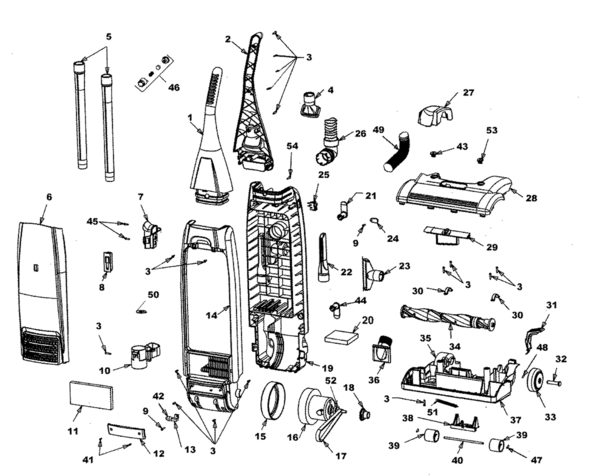

This is a list of parts and a diagram and schematic for: Hoover Model: U5014
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Holder-Rh-Aha-U5018 | 59155196 | Not Available |
| 1 | Not Available | Hoover Handle-Up-Frt-U5018 | 59155013 | Not Available |
| 2 | Not Available | Hoover Hdle-Low-Rear-U5018 | 59155015 | Not Available |
| 3 | No Image | SCREW, U5018 Part Number: 59155016 for Hoover | 59155016 | $10.07Read more |
| 4 | Not Available | Hoover Dusting Brush Assem- | 43414174 | Not Available |
| 5 | Not Available | Hoover Extension Tube - Black | 38634078 | Not Available |
| 6 | Not Available | Hoover Filter Cov W/Seal-U5 | 59155181 | Not Available |
| 6 | Not Available | Hoover Flter Cov W/Seal U50 | 59155182 | Not Available |
| 6 | Not Available | Hoover Cover (Filter)-U5018 | 59155030 | Not Available |
| 7 | Not Available | Hoover Hose Holder - U5018 | 59155033 | Not Available |
| 8 | Not Available | Hoover Indicator Assm-U5018 | 59155071 | Not Available |
| 9 | Not Available | Hoover Screw Tapping-U5018 | 59155036 | Not Available |
| 10 | Not Available | Hoover Pipe Holder - U5018 | 59155092 | Not Available |
| 11 |  | Hoover Filter without Power Drive for Windtunnels | 40110004 | $9.99Read more |
| 12 | Not Available | Hoover Light Cover-U5018 | 59155063 | Not Available |
| 13 | Not Available | Hoover Lamp Holder U-5018 | 59155067 | Not Available |
| 14 | Not Available | Hoover Body Cover-U5018 | 59155062 | Not Available |
| 15 | Not Available | Hoover Mtr Mt Paking-U5018 | 59155058 | Not Available |
| 16 |  | MOTOR, MAIN POWER U5014 U5016 U5018 U5019 Part Number: 59155052 for Hoover | 59155052 | $55.56Read more |
| 17 | Not Available | Hoover Belt | 38528040 | Not Available |
| 18 | Not Available | Hoover Seal Packing-U5018 | 59155056 | Not Available |
| 19 | Not Available | Hoover Base Body-U5018 | 59155021 | Not Available |
| 20 | | Hoover Filter without Power Drive for Windtunnels | 40110004 | $9.99Read more |
| 21 | Not Available | Hoover Cord Hanger | 59155032 | Not Available |
| 22 | Not Available | Hoover Crevice Tool-Abr | 38617027 | Not Available |
| 23 | Not Available | Hoover Furniture Nozzle | 3861401E | Not Available |
| 24 | Not Available | Hoover Cord Holder | 59155023 | Not Available |
| 25 | Not Available | Hoover Switch-U5018900 | 59155025 | Not Available |
| 26 | Not Available | Hoover Hose Assem- U5018 | 59155044 | Not Available |
| 27 | No Image | HOOD, SPIRIT U5014900 Part Number: 59155165 for Hoover | 59155165 | $23.17Read more |
| 27 | Not Available | Hoover Rear Cover-U5016900 | 59155168 | Not Available |
| 27 | Not Available | Hoover Rear Cov-U5014900 | 59155167 | Not Available |
| 27 | Not Available | Hoover Rear Cover - U5018 | 59155097 | Not Available |
| 27 | Not Available | Hoover Head Cover-U5016900 | 59155166 | Not Available |
| 28 | Not Available | Hoover Head Cover - U5018 | 59155095 | Not Available |
| 29 | Not Available | Hoover Control Knob-U5018 | 59155079 | Not Available |
| 30 | Not Available | Hoover Head Strap - U5018 | 59155093 | Not Available |
| 31 | Not Available | Hoover Pedal - U5018 | 59155087 | Not Available |
| 32 | Not Available | Hoover Wheel Shaft-U5018 | 59155086 | Not Available |
| 33 | No Image | WHEEL, REAR U5014 U5016 U5018 U5019 Part Number: 59155085 for Hoover | 59155085 | $4.26Read more |
| 34 | No Image | 15" wooden hoover brush roller sealed bearings replace PN: | HR2015 | $15.00Add to cart |
| 35 | Not Available | Hoover Head Base - U5018 | 59155077 | Not Available |
| 36 | Not Available | Hoover Pipe Guide-U5018 | 59155090 | Not Available |
| 37 |  | BUMPER, NOZZLE U5014 U5016 U5018 U5019 Part Number: 59155078 for Hoover | 59155078 | $19.25Read more |
| 38 | Not Available | Hoover Regulate Knob-U5018 | 59155080 | Not Available |
| 38 | Not Available | Hoover Reg Knob-Zephyr | 59155176 | Not Available |
| 39 | Not Available | Hoover Roller Frt Wh-U5018 | 59155082 | Not Available |
| 40 | Not Available | Hoover Roller Shaft - U5018 | 59155083 | Not Available |
| 41 | Not Available | Hoover Screw Drawing-U5018 | 59155065 | Not Available |
| 42 | Not Available | Hoover Lamp - Bulb 13 Volt | 27313107 | Not Available |
| 43 | Not Available | Hoover Fixing Holder-U5018 | 59155096 | Not Available |
| 43 | Not Available | Hoover Fixing Hldr-Lft-U501 | 59155169 | Not Available |
| 43 | Not Available | Hoover Fixing Hldr-Lt-U5016 | 59155170 | Not Available |
| 44 | Not Available | Hoover Cord Hanger | 59155117 | Not Available |
| 45 | Not Available | Hoover Screw | 59155215 | Not Available |
| 46 | Not Available | Hoover Damper Assem -U5018 | 59155038 | Not Available |
| 47 | Not Available | Hoover Washer-U5018 | 59155084 | Not Available |
| 48 | Not Available | Hoover Washer-U5018 | 59155119 | Not Available |
| 49 | Not Available | Hoover Flexible Hose-U5018 | 59155091 | Not Available |
| 50 | No Image | COVER, HOSE HOLE U5018 Part Number: 59155118 for Hoover | 59155118 | $2.76Read more |
| 51 | Not Available | Hoover Spring-U5018900 | 59155081 | Not Available |
| 52 | Not Available | Hoover Motor Support-U5018 | 59155054 | Not Available |
| 52 | Not Available | Hoover Packing Foam - U5018 | 59155057 | Not Available |
| 52 | Not Available | Hoover Owners Manual-U5018 | 59155007 | Not Available |
| 52 | Not Available | Hoover Cord Bushing | 59155188 | Not Available |
| 52 | Not Available | Hoover Power Cord | 59155022 | Not Available |
| 52 | Not Available | Hoover Connector Assy-U5018 | 59155026 | Not Available |
| 52 | Not Available | Hoover Sponge Seal - U5018 | 59155029 | Not Available |
| 52 | Not Available | Hoover Connector Assm-U5018 | 59155034 | Not Available |
| 53 | Not Available | Hoover Holder Fixing-R-U501 | 59155186 | Not Available |
| 53 | Not Available | Hoover Holder Fixing-R-U501 | 59155187 | Not Available |
| 54 | Not Available | Hoover Screw Self Tapping | 59155216 | Not Available |
