Schematic and parts list for: Hoover Model: U4409
This is a list of parts and a diagram and schematic for: Hoover Model: U4409
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies

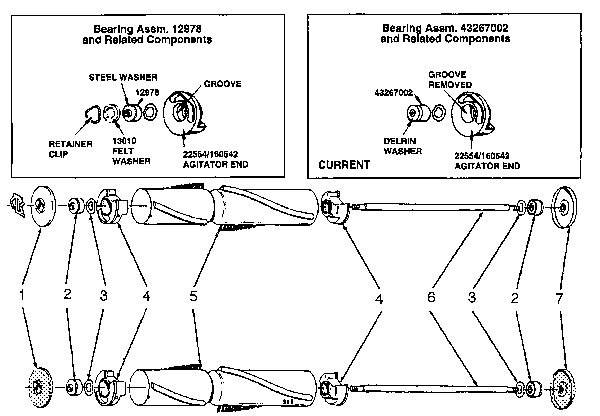

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard | 49180 | Not Available |
| 1 | Not Available | Hoover Thread Guard-Left Hand | 36423003 | Not Available |
| 2 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | Not Available | Hoover Agitator End | 160542 | Not Available |
| 4 | Not Available | Hoover Agitator End Assembly | 41435070 | Not Available |
| 4 | Not Available | Hoover Agitator End 65 | 22554 | Not Available |
| 5 | Not Available | Hoover Agitator Brush Back | 48445001 | Not Available |
| 5 | Not Available | Hoover Agitator Brush-Nylon | 012998BZ | Not Available |
| 5 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Agitator Shaft | 12981 | Not Available |
| 6 | Not Available | Hoover Agitator Shaft | 32724008 | Not Available |
| 7 | Not Available | Hoover Thread Guard Right Hand | 12985AY | Not Available |
| 7 | Not Available | Hoover Thread Guard-Right Hand | 36423007 | Not Available |
| 10 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 11 | Not Available | Hoover Agitator Assembly Complete | 48414007 | Not Available |
| 11 | Not Available | Hoover Agitator Assembly Complete | 48414006 | Not Available |
| 11 | Not Available | Hoover Agitator Assem Complete | 41435005 | Not Available |
| 11 | Not Available | Hoover Agitator Complete | 169371MF | Not Available |
| 12 | Not Available | Hoover 4 Brush Agitator | 48414003 | Not Available |
| 12 | Not Available | Hoover Agitator - Four Brush | 48414002 | Not Available |
| 13 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard | 49180 | Not Available |
| 1 | Not Available | Hoover Thread Guard-Left Hand | 36423003 | Not Available |
| 2 | | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | Not Available | Hoover Agitator End | 160542 | Not Available |
| 4 | Not Available | Hoover Agitator End Assembly | 41435070 | Not Available |
| 4 | Not Available | Hoover Agitator End 65 | 22554 | Not Available |
| 5 | Not Available | Hoover Agitator Brush Back | 48445001 | Not Available |
| 5 | Not Available | Hoover Agitator Brush-Nylon | 012998BZ | Not Available |
| 5 | | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Agitator Shaft | 12981 | Not Available |
| 6 | Not Available | Hoover Agitator Shaft | 32724008 | Not Available |
| 7 | Not Available | Hoover Thread Guard Right Hand | 12985AY | Not Available |
| 7 | Not Available | Hoover Thread Guard-Right Hand | 36423007 | Not Available |
| 10 | | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 11 | Not Available | Hoover Agitator Assembly | 48414007 | Not Available |
| 11 | Not Available | Hoover Agitator Assembly | 48414006 | Not Available |
| 11 | Not Available | Hoover Agitator Assembly | 41435005 | Not Available |
| 11 | Not Available | Hoover Agitator Complete | 169371MF | Not Available |
| 12 | Not Available | Hoover 4 Brush Agitator | 48414003 | Not Available |
| 12 | Not Available | Hoover Agitator - Four Brush | 48414002 | Not Available |
| 13 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |

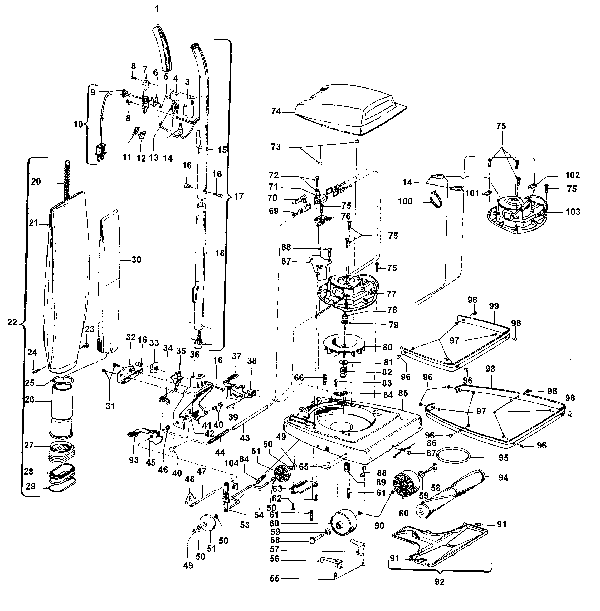

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Handle Grip | 023458JM | Not Available |
| 1 | Not Available | Hoover Handle Grip | 023458LY | Not Available |
| 3 |  | Pfaff Bobbin Case Part 91-105544-91 | WP12272 | $8.00Read more |
| 3 | Not Available | Hoover Switch Case-C1069 | 37214070 | Not Available |
| 4 | Not Available | Hoover Switch - S2095 | 281770KD | Not Available |
| 4 | Not Available | Hoover Switch - 70 - 2110 | 12971 | Not Available |
| 5 | Not Available | Hoover Tubing | 161935JM | Not Available |
| 6 | Not Available | Hoover Cord Retainer | 34253010 | Not Available |
| 6 | Not Available | Hoover Retainer | 012988AW | Not Available |
| 7 | Not Available | Hoover Switch Cover | 37258022 | Not Available |
| 7 | Not Available | Hoover Switch Cover Plate | 023138AW | Not Available |
| 8 | No Image | SWITCH PLATE SCREWS Part Number: 21465314 for Hoover | 21465314 | $2.14Read more |
| 9 | Not Available | Hoover Cord Protector | 36216002 | Not Available |
| 9 | Not Available | Hoover Cord Protector | 31969AG | Not Available |
| 10 | Not Available | Hoover Attachment Cord Assembly | 46383231 | Not Available |
| 10 | Not Available | Hoover Attach. Cord-Ag | 46363195 | Not Available |
| 11 | Not Available | Hoover Strain Relief Body | 12260 | Not Available |
| 12 |  | gasket for kitchendaid mixer | WP12261 | $14.99Add to cart |
| 13 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 13 | Not Available | Hoover Terminal | 160356 | Not Available |
| 14 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 15 | Not Available | Hoover Handle-Upper Half | 48642024 | Not Available |
| 15 | Not Available | Hoover Handle Assembly | 48655208 | Not Available |
| 15 | Not Available | Hoover Handle-Upper Half | 48642044 | Not Available |
| 15 | Not Available | Hoover Handle-Upper Half | 48642039 | Not Available |
| 15 | Not Available | Hoover Handle-Upper Half | 019985VN | Not Available |
| 15 | Not Available | Hoover Handle-Upper Half | 035346VN | Not Available |
| 15 | Not Available | Hoover Handle-Upper Half | 48642013 | Not Available |
| 15 | Not Available | Hoover Handle-Upper Half | 48642014 | Not Available |
| 15 | Not Available | Hoover Handle-Upper Half | 48642049 | Not Available |
| 16 | Not Available | Hoover Handle Clamp Bolt | 21631301 | Not Available |
| 16 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 16 | Not Available | Hoover Handle Bolt | 21631302 | Not Available |
| 16 | Not Available | Hoover Handle Bolt & Nut | 048294AW | Not Available |
| 17 | Not Available | Hoover Handle Complete-U434 | 019984HR | Not Available |
| 17 | Not Available | Hoover Handle Complete-U434 | 019984JM | Not Available |
| 17 | Not Available | Hoover Handle Complete-U434 | 019984JR | Not Available |
| 17 | Not Available | Hoover Handle Complete-U419 | 019984KZ | Not Available |
| 17 | Not Available | Hoover Handle Complete | 019984VN | Not Available |
| 17 | Not Available | Hoover Handle Complete-U416 | 48655067 | Not Available |
| 17 | Not Available | Hoover Handle Complete | 48655069 | Not Available |
| 17 | Not Available | Hoover Handle Complete | 48655096 | Not Available |
| 17 | Not Available | Hoover Handle Assembly | 48655197 | Not Available |
| 17 | Not Available | Hoover Handle Assembly | 48655208 | Not Available |
| 17 | Not Available | Hoover Handle Complete-U412 | 019638JM | Not Available |
| 17 | Not Available | Hoover Handle Complete | 011969VN | Not Available |
| 17 | Not Available | Hoover Handle Complete | 011969JM | Not Available |
| 17 | Not Available | Hoover Handle Complete | 48655066 | Not Available |
| 18 | Not Available | Hoover Handle - Lower Half | 48631140 | Not Available |
| 18 | Not Available | Hoover Lower Handle | 48631132 | Not Available |
| 19 | Not Available | Hoover Handle Receptacle | 46326110 | Not Available |
| 19 | Not Available | Hoover Handle Receptacle | 034484JM | Not Available |
| 20 | Not Available | Hoover Bag Support Spring | 044475AW | Not Available |
| 20 | Not Available | Hoover Support Spring | 38335006 | Not Available |
| 20 | Not Available | Hoover Support Spring | 38336014 | Not Available |
| 21 | Not Available | Hoover Outer Bag Jr/Jy/Ky-U | 43677258 | Not Available |
| 21 | Not Available | Hoover Outer Bag-U4367 | 43677269 | Not Available |
| 21 | Not Available | Hoover Outer Bag-Com-Btm Fi | 43677321 | Not Available |
| 21 | Not Available | Hoover Outer Bag-Ld-U4377 | 43677156 | Not Available |
| 21 | Not Available | Hoover Outer Bag-Rb/Kt/Ks-U | 43677118 | Not Available |
| 21 | Not Available | Hoover Outer Bag-U4387 | 43677106 | Not Available |
| 21 | Not Available | Hoover Outer Bag-Ks/Kt-U439 | 43677083 | Not Available |
| 21 | Not Available | Hoover Outer Bag Jm/Mh/Le-U | 43677260 | Not Available |
| 21 | Not Available | Hoover Outer Bag-Com-Top Fi | 43677322 | Not Available |
| 21 | Not Available | Hoover Cloth Bag-Aak/Aap-U4 | 43686037 | Not Available |
| 22 | Not Available | Hoover Outer Bag Comp-Com-T | 43678330 | Not Available |
| 22 | Not Available | Hoover Cloth Bag Comp-Aak/A | 43678340 | Not Available |
| 22 | Not Available | Hoover Outer Bag Comp-Decad | 43678333 | Not Available |
| 22 | Not Available | Hoover Outer Bag Comp-Com-B | 43678331 | Not Available |
| 22 | Not Available | Hoover Outer Bag Comp-Ks/Kt | 43678284 | Not Available |
| 22 | Not Available | Hoover Outer Bag Complete-U | 43678162 | Not Available |
| 22 | Not Available | Hoover Outer Bag Comp U4375 | 43678153 | Not Available |
| 23 | Not Available | Hoover Nut | 015854EF | Not Available |
| 24 | Not Available | Hoover Screw | 21765159 | Not Available |
| 25 |  | Belt, :( Hoover Lark/12/14/115/1330/1340/1 Part Number: 046550AG for Hoover | 046550AG | $1.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Hoover Support Tube | 161889 | Not Available |
| 26 | Not Available | Hoover Top Fill Tube | 38657004 | Not Available |
| 27 | Not Available | Hoover Bellows-Jm | 38673009 | Not Available |
| 27 |  | Bellows, Botttom Fill Convertible 1030/U4387 Uprt Part Number: 011064JM for Hoover | 011064JM | $6.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Hoover Bag Flange W/Sealant | 41424011 | Not Available |
| 29 | Not Available | Hoover Bag Ring Gasket 65 | 47454 | Not Available |
| 30 | Not Available | Hoover Bottom Fill Upper Bag - 4-Pk | 4010003C | Not Available |
| 30 | No Image | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 31 | Not Available | Hoover Screw | 21481752 | Not Available |
| 32 | Not Available | Hoover Bail Grip 65 | 34192 | Not Available |
| 33 | Not Available | Hoover Handle Retainer Plate | 35463002 | Not Available |
| 34 | Not Available | Hoover Cord Clip U4519 | 39442030 | Not Available |
| 35 | Not Available | Hoover Socket Plug | 023296AG | Not Available |
| 36 | Not Available | Hoover Bail-Jm | 41416030 | Not Available |
| 36 | Not Available | Hoover Bail-Aac | 41416032 | Not Available |
| 37 | Not Available | Hoover Foot Pad-Ag -C1E03 | 38426080 | Not Available |
| 37 | Not Available | Hoover Foot Pad | 38426071 | Not Available |
| 38 | Not Available | Hoover Handle Control Lever | 43137047 | Not Available |
| 38 | Not Available | Hoover Handle Control Lever | 43137036 | Not Available |
| 39 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 40 |  | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Hoover Spring | 048409FW | Not Available |
| 42 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 43 | Not Available | Hoover Cord Cover Tubing | 31727023 | Not Available |
| 44 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 45 | Not Available | Hoover Nozzle Adj Lever | 38452051 | Not Available |
| 45 | Not Available | Hoover Nozzle Adj Lever | 161511AY | Not Available |
| 45 | Not Available | Hoover Nozzle Adj Lever | 38452046 | Not Available |
| 46 | Not Available | Hoover Washer | 161507 | Not Available |
| 47 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 48 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 49 | Not Available | Hoover Lock Ring-1060 | 017207AZ | Not Available |
| 49 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 50 | Not Available | Hoover Washer | 21312772 | Not Available |
| 51 | Not Available | Hoover Rear Wheel-Ag | 38521016 | Not Available |
| 53 | Not Available | Hoover Cam Follower-Plastic | 43263003 | Not Available |
| 53 | Not Available | Hoover Cam Follower Assembly | 161514 | Not Available |
| 53 | Not Available | Hoover Fixed Position Link | 34233005 | Not Available |
| 53 | Not Available | Hoover Cam Follower-Plastic | 43263005 | Not Available |
| 54 | Not Available | Hoover Rear Wheel Shaft | 33141011 | Not Available |
| 54 | Not Available | Hoover Rear Wheel Shaft | 33152003 | Not Available |
| 55 | Not Available | Hoover Rivet | 12456 | Not Available |
| 55 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 56 | Not Available | Hoover Bottom Plate Latch-R | 35446003 | Not Available |
| 56 | Not Available | Hoover Latch-C1K01 | 36153006 | Not Available |
| 57 | Not Available | Hoover Bottom Plate Latch L | 35446005 | Not Available |
| 57 | Not Available | Hoover Latch-C1K01 | 36153006 | Not Available |
| 58 | Not Available | Hoover Front Wheel Shaft | 047457AY | Not Available |
| 59 | Not Available | Hoover Washer | 21312772 | Not Available |
| 60 | Not Available | Hoover Carrier Wheel | 38522013 | Not Available |
| 60 | Not Available | Hoover Front Wheel | 34791AG | Not Available |
| 61 | Not Available | Hoover Screw-Self Tapping-1 | 16903 | Not Available |
| 61 | Not Available | Hoover Screw | 21447020 | Not Available |
| 62 | Not Available | Hoover Screw | 21447009 | Not Available |
| 63 | Not Available | Hoover Axle/Bag Flange Retainer | 35434040 | Not Available |
| 64 | Not Available | Hoover Spring | 161513 | Not Available |
| 65 | No Image | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 66 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 67 | Not Available | Hoover Insulation Shield | 164684 | Not Available |
| 68 | Not Available | Hoover Screw | 161535 | Not Available |
| 69 |  | Dust Brush, :( Black WindTunnel Upright Part Number: 43414197 for Hoover | 43414197 | $11.71Read more |
| 70 | Not Available | Hoover Switch Actuator | 38452028 | Not Available |
| 71 | Not Available | Hoover Switch-U4313 | 019513AG | Not Available |
| 72 | Not Available | Hoover Screw Assembly | 23254001 | Not Available |
| 73 | Not Available | Hoover Capsert-1060 | 016125AY | Not Available |
| 74 | Not Available | Hoover Hood-Jm-U4341 | 42251230 | Not Available |
| 74 | Not Available | Hoover Hood-Hr | 42251229 | Not Available |
| 74 | Not Available | Hoover Hood/Lens-Kh-U4349 | 42251219 | Not Available |
| 74 | Not Available | Hoover Hood/Lens-Lu-U4315 | 42251217 | Not Available |
| 74 | Not Available | Hoover Hood-Mh | 42251207 | Not Available |
| 74 | Not Available | Hoover Hood & Lens | 42251144 | Not Available |
| 74 | Not Available | Hoover Hood & Lens Assembly | 42251108 | Not Available |
| 74 | Not Available | Hoover Hood-Sw-U4189 | 42251078 | Not Available |
| 74 | Not Available | Hoover Hood-Cd U4187 | 42251012 | Not Available |
| 74 | Not Available | Hoover Motor Hood-U4325 | 167364JV | Not Available |
| 74 | Not Available | Hoover Hood-U4A01 | 167364JM | Not Available |
| 74 | Not Available | Hoover Motor Hood | 161649JM | Not Available |
| 74 | Not Available | Hoover Motor Hood | 162719JM | Not Available |
| 74 | Not Available | Hoover Hood & Lens Assembly | 42251178 | Not Available |
| 75 | Not Available | Hoover Screw | 21447020 | Not Available |
| 75 | Not Available | Hoover Screw | 21447013 | Not Available |
| 76 | Not Available | Hoover Switch Bracket | 34771001 | Not Available |
| 77 | Not Available | Hoover Motor Complete | 43574045 | Not Available |
| 77 | Not Available | Hoover Motor | 43574140 | Not Available |
| 77 | Not Available | Hoover Motor - U4377-935 | 43574190 | Not Available |
| 78 | Not Available | Hoover Fan Spacer-8Mm | 31731002 | Not Available |
| 78 | Not Available | Hoover Spacer-U4405 | 31731006 | Not Available |
| 78 | Not Available | Hoover Fan Spacer-Ctv | 163059 | Not Available |
| 79 | Not Available | Hoover Washer | 166563 | Not Available |
| 80 | Not Available | Hoover Fan | 38755011 | Not Available |
| 81 | Not Available | Hoover Washer-Heat Insulation | 31162004 | Not Available |
| 82 | Not Available | Hoover Motor Pulley-Heat In | 38532009 | Not Available |
| 83 | Not Available | Hoover Screw | 21447007 | Not Available |
| 83 | Not Available | Hoover Screw | 21447003 | Not Available |
| 84 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 85 | Not Available | Hoover Main Body Assembly | 42242064 | Not Available |
| 86 | No Image | SPRING, BOTTOM PLATE Part Number: 012138FW for Hoover | 012138FW | $3.73Read more |
| 87 | Not Available | Hoover Rivet-Semi Tubular | 012503EF | Not Available |
| 88 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 89 | Not Available | Hoover Support Washer | 21312781 | Not Available |
| 89 | Not Available | Hoover Agitator Support Plate | 34355002 | Not Available |
| 90 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 91 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 92 | Not Available | Hoover Bottom Plate Complete | 42246008 | Not Available |
| 92 | No Image | BOTTOM PLATE, CURRENT CONVERTIBLES LARGE FIN Part Number: 42246038 for Hoover | 42246038 | $37.02Read more |
| 92 | Not Available | Hoover Bottom Plate - Plastic | 37245081 | Not Available |
| 93 | Not Available | Hoover Foot Pad | 38426072 | Not Available |
| 93 | Not Available | Hoover Foot Pad | 38426071 | Not Available |
| 94 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 94 | Not Available | Hoover Agitator Assembly | 48414006 | Not Available |
| 94 | Not Available | Hoover Agitator Assembly | 41435005 | Not Available |
| 95 | | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 96 | Not Available | Hoover Rivet | 12997AW | Not Available |
| 97 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 98 | Not Available | Hoover Furniture Guard | 016974JM | Not Available |
| 99 | Not Available | Hoover Furniture Guard | 017458JM | Not Available |
| 100 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 101 | Not Available | Hoover Retainer | 34312011 | Not Available |
| 102 | Not Available | Hoover Wire Holder | 45517 | Not Available |
| 103 | Not Available | Hoover Motor | 43574133 | Not Available |
| 103 | No Image | MOTOR, U4403 Part Number: 43574161 for Hoover | 43574161 | $118.20Read more |
| 104 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 105 | Not Available | Hoover Silmate Rtv | 68564063 | Not Available |
| 105 | Not Available | Hoover Screw | 017001FW | Not Available |
| 105 | Not Available | Hoover Lens | 162954CA | Not Available |
| 105 | Not Available | Hoover Lamp | 27313101 | Not Available |
| 105 | Not Available | Hoover Receptacle Terminal | 27725506 | Not Available |
| 105 | Not Available | Hoover Lamp Socket | 36912004 | Not Available |
| 105 | Not Available | Hoover Switch Button | 38421012 | Not Available |
| 105 | Not Available | Hoover Dirt Finder Lens | 39383074 | Not Available |
| 105 | Not Available | Hoover Owner Manual-U4119 | 56511085 | Not Available |
| 105 | Not Available | Hoover Owner Manual - U4303 | 56511132 | Not Available |
| 105 | Not Available | Hoover Owner Manual - U4119 | 56511224 | Not Available |
| 105 | Not Available | Hoover Owner Manual- U4395 | 56511246 | Not Available |
| 105 | Not Available | Hoover Owner Manual-U4519 | 56511327 | Not Available |
| 105 | Not Available | Hoover Front Support-C1067 | 58343025 | Not Available |
| 105 | Not Available | Hoover Rear Support - U4391 | 58366012 | Not Available |
| # | Part image | Description | SKU | Price |

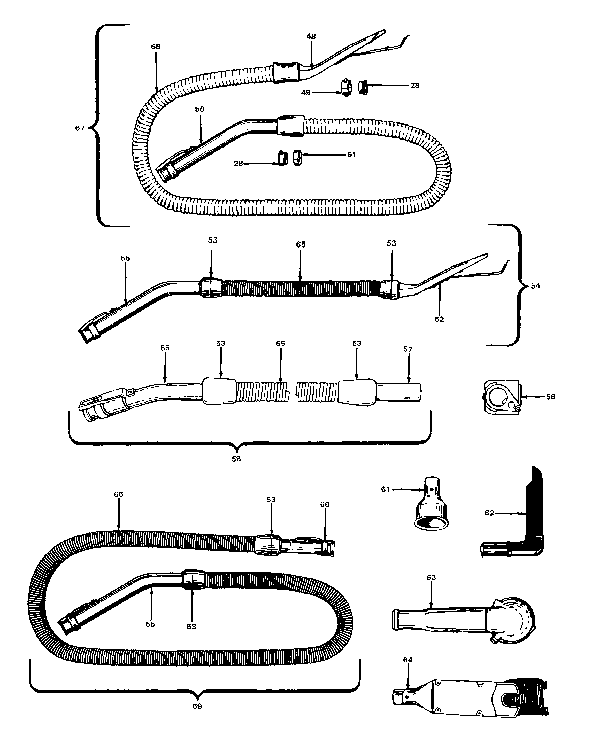

| 48 | Not Available | Hoover Hose End - Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Hose Grip W/Sc | 43466068 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM | Not Available |
| 54 | Not Available | Hoover Hose Assembly Complete | 012864JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 56 | Not Available | Hoover Converter Assembly | 43452503 | Not Available |
| 57 | Not Available | Hoover Hose Connector Tube | 017959A | Not Available |
| 57 | Not Available | Hoover Hose Connector Tube | 641398LL | Not Available |
| 58 | Not Available | Hoover Hose Complete | 019633JM | Not Available |
| 59 | Not Available | Hoover Hose-64 | 023007A | Not Available |
| 59 | Not Available | Hoover Hose Complete | 022671JM | Not Available |
| 60 | Not Available | Hoover Hose End 6400 | 34083 | Not Available |
| 60 | Not Available | Hoover Hose End Short 65 | 34355 | Not Available |
| 61 | Not Available | Hoover Blower-65 | 034984A | Not Available |
| 62 | Not Available | Hoover Converter Special | 35447 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector | 35190 | Not Available |
| 64 | Not Available | Hoover Connector | 034202JM | Not Available |
| 65 | Not Available | Hoover Hose-Less Ends-Ultra | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose Complete | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assembly Complete | 012864JM | Not Available |
| 68 | Not Available | Hoover Turbine Roto-Power B | 161728LL | Not Available |
| 68 | Not Available | Hoover Hose-Ultraflex-50 Ft | 169460JM | Not Available |
| 68 | Not Available | Hoover Hose-Tuflex-Jm-50 Ft | 43431011 | Not Available |
| # | Part image | Description | SKU | Price |

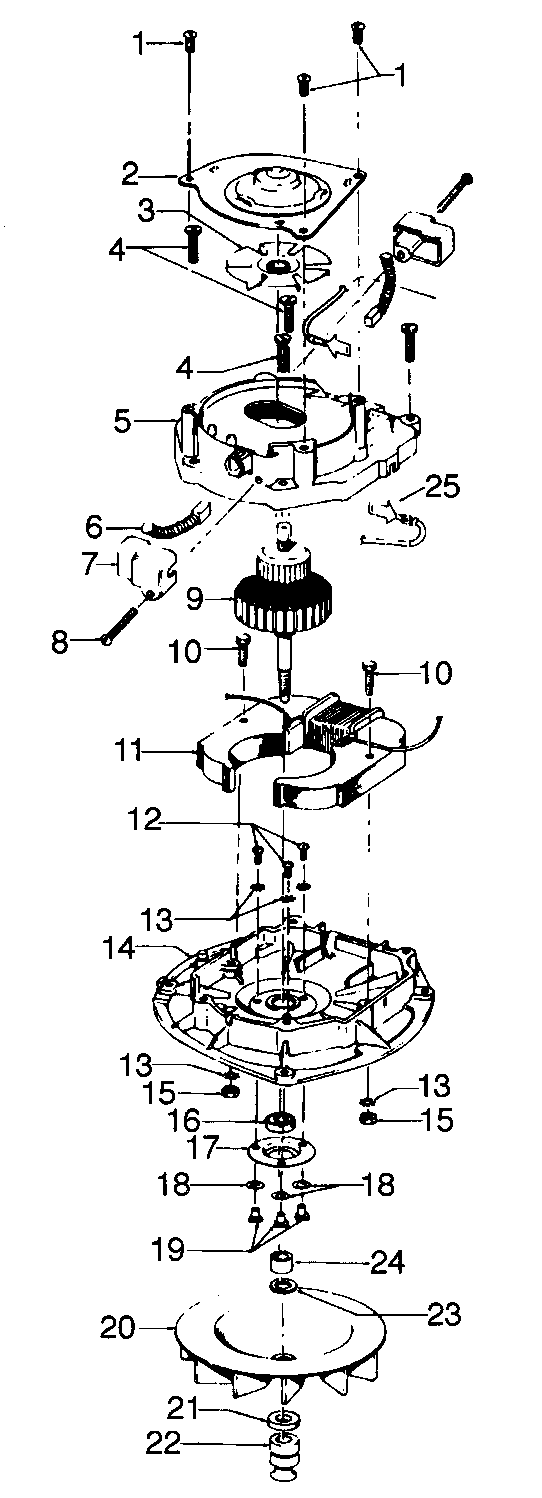

| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 3 | Not Available | Hoover Ventilating Fan | 38755004 | Not Available |
| 3 | Not Available | Hoover Vent Fan-Plastic | 38755005 | Not Available |
| 4 | Not Available | Hoover Screw | 161535 | Not Available |
| 5 | Not Available | Hoover Upper Motor Casing | 19857 | Not Available |
| 5 | Not Available | Hoover Upper Motor Casing | 42195003 | Not Available |
| 6 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 7 | Not Available | Hoover Brush Cap - U4313 | 36315003 | Not Available |
| 8 | Not Available | Hoover Screw | 046930AZ | Not Available |
| 9 | Not Available | Hoover Armature-8Mm | 44765085 | Not Available |
| 10 | Not Available | Hoover Field Bolt | 45118 | Not Available |
| 11 | Not Available | Hoover Field Coil | 45412018 | Not Available |
| 11 | Not Available | Hoover Field Coil | 45412017 | Not Available |
| 11 | Not Available | Hoover Field Coil | 45412014 | Not Available |
| 11 | Not Available | Hoover Field - U4523 | 45421020 | Not Available |
| 11 | Not Available | Hoover Field-U4361 | 45421015 | Not Available |
| 11 | Not Available | Hoover Field Coil | 45412015 | Not Available |
| 12 | Not Available | Hoover Screw | 21772501 | Not Available |
| 13 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Hoover Motor Case Left Hand | 42193006 | Not Available |
| 15 | Not Available | Hoover Nut Hex 5140 | 15673 | Not Available |
| 16 | Not Available | Hoover Bearing Assembly Comp-8 | 43267006 | Not Available |
| 16 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Hoover Bearing Retainer-8Mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer-Lock-843 | 19772 | Not Available |
| 19 | Not Available | Hoover Nut | 45251 | Not Available |
| 20 | Not Available | Hoover Fan | 38755011 | Not Available |
| 21 | Not Available | Hoover Washer-Heat Insulation | 31162004 | Not Available |
| 22 | Not Available | Hoover Motor Pulley-Heat In | 38532009 | Not Available |
| 22 | Not Available | Hoover Motor Pulley - U4479 | 38532015 | Not Available |
| 23 | Not Available | Hoover Washer | 166563 | Not Available |
| 24 | Not Available | Hoover Spacer-U4405 | 31731006 | Not Available |
| 24 | Not Available | Hoover Fan Spacer-8Mm | 31731002 | Not Available |
| 25 | Not Available | Hoover Motor Assembly | 43574174 | Not Available |
| 25 | No Image | MOTOR, U4403 Part Number: 43574161 for Hoover | 43574161 | $118.20Read more |
| 25 | Not Available | Hoover Motor | 43574141 | Not Available |
| 25 | Not Available | Hoover Motor | 43574140 | Not Available |
| 25 | Not Available | Hoover Motor | 43574133 | Not Available |
| 25 | Not Available | Hoover Motor Complete-U4383 | 43574053 | Not Available |
| 25 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Hoover Motor - U4377-935 | 43574190 | Not Available |
| 26 | Not Available | Hoover Armature-Spacer/Splice | 40300014 | Not Available |
