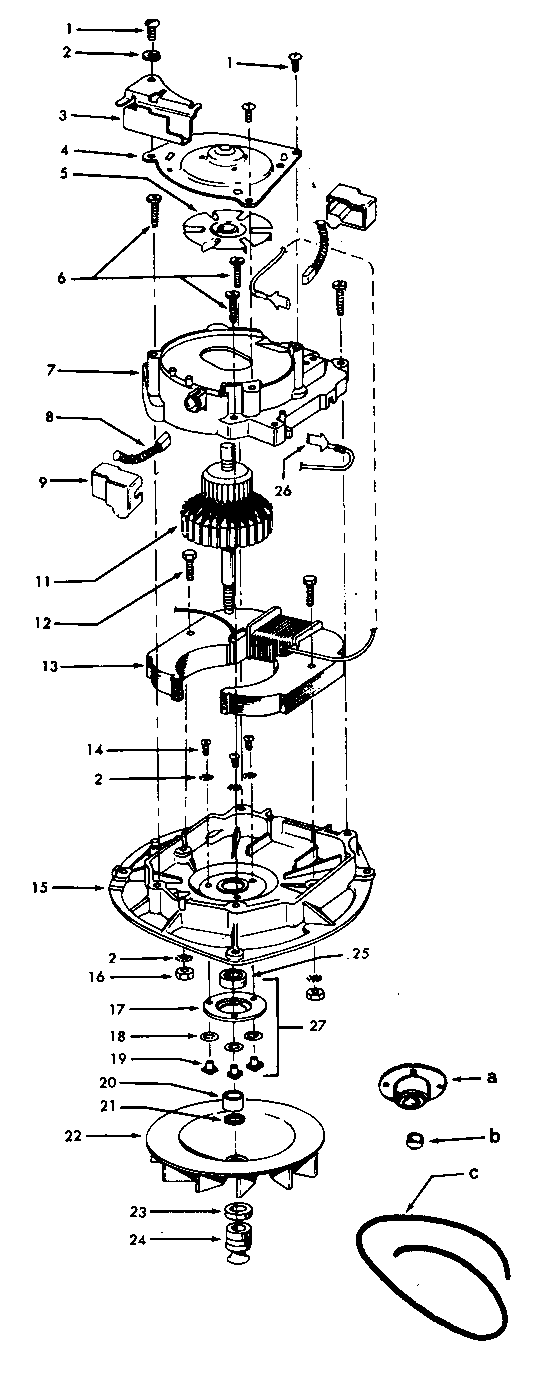

Schematic and parts list for: Hoover Model: U4313
This is a list of parts and a diagram and schematic for: Hoover Model: U4313
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard & Sp - | 49180 | Not Available |
| 1 | Not Available | Hoover Thread Guard-Left Hand | 36423003 | Not Available |
| 2 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 4 | Not Available | Hoover Agitator Assembly | 48414007 | Not Available |
| 4 | Not Available | Hoover Agitator Assembly | 48414006 | Not Available |
| 4 | Not Available | Hoover 4 Brush Agitator | 48414003 | Not Available |
| 4 | Not Available | Hoover Agitator - Four Brush | 48414002 | Not Available |
| 4 | Not Available | Hoover Agitator End Assembly | 41435070 | Not Available |
| 4 | Not Available | Hoover Agitator Assembly Comp- | 41435005 | Not Available |
| 4 | Not Available | Hoover Agitator Complete | 169371MF | Not Available |
| 4 | Not Available | Hoover Agitator End | 160542 | Not Available |
| 4 | Not Available | Hoover Agitator End 65 | 22554 | Not Available |
| 5 | Not Available | Hoover Agitator Brush Back | 48445001 | Not Available |
| 5 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Agitator Brush-Nylon | 012998BZ | Not Available |
| 6 | Not Available | Hoover Agitator Shaft | 12981 | Not Available |
| 6 | Not Available | Hoover Agitator Shaft | 32724008 | Not Available |
| 7 | Not Available | Hoover Thread Guard Rh | 12985AY | Not Available |
| 7 | Not Available | Hoover Thread Guard-Rh | 36423007 | Not Available |
| 8 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Furniture Brush | 43414016 | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Swivel Connector | 38644020 | Not Available |
| 7 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 8 | Not Available | Hoover Brush Back | 48447001 | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 14 | Not Available | Hoover Curved Tube Assembly | 43466037 | Not Available |
| 14 | Not Available | Hoover Hose Tube Assembly | 43466040 | Not Available |
| 24 | Not Available | Hoover Converter Body Assembly | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag | 58544004 | Not Available |
| 26 | Not Available | Hoover Hose Connector-Short | 32288007 | Not Available |
| 26 | Not Available | Hoover Hose Connector | 32288003 | Not Available |
| 27 | Not Available | Hoover Hose Assembly Comp - Aa | 43434203 | Not Available |
| 27 | Not Available | Hoover Hose Less Ends Molded | 38671001 | Not Available |
| 28 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 28 | No Image | FAN, ROTATING Part Number: 31213-1 for Lamb | 312131 | $23.17Read more |
| 29 | Not Available | Hoover Hose Connector | 36171025 | Not Available |
| 29 | Not Available | Hoover Hose Connector | 36116006 | Not Available |
| 30 | Not Available | Hoover Hose Grip W/Sc | 43466068 | Not Available |
| 30 | Not Available | Hoover Hose Connector Curve | 43466055 | Not Available |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 33 | Not Available | Hoover Latch Ring | 36153021 | Not Available |
| 34 | Not Available | Hoover Hose Assembly Comp | 43434209 | Not Available |
| 34 | Not Available | Hoover Hose Assembly Comp | 43434203 | Not Available |
| 47 | Not Available | Hoover Extension Wand | 43458001 | Not Available |
| 48 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Handle Grip | 023458PH | Not Available |
| 2 | Not Available | Hoover Cord | 46383137 | Not Available |
| 3 | Not Available | Hoover Attachment Cord | 46583031 | Not Available |
| 4 | Not Available | Hoover 7330-131P Plug Only | 25084 | Not Available |
| 5 | Not Available | Hoover Bolt & Nut | 48294AW | Not Available |
| 6 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 7 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Hoover Cord Protector | 36215021 | Not Available |
| 9 | Not Available | Hoover Bolt & Nut | 48294AW | Not Available |
| 9 | Not Available | Hoover Cord Retainer | 34785017 | Not Available |
| 9 | Not Available | Hoover Handle Bolt | 21631302 | Not Available |
| 9 | Not Available | Hoover Cord Clamp | 14492 | Not Available |
| 10 | Not Available | Hoover Handle Assembly Lower- | 48631006 | Not Available |
| 11 | Not Available | Hoover Switch Pedal | 38424003 | Not Available |
| 12 | Not Available | Hoover Circlip | 24735022 | Not Available |
| 13 | Not Available | Hoover Handle Plug | 37911035 | Not Available |
| 14 | Not Available | Hoover Switch | 28212017 | Not Available |
| 15 | Not Available | Hoover Handle Retainer Plat | 35463002 | Not Available |
| 16 | Not Available | Hoover Terminals | 12227 | Not Available |
| 16 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 17 | Not Available | Hoover Lead Wire Prot-Bail- | 36215002 | Not Available |
| 18 | Not Available | Hoover Bail Cover Plate | 37954001 | Not Available |
| 19 | Not Available | Hoover Screw Self Tapping | 21481273 | Not Available |
| 20 | Not Available | Hoover Support Spring | 38336014 | Not Available |
| 21 | Not Available | Hoover Outer Bag-Com-Top Fi | 43677322 | Not Available |
| 21 | Not Available | Hoover Outer Bag-Stripped | 43677117 | Not Available |
| 22 | Not Available | Hoover Top Fill Tube | 38657004 | Not Available |
| 22 | Not Available | Hoover Top Fill Tube & Seal | 43482058 | Not Available |
| 23 | No Image | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 24 | Not Available | Hoover Outer Bag Comp | 43678330 | Not Available |
| 24 | Not Available | Hoover Outer Bag Comp-Guard | 43678307 | Not Available |
| 25 | Not Available | Hoover Screw | 21765159 | Not Available |
| 26 | Not Available | Hoover Bellows | 38673009 | Not Available |
| 27 | Not Available | Hoover Bag Flange W/Sealant | 41424011 | Not Available |
| 28 | Not Available | Hoover Nut | 015854EF | Not Available |
| 29 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 30 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 31 | Not Available | Hoover Screw-Sems | 23187363 | Not Available |
| 32 | Not Available | Hoover Ring Tongue Terminal | 27661503 | Not Available |
| 33 | Not Available | Hoover Strain Relief Mounting | 34223004 | Not Available |
| 34 | Not Available | Hoover Strain Relief | 39049 | Not Available |
| 35 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 36 | Not Available | Hoover Cord Cover Tubing - | 31727010 | Not Available |
| 37 | Not Available | Hoover Washer | 161507 | Not Available |
| 38 | Not Available | Hoover Foot Pad-Ds | 38426071 | Not Available |
| 38 | Not Available | Hoover Foot Pad-Jm | 38426072 | Not Available |
| 39 | Not Available | Hoover Nozzle Adj Lever | 43137013 | Not Available |
| 39 | Not Available | Hoover Nozzle Adjustment Lever | 161571JM | Not Available |
| 39 | Not Available | Hoover Nozzle Adj Lever | 38452051 | Not Available |
| 40 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 41 | Not Available | Hoover Lock Ring | 017207AZ | Not Available |
| 41 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 42 | Not Available | Hoover Washer | 21312772 | Not Available |
| 43 | No Image | WHEEL, :( REAR EARLY CONVERTIBLE Part Number: 38521041 for Hoover | 38521041 | $4.20Read more |
| 44 | Not Available | Hoover Spacer | 31148004 | Not Available |
| 45 | Not Available | Hoover Cam Follower Assembly | 161514 | Not Available |
| 45 | Not Available | Hoover Cam Follower-Plastic | 43263003 | Not Available |
| 46 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 47 | Not Available | Hoover Rear Wheel Shaft | 33141015 | Not Available |
| 47 | Not Available | Hoover Rear Wheel Shaft | 33152003 | Not Available |
| 48 | Not Available | Hoover Spring | 161513 | Not Available |
| 49 | Not Available | Hoover Rivet-Tubular | 32242004 | Not Available |
| 50 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 51 |  | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | Not Available | Hoover Spring | 048409FW | Not Available |
| 53 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 54 | Not Available | Hoover Bail | 41416010 | Not Available |
| 55 | Not Available | Hoover Handle Control Lever-Jm | 43137036 | Not Available |
| 56 | Not Available | Hoover Foot Pad | 38426080 | Not Available |
| 57 | Not Available | Hoover Shaft | 613802AY | Not Available |
| 58 | Not Available | Hoover Mounting Bracket | 35217006 | Not Available |
| 59 | Not Available | Hoover Nut | 12560 | Not Available |
| 60 |  | Dust Brush, :( Black WindTunnel Upright Part Number: 43414197 for Hoover | 43414197 | $11.71Read more |
| 61 | Not Available | Hoover Insulating Pod | 160472 | Not Available |
| 62 | Not Available | Hoover Switch Actuator | 38452028 | Not Available |
| 63 | Not Available | Hoover Screw Assembly | 23254001 | Not Available |
| 64 | Not Available | Hoover Switch | 019513AG | Not Available |
| 65 | Not Available | Hoover Upper Handle | 48644022 | Not Available |
| 66 | Not Available | Hoover Hood/Lens | 42251297 | Not Available |
| 66 | Not Available | Hoover Motor Hood | 161649JM | Not Available |
| 67 | Not Available | Hoover Lens | 162954CA | Not Available |
| 68 | | Plastic Wand Bissell repair part number: 1614279 | 1614279 | $13.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | Not Available | Hoover Switch Bracket | 34771001 | Not Available |
| 70 | Not Available | Hoover Screw | 45355 | Not Available |
| 70 | Not Available | Hoover Screw | 017001FW | Not Available |
| 71 | Not Available | Hoover Lamp | 27313101 | Not Available |
| 71 | Not Available | Hoover Dirt Finder Lamp | 42241 | Not Available |
| 72 | Not Available | Hoover Lamp Socket-L.V. | 36912004 | Not Available |
| 72 | Not Available | Hoover Dirt Finder Socket | 17016 | Not Available |
| 73 | Not Available | Hoover Screw | 45355 | Not Available |
| 74 | Not Available | Hoover Motor | 43574140 | Not Available |
| 75 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 76 | Not Available | Hoover Machine Screw | 21767082 | Not Available |
| 77 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 78 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 79 | Not Available | Hoover Front wheel Shaft | 047457AY | Not Available |
| 80 | Not Available | Hoover Front Wheel | 34791AG | Not Available |
| 81 | Not Available | Hoover Main Body Assembly | 42242064 | Not Available |
| 82 | Not Available | Hoover Furniture Guard | 36231037 | Not Available |
| 83 | No Image | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 84 | Not Available | Hoover Agitator Support Plate | 34355002 | Not Available |
| 85 | Not Available | Hoover Rivet Semi-Tubular | 32243001 | Not Available |
| 86 | Not Available | Hoover Agitator Clamp Spring | 047259AY | Not Available |
| 87 | Not Available | Hoover Rivet | 161882 | Not Available |
| 88 | Not Available | Hoover Cleaner Bottom | 34439 | Not Available |
| 89 | | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | Not Available | Hoover Agitator Assembly Comp- | 41435005 | Not Available |
| 91 | Not Available | Hoover Bottom Plate Latch Left | 35446005 | Not Available |
| 92 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 93 | Not Available | Hoover Bottom Plate Complete | 42246008 | Not Available |
| 94 | Not Available | Hoover Rivet | 12456 | Not Available |
| 95 | Not Available | Hoover Bottom Plate Latch-Right | 35446003 | Not Available |
| 96 | Not Available | Hoover Screw-Self Tapping | 16903 | Not Available |
| 96 | Not Available | Hoover Screw | 21447020 | Not Available |
| 97 | Not Available | Hoover Axle/Bag Flange | 35434040 | Not Available |
| 98 | Not Available | Hoover Front Support | 58343025 | Not Available |
| 98 | Not Available | Hoover Owner Manual | 56511150 | Not Available |
| 98 | Not Available | Hoover Owner Manual | 56511053 | Not Available |
| 98 | Not Available | Hoover Medallion | 51661008 | Not Available |
| 98 | Not Available | Hoover Cord Protector | 36215021 | Not Available |
| 98 | Not Available | Hoover Rear Support | 58366012 | Not Available |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 48 | Not Available | Hoover Hose End - Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Nozzle Position Bracket Assembly | 43468018 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 59 | Not Available | Hoover Hose Complete | 022671JM | Not Available |
| 60 | Not Available | Hoover Hose End Short | 34355 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector | 35190 | Not Available |
| 64 | Not Available | Hoover Connector | 034202JM | Not Available |
| 65 | Not Available | Hoover Hose-Less Ends-Ultra | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose Complete | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assembly Complete | 012864JM | Not Available |
| 68 | Not Available | Hoover Hose-Ultraflex-50 Ft | 169460JM | Not Available |
| 68 | Not Available | Hoover Hose-Tuflex-Jm-50 Ft | 43431011 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Armature-Spacer | 40300014 | Not Available |
| xx | Not Available | Hoover Indicator Guide | 35276006 | Not Available |
| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Ventilating Fan | 38755004 | Not Available |
| 6 | Not Available | Hoover Screw | 161535 | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing | 19857 | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | Not Available | Hoover Brush Cap | 36315003 | Not Available |
| 11 | Not Available | Hoover Armature-8Mm | 44765085 | Not Available |
| 12 | Not Available | Hoover Field Bolt | 45118 | Not Available |
| 13 | Not Available | Hoover Field Coil | 45412015 | Not Available |
| 13 | Not Available | Hoover Field Coil-Lv | 45412017 | Not Available |
| 14 | Not Available | Hoover Screw | 21772501 | Not Available |
| 15 | Not Available | Hoover Motor Case Lh | 42193006 | Not Available |
| 16 | Not Available | Hoover Nut Hex | 15673 | Not Available |
| 17 | Not Available | Hoover Bearing Retainer-8Mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer-Lock | 19772 | Not Available |
| 19 | Not Available | Hoover Nut | 45251 | Not Available |
| 20 | Not Available | Hoover Fan Spacer-8Mm | 31731002 | Not Available |
| 21 | Not Available | Hoover Washer | 166563 | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 23 | Not Available | Hoover Washer-Heat Insulation | 31162004 | Not Available |
| 24 | Not Available | Hoover Motor Pulley-Heat In | 38532009 | Not Available |
| 25 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Hoover Bearing Assembly | 43267006 | Not Available |
| 27 | Not Available | Hoover Fan Spacer | 163059 | Not Available |
| 27 | Not Available | Hoover Motor Gasket | 47232 | Not Available |
| 27 |  | Handle Main-steel Tube Part Number 19829 for Cleanmax Models CM-WAV | 19829 | $92.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
