Schematic and parts list for: Hoover Model: U4291
This is a list of parts and a diagram and schematic for: Hoover Model: U4291
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard-Lh | 36423003 | Not Available |
| 1 | Not Available | Hoover Thread Guard & Sp - | 049180- | Not Available |
| 2 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | Not Available | Hoover Agitator End | 160542- | Not Available |
| 4 | Not Available | Hoover Agitator End Assembl | 41435070 | Not Available |
| 4 | Not Available | Hoover Agitator End 65 | 022554- | Not Available |
| 5 | Not Available | Hoover Agitator Brush Back | 48445001 | Not Available |
| 5 | Not Available | Hoover Agitator Brush-Nylon | 012998BZ | Not Available |
| 5 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Agitator Shaft | 012981- | Not Available |
| 6 | Not Available | Hoover Agitator Shaft | 32724008 | Not Available |
| 7 | Not Available | Hoover Thread Guard Rh | 12985AY- | Not Available |
| 7 | Not Available | Hoover Thread Guard-Rh | 36423007 | Not Available |
| 10 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 10 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Hoover Agitator Assembly Co | 48414007 | Not Available |
| 11 | Not Available | Hoover Agitator Assembly Co | 48414006 | Not Available |
| 11 | Not Available | Hoover Agitator Complete-Ct | 169371MF | Not Available |
| 11 | Not Available | Hoover Agitator Assem Comp- | 41435005 | Not Available |
| 12 | Not Available | Hoover Agitator / Brush Roll Assembly - 4 Brush Sub: 48414021 - 2 Brush | 48414003 | Not Available |
| 12 | Not Available | Hoover Agitator - Four Brus | 48414002 | Not Available |
| 13 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 2 | Not Available | Hoover Outer Bag Comp-U4291 | 43678349 | Not Available |
| 3 | Not Available | Hoover Top Fill Tube | 38657004 | Not Available |
| 4 | Not Available | Hoover Outer Bag-U4291-021 | 43686193 | Not Available |
| 5 | Not Available | Hoover Support Spring | 38336014 | Not Available |
| 6 | Not Available | Hoover Bag Flange W/Sealant | 41424011 | Not Available |
| 7 | Not Available | Hoover Bellows-Jm | 38673009 | Not Available |
| 8 | No Image | SCREW, BELLOWS CLAMP 7069 Part Number: 21765140 for Hoover | 21765140 | $1.12Read more |
| 9 | Not Available | Hoover Nut | 015854EF | Not Available |
| 10 | Not Available | Hoover Handle Assem Comp-Ax | 48644118 | Not Available |
| 11 | No Image | SWITCH PLATE SCREWS Part Number: 21465314 for Hoover | 21465314 | $2.14Read more |
| 12 | Not Available | Hoover Switch Cover - Black | 37258110 | Not Available |
| 13 | Not Available | Hoover Switch Button | 38421012 | Not Available |
| 14 | Not Available | Hoover Switch | 281770KD | Not Available |
| 15 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 16 | Not Available | Hoover Switch Case | 37214070 | Not Available |
| 17 | Not Available | Hoover Handle Grip - Bu | 39454070 | Not Available |
| 18 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 19 | No Image | CORD, UPPER HANDLE W/PLUG U7063 Part Number: 47155005 for Hoover | 47155005 | $12.26Read more |
| 20 | Not Available | Hoover Upper Handle - Ax | 48644114 | Not Available |
| 21 | Not Available | Hoover Cord Assembly | 46383319 | Not Available |
| 22 | Not Available | Hoover Handle Clamp Bolt | 21631301 | Not Available |
| 22 | Not Available | Hoover Handle Bolt-U7047/45 | 21631302 | Not Available |
| 23 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 24 | Not Available | Hoover Handle Nut | 32277021 | Not Available |
| 25 | Not Available | Hoover Lower Handle - Chromium Plate | 32284023 | Not Available |
| 26 | Not Available | Hoover Screw Self Tapping | 21481273 | Not Available |
| 27 | Not Available | Hoover Bail Cover Plate | 37954001 | Not Available |
| 28 | Not Available | Hoover Handle Retainer Plat | 35463011 | Not Available |
| 29 | Not Available | Hoover Bail - Ag | 41416072 | Not Available |
| 30 | Not Available | Hoover Foot Pad-Ag -C1E03 | 38426080 | Not Available |
| 31 | Not Available | Hoover Hdl Cont Lever-Ag | 43137047 | Not Available |
| 32 | No Image | CORD, C1433 Part Number: 46321033 for Hoover | 46321033 | $19.25Read more |
| 32 | Not Available | Hoover Tubing-Ag-U7063 | 31728022 | Not Available |
| 33 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 34 | Not Available | Hoover Handle Cont Rol Pin | 011735- | Not Available |
| 35 | Not Available | Hoover Spring - Bag Flange Clamp | 048409FW | Not Available |
| 36 | Not Available | Hoover Bag Flange Clamp Lever | 019907- | Not Available |
| 37 | Not Available | Hoover Noz Adj Lever-Ag-4 P | 38452051 | Not Available |
| 38 | Not Available | Hoover Handle Cont Rol Pin | 011735- | Not Available |
| 39 | Not Available | Hoover Lock Ring | 013730- | Not Available |
| 40 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 41 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 42 | Not Available | Hoover Rear Wheel-Ag | 38521016 | Not Available |
| 43 | Not Available | Hoover Cam Follower-Plastic | 43263003 | Not Available |
| 44 | Not Available | Hoover Rear Wheel Shaft | 33152003 | Not Available |
| 45 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 46 | Not Available | Hoover Spring | 161513- | Not Available |
| 47 | Not Available | Hoover Washer | 21312806 | Not Available |
| 48 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 49 | Not Available | Hoover Screw | 21447003 | Not Available |
| 50 | Not Available | Hoover Rivet-Tubular | 32242004 | Not Available |
| 51 | Not Available | Hoover Baffle-C1085 | 34287012 | Not Available |
| 52 | Not Available | Hoover Retainer & Sleeving | 41119009 | Not Available |
| 53 | Not Available | Hoover Screw | 21447020 | Not Available |
| 54 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 55 | Not Available | Hoover Hood-Ag-U4291-021 | 42251341 | Not Available |
| 56 | Not Available | Hoover Screw-3616 | 160508- | Not Available |
| 57 | Not Available | Hoover Switch-Dual Voltage | 28177016 | Not Available |
| 58 | Not Available | Hoover Motor-Dual Volt-U429 | 43574186 | Not Available |
| 59 | No Image | BUMPER, C1429 UPRIGHT Part Number: 36231042 for Hoover | 36231042 | $12.15Read more |
| 60 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 61 | Not Available | Hoover Rivet | 048422- | Not Available |
| 62 | Not Available | Hoover Main Body-U4291-021 | 42242279 | Not Available |
| 63 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 64 | Not Available | Hoover Support Washer-Uprig | 21312781 | Not Available |
| 65 | Not Available | Hoover Frontwheel Shaft | 047457AY | Not Available |
| 66 | Not Available | Hoover Washer | 21312772 | Not Available |
| 67 | Not Available | Hoover Carrier Wheel-Ag | 38522013 | Not Available |
| 68 | Not Available | Hoover Screw | 21447003 | Not Available |
| 69 | Not Available | Hoover Latch-C1K01 | 36153006 | Not Available |
| 70 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 71 | | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 72 | Not Available | Hoover Bottom Plate - Plast | 37245081 | Not Available |
| 73 | Not Available | Hoover Screw | 21447009 | Not Available |
| 74 | Not Available | Hoover Owner Manual | 56511A02 | Not Available |
| 74 | Not Available | Hoover Front Support-U4291- | 58343033 | Not Available |
| 74 | Not Available | Hoover Rear Support-U4291-0 | 58366098 | Not Available |
| 74 | Not Available | Hoover Axle/Bag Flange Reta | 35434040 | Not Available |

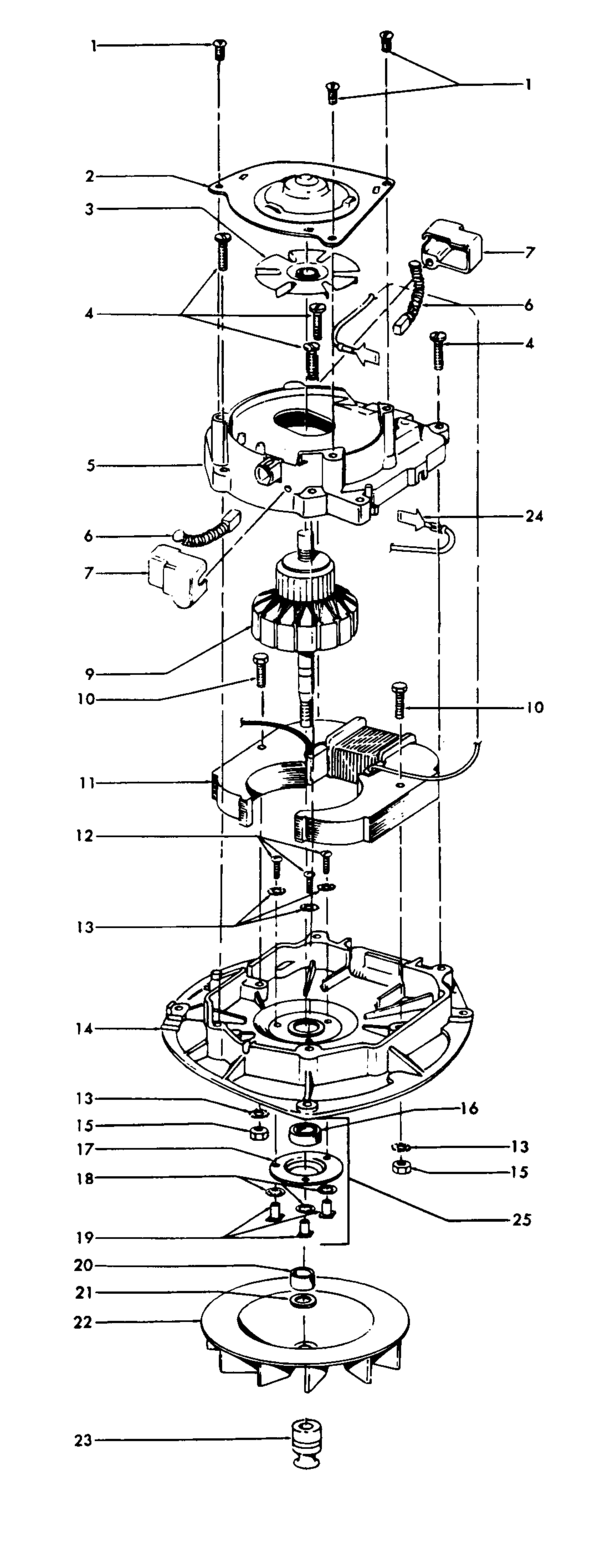

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY- | Not Available |
| 2 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 3 | Not Available | Hoover Vent Fan-Plastic-U44 | 38755005 | Not Available |
| 3 | Not Available | Hoover Ventilating Fan-U415 | 38755004 | Not Available |
| 4 | Not Available | Hoover Screw | 161535- | Not Available |
| 5 | Not Available | Hoover Upper Motor Casing-U | 42195003 | Not Available |
| 6 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 7 | Not Available | Hoover Brush Cap - U4313 | 36315003 | Not Available |
| 9 | Not Available | Hoover Exp-Armature Assembl | 44755008 | Not Available |
| 10 | Not Available | Hoover Field Bolt | 045118- | Not Available |
| 11 | Not Available | Hoover Field-U4291-021 | 45412036 | Not Available |
| 11 | Not Available | Hoover Field Coil - U4493-021 | 45412033 | Not Available |
| 12 | Not Available | Hoover Screw | 21772501 | Not Available |
| 13 | Not Available | Hoover Lock Washer | 014062- | Not Available |
| 14 | Not Available | Hoover Motor Case Lh | 42193006 | Not Available |
| 15 | Not Available | Hoover Nut Hex 5140 | 015673- | Not Available |
| 16 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Hoover Bearing Retainer-8Mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer-Lock-843 | 019772- | Not Available |
| 19 | Not Available | Hoover Nut | 045251- | Not Available |
| 20 | Not Available | Hoover Spacer-U4405 | 31731006 | Not Available |
| 21 | Not Available | Hoover Washer | 166563- | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 23 | Not Available | Hoover Motor Pulley | 43251003 | Not Available |
| 24 | Not Available | Hoover Terminal 1060 | 014320- | Not Available |
| 25 | Not Available | Hoover Bearing Assem Comp-8 | 43267006 | Not Available |
