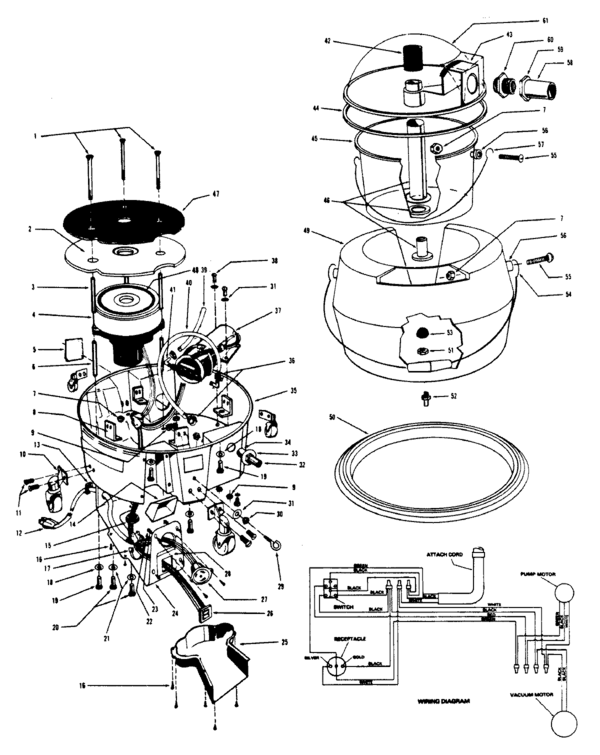

This is a list of parts and a diagram and schematic for: Hoover Model: S7001
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Bolt - C3007 | 21811016 | Not Available |
| 2 | Not Available | Hoover Plate & Gasket-S7001 | 41312003 | Not Available |
| 3 | Not Available | Hoover Spacer-Short-C | 1216015- | Not Available |
| 4 | Not Available | Hoover Vac Motor-S7001 | 1000102- | Not Available |
| 5 | Not Available | Hoover Exhaust Deflector-C | 1227035- | Not Available |
| 6 | Not Available | Hoover Spacer-S7001-Chemko | 31565003 | Not Available |
| 7 | Not Available | Hoover Nut-C2075 | 21854103 | Not Available |
| 8 | Not Available | Hoover Stanchion Bracket-S7 | 34513005 | Not Available |
| 9 | Not Available | Hoover Lock Nut-C3003 | 1107602- | Not Available |
| 10 | Not Available | Hoover Stanchion-S7001 | 1000104- | Not Available |
| 11 | Not Available | Hoover Screw-Chemko | 1105502- | Not Available |
| 12 | Not Available | Hoover Power Cord | 46562021 | Not Available |
| 13 | Not Available | Hoover Strain Relief-S7001- | 27482302 | Not Available |
| 14 | Not Available | Hoover Insulator-S7001 | 1506010- | Not Available |
| 15 | Not Available | Hoover Grommet-S7001 | 1512413- | Not Available |
| 16 | Not Available | Hoover Screw-C3005 | 1105512- | Not Available |
| 17 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 18 | Not Available | Hoover Washer-C9013 | 1107673- | Not Available |
| 19 | Not Available | Hoover Hex Bolt-C3003 | 1105567- | Not Available |
| 20 | Not Available | Hoover Bolt-C3003 | 1105501- | Not Available |
| 21 | Not Available | Hoover Washer-C3003 | 1107605- | Not Available |
| 22 | Not Available | Hoover Brass Nut-C3003 | 1307631- | Not Available |
| 23 | Not Available | Hoover Washer-S7001 | 1107699- | Not Available |
| 24 | Not Available | Hoover Control Panel - S700 | 1223193- | Not Available |
| 25 | Not Available | Hoover Splash Guard-C | 1536053- | Not Available |
| 26 | Not Available | Hoover Switch-C | 1524471- | Not Available |
| 27 | Not Available | Hoover Receptacle - C3007 | 27764001 | Not Available |
| 28 | Not Available | Hoover Switch Label-S7001 | 1537492- | Not Available |
| 29 | Not Available | Hoover Eye Bolt-S7001 | 1107614- | Not Available |
| 30 | Not Available | Hoover Nut-S7001 | 1107611- | Not Available |
| 31 | Not Available | Hoover Washer | 21312710 | Not Available |
| 32 | Not Available | Hoover Quick Connect-C3003 | 1308006- | Not Available |
| 33 | Not Available | Hoover Washer-S7001 | 1107604- | Not Available |
| 34 | Not Available | Hoover Barbed Fitting-S7001 | 1309007- | Not Available |
| 35 | Not Available | Hoover Base-S7001-071-Chemk | 37931003 | Not Available |
| 36 | Not Available | Hoover Hose Clamp | 25411049 | Not Available |
| 37 | Not Available | Hoover Pump-S7001 | 1510191- | Not Available |
| 38 | Not Available | Hoover Screw-S7001 | 1105533- | Not Available |
| 39 | Not Available | Hoover Hose - 3/8 X 10 - Vi | 1538028- | Not Available |
| 40 | Not Available | Hoover Hose-3/8 X 20 - Viny | 1538029- | Not Available |
| 41 | Not Available | Hoover Elbow-S7001 | 1509010- | Not Available |
| 42 | Not Available | Hoover Filter-S7001-Chemko | 43611010 | Not Available |
| 43 | Not Available | Hoover Deflector-Chemko | 43551014 | Not Available |
| 44 | Not Available | Hoover Gasket Assembly | 40300047 | Not Available |
| 45 | Not Available | Hoover Vac Bucket-S7001-Che | 43646005 | Not Available |
| 46 | Not Available | Hoover Stand Pipe-S7001 | 1333042- | Not Available |
| 47 | Not Available | Hoover Gasket-S7001-071-Che | 38785005 | Not Available |
| 48 | Not Available | Hoover Gasket - C3007 | 38784032 | Not Available |
| 49 | Not Available | Hoover Sol Tank-S7001-Chemk | 42272033 | Not Available |
| 50 | Not Available | Hoover Furniture Guard-Ly-S | 36233023 | Not Available |
| 51 | Not Available | Hoover Jam Nut-S7001 | 1307608- | Not Available |
| 52 | Not Available | Hoover Hose Fitting-C | 1328404- | Not Available |
| 53 | Not Available | Hoover Screen-S7001 | 1134054- | Not Available |
| 54 | Not Available | Hoover Handle-Sol Tank-S700 | 48662032 | Not Available |
| 55 | Not Available | Hoover Bolt-S7001-Chemko | 21811010 | Not Available |
| 56 | Not Available | Hoover Spacer-S7001-Chemko | 31732028 | Not Available |
| 57 | Not Available | Hoover Handle-C | 1130045- | Not Available |
| 58 | Not Available | Hoover Male Adapter-C | 1509049- | Not Available |
| 59 | Not Available | Hoover Retainer Nut-C | 1207616- | Not Available |
| 60 | Not Available | Hoover Brass Nut-C | 1307617- | Not Available |
| 61 | Not Available | Hoover Dome Lid Assembly-S7 | 42271004 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Pump Housing-C | 1535697- | Not Available |
| 2 | Not Available | Hoover Piston-C | 1549696- | Not Available |
| 3 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 6 | Not Available | Hoover Bearing Cover-C | 1535699- | Not Available |
| 7 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 8 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 10 | Not Available | Hoover Quick Connect-Female | 1308062- | Not Available |
| 11 | Not Available | Hoover Strap-S7001-Chemko | 48613001 | Not Available |
| 12 | Not Available | Hoover Vac Hose-10-C3003-Ch | 43433048 | Not Available |
| 13 | Not Available | Hoover Hose Tie-C | 1539057- | Not Available |
| 14 | Not Available | Hoover Solution Hose-Chemko | 43443003 | Not Available |
| 15 | Not Available | Hoover Quick Connect-Female | 1308061- | Not Available |
