Schematic and parts list for: Hoover Model: S3825

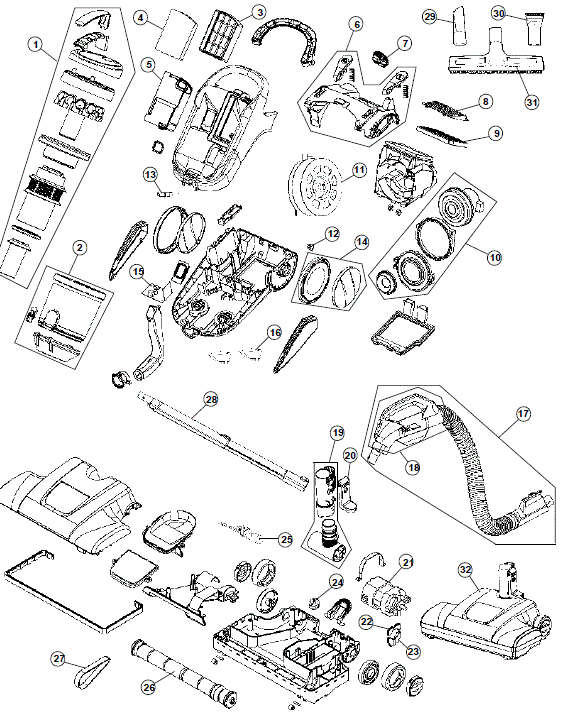

This is a list of parts and a diagram and schematic for: Hoover Model: S3825
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Elite Cyclonic
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Dirt Cup Lid Assembly | 59135332 | Not Available |
| 02 | Not Available | Hoover Dirt Cup Assembly | 59135333 | Not Available |
| 03 | Not Available | Hoover Pre-Motor Filter Frame Assembly | 59135326 | Not Available |
| 04 | Not Available | Hoover Pre-Motor Foam Filter | 59135311 | Not Available |
| 05 | No Image | COVER, FILTER PRE MOTOR S3825 ELITE BLUE Part Number: 59135327 for Hoover | 59135327 | $7.75Read more |
| 06 | Not Available | Hoover Rear Cover Assembly | 59135325 | Not Available |
| 07 | Not Available | Hoover Cord Exit Cover | 59135331 | Not Available |
| 08 | Not Available | Hoover Exhaust Filter Cover | 59135324 | Not Available |
| 09 | Not Available | Hoover Hepa Exhaust Filter - 1 Pack | AH40010 | Not Available |
| 10 | Not Available | Hoover Motor Assembly Complete | 59135320 | Not Available |
| 11 | Not Available | Hoover Cord Reel Assembly | 59135321 | Not Available |
| 12 | Not Available | Hoover Power Switch | 59135323 | Not Available |
| 13 | Not Available | Hoover Female Connector - Inlet | 59135328 | Not Available |
| 14 | Not Available | Hoover Rear Wheel / Hub Cap Assembly - 2 Sets | 59135329 | Not Available |
| 15 | Not Available | Hoover Pcb Assembly With Leads | 59135322 | Not Available |
| 16 | Not Available | Hoover Front Caster Wheel Assembly | 59135330 | Not Available |
| 17 | Not Available | Hoover Hose Assembly Complete With Handle Grip Assembly | 59135334 | Not Available |
| 18 | Not Available | Hoover Handle Grip With Wiring Assembly - Left | 59135335 | Not Available |
| 18 | Not Available | Hoover Power Switch | 59135323 | Not Available |
| 19 | Not Available | Hoover Quick Disconnect Assembly | 59135340 | Not Available |
| 20 | Not Available | Hoover Wand Release Pedal | 59135341 | Not Available |
| 21 | Not Available | Hoover Motor Assembly - Power Nozzle | 59135337 | Not Available |
| 22 | Not Available | Hoover Upper Motor Seal - Power Nozzle Motor | 59135338 | Not Available |
| 23 | Not Available | Hoover Lower Motor Seal - Power Nozzle Motor | 59135339 | Not Available |
| 24 | Not Available | Hoover Strain Relief | 59135319 | Not Available |
| 25 | Not Available | Hoover Light Bulb - | 59135317 | Not Available |
| 26 |  | Brushroll, :( S3825 Elite Cyclonic/Sh40040 Part Number: 59135316 for Hoover | 59135316 | $30.37Read more |
| 27 | Not Available | Hoover Belt | 59135309 | Not Available |
| 27 | Not Available | Hoover Belt - 2 Pack | AH20000 | Not Available |
| 28 | Not Available | Hoover Telescopic Wand Assembly | 59135313 | Not Available |
| 29 | Not Available | Hoover Crevice Tool | 59135314 | Not Available |
| 30 | Not Available | Hoover Dusting Brush Assembly | 59135315 | Not Available |
| 31 |  | ***SELL H-59156137 FLOOR BRUSH, HARD FLO0RS 12" Part Number: 59135318 for Hoover | 59135318 | $17.71Read more |
| 32 | Not Available | Hoover Power Nozzle Complete | 59135336 | Not Available |
