Schematic and parts list for: Hoover Model: S3577
This is a list of parts and a diagram and schematic for: Hoover Model: S3577
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies

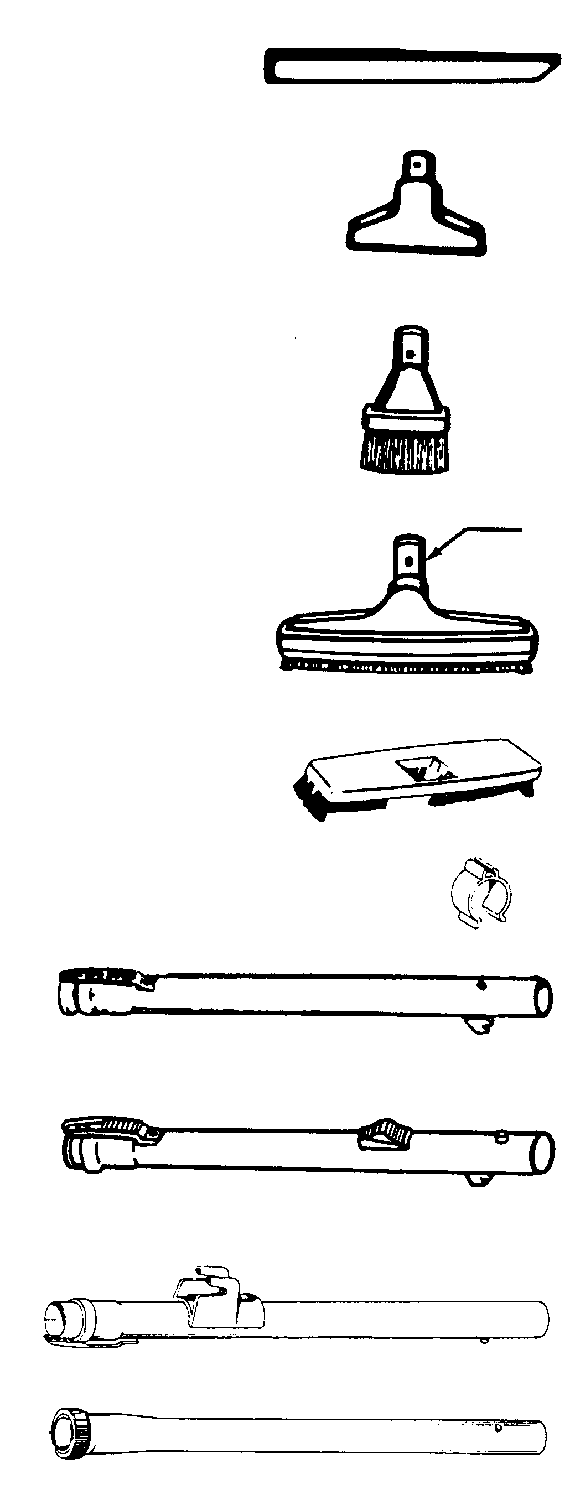

| # | Part image | Description | SKU | Price |
| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 02 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Hoover Furniture Nozzle-Abr | 43414141 | Not Available |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 04 | Not Available | Hoover Swivel Connector - A | 38644040 | Not Available |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 07 | Not Available | Hoover Cord/Wand Clip - Ag | 36172584 | Not Available |
| 08 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 08 | Not Available | Hoover Extension Tube-20-Ax | 43453052 | Not Available |
| 08 | Not Available | Hoover Extension Tube - Bl - 20 | 43453058 | Not Available |
| 09 | Not Available | Hoover Extension Tube-Ax-20 | 43453023 | Not Available |
| 10 | Not Available | Hoover Extension Tube-Ax-20 | 43453095 | Not Available |
| 10 | Not Available | Hoover Extension Tube-Ax (Gray Storage Clip) (Futura) | 43453098 | Not Available |
| 10 | Not Available | Hoover Extension Tube (Black Storage Clip) (Windtunnel Canister) | 43453099 | Not Available |
| 11 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cord Reel Pedal-Ag-S | 38422155 | Not Available |
| 02 | Not Available | Hoover Cord Reel Brakearm-A | 38458034 | Not Available |
| 03 | Not Available | Hoover Spring-Fw-S3605 | 38314024 | Not Available |
| 04 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 05 | Not Available | Hoover Terminals-0513 | 012227-- | Not Available |
| 05 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 06 | Not Available | Hoover Motor Retainer Assembly (Incl. It. 7,44,45) | 41312040 | Not Available |
| 07 | Not Available | Hoover Retainer Seal-Rh-S35 | 34633003 | Not Available |
| 08 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 09 | Not Available | Hoover Furniture Guard-Ag-S | 36235069 | Not Available |
| 10 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 11 | Not Available | Hoover Motor Assembly - S3530, S3577 | 43576184 | Not Available |
| 11 | No Image | MOTOR, FUTURA CANISTER S3567 S3569 S3573 S3577 Part Number: 43576186 for Hoover | 43576186 | $187.10Read more |
| 12 | Not Available | Hoover Terminal-Insulated-U | 018972-- | Not Available |
| 13 | Not Available | Hoover Cord Reel Assembly | 41911014 | Not Available |
| 18 | Not Available | Hoover Turbine Hand Tool Turbine Hand Tool - S3580-050 | 40200013 | Not Available |
| 18 | Not Available | Hoover Bag Lid-Ag S3580-050 | 42217190 | Not Available |
| 20 | Not Available | Hoover Attachment Cord-Ag-S | 46383288 | Not Available |
| 21 | Not Available | Hoover Ferrule | 36218018 | Not Available |
| 24 | Not Available | Hoover Wheel-Ag-S3585 | 38522065 | Not Available |
| 29 | Not Available | Hoover Main Body-Abu-S3559 (Incl. It. 9,30,33) | 42215084 | Not Available |
| 29 | Not Available | Hoover Main Body Assembly-Ag-S3 S3577 (Incl. Items 9, 30, 33) | 42215088 | Not Available |
| 30 | Not Available | Hoover Receptacle Assembly-Ag- | 46326082 | Not Available |
| 31 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 32 | Not Available | Hoover Screw-Self Tapping | 21447223 | Not Available |
| 33 | Not Available | Hoover Cord Channel Cover-A S3577 | 36218020 | Not Available |
| 33 | Not Available | Hoover Cord Channel Cover-A | 36218021 | Not Available |
| 34 | Not Available | Hoover Bag Collar Support | 36424010 | Not Available |
| 35 | Not Available | Hoover Futura/Spect Bag - 3-Pk Throw Away Bag - 3 Pk. | 4010064S | Not Available |
| 36 | Not Available | Hoover Bag Indicator | 51151010 | Not Available |
| 37 | Not Available | Hoover Bag Collar Seal-Ag | 36424012 | Not Available |
| 38 | Not Available | Hoover Bag Lid Hinge | 36151027 | Not Available |
| 39 | Not Available | Hoover Filter Retainer | 37944005 | Not Available |
| 40 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $3.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Hoover Bag Lid-S3577-Afg S3577 (Use 42212135 Bag Lid Assembly - Common - Ag) | 42217171 | Not Available |
| 41 | Not Available | Hoover Bag Lid-S3569-Afg S3569 (Incl. Items 36,37,42,43) ( Allergen Filtration Graphics) | 42217167 | Not Available |
| 41 | Not Available | Hoover Bag Lid-S3567-Afg S3567 (Incl. Items 36,37,42,43) (Allergen Filtration Graphics) | 42217166 | Not Available |
| 41 | Not Available | Hoover Bag Lid-Abm-S3573 S3573 (Incl. Items 36,37,42,43) | 42217153 | Not Available |
| 41 | Not Available | Hoover Bag Lid Assembly-Aay-S3 S3577 (Incl. Items 36,37,42,43) | 42217135 | Not Available |
| 41 | Not Available | Hoover Bag Lid-Aay-S3569 S3569 (Use 42212135 Bag Lid - Common - Ag)(Incl. Items 36,37,42,43) | 42217118 | Not Available |
| 41 | Not Available | Hoover Bag Lid-Common-Ag/W S3567,(Incl. Items 36,37,42,43) | 42212135 | Not Available |
| 42 | Not Available | Hoover Torsion Spring | 38351009 | Not Available |
| 43 | Not Available | Hoover Bag Lid Latch-Ag-S35 | 36153040 | Not Available |
| 44 | Not Available | Hoover Retainer Seal-Lh | 34633002 | Not Available |
| 45 | Not Available | Hoover Retainer Seal-Center | 34123040 | Not Available |
| 46 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 47 | Not Available | Hoover Switch Mounting Plat | 34135014 | Not Available |
| 48 | Not Available | Hoover Motor Cover-Aaby-S35 S3530 (Inc. Items 1, 2, 3) | 0M100240 | Not Available |
| 48 | Not Available | Hoover Motor Cover-Abm-S357 Abm - S3573 (Incl. Items 1, 2, 3) | 0M100195 | Not Available |
| 48 | Not Available | Hoover Motor Cover-Abc-S356 Abc - S3567 (Incl. Items 1, 2, 3) | 0M100194 | Not Available |
| 48 | Not Available | Hoover Motor Cover-Aay-S356 Aay - S3569 (Incl. Items 1, 2, 3) | 0M100193 | Not Available |
| 48 | Not Available | Hoover Motor Cover Assembly-Ag Ag - S3577, S3580-050 (Incl. Items 1, 2, 3) | 0M100006 | Not Available |
| 49 | Not Available | Hoover Switch Pedal W/O Pos W/O Post - See Note 2 | 38422184 | Not Available |
| 50 | Not Available | Hoover Top Support - S3525 | 58216013 | Not Available |
| 50 | Not Available | Hoover Bottom Support - Rea | 58211012 | Not Available |
| 50 | Not Available | Hoover Bottom Support - Fro | 58211011 | Not Available |
| 50 | Not Available | Hoover Owner Manual-S3577 S3577 (After 07/23/99) | 56513355 | Not Available |
| 50 | Not Available | Hoover Owner Manual-S3620/2 S3530, S3580-050 | 56513345 | Not Available |
| 50 | No Image | OWNER'S MANUAL, FUTURA Part Number: 56513344 for Hoover | 56513344 | $11.71Read more |
| 50 | Not Available | Hoover Spring-S3523 | 38314026 | Not Available |
| 52 | Not Available | Hoover Power Nozzle-Abe-S35 | 48438256 | Not Available |
| 52 | Not Available | Hoover Power Nozzle-Aby-S35 | 48438079 | Not Available |
| 52 | Not Available | Hoover Extension Tube-Ax | 43453098 | Not Available |
| 52 | Not Available | Hoover Ext Tube-20-Ax | 43453052 | Not Available |
| 52 | Not Available | Hoover Extension Tube-Ax-20 | 43453023 | Not Available |
| 52 | Not Available | Hoover Hose-2W-Ag-S3530 S3530, (S3577 After 07/23/99), S3580-050 | 43433113 | Not Available |
| 52 | Not Available | Hoover Hose-Ag-S3520 S3567, S3569, S3573, S3577 See Note Below | 43433107 | Not Available |
| 52 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 52 | Not Available | Hoover Powered Nozzle-Ag-S3 S3577, S3580-050 Model S3577 | 48438259 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Hose W/Sc-Abx/Ag-S35 | 43434242 | Not Available |
| 01 | Not Available | Hoover Hose Grip - Aap - S/ | 43466044 | Not Available |
| 01 | Not Available | Hoover Hose Grip W/Sc-Ag-S1 | 43466068 | Not Available |
| 01 | Not Available | Hoover Hose Grip Assembly-S35 | 43466072 | Not Available |
| 02 | Not Available | Hoover Suction Control Ring-U4 | 38711006 | Not Available |
| 02 | Not Available | Hoover Suction Control Ring | 38711012 | Not Available |
| 02 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 03 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 04 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 05 | Not Available | Hoover Hose - Aav | 38671029 | Not Available |
| 05 | Not Available | Hoover Hose-Abx-S3393-040 | 38671033 | Not Available |
| 05 | Not Available | Hoover Cl Tool Hose-S3510 | 38671034 | Not Available |
| 06 | Not Available | Hoover Hose Connector-Ag-S3 | 38644044 | Not Available |
| 07 | Not Available | Hoover Hose-Abx/Ag-S3523 | 43434241 | Not Available |
| 08 | Not Available | Hoover Hose Grip Assembly-Aap- | 43466054 | Not Available |
| 09 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 09 | Not Available | Hoover Hose Grip-Ag-S1315 | 43466066 | Not Available |
| 09 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 10 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 11 | Not Available | Hoover Hose - Aav | 38671029 | Not Available |
| 11 | Not Available | Hoover Hose-Abx-S3393-040 | 38671033 | Not Available |
| 12 | Not Available | Hoover Hose Connector-Ag-S3 | 38644044 | Not Available |
| 13 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 14 | Not Available | Hoover Hose-S3559 | 43448002 | Not Available |
| 14 | Not Available | Hoover Hose-Ag-S3520 | 43433107 | Not Available |
| 14 | Not Available | Hoover Plug Latch-Ag-S3603- | 36152029 | Not Available |
| 15 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 16 | Not Available | Hoover Suction Regulator-S3 | 34777005 | Not Available |
| 17 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 17 | Not Available | Hoover Cord Repair Kit-Spec Cord Repair Kit - 2W | 40300051 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nut | 012028-- | Not Available |
| 01 | Not Available | Hoover Motor-S3523 | 43576161 | Not Available |
| 02 | Not Available | Hoover Washer | 21312774 | Not Available |
| 03 | Not Available | Hoover Fan Cover - S1311 | 37196065 | Not Available |
| 04 | Not Available | Hoover Fan | 43551008 | Not Available |
| 05 | Not Available | Hoover Bearing Spacer | 31148011 | Not Available |
| 06 | Not Available | Hoover Diffuser Assembly | 43551030 | Not Available |
| 08 | Not Available | Hoover Armature Assembly Comp-S | 44765220 | Not Available |
| 09 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 10 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 11 | Not Available | Hoover Brush Housing-Only-S | 168038AG | Not Available |
| 12 | Not Available | Hoover Brush Housing Comp-S | 168506-- | Not Available |
| 13 | Not Available | Hoover Carbon Brush Complete | 167679-- | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Motor Housing Assembly-S | 42193025 | Not Available |
| 16 | Not Available | Hoover Field Lamination | 21447222 | Not Available |
| 17 | Not Available | Hoover Lead Wire Assembly | 461760 | Not Available |
| 18 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 19 | Not Available | Hoover Field Coil-C2075 | 45311048 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nozzle Body Assembly-Aa (Incl. It 28) | 42252201 | Not Available |
| 01 | Not Available | Hoover Powered Nozzle-Ag-S3 Power Nozzle - Ag - S3577, S3580-050 | 48438259 | Not Available |
| 01 | Not Available | Hoover Power Nozzle-Abe-S35 | 48438256 | Not Available |
| 01 | Not Available | Hoover Power Nozzle Assembly - S3621(Use 48438230) | 48438248 | Not Available |
| 01 | Not Available | Hoover Powered Nozzle-S3629 S3629 (Use 48438055) | 48438246 | Not Available |
| 01 | No Image | POWER NOZZLE, S3545/S3549 FUTURA Part Number: 48438230 for Hoover | 48438230 | $142.66Read more |
| 01 | Not Available | Hoover Powered Nozzle-Abe-S S3563 (Use 48438230) | 48438071 | Not Available |
| 01 | Not Available | Hoover Nozzle Body Assembly (Allergen Filtration Graphics) (Inc. Item 28) | 42252A52 | Not Available |
| 01 | Not Available | Hoover Nozzle Body Assembly-Ag- (Incl. Item 28) | 42252A09 | Not Available |
| 01 | Not Available | Hoover Nozzle Body-Abe-S356 (Incl. It 28) | 42252216 | Not Available |
| 02 | Not Available | Hoover Terminal-Insulated-U | 018972-- | Not Available |
| 02 | Not Available | Hoover Terminals-0513 | 012227-- | Not Available |
| 04 | Not Available | Hoover Motor Assembly Complete | 43177062 | Not Available |
| 05 | Not Available | Hoover Dirt Finder Socket | 47171020 | Not Available |
| 06 | Not Available | Hoover Grommet | 36218016 | Not Available |
| 07 | Not Available | Hoover Screw | 21447003 | Not Available |
| 08 | Not Available | Hoover Rear Seal | 34253018 | Not Available |
| 09 | Not Available | Hoover Duct Cover Assembly (Incl. Items 5,6,8,22) | 42256099 | Not Available |
| 10 | Not Available | Hoover Cord Assembly | 46321088 | Not Available |
| 11 | Not Available | Hoover Strain Relief - 6460 | 163768-- | Not Available |
| 12 |  | SPRING, DETENT Part Number: 35276008 for Hoover | 35276008 | $2.23Read more |
| 25 | No Image | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Add to cart |
